JZX110W-AWASH (2002)

Toyota Mark 2/Mark 2 Blit

Production Jan 2002 - Jun 2007
Engine 1JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )WG

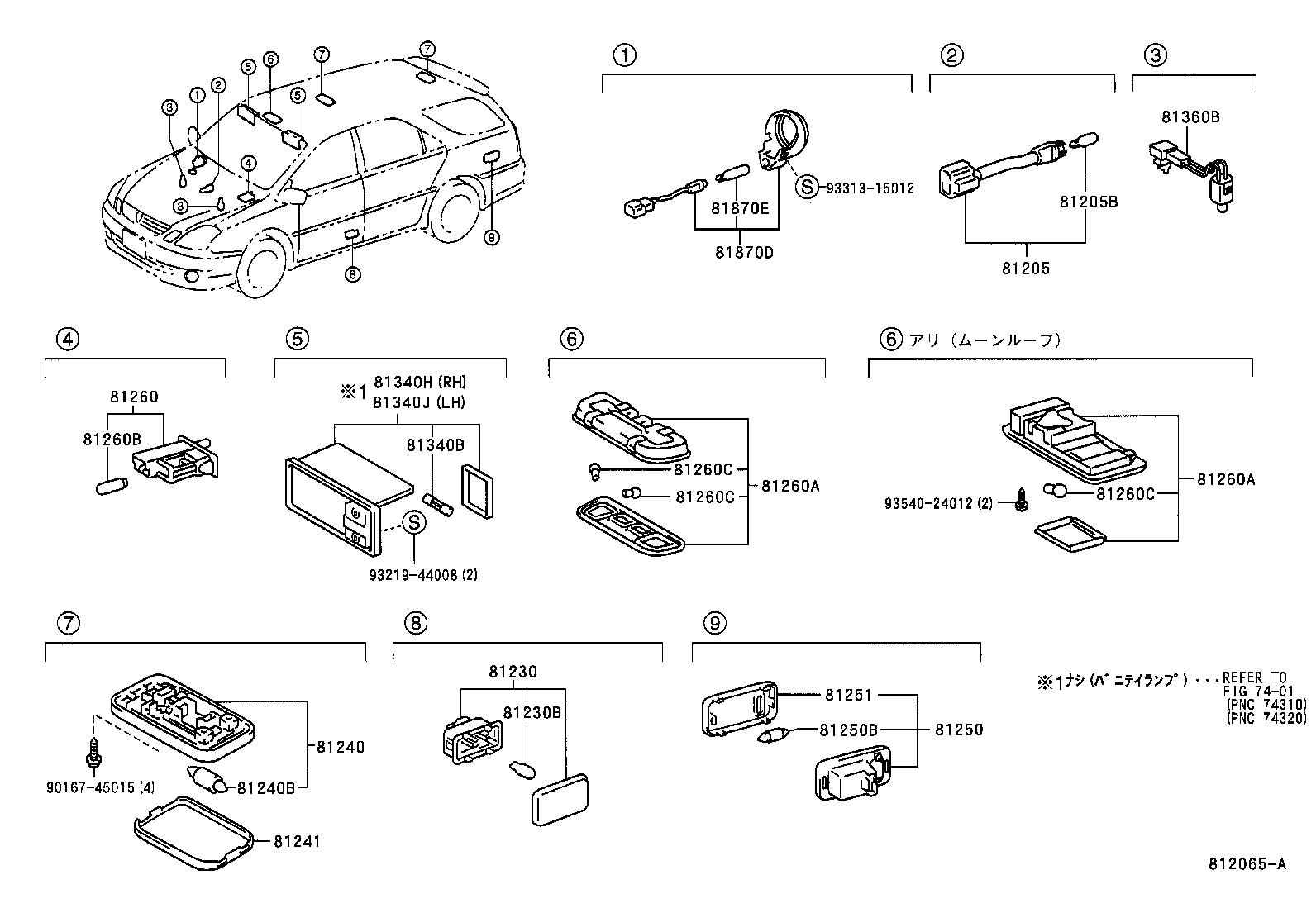

Click highlighted areas on diagram

diagram 7401 81205 81205B 81230 81230B 81240 81240B 81241 81250 81250B 81251 81260 81260A 81260A 81260B 81260C 81260C 81260C 81340B 81340H 81340J 81360B 81870D 81870E 9016745015 9321944008 9331315012 9354024012
Part # Description Qty Price
81205 - LAMP SUB-ASSY, ASH RECEPTACLE
81850-53011

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 1
81205B - BULB, ASH RECEPTACLE LAMP
90981-11014

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

14V 1.4W

 1
81230 - LAMP ASSY, COURTESY
81230-50040

GX11#,JZX11#..WG

 2
81230B - BULB(FOR COURTESY LAMP)
90981-11020

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

12V 3.8W

 2
81240 - LAMP ASSY, ROOM, NO.1
81023-22010B0

GX11#,JZX11#..WG

MD.CHARCOAL,TRIM1#,2#

 2
81240B - BULB, ROOM LAMP, NO.1
90981-14004

GX11#,JZX11#..WG

12V 8W

 2
81241 - LENS, ROOM LAMP, NO.1
81241-32031

GX11#,JZX11#

 1
81241-51010

GX11#,JZX11#..WG

 2
81250 - LAMP ASSY, ROOM, NO.2
81250-12030C0

GX11#,JZX11#..WG

BLACK,TRIM2#

 1
81250-12030B3

GX11#,JZX11#..WG

MD.CHARCOAL,TRIM1#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

GX11#,JZX11#..WG

12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-12030

GX11#,JZX11#..WG

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22160

GX11#,JZX11#

 1
81260-33030

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 1
81260A - LAMP ASSY, MAP
81260-22180B1

JZX11#..IRS

MD.CHARCOAL,TRIM1#,2#

 1
81260-32090B2

GX11#,JZX11#..WG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MD.CHARCOAL,TRIM1#,2#

 1
81260-22190B0

JZX11#..IRS

ｱﾘ(ｲﾙﾐﾈ-ｼﾖﾝ),MD.CHARCOAL,TRIM1#,2#

 1
81260A - LAMP ASSY, MAP
81260-22180B1

JZX11#..IRS

MD.CHARCOAL,TRIM1#,2#

 1
81260-32090B2

GX11#,JZX11#..WG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MD.CHARCOAL,TRIM1#,2#

 1
81260-22190B0

JZX11#..IRS

ｱﾘ(ｲﾙﾐﾈ-ｼﾖﾝ),MD.CHARCOAL,TRIM1#,2#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

12V 1.2W ｿｹｯﾄ無し

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

GX11#,JZX11#..WG

12V 10W

 1
90981-12020

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12014

GX11#,JZX11#..WG

12V 10W

 1
90981-12020

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12014

GX11#,JZX11#..WG

12V 10W

 1
90981-12020

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

12V 8W

 2
81340B - BULB (FOR VANITY LAMP)
90981-14007

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

12V 3W,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ

 2
81340H - LAMP ASSY, VANITY, RH
81350-30050B0

GX11#,JZX11#..WG

MD.CHARCOAL,TRIM1#,2#

 1
81340J - LAMP ASSY, VANITY, LH
81340-30090B0

GX11#,JZX11#..WG

MD.CHARCOAL,TRIM1#,2#

 1
81360B - BULB, STEP OR SPOT LAMP
81090-50010

JZX11#..GDG,GDGT,IRS,IRV

12V 1.8W

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-22080

GX11#,JZX11#..IR,IRS

 1
81870E - BULB, KEY CYLINDER LAMP
90010-01069

GX11#,JZX11#..IR,IRS

14V 1.4W,ｷｬｯﾌﾟ付き

 1
Common parts
90167-45015
93219-44008
93313-15012
93540-24012
Linked diagrams
7401
