JZX110-AEPZZ (2000)
Toyota Mark 2/Mark 2 Blit

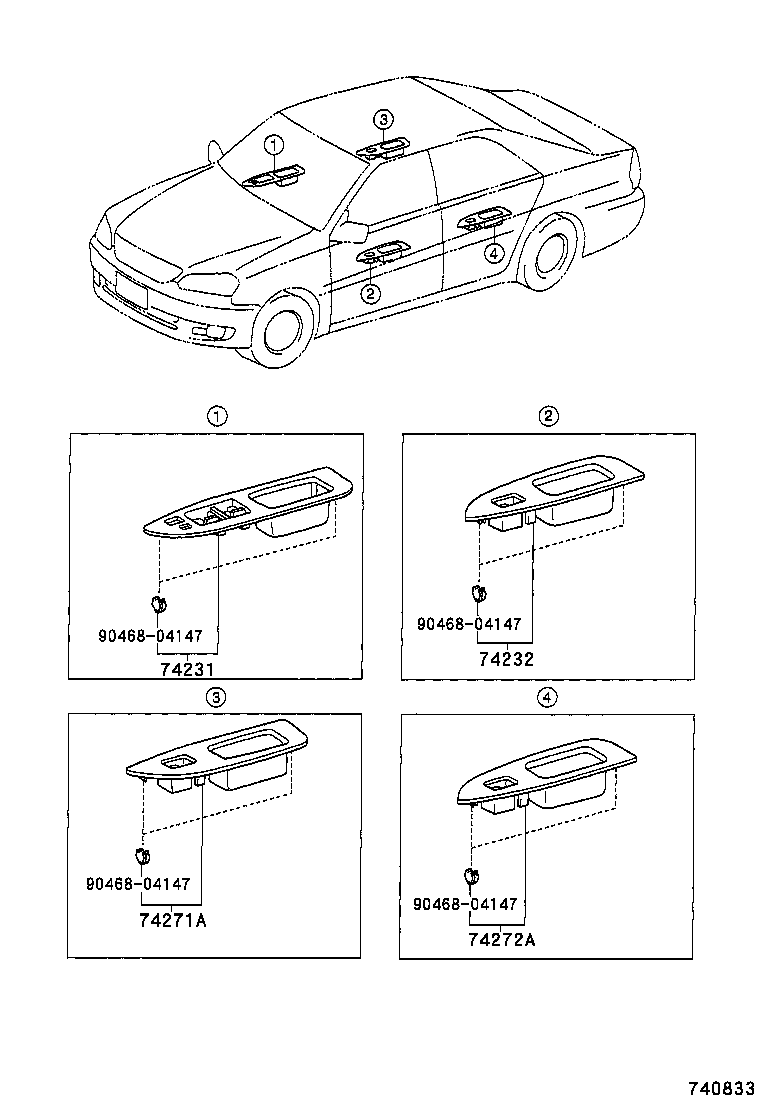

ILLUST NO. 1 OF 2(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-22360B0 |
GX11#,JZX11#..GD,GDG,GDGT GRAY METALLIC,TRIM0#,1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74272-22230B0 |
GX11#,JZX11#..GD,GDG,GDGT GRAY METALLIC,TRIM0#,1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-22230B0 |
GX11#,JZX11#..GD,GDG,GDGT GRAY METALLIC,TRIM0#,1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-22230B0 |
GX11#,JZX11#..GD,GDG,GDGT GRAY METALLIC,TRIM0#,1# |
1 | ||
| Common parts | ||||
| 90468-04147 | ||||

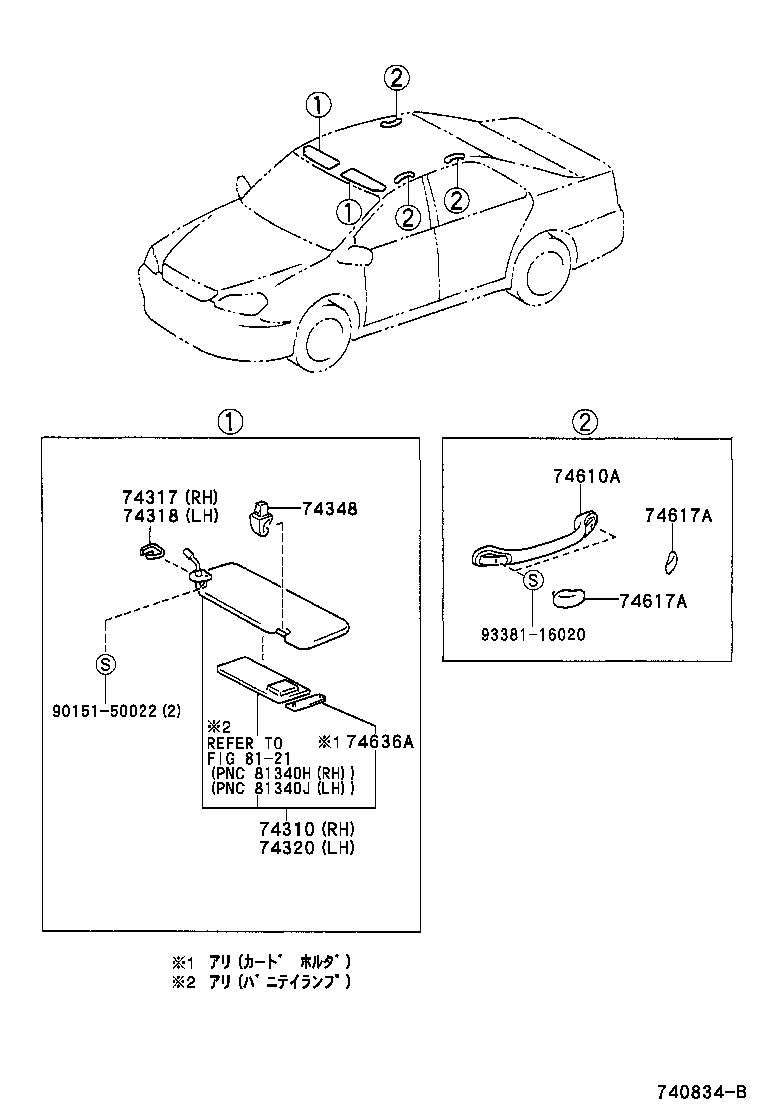

ILLUST NO. 2 OF 2(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-22680B0 |
GX11#,JZX11#..GD,GDG,GDGT ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞﾆﾃｲ ﾗﾝﾌﾟ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 74310-22680B0 |
JZX11#..GD,GDG,GDGT ｱﾘ(ﾊﾞﾆﾃｲ ﾗﾝﾌﾟ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 74310-22680A0 |
GX11#,JZX11#..GD,GDG,GDGT ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾞﾆﾃｲ ﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 74310-22670A0 |
JZX11#..GD,GDG,GDGT ｱﾘ(ﾊﾞﾆﾃｲ ﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-30010A1 |
GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
1 | ||
| 74317-30010B3 |
GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-30010B3 |
GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
1 | ||
| 74317-30010A1 |
GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-22790A0 |
GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
1 | ||
| 74320-22790B0 |
GX11#,JZX11#..GD,GDG,GDGT MEDIUM CHACOAL,TRIM1# |
1 | ||
| 74320-22800B0 |
GX11#,JZX11#..GD,GDG,GDGT ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),MEDIUM CHACOAL,TRIM1# |
1 | ||
| 74320-22800A0 |
GX11#,JZX11#..GD,GDG,GDGT ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-12040A0 |
GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
2 | ||
| 74348-12040B1 |
GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-48010A0 |
GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
3 | ||
| 74610-48010B2 |
GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
3 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-95D00A0 |
GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
6 | ||
| 74617-95D00B3 |
GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
6 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-95D00A0 |
GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
6 | ||
| 74617-95D00B3 |
GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
6 | ||
| 74636A - BEZEL, CARD HOLDER | ||||
| 74636-30010A0 |
GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
1 | ||
| 74636-30010B5 |
GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90151-50022 | ||||
| 93381-16020 | ||||
| Linked diagrams | ||||
| 8121 | ||||
