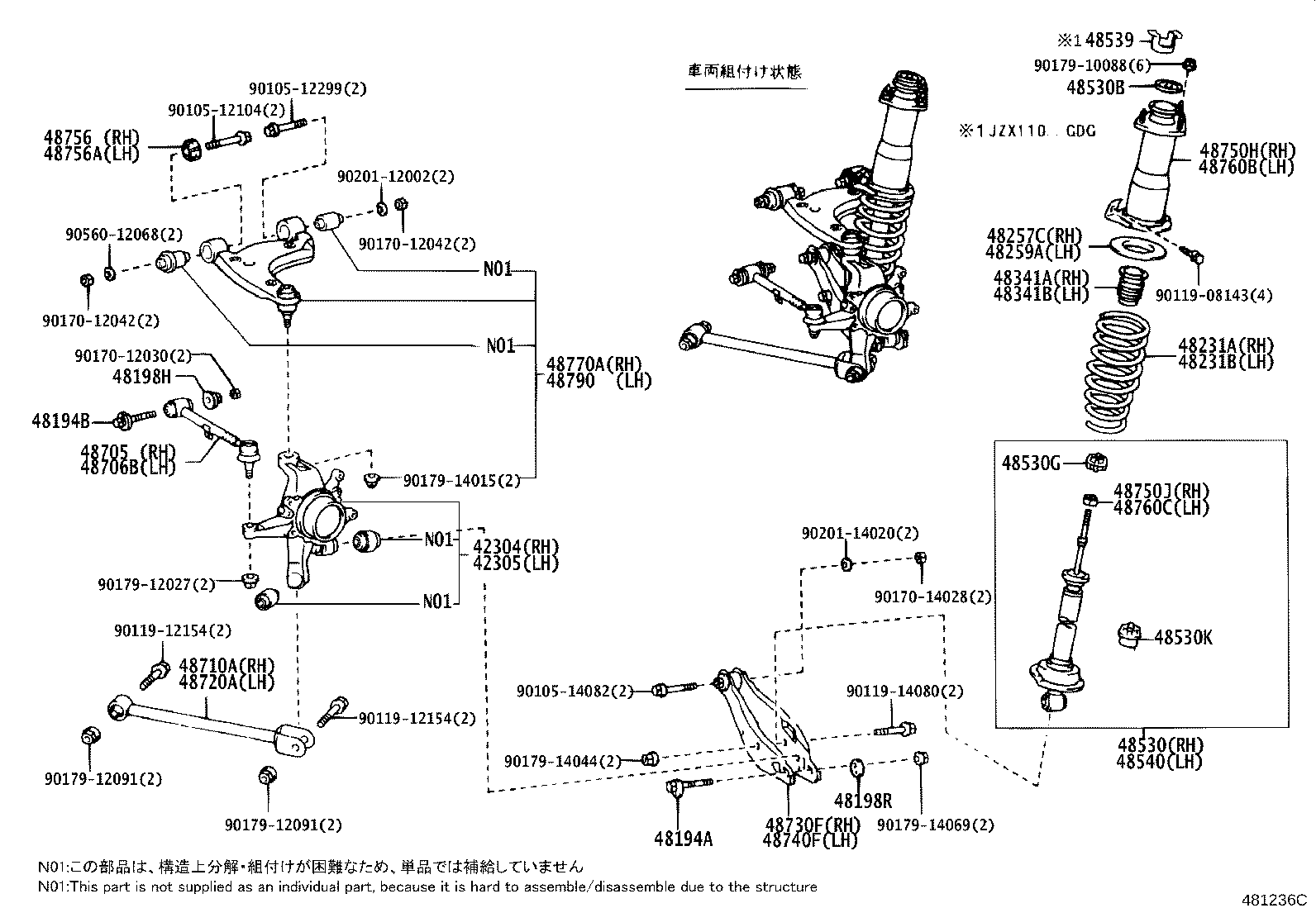

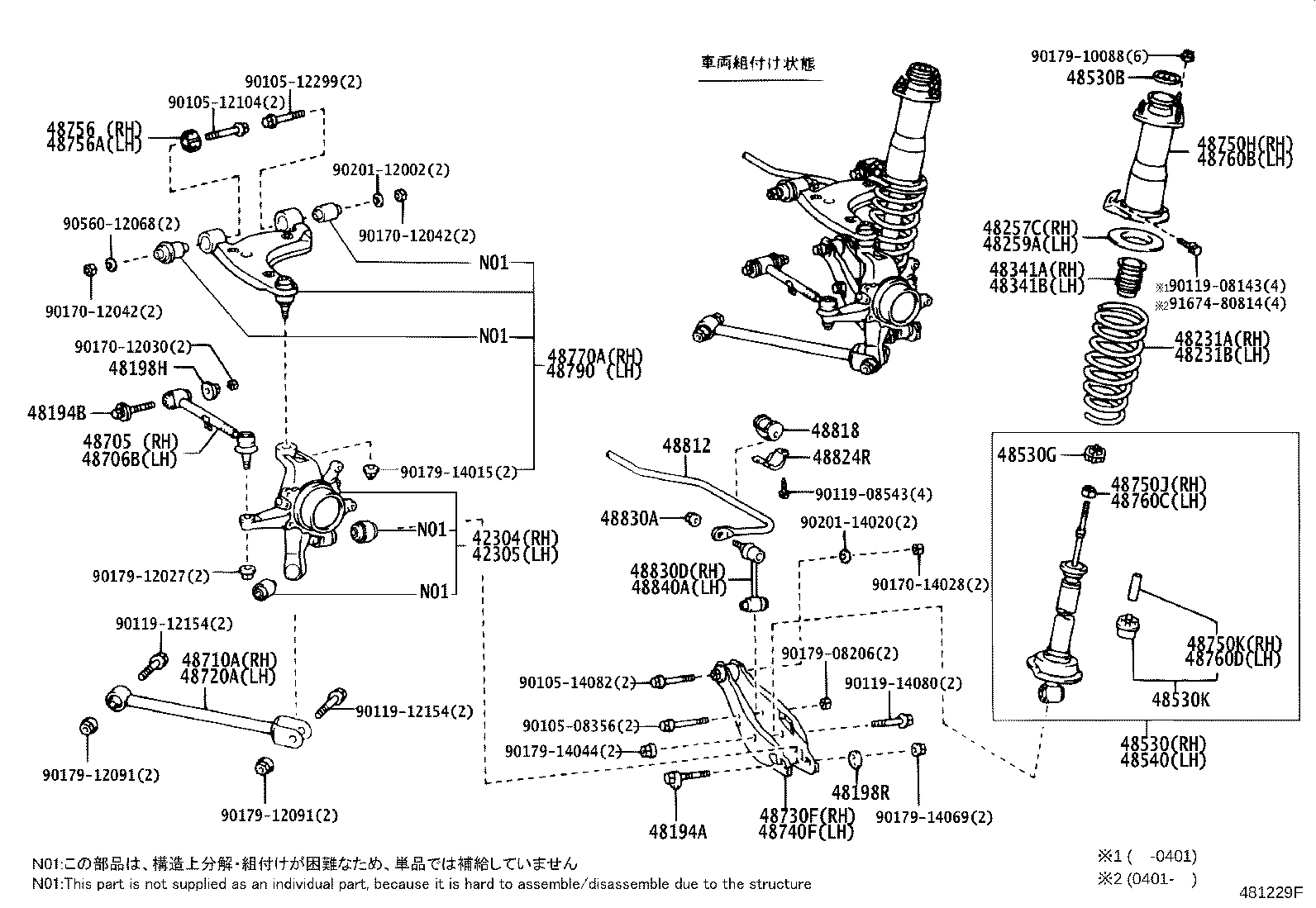

JZX110-AEPZZ (2000)
Toyota Mark 2/Mark 2 Blit
(0010- )GDGT,GDS,GDV,IR,IRS,IRV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-51010 |
JZX110..GD,GDG,GDS,IRS ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 42304-22040 |
GX110..GD,IR;JZX110..GD,GDG,GDS,IRS |
1 | ||
| 42304-51010 |
GX115,JZX115;JZX110..GDGT,GDV,IRV |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-51010 |
GX115,JZX115;JZX110..GDGT,GDV,IRV |
1 | ||
| 42305-51010 |
JZX110..GD,GDG,GDS,IRS ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 42305-22040 |
GX110..GD,IR;JZX110..GD,GDG,GDS,IRS |
1 | ||
| 48194A - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 | ||||
| 48190-30040 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 48194B - CAM, REAR SUSPENSION CAMBER ADJUST, NO.3 | ||||
| 48190-30060 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-30080 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-30060 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-2A460 |
JZX110..GD,GDG |
1 | ||
| 48231-2A470 |
JZX110..GDGT |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-2A470 |
JZX110..GDGT |
1 | ||
| 48231-2A460 |
JZX110..GD,GDG |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-30060 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-30060 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-30100 |
GX11#,JZX11#..SED |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-30100 |
GX11#,JZX11#..SED |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-29825 |
GX110,JZX110..GD,GDGT ﾏｰｸ 48530−22370 |
1 | ||
| 48530-29845 |
JZX110..GDG ﾏｰｸ 48530−22450 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01068 |
JZX115..GDG;GX11#,JZX110..GD,GDG,GDGT,IR,IRS ﾎﾜｲﾄ ﾏｰｸ |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01069 |
JZX115..GDG;GX11#,JZX110..GD,GDG,GDGT,IR,IRS |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-29825 |
GX110,JZX110..GD,GDGT ﾏｰｸ 48530−22370 |
1 | ||
| 48530-29845 |
JZX110..GDG ﾏｰｸ 48530−22450 |
1 | ||
| 48705 - LINK SUB-ASSY, TOE CONTROL, RH | ||||
| 48705-30080 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48706B - LINK SUB-ASSY, TOE CONTROL, LH | ||||
| 48705-30080 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-30210 |
JZX115;GX11#,JZX110..GD,GDG,GDGT,IR |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-30210 |
JZX115;GX11#,JZX110..GD,GDG,GDGT,IR |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90177-12002 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48756 - PIECE, REAR SUSPENSION ARM, RH | ||||
| 48756-30010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48756A - PIECE, REAR SUSPENSION ARM, LH | ||||
| 48756-30010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90177-12002 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-39035 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-39035 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-51010 |
JZX110..GDGT,GDS,GDV,IRV 外径=14 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-30100 |
JZX110..GDGT,GDS,GDV,IRV 内径=14 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48832-30050 |
GX11#,JZX115..WG;JZX110..GDGT,GDS,GDV,IRS,IRV |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10054 |
GX11#,JZX115..WG;JZX110..GDGT,GDS,GDV,IRS,IRV |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-51010 |
GX11#,JZX115..WG;JZX110..GDGT,GDS,GDV,IRS,IRV |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-51010 |
GX11#,JZX115..WG;JZX110..GDGT,GDS,GDV,IRS,IRV |
1 | ||
| Common parts | ||||
| 90105-08356 | ||||
| 90105-12104 | ||||
| 90105-12299 | ||||
| 90105-14082 | ||||
| 90119-08143 | ||||
| 90119-08543 | ||||
| 90119-12154 | ||||
| 90119-14080 | ||||
| 90170-12030 | ||||
| 90170-12042 | ||||
| 90170-14028 | ||||
| 90179-08206 | ||||
| 90179-10088 | ||||
| 90179-12027 | ||||
| 90179-12091 | ||||
| 90179-14015 | ||||
| 90179-14044 | ||||
| 90179-14069 | ||||
| 90201-12002 | ||||
| 90201-14020 | ||||
| 90560-12068 | ||||
| 91674-80814 | ||||
(0010- )GD,GDG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-51010 |
JZX110..GD,GDG,GDS,IRS ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 42304-22040 |
GX110..GD,IR;JZX110..GD,GDG,GDS,IRS |
1 | ||
| 42304-51010 |
GX115,JZX115;JZX110..GDGT,GDV,IRV |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-51010 |
GX115,JZX115;JZX110..GDGT,GDV,IRV |
1 | ||
| 42305-51010 |
JZX110..GD,GDG,GDS,IRS ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 42305-22040 |
GX110..GD,IR;JZX110..GD,GDG,GDS,IRS |
1 | ||
| 48194A - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 | ||||
| 48190-30040 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 48194B - CAM, REAR SUSPENSION CAMBER ADJUST, NO.3 | ||||
| 48190-30060 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-30080 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-30060 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-2A460 |
JZX110..GD,GDG |
1 | ||
| 48231-2A470 |
JZX110..GDGT |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-2A470 |
JZX110..GDGT |
1 | ||
| 48231-2A460 |
JZX110..GD,GDG |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-30060 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-30060 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-30100 |
GX11#,JZX11#..SED |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-30100 |
GX11#,JZX11#..SED |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-29825 |
GX110,JZX110..GD,GDGT ﾏｰｸ 48530−22370 |
1 | ||
| 48530-29845 |
JZX110..GDG ﾏｰｸ 48530−22450 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01068 |
JZX115..GDG;GX11#,JZX110..GD,GDG,GDGT,IR,IRS ﾎﾜｲﾄ ﾏｰｸ |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01069 |
JZX115..GDG;GX11#,JZX110..GD,GDG,GDGT,IR,IRS |
2 | ||
| 48539 - BRACKET, ACTUATOR SUPPORT, RR | ||||
| 48539-30030 |
JZX110..GDG |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-29825 |
GX110,JZX110..GD,GDGT ﾏｰｸ 48530−22370 |
1 | ||
| 48530-29845 |
JZX110..GDG ﾏｰｸ 48530−22450 |
1 | ||
| 48705 - LINK SUB-ASSY, TOE CONTROL, RH | ||||
| 48705-30080 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48706B - LINK SUB-ASSY, TOE CONTROL, LH | ||||
| 48705-30080 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-30210 |
JZX115;GX11#,JZX110..GD,GDG,GDGT,IR |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-30210 |
JZX115;GX11#,JZX110..GD,GDG,GDGT,IR |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90177-12002 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48756 - PIECE, REAR SUSPENSION ARM, RH | ||||
| 48756-30010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48756A - PIECE, REAR SUSPENSION ARM, LH | ||||
| 48756-30010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90177-12002 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-39035 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-39035 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| Common parts | ||||
| 90105-12104 | ||||
| 90105-12299 | ||||
| 90105-14082 | ||||
| 90119-08143 | ||||
| 90119-12154 | ||||
| 90119-14080 | ||||
| 90170-12030 | ||||
| 90170-12042 | ||||
| 90170-14028 | ||||
| 90179-10088 | ||||
| 90179-12027 | ||||
| 90179-12091 | ||||
| 90179-14015 | ||||
| 90179-14044 | ||||
| 90179-14069 | ||||
| 90201-12002 | ||||
| 90201-14020 | ||||
| 90560-12068 | ||||
