JZX110-AEPZZ (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Oct 2002
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )1JZGTE

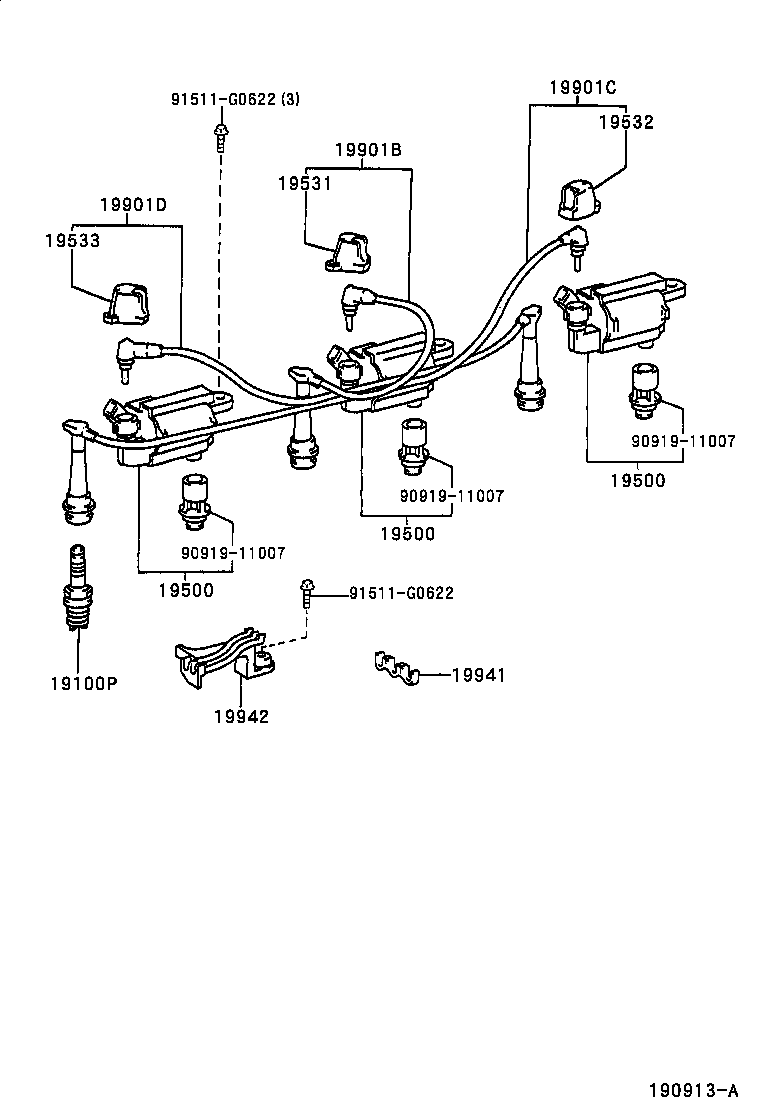

Click highlighted areas on diagram

diagram 19100P 19500 19500 19500 19531 19532 19533 19901B 19901C 19901D 19941 19942 9091911007 9091911007 9091911007 91511G0622 91511G0622
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01207

1JZGTE..JZX110

SK20R−P11

 6
19500 - COIL ASSY, IGNITION
90919-02216

1JZGTE,1JZGE..JZX11#

 3
19500 - COIL ASSY, IGNITION
90919-02216

1JZGTE,1JZGE..JZX11#

 3
19500 - COIL ASSY, IGNITION
90919-02216

1JZGTE,1JZGE..JZX11#

 3
19531 - HOLDER, RESISTIVE CORD, NO.1
19539-50010

1JZGTE,1JZGE..JZX11#

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1JZGTE,1JZGE..JZX11#

 1
19533 - HOLDER, RESISTIVE CORD, NO.3
19539-70010

1JZGTE,1JZGE..JZX11#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15492

1JZGTE..JZX110..SED

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15490

1JZGTE..JZX110..SED

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15491

1JZGTE..JZX110..SED

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00556

1JZGTE..JZX110

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01360

1JZGTE..JZX110..SED

 1
Common parts
90919-11007
91511-G0622
