JZX110-AEPZZ (2000)
Toyota Mark 2/Mark 2 Blit
(0010- )1JZGTE,1JZGE

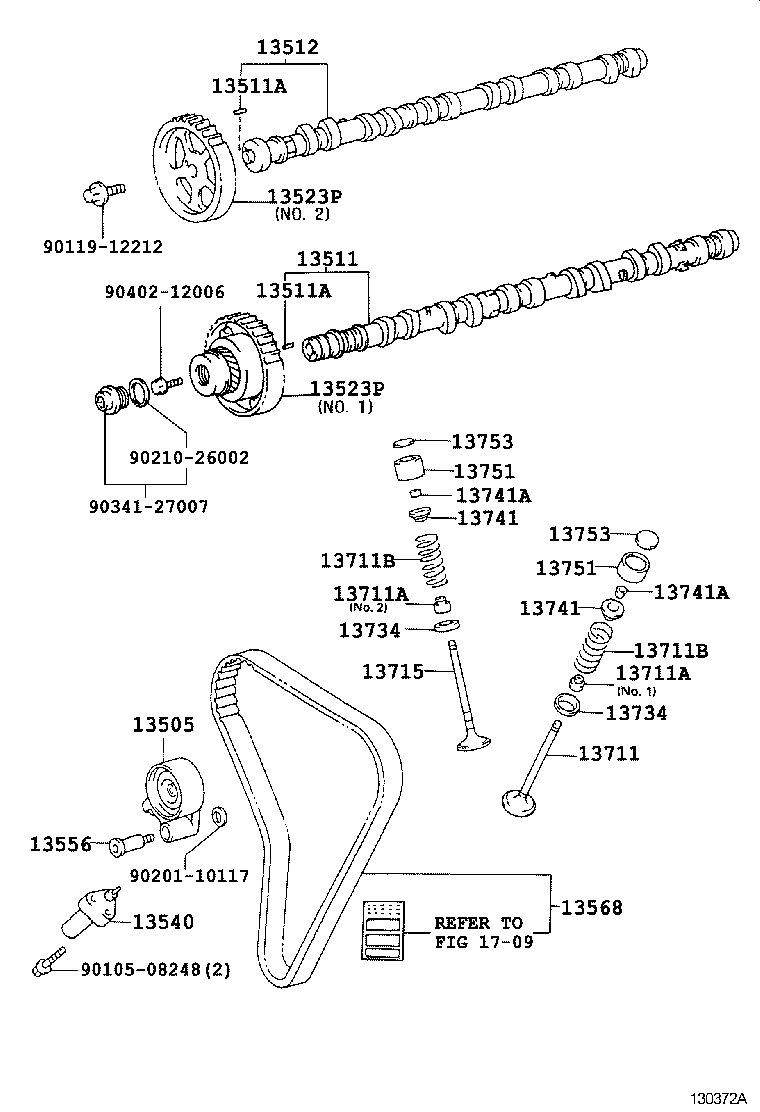

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-46070 |
1JZGTE..JZX110 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-88410 |
1JZGTE..JZX110 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 |
1JZGTE,1JZGE..JZX11# 長さ=13.8,外径=5.0 |
2 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 |
1JZGTE,1JZGE..JZX11# 長さ=13.8,外径=5.0 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-88401 |
1JZGTE..JZX110 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-46030 |
1JZGTE,1JZGE..JZX11# NO.2 |
1 | ||
| 13050-46010 |
1JZGTE,1JZGE..JZX11# NO.1 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-46030 |
1JZGTE,1JZGE..JZX11# NO.2 |
1 | ||
| 13050-46010 |
1JZGTE,1JZGE..JZX11# NO.1 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-46030 |
1JZGTE,1JZGE..JZX11# |
1 | ||
| 13556 - SHAFT, TIMING BELT IDLER | ||||
| 13556-88400 |
1JZGTE..JZX110 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-49065 |
1JZGTE..JZX110 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-88410 |
1JZGTE..JZX110 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02089 |
1JZGTE..JZX110 NO.2 |
12 | ||
| 90913-02090 |
1JZ#..JZX11# NO.1 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02089 |
1JZGTE..JZX110 NO.2 |
12 | ||
| 90913-02090 |
1JZ#..JZX11# NO.1 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-35030 |
1JZGTE..JZX110 |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-35030 |
1JZGTE..JZX110 |
24 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-88400 |
1JZGTE..JZX110 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88460 |
1JZGTE..JZX110 |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88460 |
1JZGTE..JZX110 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88361 |
1JZGTE..JZX110 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88361 |
1JZGTE..JZX110 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1JZGTE..JZX110 |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1JZGTE..JZX110 |
48 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-88360 |
1JZGTE..JZX110 |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-88360 |
1JZGTE..JZX110 |
24 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-46080 |
1JZGTE,1JZGE..JZX11# 厚さ=2.60 ﾏｰｸ 6 |
24 | ||
| 13753-46030 |
1JZGTE,1JZGE..JZX11# 厚さ=2.50 ﾏｰｸ 1 |
24 | ||
| 13753-46060 |
1JZGTE,1JZGE..JZX11# 厚さ=2.56 ﾏｰｸ 4 |
24 | ||
| 13753-46050 |
1JZGTE,1JZGE..JZX11# 厚さ=2.54 ﾏｰｸ 3 |
24 | ||
| 13753-46070 |
1JZGTE,1JZGE..JZX11# 厚さ=2.58 ﾏｰｸ 5 |
24 | ||
| 13753-46090 |
1JZGTE,1JZGE..JZX11# 厚さ=2.62 ﾏｰｸ 7 |
24 | ||
| 13753-46040 |
1JZGTE,1JZGE..JZX11# 厚さ=2.52 ﾏｰｸ 2 |
24 | ||
| 13753-46100 |
1JZGTE,1JZGE..JZX11# 厚さ=2.64 ﾏｰｸ 8 |
24 | ||
| 13753-46110 |
1JZGTE,1JZGE..JZX11# 厚さ=2.66 ﾏｰｸ 9 |
24 | ||
| 13753-46120 |
1JZGTE,1JZGE..JZX11# 厚さ=2.68 ﾏｰｸ 11 |
24 | ||
| 13753-46140 |
1JZGTE,1JZGE..JZX11# 厚さ=2.72 ﾏｰｸ 15 |
24 | ||
| 13753-46180 |
1JZGTE,1JZGE..JZX11# 厚さ=2.80 ﾏｰｸ 23 |
24 | ||
| 13753-46200 |
1JZGTE,1JZGE..JZX11# 厚さ=2.84 ﾏｰｸ 27 |
24 | ||
| 13753-46170 |
1JZGTE,1JZGE..JZX11# 厚さ=2.78 ﾏｰｸ 21 |
24 | ||
| 13753-46190 |
1JZGTE,1JZGE..JZX11# 厚さ=2.82 ﾏｰｸ 25 |
24 | ||
| 13753-46220 |
1JZGTE,1JZGE..JZX11# 厚さ=2.88 ﾏｰｸ 31 |
24 | ||
| 13753-46210 |
1JZGTE,1JZGE..JZX11# 厚さ=2.86 ﾏｰｸ 29 |
24 | ||
| 13753-46130 |
1JZGTE,1JZGE..JZX11# 厚さ=2.70 ﾏｰｸ 13 |
24 | ||
| 13753-46230 |
1JZGTE,1JZGE..JZX11# 厚さ=2.90 ﾏｰｸ 33 |
24 | ||
| 13753-46280 |
1JZGTE,1JZGE..JZX11# 厚さ=3.00 ﾏｰｸ 43 |
24 | ||
| 13753-46290 |
1JZGTE,1JZGE..JZX11# 厚さ=3.02 ﾏｰｸ 45 |
24 | ||
| 13753-46310 |
1JZGTE,1JZGE..JZX11# 厚さ=3.06 ﾏｰｸ 49 |
24 | ||
| 13753-46270 |
1JZGTE,1JZGE..JZX11# 厚さ=2.98 ﾏｰｸ 41 |
24 | ||
| 13753-46240 |
1JZGTE,1JZGE..JZX11# 厚さ=2.92 ﾏｰｸ 35 |
24 | ||
| 13753-46160 |
1JZGTE,1JZGE..JZX11# 厚さ=2.76 ﾏｰｸ 19 |
24 | ||
| 13753-46360 |
1JZGTE,1JZGE..JZX11# 厚さ=3.16 ﾏｰｸ 54 |
24 | ||
| 13753-46150 |
1JZGTE,1JZGE..JZX11# 厚さ=2.74 ﾏｰｸ 17 |
24 | ||
| 13753-46330 |
1JZGTE,1JZGE..JZX11# 厚さ=3.10 ﾏｰｸ 51 |
24 | ||
| 13753-46260 |
1JZGTE,1JZGE..JZX11# 厚さ=2.96 ﾏｰｸ 39 |
24 | ||
| 13753-46250 |
1JZGTE,1JZGE..JZX11# 厚さ=2.94 ﾏｰｸ 37 |
24 | ||
| 13753-46380 |
1JZGTE,1JZGE..JZX11# 厚さ=3.20 ﾏｰｸ 56 |
24 | ||
| 13753-46340 |
1JZGTE,1JZGE..JZX11# 厚さ=3.12 ﾏｰｸ 52 |
24 | ||
| 13753-46370 |
1JZGTE,1JZGE..JZX11# 厚さ=3.18 ﾏｰｸ 55 |
24 | ||
| 13753-46410 |
1JZGTE,1JZGE..JZX11# 厚さ=3.26 ﾏｰｸ 59 |
24 | ||
| 13753-46320 |
1JZGTE,1JZGE..JZX11# 厚さ=3.08 ﾏｰｸ 50 |
24 | ||
| 13753-46400 |
1JZGTE,1JZGE..JZX11# 厚さ=3.24 ﾏｰｸ 58 |
24 | ||
| 13753-46350 |
1JZGTE,1JZGE..JZX11# 厚さ=3.14 ﾏｰｸ 53 |
24 | ||
| 13753-46300 |
1JZGTE,1JZGE..JZX11# 厚さ=3.04 ﾏｰｸ 47 |
24 | ||
| 13753-46390 |
1JZGTE,1JZGE..JZX11# 厚さ=3.22 ﾏｰｸ 57 |
24 | ||
| 13753-46430 |
1JZGTE,1JZGE..JZX11# 厚さ=3.30 ﾏｰｸ 61 |
24 | ||
| 13753-46420 |
1JZGTE,1JZGE..JZX11# 厚さ=3.28 ﾏｰｸ 60 |
24 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-46080 |
1JZGTE,1JZGE..JZX11# 厚さ=2.60 ﾏｰｸ 6 |
24 | ||
| 13753-46030 |
1JZGTE,1JZGE..JZX11# 厚さ=2.50 ﾏｰｸ 1 |
24 | ||
| 13753-46060 |
1JZGTE,1JZGE..JZX11# 厚さ=2.56 ﾏｰｸ 4 |
24 | ||
| 13753-46050 |
1JZGTE,1JZGE..JZX11# 厚さ=2.54 ﾏｰｸ 3 |
24 | ||
| 13753-46070 |
1JZGTE,1JZGE..JZX11# 厚さ=2.58 ﾏｰｸ 5 |
24 | ||
| 13753-46090 |
1JZGTE,1JZGE..JZX11# 厚さ=2.62 ﾏｰｸ 7 |
24 | ||
| 13753-46040 |
1JZGTE,1JZGE..JZX11# 厚さ=2.52 ﾏｰｸ 2 |
24 | ||
| 13753-46100 |
1JZGTE,1JZGE..JZX11# 厚さ=2.64 ﾏｰｸ 8 |
24 | ||
| 13753-46110 |
1JZGTE,1JZGE..JZX11# 厚さ=2.66 ﾏｰｸ 9 |
24 | ||
| 13753-46120 |
1JZGTE,1JZGE..JZX11# 厚さ=2.68 ﾏｰｸ 11 |
24 | ||
| 13753-46140 |
1JZGTE,1JZGE..JZX11# 厚さ=2.72 ﾏｰｸ 15 |
24 | ||
| 13753-46180 |
1JZGTE,1JZGE..JZX11# 厚さ=2.80 ﾏｰｸ 23 |
24 | ||
| 13753-46200 |
1JZGTE,1JZGE..JZX11# 厚さ=2.84 ﾏｰｸ 27 |
24 | ||
| 13753-46170 |
1JZGTE,1JZGE..JZX11# 厚さ=2.78 ﾏｰｸ 21 |
24 | ||
| 13753-46190 |
1JZGTE,1JZGE..JZX11# 厚さ=2.82 ﾏｰｸ 25 |
24 | ||
| 13753-46220 |
1JZGTE,1JZGE..JZX11# 厚さ=2.88 ﾏｰｸ 31 |
24 | ||
| 13753-46210 |
1JZGTE,1JZGE..JZX11# 厚さ=2.86 ﾏｰｸ 29 |
24 | ||
| 13753-46130 |
1JZGTE,1JZGE..JZX11# 厚さ=2.70 ﾏｰｸ 13 |
24 | ||
| 13753-46230 |
1JZGTE,1JZGE..JZX11# 厚さ=2.90 ﾏｰｸ 33 |
24 | ||
| 13753-46280 |
1JZGTE,1JZGE..JZX11# 厚さ=3.00 ﾏｰｸ 43 |
24 | ||
| 13753-46290 |
1JZGTE,1JZGE..JZX11# 厚さ=3.02 ﾏｰｸ 45 |
24 | ||
| 13753-46310 |
1JZGTE,1JZGE..JZX11# 厚さ=3.06 ﾏｰｸ 49 |
24 | ||
| 13753-46270 |
1JZGTE,1JZGE..JZX11# 厚さ=2.98 ﾏｰｸ 41 |
24 | ||
| 13753-46240 |
1JZGTE,1JZGE..JZX11# 厚さ=2.92 ﾏｰｸ 35 |
24 | ||
| 13753-46160 |
1JZGTE,1JZGE..JZX11# 厚さ=2.76 ﾏｰｸ 19 |
24 | ||
| 13753-46360 |
1JZGTE,1JZGE..JZX11# 厚さ=3.16 ﾏｰｸ 54 |
24 | ||
| 13753-46150 |
1JZGTE,1JZGE..JZX11# 厚さ=2.74 ﾏｰｸ 17 |
24 | ||
| 13753-46330 |
1JZGTE,1JZGE..JZX11# 厚さ=3.10 ﾏｰｸ 51 |
24 | ||
| 13753-46260 |
1JZGTE,1JZGE..JZX11# 厚さ=2.96 ﾏｰｸ 39 |
24 | ||
| 13753-46250 |
1JZGTE,1JZGE..JZX11# 厚さ=2.94 ﾏｰｸ 37 |
24 | ||
| 13753-46380 |
1JZGTE,1JZGE..JZX11# 厚さ=3.20 ﾏｰｸ 56 |
24 | ||
| 13753-46340 |
1JZGTE,1JZGE..JZX11# 厚さ=3.12 ﾏｰｸ 52 |
24 | ||
| 13753-46370 |
1JZGTE,1JZGE..JZX11# 厚さ=3.18 ﾏｰｸ 55 |
24 | ||
| 13753-46410 |
1JZGTE,1JZGE..JZX11# 厚さ=3.26 ﾏｰｸ 59 |
24 | ||
| 13753-46320 |
1JZGTE,1JZGE..JZX11# 厚さ=3.08 ﾏｰｸ 50 |
24 | ||
| 13753-46400 |
1JZGTE,1JZGE..JZX11# 厚さ=3.24 ﾏｰｸ 58 |
24 | ||
| 13753-46350 |
1JZGTE,1JZGE..JZX11# 厚さ=3.14 ﾏｰｸ 53 |
24 | ||
| 13753-46300 |
1JZGTE,1JZGE..JZX11# 厚さ=3.04 ﾏｰｸ 47 |
24 | ||
| 13753-46390 |
1JZGTE,1JZGE..JZX11# 厚さ=3.22 ﾏｰｸ 57 |
24 | ||
| 13753-46430 |
1JZGTE,1JZGE..JZX11# 厚さ=3.30 ﾏｰｸ 61 |
24 | ||
| 13753-46420 |
1JZGTE,1JZGE..JZX11# 厚さ=3.28 ﾏｰｸ 60 |
24 | ||
| Common parts | ||||
| 90105-08248 | ||||
| 90119-12212 | ||||
| 90201-10117 | ||||
| 90210-26002 | ||||
| 90341-27007 | ||||
| 90402-12006 | ||||
| Linked diagrams | ||||
| 1709 | ||||
