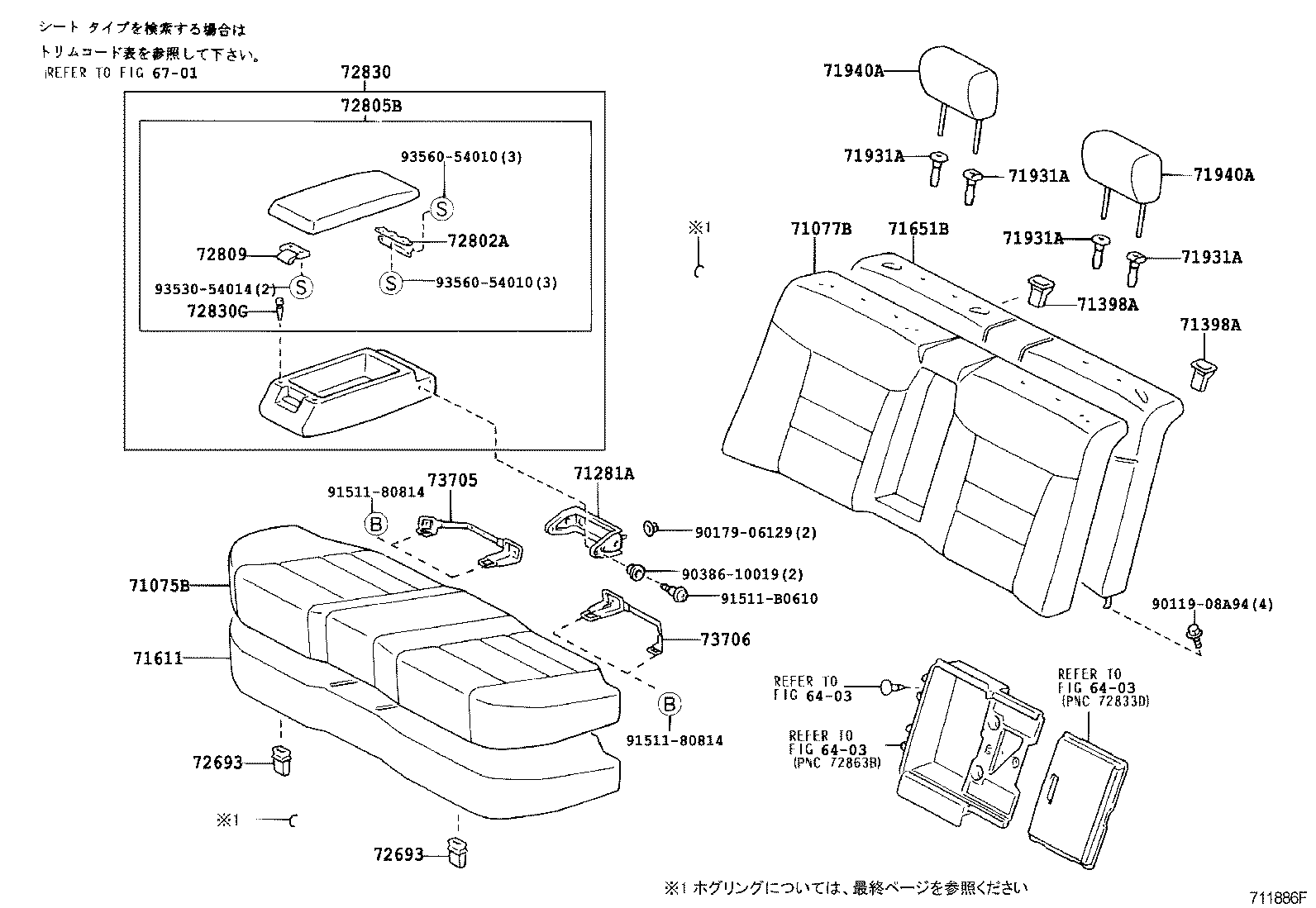

Toyota Mark 2/mark 2 blit JZX110 REAR SEAT & SEAT TRACK

Part #	Description	Period	Qty
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-22670A0	GX11#,JZX110..GD ﾚｶﾞﾘｱ (R) OR ﾚｶﾞﾘｱﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (N),IVORY,TRIM00	08/2001 - 09/2002	1
71065-22670B0	GX11#,JZX110..GD ﾚｶﾞﾘｱ (R) OR ﾚｶﾞﾘｱﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (N),MD.CHACOAL,TRIM10	08/2001 - 09/2002	1
71075-2A030A0	GX11#,JZX110..GD ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	10/2000 - 10/2002	1
71065-22670A0	GX11#,JZX110..GD 35TH ANNIVERSARY (T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (H),IVORY,TRIM01	05/2003 - 04/2004	1
71065-22670B0	GX11#,JZX110..GD ﾚｶﾞﾘｱ (R) OR ﾚｶﾞﾘｱﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (N),MD.CHACOAL,TRIM10	10/2002 - 09/2003	1
71075-2A050C0	JZX110..GDS,GDV ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2#	10/2000 - 10/2002	1
71075-2A020B0	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),MD.CHARCOAL,TRIM1#	04/2004 - 10/2004	1
71065-22670B0	GX11#,JZX110..GD 35TH ANNIVERSARY (T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (H),MD.CHACOAL,TRIM10	05/2003 - 04/2004	1
71075-2A050C0	GX110,JZX110..GDS,GDV ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2#	10/2002 - 11/2004	1
71075-2A040C0	JZX110..GDS,GDV ｼ-ﾄ = TYPE E-*104,BLACK,TRIM2#	10/2000 - 10/2002	1
71075-2A020A0	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),IVORY,TRIM0#	04/2004 - 10/2004	1
71075-2A040C0	JZX110..GDS,GDV ｼ-ﾄ = TYPE E-*104,BLACK,TRIM2#	10/2002 - 11/2004	1
71075-2A030B0	GX11#,JZX110..GD ｼ-ﾄ = TYPE B-*104,LT. CHARCOAL,TRIM1#	10/2000 - 10/2002	1
71075-2A090A0	GX11#,JZX110..GD ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	10/2002 - 11/2004	1
71065-22670A0	GX11#,JZX110..GD ﾚｶﾞﾘｱ (R) OR ﾚｶﾞﾘｱﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (N),IVORY,TRIM01	10/2002 - 09/2003	1
71075-2A090B0	GX11#,JZX110..GD ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1#	10/2002 - 11/2004	1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2C050B0	GX11#,JZX110..GD ﾚｶﾞﾘｱ (R) OR ﾚｶﾞﾘｱﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (N),MD.CHACOAL,TRIM10	08/2001 - 09/2002	1
71077-2C050A0	GX11#,JZX110..GD ﾚｶﾞﾘｱ (R) OR ﾚｶﾞﾘｱﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (N),IVORY,TRIM00	08/2001 - 09/2002	1
71077-2A880A0	GX11#,JZX110..GD ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	10/2000 - 10/2002	1
71077-2C050B0	GX11#,JZX110..GD ﾚｶﾞﾘｱ (R) OR ﾚｶﾞﾘｱﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (N),MD.CHACOAL,TRIM10	10/2002 - 09/2003	1
71077-2C050A0	GX11#,JZX110..GD ﾚｶﾞﾘｱ (R) OR ﾚｶﾞﾘｱﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (N),IVORY,TRIM01	10/2002 - 09/2003	1
71077-2C010C0	JZX110..GDS,GDV ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2#	10/2000 - 10/2002	1
71077-2C050A0	GX11#,JZX110..GD 35TH ANNIVERSARY (T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (H),IVORY,TRIM01	05/2003 - 04/2004	1
71077-2C050B0	GX11#,JZX110..GD 35TH ANNIVERSARY (T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (H),MD.CHACOAL,TRIM10	05/2003 - 04/2004	1
71077-2A890C0	JZX110..GDS,GDV ｼ-ﾄ = TYPE E-*104,BLACK,TRIM2#	10/2000 - 10/2002	1
71077-2A880B0	GX11#,JZX110..GD ｼ-ﾄ = TYPE B-*104,LT. CHARCOAL,TRIM1#	10/2000 - 10/2002	1
71077-2C010C1	GX110,JZX110..GDS,GDV ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2#	10/2002 - 11/2004	1
71077-2A870B1	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),MD.CHARCOAL,TRIM1#	04/2004 - 10/2004	1
71077-2C060B1	GX11#,JZX110..GD ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1#	10/2002 - 11/2004	1
71077-2A890C1	JZX110..GDS,GDV ｼ-ﾄ = TYPE E-*104,BLACK,TRIM2#	10/2002 - 11/2004	1
71077-2A870A1	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),IVORY,TRIM0#	04/2004 - 10/2004	1
71077-2C060A1	GX11#,JZX110..GD ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	10/2002 - 11/2004	1
71281A - HINGE, REAR SEAT CENTER ARMREST
71281-22090	GX11#,JZX11#..SED	10/2002 - 12/2999	1
71281-22090	GX11#,JZX11#..SED	10/2000 - 10/2002	1
71398A - HOLDER, REAR SEAT BACK
71398-30010	GX11#,JZX11#..SED	10/2002 - 12/2999	2
71398-30010	GX11#,JZX11#..SED	10/2000 - 10/2002	2
71398A - HOLDER, REAR SEAT BACK
71398-30010	GX11#,JZX11#..SED	10/2002 - 12/2999	2
71398-30010	GX11#,JZX11#..SED	10/2000 - 10/2002	2
71611 - PAD, REAR SEAT CUSHION
71503-22130	JZX110..GDS,GDV	10/2000 - 10/2002	1
71503-22100	GX11#,JZX11#..GD,GDG	10/2002 - 12/2999	1
71503-22110	JZX110..GDS,GDV ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ)	10/2000 - 10/2002	1
71503-22130	GX110,JZX110..GDS,GDV	10/2002 - 12/2999	1
71503-22110	JZX110..GDS,GDV ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ)	10/2002 - 12/2999	1
71503-22100	GX11#,JZX11#..GD,GDG,GDGT	10/2000 - 10/2002	1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-22490	JZX110..GDS,GDV ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ)	10/2000 - 10/2002	1
71507-22480	GX11#,JZX110..GD	10/2000 - 10/2002	1
71507-22520	JZX110..GDS,GDV	10/2000 - 10/2002	1
71507-22500	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N)	04/2004 - 10/2004	1
71507-22490	JZX110..GDS,GDV ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ)	10/2002 - 12/2999	1
71507-22520	GX110,JZX110..GDS,GDV	10/2002 - 12/2999	1
71507-22480	GX11#,JZX110..GD	10/2002 - 12/2999	1
71940A - HEADREST ASSY, REAR SEAT
71940-22550A0	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),IVORY,TRIM0#	04/2004 - 10/2004	1
71940-22550B0	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),MD.CHARCOAL,TRIM1#	04/2004 - 10/2004	1
71940A - HEADREST ASSY, REAR SEAT
71940-22550A0	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),IVORY,TRIM0#	04/2004 - 10/2004	1
71940-22550B0	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),MD.CHARCOAL,TRIM1#	04/2004 - 10/2004	1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-30050	GX11#,JZX11#..SED	10/2000 - 10/2002	2
72693-30050	GX11#,JZX11#..SED	10/2002 - 12/2999	2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-30050	GX11#,JZX11#..SED	10/2000 - 10/2002	2
72693-30050	GX11#,JZX11#..SED	10/2002 - 12/2999	2
72802A - HINGE SUB-ASSY, ARMREST CONSOLE
72802-50020	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N)	04/2004 - 10/2004	1
72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST
72805-22110A0	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),IVORY,TRIM0#	04/2004 - 10/2004	1
72805-22110B0	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),MD.CHARCOAL,TRIM1#	04/2004 - 10/2004	1
72809 - LOCK SUB-ASSY, CENTER ARMREST
72809-50020B8	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),MD.CHARCOAL,TRIM1#	04/2004 - 10/2004	1
72809-50020A2	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),IVORY,TRIM0#	04/2004 - 10/2004	1
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-22750B0	GX11#,JZX110..GD ﾚｶﾞﾘｱ (R) OR ﾚｶﾞﾘｱﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (N),MD.CHACOAL,TRIM10	08/2001 - 09/2002	1
72830-22750A0	GX11#,JZX110..GD ﾚｶﾞﾘｱ (R) OR ﾚｶﾞﾘｱﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (N),IVORY,TRIM00	08/2001 - 09/2002	1
72830-22690C0	JZX110..GDS,GDV ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2#	10/2000 - 10/2002	1
72830-22680C0	JZX110..GDS,GDV ｼ-ﾄ = TYPE E-*104,BLACK,TRIM2#	06/2001 - 10/2002	1
72830-22670A0	GX11#,JZX110..GD ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	10/2000 - 10/2002	1
72830-22750A0	GX11#,JZX110..GD 35TH ANNIVERSARY (T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (H),IVORY,TRIM01	05/2003 - 04/2004	1
72830-22750B0	GX11#,JZX110..GD ﾚｶﾞﾘｱ (R) OR ﾚｶﾞﾘｱﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (N),MD.CHACOAL,TRIM10	10/2002 - 09/2003	1
72830-22750B0	GX11#,JZX110..GD 35TH ANNIVERSARY (T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (H),MD.CHACOAL,TRIM10	05/2003 - 04/2004	1
72830-22670B0	GX11#,JZX110..GD ｼ-ﾄ = TYPE B-*104,LT. CHARCOAL,TRIM1#	10/2000 - 10/2002	1
72830-22680C0	JZX110..GDS,GDV ｼ-ﾄ = TYPE E-*104,BLACK,TRIM2#	10/2002 - 11/2004	1
72830-22660A0	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),IVORY,TRIM0#	04/2004 - 10/2004	1
72830-22690C0	GX110,JZX110..GDS,GDV ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2#	10/2002 - 11/2004	1
72830-22750A0	GX11#,JZX110..GD ﾚｶﾞﾘｱ (R) OR ﾚｶﾞﾘｱﾅﾋﾞﾊﾟﾂｹ-ｼﾞ (N),IVORY,TRIM01	10/2002 - 09/2003	1
72830-22660B0	GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ (D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ (N),MD.CHARCOAL,TRIM1#	04/2004 - 10/2004	1
72830-22760A0	GX11#,JZX110..GD ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0#	10/2002 - 11/2004	1
72830-22760B0	GX11#,JZX110..GD ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1#	10/2002 - 11/2004	1
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-22010	GX11#,JZX11#..SED	10/2000 - 10/2002	1
73705-22010	GX11#,JZX11#..SED	10/2002 - 12/2999	1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-22010	GX11#,JZX11#..SED	10/2000 - 10/2002	1
73706-22010	GX11#,JZX11#..SED	10/2002 - 12/2999	1
Common parts
90119-08A94
90179-06129
90386-10019
91511-80814
91511-B0610
93530-54014
93560-54010
Linked diagrams
6403
6701

JZX110-AEPVZ (2000)

(0010- )SED

(0010- )
