JZX110-AEPVZ (2000)
Toyota Mark 2/Mark 2 Blit

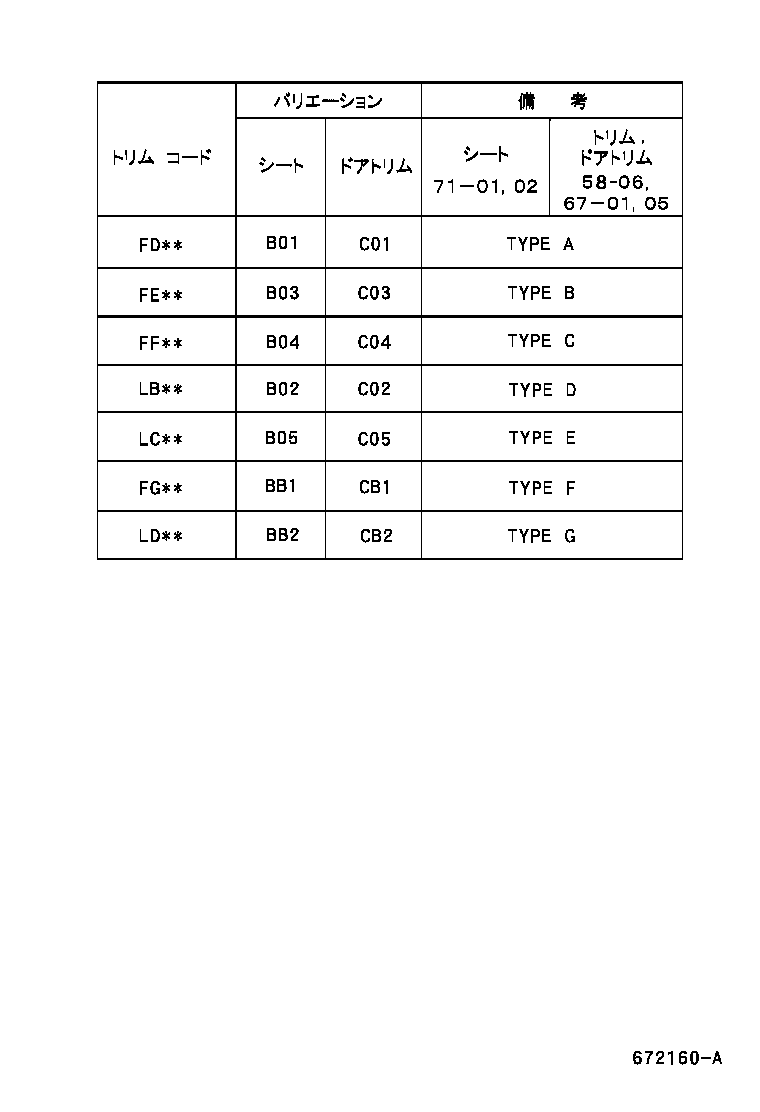

ILLUST NO. 3 OF 3(0010- )
ﾄﾘﾑｺ-ﾄﾞ
| Part # | Description | Qty | Price |
|---|

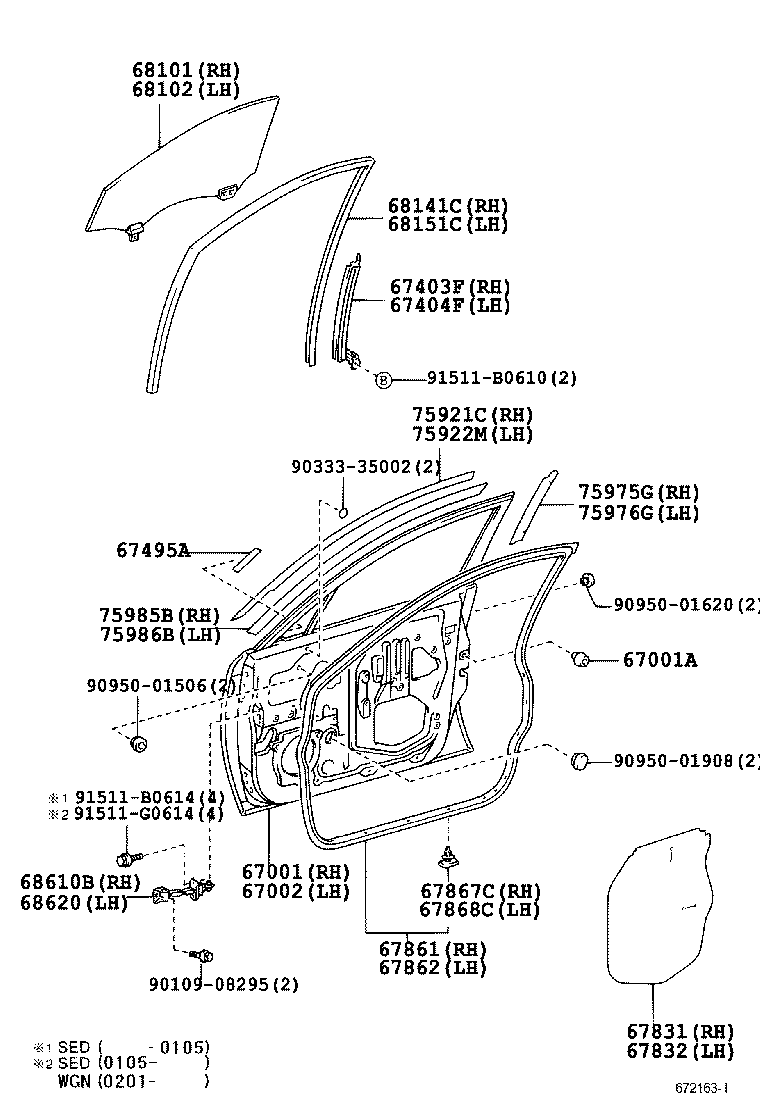

ILLUST NO. 2 OF 3(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-22390 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67001-22390 |
GX11#,JZX11#..SED |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
4 | ||
| 90541-09069 |
GX11#,JZX11#..SED |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-22440 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67002-22440 |
GX11#,JZX11#..SED |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-22110 |
GX11#,JZX11#..SED |
1 | ||
| 67403-22110 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-22110 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67404-22110 |
GX11#,JZX11#..SED |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-22050 |
GX11#,JZX11#..SED |
2 | ||
| 67495-22050 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-22240 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67831-22240 |
GX11#,JZX11#..SED |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-22160 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67832-22160 |
GX11#,JZX11#..SED |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-22300 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67861-22300 |
GX11#,JZX11#..SED |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-22300 |
GX11#,JZX11#..SED |
1 | ||
| 67862-22300 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
16 | ||
| 67867-12150 |
GX11#,JZX11#..SED |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GX11#,JZX11#..SED |
16 | ||
| 67867-12150 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
16 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-22390 |
GX11#,JZX110..GD,IR,IRS *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-22400 |
GX11#,JZX115..GDG,IR,IRS;JZX110..GDG,GDGT,GDS,GDV,IRS,IRV *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68101-22400 |
JZX11#..GDG,GDV *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68101-22400 |
GX11#,JZX110..GD *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N) |
1 | ||
| 68101-22400 |
GX11#,JZX110..GD *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68101-22390 |
GX11#,JZX110..GD,GDS *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-22390 |
GX11#,JZX110..GD,IR,IRS *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-22400 |
GX11#,JZX115..GDG,IR,IRS;JZX110..GDG,GDGT,GDS,GDV,IRS,IRV *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68102-22400 |
GX11#,JZX110..GD *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N) |
1 | ||
| 68102-22390 |
GX11#,JZX110..GD,GDS *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-22400 |
JZX11#..GDG,GDV *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68102-22400 |
GX11#,JZX110..GD *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ,ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),ｱﾘ(ﾊﾂｽｲ ｶｺｳ) |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-22251 |
GX11#,JZX11#..SED |
1 | ||
| 68141-22250 |
GX11#,JZX11#..SED |
1 | ||
| 68141-22250 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-22180 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 68151-22181 |
GX11#,JZX11#..SED |
1 | ||
| 68151-22180 |
GX11#,JZX11#..SED |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-22120 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 68610-22120 |
GX11#,JZX11#..SED |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-22070 |
GX11#,JZX11#..SED |
1 | ||
| 68620-22070 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 75921-22010 |
GX11#,JZX11#..SED |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-22020 |
GX11#,JZX11#..SED |
1 | ||
| 75922-22020 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-22010 |
GX11#,JZX11#..SED |
1 | ||
| 75975-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 75976-22010 |
GX11#,JZX11#..SED |
1 | ||
| 75985B - STRIPE, FRONT DOOR, NO.3 RH | ||||
| 75985-22060 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 75985-22060 |
GX11#,JZX11#..SED |
1 | ||
| 75986B - STRIPE, FRONT DOOR, NO.3 LH | ||||
| 75986-22050 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 75986-22050 |
GX11#,JZX11#..SED |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90333-35002 | ||||
| 90950-01506 | ||||
| 90950-01620 | ||||
| 90950-01908 | ||||
| 91511-B0610 | ||||
| 91511-B0614 | ||||
| 91511-G0614 | ||||

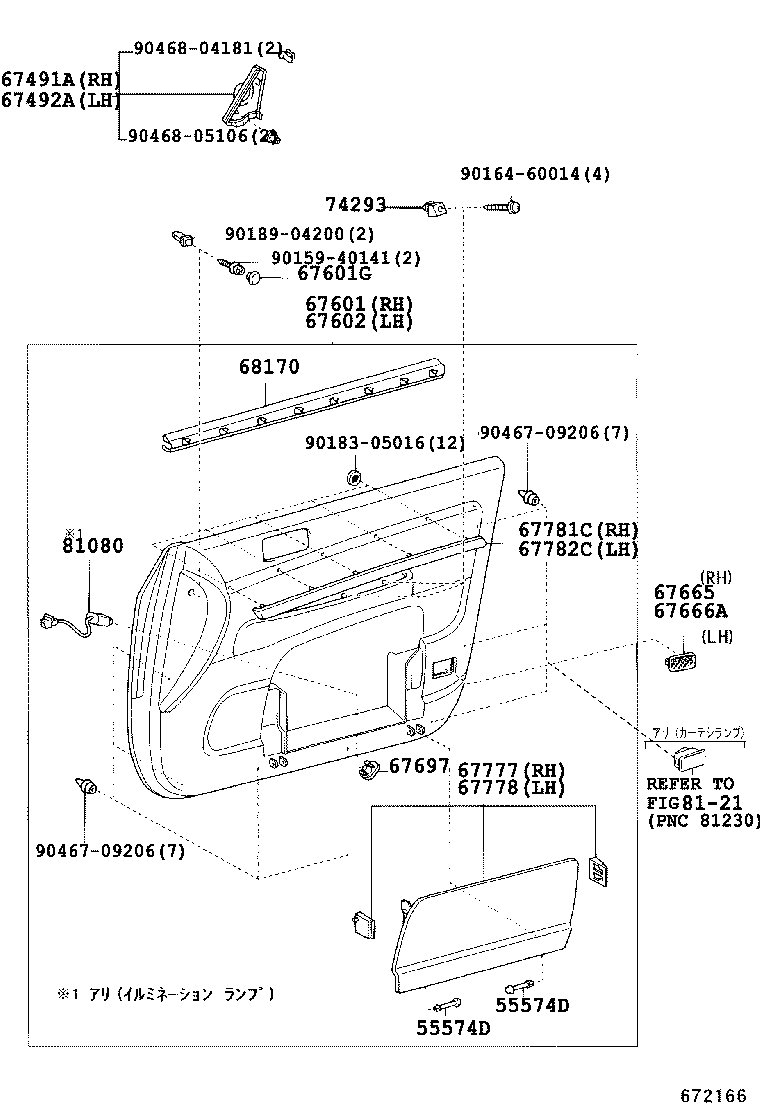

ILLUST NO. 1 OF 3(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55574D - SHAFT(FOR FRONT DOOR TRIM BOARD) | ||||
| 55574-10010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
4 | ||
| 55574-10010 |
GX11#,JZX11#..SED |
4 | ||
| 55574D - SHAFT(FOR FRONT DOOR TRIM BOARD) | ||||
| 55574-10010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
4 | ||
| 55574-10010 |
GX11#,JZX11#..SED |
4 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-22140 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67491-22140 |
GX11#,JZX11#..SED |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-22140 |
GX11#,JZX11#..SED |
1 | ||
| 67492-22140 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2C480A0 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),IVORY,TRIM00 |
1 | ||
| 67610-2C310A0 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67610-2C480B0 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),MD.CHACOAL,TRIM10 |
1 | ||
| 67610-2C330C0 |
JZX110..GDS,GDV ﾄﾞｱﾄﾘﾑ=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67610-2C310B0 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-2C350C1 |
JZX110..GDS,GDV ﾄﾞｱﾄﾘﾑ=TYPE E-*104,BLACK,TRIM2# |
1 | ||
| 67610-22A10B0 |
GX11#,JZX110..GD 35TH ANNIVERSARY *(T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(H),MD.CHACOAL,TRIM10 |
1 | ||
| 67610-2C480A1 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),IVORY,TRIM01 |
1 | ||
| 67610-22A10A0 |
GX11#,JZX110..GD 35TH ANNIVERSARY *(T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(H),IVORY,TRIM01 |
1 | ||
| 67610-22B30B0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),MD.CHARCOAL,TRIM1# |
1 | ||
| 67610-22B30E0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),IVORY,TRIM0# |
1 | ||
| 67610-2C330C0 |
GX110,JZX110..GDS,GDV ﾄﾞｱﾄﾘﾑ=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67610-2C500B1 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 67610-2C480B0 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),MD.CHACOAL,TRIM10 |
1 | ||
| 67610-2C350C1 |
JZX110..GDS,GDV ﾄﾞｱﾄﾘﾑ=TYPE E-*104,BLACK,TRIM2# |
1 | ||
| 67610-2C500A1 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800P1 |
GX11#,JZX11#..GD,GDG,GDGT SADDLE GRAY,TRIM0#,1# |
2 | ||
| 90950-01800E5 |
GX11#,JZX11#..GD,GDG SANDAL WOOD,TRIM0# |
2 | ||
| 90950-01800C0 |
GX110,JZX110..GDS,GDV BLACK,TRIM2# |
2 | ||
| 90950-01800C0 |
JZX110..GDS,GDV BLACK,TRIM2# |
2 | ||
| 90950-01800P1 |
GX11#,JZX11#..GD,GDG SADDLE GRAY,TRIM1# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67660-22190A0 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),IVORY,TRIM00 |
1 | ||
| 67620-2V210A0 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67620-2V210B0 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 67620-2V250C1 |
JZX110..GDS,GDV ﾄﾞｱﾄﾘﾑ=TYPE E-*104,BLACK,TRIM2# |
1 | ||
| 67620-2V230C0 |
JZX110..GDS,GDV ﾄﾞｱﾄﾘﾑ=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67660-22190B0 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),MD.CHACOAL,TRIM10 |
1 | ||
| 67660-22190B0 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),MD.CHACOAL,TRIM10 |
1 | ||
| 67050-22130A0 |
GX11#,JZX110..GD 35TH ANNIVERSARY *(T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(H),IVORY,TRIM01 |
1 | ||
| 67660-22190A1 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),IVORY,TRIM01 |
1 | ||
| 67620-22B00E0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),IVORY,TRIM0# |
1 | ||
| 67620-22B00B0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),MD.CHARCOAL,TRIM1# |
1 | ||
| 67620-2V250C1 |
JZX110..GDS,GDV ﾄﾞｱﾄﾘﾑ=TYPE E-*104,BLACK,TRIM2# |
1 | ||
| 67050-22130B0 |
GX11#,JZX110..GD 35TH ANNIVERSARY *(T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(H),MD.CHACOAL,TRIM10 |
1 | ||
| 67620-2V380B1 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 67620-2V380A1 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67620-2V230C0 |
GX110,JZX110..GDS,GDV ﾄﾞｱﾄﾘﾑ=TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 67697 - COVER, FRONT DOOR TRIM POCKET | ||||
| 67697-22240C0 |
JZX110..GDS,GDV BLACK,TRIM2#,右側 |
1 | ||
| 67697-22240B0 |
GX11#,JZX110..GD MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 67698-22190A0 |
GX11#,JZX110..GD IVORY,TRIM0#,左側 |
1 | ||
| 67697-22240A0 |
GX11#,JZX110..GD IVORY,TRIM0#,右側 |
1 | ||
| 67697-22240A0 |
GX11#,JZX110..GD IVORY,TRIM0#,右側 |
1 | ||
| 67698-22190B0 |
GX11#,JZX110..GD,IR MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 67697-22240A0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),IVORY,TRIM0#,右側 |
1 | ||
| 67698-22190B0 |
GX11#,JZX110..GD MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 67698-22190A0 |
GX11#,JZX110..GD IVORY,TRIM0#,左側 |
1 | ||
| 67698-22190C0 |
GX11#..IR;JZX110..GDS,GDV BLACK,TRIM2#,左側 |
1 | ||
| 67697-22240C0 |
GX110,JZX110..GDS,GDV BLACK,TRIM2#,右側 |
1 | ||
| 67697-22240B0 |
GX11#,JZX110..GD MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 67698-22190B0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 67698-22190A0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),IVORY,TRIM0#,左側 |
1 | ||
| 67697-22240B0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 67698-22190C0 |
GX110,JZX110..GDS,GDV BLACK,TRIM2#,左側 |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-22160A0 |
GX11#,JZX11#..GD,GDG IVORY,TRIM0# |
1 | ||
| 67777-22160B0 |
GX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV MD.CHARCOAL,TRIM1# |
1 | ||
| 67777-22160B0 |
GX11#,JZX11#..GD,GDG MD.CHARCOAL,TRIM1# |
1 | ||
| 67777-22160A0 |
GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
1 | ||
| 67777-22160C0 |
GX110,JZX110..GDS,GDV BLACK,TRIM2# |
1 | ||
| 67777-22160C0 |
GX11#,JZX115..WG;JZX110..GDS,GDV,IRS,IRV BLACK,TRIM2# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-22160B0 |
GX11#,JZX11#..GD,GDG MD.CHARCOAL,TRIM1# |
1 | ||
| 67778-22160C0 |
GX11#,JZX115..WG;JZX110..GDS,GDV,IRS,IRV BLACK,TRIM2# |
1 | ||
| 67778-22160A0 |
GX11#,JZX11#..GD,GDG IVORY,TRIM0# |
1 | ||
| 67778-22160C0 |
GX110,JZX110..GDS,GDV BLACK,TRIM2# |
1 | ||
| 67778-22160A0 |
GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
1 | ||
| 67778-22160B0 |
GX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV MD.CHARCOAL,TRIM1# |
1 | ||
| 67781C - ORNAMENT SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67781-22030E0 |
GX11#,JZX11#..GD,GDG,GDGT YELLOWISH BROWN,TRIM0#,1# |
1 | ||
| 67781-22050E0 |
GX11#,JZX110..GD 35TH ANNIVERSARY *(T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(H),BROWN,TRIM01 |
1 | ||
| 67781-22050E0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),BROWN,TRIM0#,1# |
1 | ||
| 67781-22030D0 |
JZX110..GDS,GDV REDDISH BROWN,TRIM2# |
1 | ||
| 67781-22030D0 |
GX110,JZX110..GDS,GDV REDDISH BROWN,TRIM2# |
1 | ||
| 67781-22030E0 |
GX11#,JZX11#..GD,GDG YELLOWISH BROWN,TRIM0#,1# |
1 | ||
| 67782C - ORNAMENT SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67782-22020E0 |
GX11#,JZX11#..GD,GDG,GDGT YELLOWISH BROWN,TRIM0#,1# |
1 | ||
| 67782-22040E0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),BROWN,TRIM0#,1# |
1 | ||
| 67782-22020E0 |
GX11#,JZX11#..GD,GDG YELLOWISH BROWN,TRIM0#,1# |
1 | ||
| 67782-22020D0 |
JZX110..GDS,GDV REDDISH BROWN,TRIM2# |
1 | ||
| 67782-22020D0 |
GX110,JZX110..GDS,GDV REDDISH BROWN,TRIM2# |
1 | ||
| 67782-22040E0 |
GX11#,JZX110..GD 35TH ANNIVERSARY *(T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(H),BROWN,TRIM01 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-22031 |
GX11#,JZX11#..SED 右側 |
1 | ||
| 68172-22010 |
GX11#,JZX11#..SED 左側 |
1 | ||
| 68171-22030 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS 右側 |
1 | ||
| 68172-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS 左側 |
1 | ||
| 68172-22011 |
GX11#,JZX11#..SED 左側 |
1 | ||
| 68171-22030 |
GX11#,JZX11#..SED 右側 |
1 | ||
| 74293 - PLATE, FRONT DOOR ARMREST, NO.1 | ||||
| 74294-32010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
4 | ||
| 74294-32010 |
GX11#,JZX11#..SED |
4 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90164-60014 | ||||
| 90183-05016 | ||||
| 90189-04200 | ||||
| 90467-09206 | ||||
| 90468-04181 | ||||
| 90468-05106 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
