JZX110-AEPQH (2000)
Toyota Mark 2/Mark 2 Blit

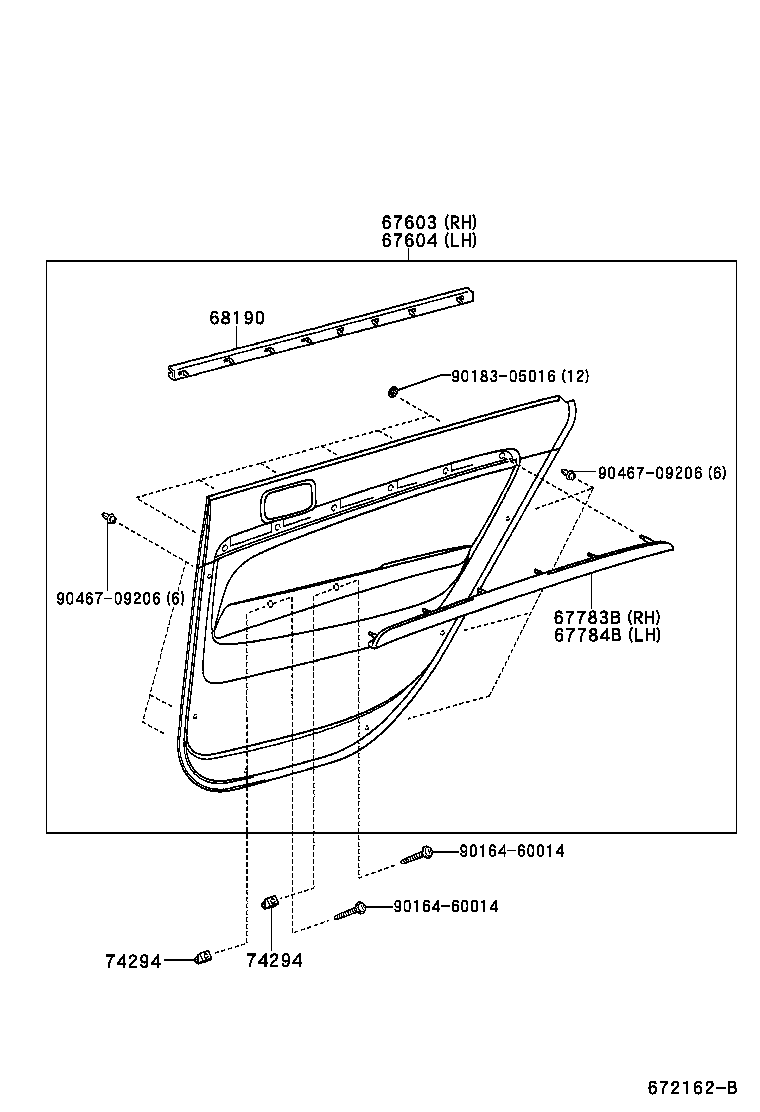

ILLUST NO. 1 OF 2(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67010-22050A0 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),IVORY,TRIM00 |
1 | ||
| 67010-22050B0 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),MD.CHACOAL,TRIM10 |
1 | ||
| 67010-22080B0 |
GX11#,JZX110..GD 35TH ANNIVERSARY *(T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(H),MD.CHACOAL,TRIM10 |
1 | ||
| 67630-2C350B0 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 67630-2C350A0 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67630-22A30B0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),MD.CHARCOAL,TRIM1# |
1 | ||
| 67630-2C450A1 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67010-22050A1 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),IVORY,TRIM01 |
1 | ||
| 67010-22050B0 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),MD.CHACOAL,TRIM10 |
1 | ||
| 67630-22A30E0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),IVORY,TRIM0# |
1 | ||
| 67630-2C450B1 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 67010-22080A0 |
GX11#,JZX110..GD 35TH ANNIVERSARY *(T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(H),IVORY,TRIM01 |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2C340A0 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67020-22050B0 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),MD.CHACOAL,TRIM10 |
1 | ||
| 67020-22050A0 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),IVORY,TRIM00 |
1 | ||
| 67640-2C340B0 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 67020-22080A0 |
GX11#,JZX110..GD 35TH ANNIVERSARY *(T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(H),IVORY,TRIM01 |
1 | ||
| 67020-22050A1 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),IVORY,TRIM01 |
1 | ||
| 67020-22080B0 |
GX11#,JZX110..GD 35TH ANNIVERSARY *(T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(H),MD.CHACOAL,TRIM10 |
1 | ||
| 67640-22A30B0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),MD.CHARCOAL,TRIM1# |
1 | ||
| 67020-22050B0 |
GX11#,JZX110..GD ﾚｶﾞﾘｱ *(R) OR ﾚｶﾞﾘｱ ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),MD.CHACOAL,TRIM10 |
1 | ||
| 67640-2C440B1 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 67640-2C440A1 |
GX11#,JZX110..GD ﾄﾞｱﾄﾘﾑ=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67640-22A30E0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),IVORY,TRIM0# |
1 | ||
| 67783B - ORNAMENT SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67783-22020E0 |
GX11#,JZX11#..GD,GDG,GDGT YELLOWISH BROWN,TRIM0#,1# |
1 | ||
| 67783-22040E0 |
GX11#,JZX110..GD 35TH ANNIVERSARY *(T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(H),BROWN,TRIM01 |
1 | ||
| 67783-22040E0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),BROWN,TRIM0#,1# |
1 | ||
| 67783-22020E0 |
GX11#,JZX11#..GD,GDG YELLOWISH BROWN,TRIM0#,1# |
1 | ||
| 67784B - ORNAMENT SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67784-22040E0 |
GX11#,JZX110..GD ﾘﾐﾃｯﾄﾞ *(D),ﾘﾐﾃｯﾄﾞﾅﾋﾞﾊﾟｯｹｰｼﾞ *(N),BROWN,TRIM0#,1# |
1 | ||
| 67784-22020E0 |
GX11#,JZX11#..GD,GDG,GDGT YELLOWISH BROWN,TRIM0#,1# |
1 | ||
| 67784-22040E0 |
GX11#,JZX110..GD 35TH ANNIVERSARY *(T),35TH ANNIVERSARY ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(H),BROWN,TRIM01 |
1 | ||
| 67784-22020E0 |
GX11#,JZX11#..GD,GDG YELLOWISH BROWN,TRIM0#,1# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-22021 |
GX11#,JZX11#..SED 右側 |
1 | ||
| 68173-22020 |
GX11#,JZX11#..SED 右側 |
1 | ||
| 68174-22010 |
GX11#,JZX11#..SED 左側 |
1 | ||
| 68173-22020 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS 右側 |
1 | ||
| 68174-22011 |
GX11#,JZX11#..SED 左側 |
1 | ||
| 68174-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS 左側 |
1 | ||
| 74294 - PLATE, REAR DOOR ARMREST, NO.2 | ||||
| 74294-32010 |
GX11#,JZX11#..SED |
2 | ||
| 74294-32010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 74294 - PLATE, REAR DOOR ARMREST, NO.2 | ||||
| 74294-32010 |
GX11#,JZX11#..SED |
2 | ||
| 74294-32010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| Common parts | ||||
| 90164-60014 | ||||
| 90183-05016 | ||||
| 90467-09206 | ||||

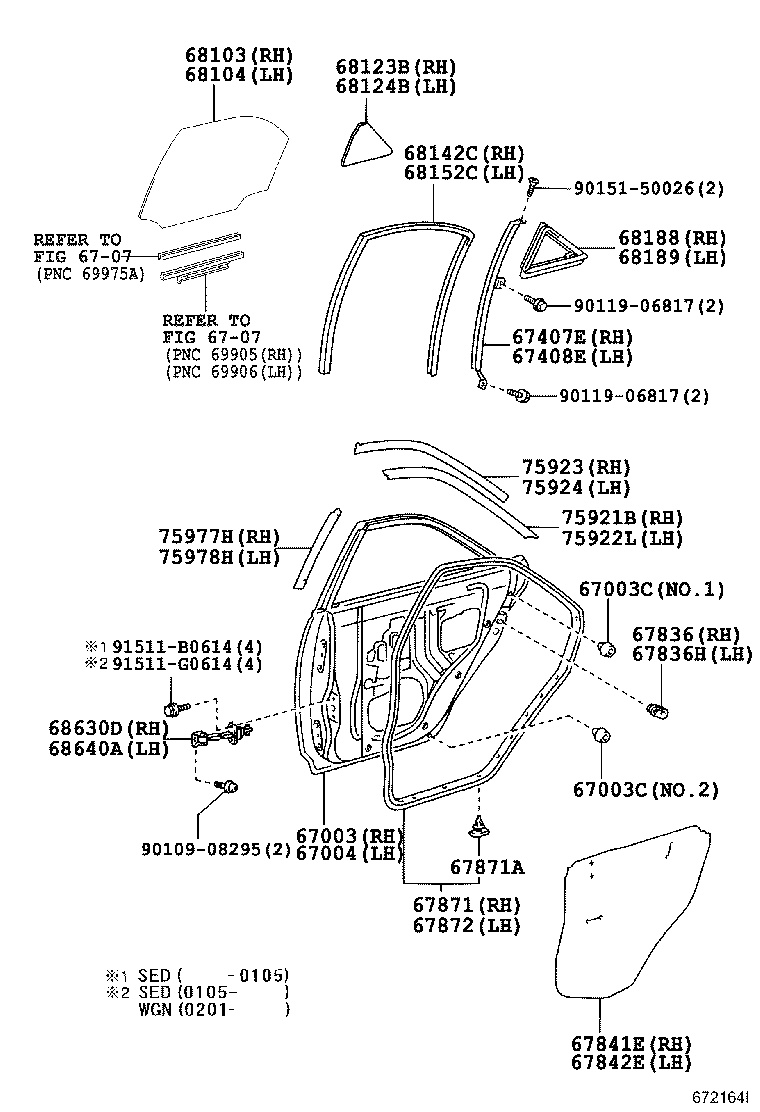

ILLUST NO. 2 OF 2(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-22390 |
GX11#,JZX11#..SED |
1 | ||
| 67003-22390 |
GX11#,JZX11#..SED |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS NO.2 |
2 | ||
| 90541-09063 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS NO.1 |
2 | ||
| 90541-09063 |
GX11#,JZX11#..SED NO.1 |
2 | ||
| 90541-09069 |
GX11#,JZX11#..SED NO.2 |
2 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS NO.2 |
2 | ||
| 90541-09063 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS NO.1 |
2 | ||
| 90541-09063 |
GX11#,JZX11#..SED NO.1 |
2 | ||
| 90541-09069 |
GX11#,JZX11#..SED NO.2 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-22410 |
GX11#,JZX11#..SED |
1 | ||
| 67004-22410 |
GX11#,JZX11#..SED |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-22160 |
GX11#,JZX11#..SED |
1 | ||
| 67407-22160 |
GX11#,JZX11#..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-22160 |
GX11#,JZX11#..SED |
1 | ||
| 67408-22160 |
GX11#,JZX11#..SED |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
GX11#,JZX11#..SED |
1 | ||
| 67836-14010 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-14010 |
GX11#,JZX11#..SED |
1 | ||
| 67836-14010 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-22280 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67841-22280 |
GX11#,JZX11#..SED |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-22180 |
GX11#,JZX11#..SED |
1 | ||
| 67842-22180 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-22291 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 67871-22290 |
GX11#,JZX11# |
1 | ||
| 67871-22291 |
GX11#,JZX11#..SED |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
GX11#,JZX11#..SED |
34 | ||
| 67867-12150 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
34 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-22291 |
GX11#,JZX11#..SED |
1 | ||
| 67872-22290 |
GX11#,JZX11# |
1 | ||
| 67872-22291 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-22390 |
GX11#,JZX11#..SED *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68113-22390 |
GX11#,JZX11#..SED *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-22390 |
GX11#,JZX11#..SED *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68114-22390 |
GX11#,JZX11#..SED *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-22220 |
GX11#,JZX11#..SED *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68123-22220 |
GX11#,JZX11#..SED *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-22220 |
GX11#,JZX11#..SED *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68124-22220 |
GX11#,JZX11#..SED *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-22140 |
GX11#,JZX11#..SED |
1 | ||
| 68142-22140 |
GX11#,JZX11#..SED |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-22100 |
GX11#,JZX11#..SED |
1 | ||
| 68152-22100 |
GX11#,JZX11#..SED |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-22090 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 68188-22090 |
GX11#,JZX11#..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-22080 |
GX11#,JZX11#..SED |
1 | ||
| 68189-22080 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-22140 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 68630-22140 |
GX11#,JZX11#..SED |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-22040 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 68640-22040 |
GX11#,JZX11#..SED |
1 | ||
| 75921B - TAPE, BLACK OUT, NO.1 RH | ||||
| 75987-22140 |
GX11#,JZX11#..SED |
1 | ||
| 75987-22140 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 75922L - TAPE, BLACK OUT, NO.1 LH | ||||
| 75988-22110 |
GX11#,JZX11#..SED |
1 | ||
| 75988-22110 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-22020 |
GX11#,JZX11#..SED |
1 | ||
| 75923-22020 |
GX11#,JZX11#..SED |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-22010 |
GX11#,JZX11#..SED |
1 | ||
| 75924-22010 |
GX11#,JZX11#..SED |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-22010 |
GX11#,JZX11#..SED |
1 | ||
| 75977-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-22010 |
GX11#,JZX11#..SED |
1 | ||
| 75978-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06817 | ||||
| 90151-50026 | ||||
| 91511-B0614 | ||||
| 91511-G0614 | ||||
| Linked diagrams | ||||
| 6707 | ||||
