JZX110-AEPQH (2000)
Toyota Mark 2/Mark 2 Blit
Production
Oct 2000
-
Nov 2004
Engine
1JZFSE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0010- )

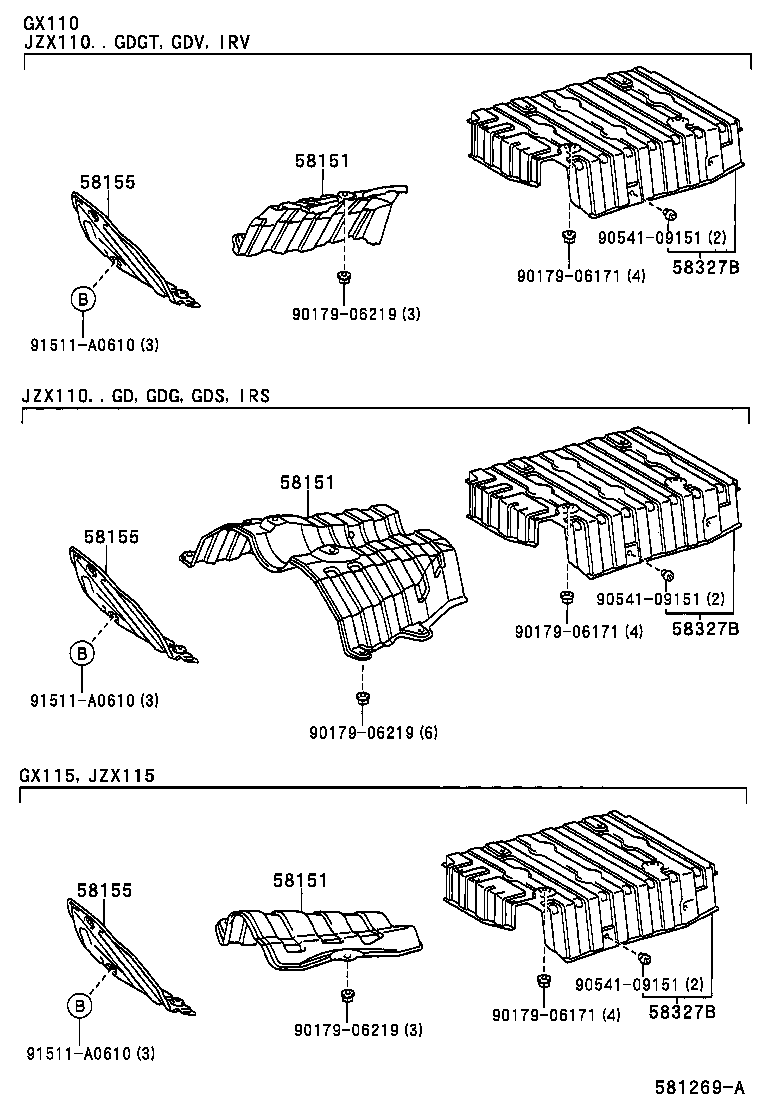

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-30090 |
JZX110..GD,GDG,GDS |
1 | ||
| 58151-30090 |
JZX110..GD,GDG,GDS,IRS |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-30090 |
JZX110..GD,GDG,GDS |
1 | ||
| 58151-30090 |
JZX110..GD,GDG,GDS,IRS |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-30090 |
JZX110..GD,GDG,GDS |
1 | ||
| 58151-30090 |
JZX110..GD,GDG,GDS,IRS |
1 | ||
| 58155 - INSULATOR, FRONT FLOOR HEAT, NO.3 | ||||
| 58155-51010 |
GX11#,JZX11#..SED |
1 | ||
| 58155-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 58155 - INSULATOR, FRONT FLOOR HEAT, NO.3 | ||||
| 58155-51010 |
GX11#,JZX11#..SED |
1 | ||
| 58155-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 58155 - INSULATOR, FRONT FLOOR HEAT, NO.3 | ||||
| 58155-51010 |
GX11#,JZX11#..SED |
1 | ||
| 58155-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-22090 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 58327-22090 |
GX11#,JZX11#..SED |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-22090 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 58327-22090 |
GX11#,JZX11#..SED |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-22090 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 58327-22090 |
GX11#,JZX11#..SED |
1 | ||
| Common parts | ||||
| 90179-06171 | ||||
| 90179-06219 | ||||
| 90541-09151 | ||||
| 91511-A0610 | ||||
