JZX110-AEPQH (2000)
Toyota Mark 2/Mark 2 Blit
(0010- )GX115,JZX11#..4FC
A340E,A343E,A340H

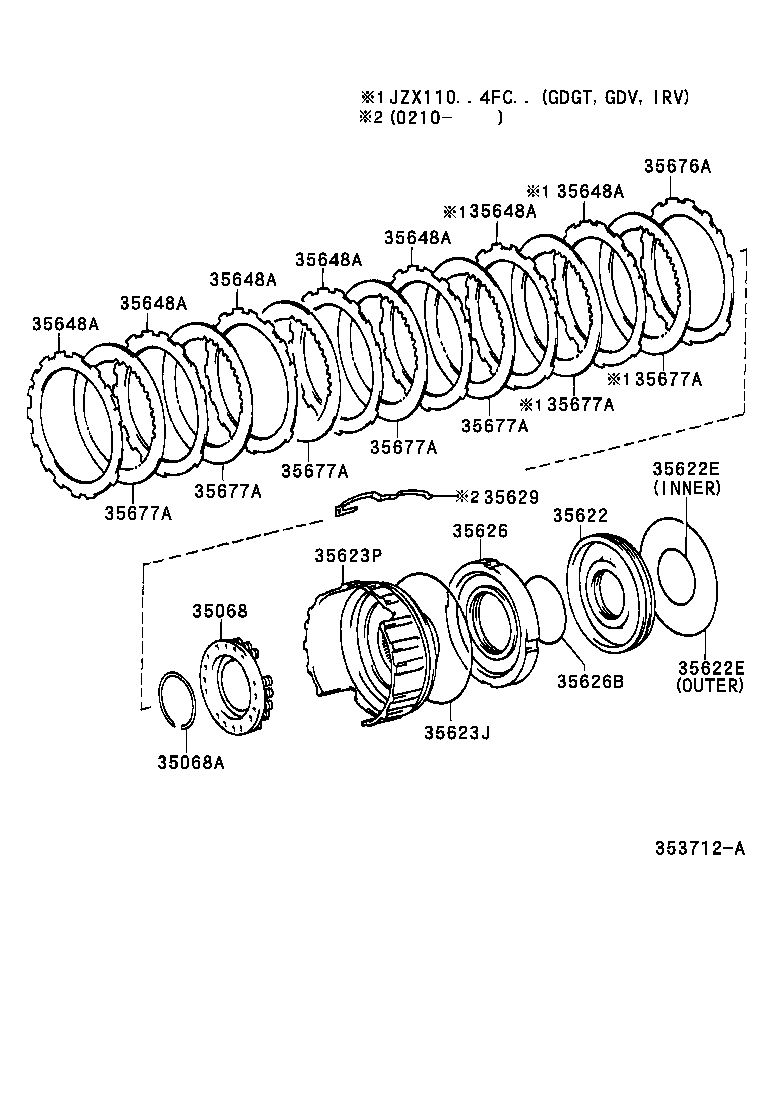

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-50010 |
GX115,JZX11#..4FC |
1 | ||
| 35068-50010 |
GX115,JZX11#..SED..4FC |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-52262 |
GX115,JZX11#..4FC |
1 | ||
| 90520-52262 |
GX115,JZX11#..SED..4FC |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-30010 |
GX115,JZX11#..4FC |
1 | ||
| 35622-30010 |
GX115,JZX11#..SED..4FC |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99193 |
GX115,JZX11#..4FC 外側 |
1 | ||
| 90301-57188 |
GX115,JZX11#..4FC 内側 |
1 | ||
| 90301-56007 |
GX115,JZX11#..SED..4FC 内側 |
1 | ||
| 90301-99084 |
GX115,JZX11#..SED..4FC 外側 |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99193 |
GX115,JZX11#..4FC 外側 |
1 | ||
| 90301-57188 |
GX115,JZX11#..4FC 内側 |
1 | ||
| 90301-56007 |
GX115,JZX11#..SED..4FC 内側 |
1 | ||
| 90301-99084 |
GX115,JZX11#..SED..4FC 外側 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99192 |
GX115,JZX11#..SED..4FC |
1 | ||
| 90301-99192 |
GX115,JZX11#..4FC |
1 | ||
| 35623P - PISTON, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35623-35022 |
GX115,JZX11#..4FC..(GD,GDG,IR,IRS) |
1 | ||
| 35623-35022 |
GX115,JZX11#..4FC..(GD,GDG) |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-30020 |
GX115,JZX11#..4FC |
1 | ||
| 35626-30020 |
GX115,JZX11#..SED..4FC |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
GX115,JZX11#..4FC |
1 | ||
| 90301-67005 |
GX11#,JZX11#..SED..4FC |
1 | ||
| 35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER) | ||||
| 35629-22020 |
GX115,JZX11#..SED..4FC |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG,IR,IRS) |
5 | ||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG,IR,IRS) |
5 | ||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG,IR,IRS) |
5 | ||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG,IR,IRS) |
5 | ||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG,IR,IRS) |
5 | ||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG,IR,IRS) |
5 | ||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG,IR,IRS) |
5 | ||
| 35648-30031 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-50010 |
GX115,JZX11#..4FC 厚さ=5.0 |
1 | ||
| 35676-50050 |
GX115,JZX11#..4FC 厚さ=4.2 |
1 | ||
| 35676-30100 |
GX115,JZX11#..4FC 厚さ=5.2 |
1 | ||
| 35676-50020 |
GX115,JZX11#..4FC 厚さ=4.8 |
1 | ||
| 35676-30110 |
GX115,JZX11#..SED..4FC 厚さ=5.4 |
1 | ||
| 35676-50030 |
GX115,JZX11#..4FC 厚さ=4.6 |
1 | ||
| 35676-50060 |
GX115,JZX11#..4FC 厚さ=4.0 |
1 | ||
| 35676-50010 |
GX115,JZX11#..SED..4FC 厚さ=5.0 |
1 | ||
| 35676-30110 |
GX115,JZX11#..4FC 厚さ=5.4 |
1 | ||
| 35676-50050 |
GX115,JZX11#..SED..4FC 厚さ=4.2 |
1 | ||
| 35676-50030 |
GX115,JZX11#..SED..4FC 厚さ=4.6 |
1 | ||
| 35676-50020 |
GX115,JZX11#..SED..4FC 厚さ=4.8 |
1 | ||
| 35676-50040 |
GX115,JZX11#..SED..4FC 厚さ=4.4 |
1 | ||
| 35676-50060 |
GX115,JZX11#..SED..4FC 厚さ=4.0 |
1 | ||
| 35676-30100 |
GX115,JZX11#..SED..4FC 厚さ=5.2 |
1 | ||
| 35676-50040 |
GX115,JZX11#..4FC 厚さ=4.4 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35677-30180 |
JZX110..GD;GX115,JZX115..GDG,IR,IRS |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35677-30180 |
JZX110..GD;GX115,JZX115..GDG,IR,IRS |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35677-30180 |
JZX110..GD;GX115,JZX115..GDG,IR,IRS |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35677-30180 |
JZX110..GD;GX115,JZX115..GDG,IR,IRS |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35677-30180 |
JZX110..GD;GX115,JZX115..GDG,IR,IRS |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35677-30180 |
JZX110..GD;GX115,JZX115..GDG,IR,IRS |
5 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30180 |
GX115,JZX11#..4FC..(GD,GDG) |
5 | ||
| 35677-30180 |
JZX110..GD;GX115,JZX115..GDG,IR,IRS |
5 | ||
