JZX110-AEPQH (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004

Engine 1JZFSE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

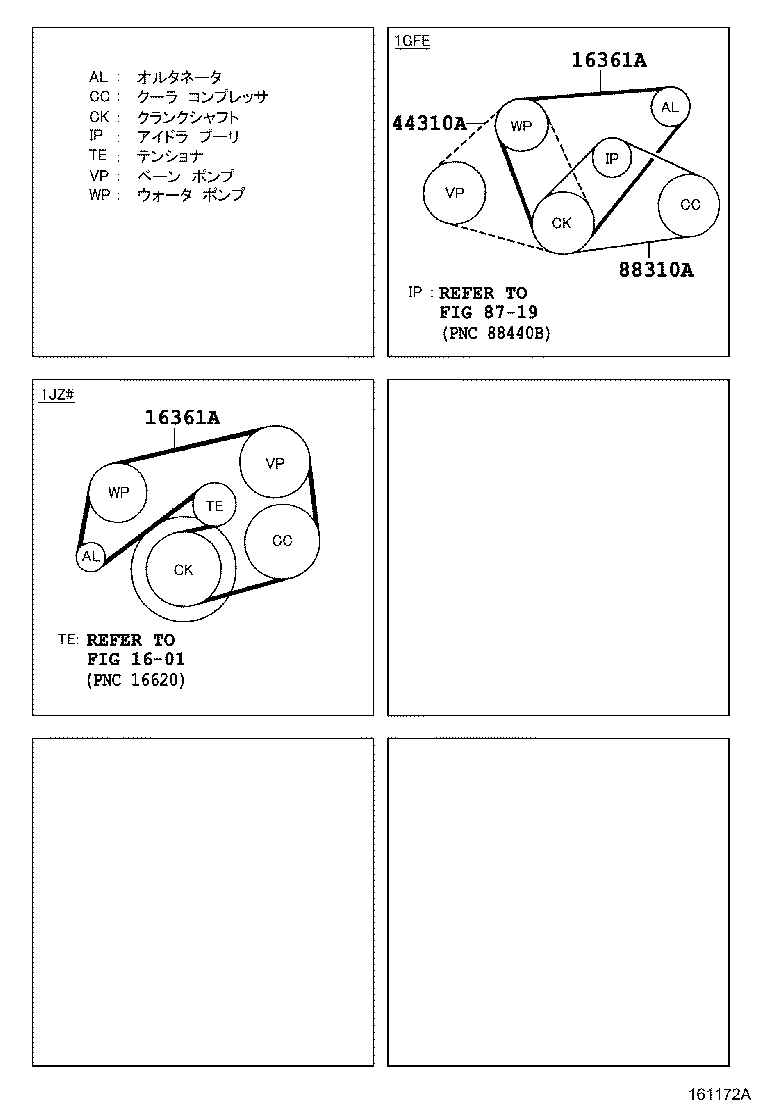

Click highlighted areas on diagram

Part #	Description	Period	Qty
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02514	1JZFSE..JZX110..SED	10/2002 - 06/2004	1
90916-02630	1JZFSE..JZX110..SED	07/2004 - 11/2004	1
90916-02514	1JZFSE..JZX110	10/2000 - 06/2004	1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02514	1JZFSE..JZX110..SED	10/2002 - 06/2004	1
90916-02630	1JZFSE..JZX110..SED	07/2004 - 11/2004	1
90916-02514	1JZFSE..JZX110	10/2000 - 06/2004	1
Linked diagrams
1601
8719
