JZX110-AEPQH (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004
Engine 1JZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )1JZFSE

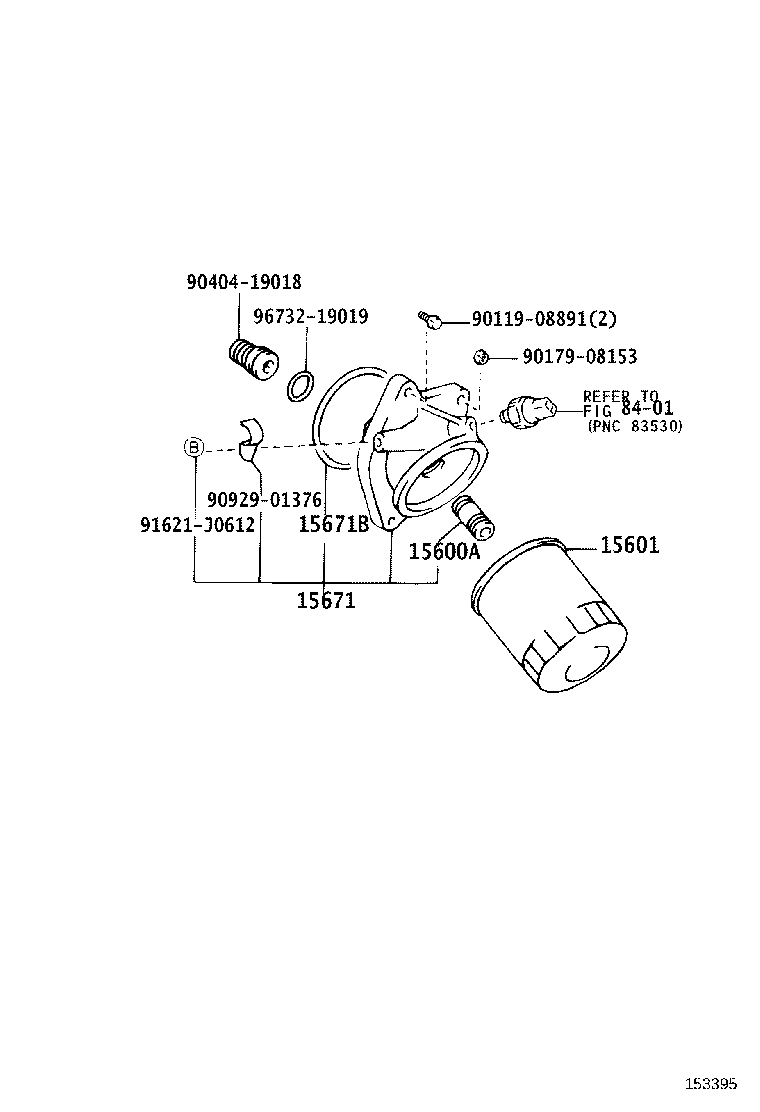

Click highlighted areas on diagram

diagram 15600A 15601 15671 15671B 8401 9011908891 9017908153 9040419018 9092901376 91621J0612 9673219019
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19019

1JZFSE..JZX110

 1
90404-19019

1JZFSE..JZX110..SED

 1
15601 - FILTER SUB-ASSY, OIL
90915-20003

1JZ#..JZX11#

 1
90915-20003

1JZ#..JZX11#..SED

 1
15671 - BRACKET, OIL FILTER
15670-46041

1JZFSE..JZX110

 1
15670-46041

1JZFSE..JZX110..SED

 1
15671B - GASKET, OIL FILTER BRACKET
90301-68005

1JZ#..JZX11#..SED

 1
90301-68005

1JZFSE,1JZGE..JZX11#

 1
Common parts
90119-08891
90179-08153
90404-19018
90929-01376
91621-J0612
96732-19019
Linked diagrams
8401
