JZX110-AEPQH (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004
Engine 1JZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )1JZFSE,1JZGTE

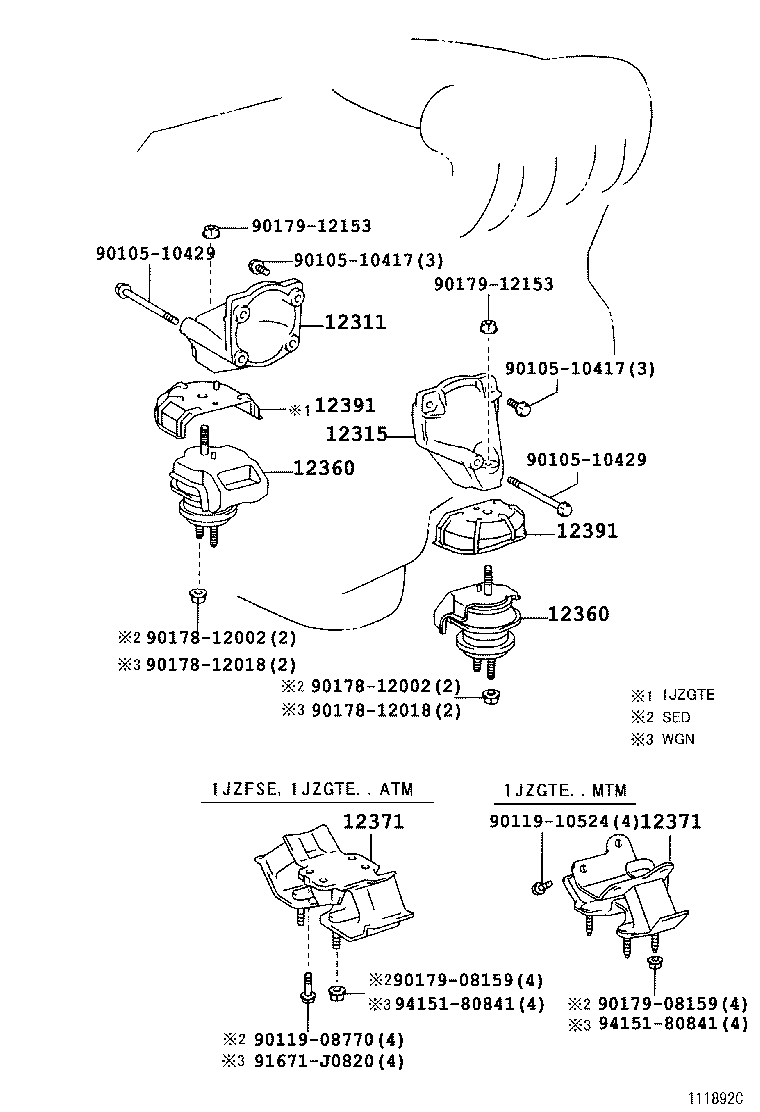

Click highlighted areas on diagram

diagram 12311 12315 12360 12360 12371 12371 12391 12391 9010510417 9010510417 9010510429 9010510429 9011908770 9011910524 9017812002 9017812002 9017812018 9017812018 9017908159 9017908159 9017912153 9017912153 91671J0820 9415180841 9415180841
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-46140

1JZFSE,1JZGTE..JZX110

 1
12311-46140

1JZFSE,1JZGTE..JZX110..SED

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-46120

1JZFSE,1JZGTE..JZX110

 1
12315-46120

1JZFSE,1JZGTE..JZX110..SED

 1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-46210

1JZFSE..JZX110

 2
12360-46210

1JZFSE..JZX110..SED

 2
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-46210

1JZFSE..JZX110

 2
12360-46210

1JZFSE..JZX110..SED

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-46210

1JZFSE,1JZGTE..JZX110..ATM

 1
12371-46210

1JZFSE,1JZGTE..JZX110..SED..ATM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-46210

1JZFSE,1JZGTE..JZX110..ATM

 1
12371-46210

1JZFSE,1JZGTE..JZX110..SED..ATM

 1
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-46040

1JZFSE..JZX110..SED

 1
12391-46040

1JZFSE..JZX110

 1
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-46040

1JZFSE..JZX110..SED

 1
12391-46040

1JZFSE..JZX110

 1
Common parts
90105-10417
90105-10429
90119-08770
90119-10524
90178-12002
90178-12018
90179-08159
90179-12153
91671-J0820
94151-80841
