JZX110-AEMVZ (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004
Engine 1JZGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

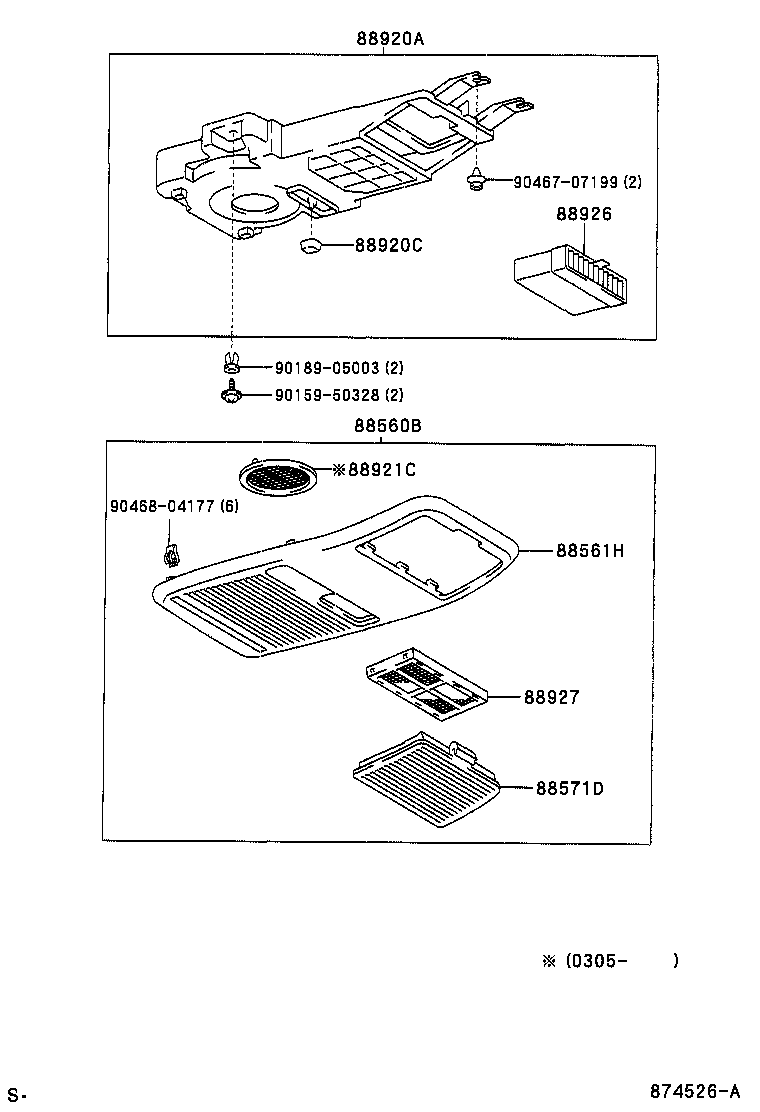

ILLUST NO. 2 OF 2(0010- )GD,GDG,GDGT,GDS,GDV,IRS,IRV

Click highlighted areas on diagram

ﾙ-ﾌ ｴｱﾋﾟﾕﾘﾌｱｲﾔ

diagram 88560B 88561H 88571D 88920A 88920C 88921C 88926 88927 9015950328 9018905003 9046707199 9046804177
Part # Description Qty Price
88920A - PURIFIER ASSY, AIR
88920-22390

GX11#,JZX11#..SED

 1
88920-22390

GX11#,JZX11#..SED

 1
88926 - FILTER, AIR PURIFIER
88926-22360

GX11#,JZX11#..SED

 1
88926-22360

GX11#,JZX11#..SED

 1
Common parts
90159-50328
90189-05003
90467-07199
90468-04177

ILLUST NO. 1 OF 2(0010- )SED

Click highlighted areas on diagram

diagram 88899R 88899X 88901 88905E 88908 88912 88918 88920A 88926 88930A 88930B 88960B 9009300612 9009900310 9009900311 9009900968 9009900968 9009902210 9009905263 9017906274 9017906274 9018305016 9018305016 9111150614 9321913008
Part # Description Qty Price
88899R - FRAME, AIR PURIFIER
88899-22350

GX11#,JZX11#..SED

 1
88899-22350

GX11#,JZX11#..SED

 1
88899X - PLATE, AIR PURIFIER COVER
88899-22370

GX11#,JZX11#..SED

 1
88899-22370

GX11#,JZX11#..SED

 1
88901 - MOTOR SUB-ASSY, AIR PURIFIER
88901-22340

GX11#,JZX11#..SED

 1
88901-22340

GX11#,JZX11#..SED

 1
88905E - FUSE, AIR PURIFIER WIRE
90096-80012

GX11#,JZX11#..SED

 1
90096-80012

GX11#,JZX11#..SED

 1
88908 - ACCESSORY SUB-ASSY, AIR PURIFIER, NO.2
88908-22390

GX11#,JZX11#..SED

 1
88908-22390

GX11#,JZX11#..SED

 1
88912 - FAN, AIR PURIFIER
88912-22390

GX11#,JZX11#..SED

 1
88912-22390

GX11#,JZX11#..SED

 1
88918 - LAMP, AIR PURIFIER
88918-22390

GX11#,JZX11#..SED

 1
88918-22390

GX11#,JZX11#..SED

 1
88920A - PURIFIER ASSY, AIR
88920-22390

GX11#,JZX11#..SED

 1
88920-22390

GX11#,JZX11#..SED

 1
88926 - FILTER, AIR PURIFIER
88926-22360

GX11#,JZX11#..SED

 1
88926-22360

GX11#,JZX11#..SED

 1
88930A - SWITCH ASSY, AIR PURIFIER
88930-22390

GX11#,JZX11#..SED

 1
88930-22390

GX11#,JZX11#..SED

 1
88930B - BULB, AIR PURIFIER SWITCH
90010-03005

GX11#,JZX11#..SED

14V 1.8W

 1
90010-03005

GX11#,JZX11#..SED

14V 1.8W

 1
88960B - RESISTOR ASSY, AIR PURIFIRE
88960-22390B0

GX11#,JZX11#..GD,GDG,GDGT

MD.CHARCOAL,TRIM1#

 1
88960-22390A0

GX11#,JZX11#..GD,GDG

IVORY,TRIM0#

 1
88960-22390C0

GX110,JZX110..GDS,GDV

BLACK,TRIM2#

 1
88960-22390C0

JZX110..GDS,GDV

BLACK,TRIM2#

 1
88960-22390B0

GX11#,JZX11#..GD,GDG

MD.CHARCOAL,TRIM1#

 1
88960-22390A0

GX11#,JZX11#..GD,GDG,GDGT

IVORY,TRIM0#

 1
Common parts
90093-00612
90099-00310
90099-00311
90099-00968
90099-02210
90099-05263
90179-06274
90183-05016
91111-50614
93219-13008
