JZX110-AEMVZ (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004
Engine 1JZGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )JZX110..GD,GDG,GDS,IRS

Click highlighted areas on diagram

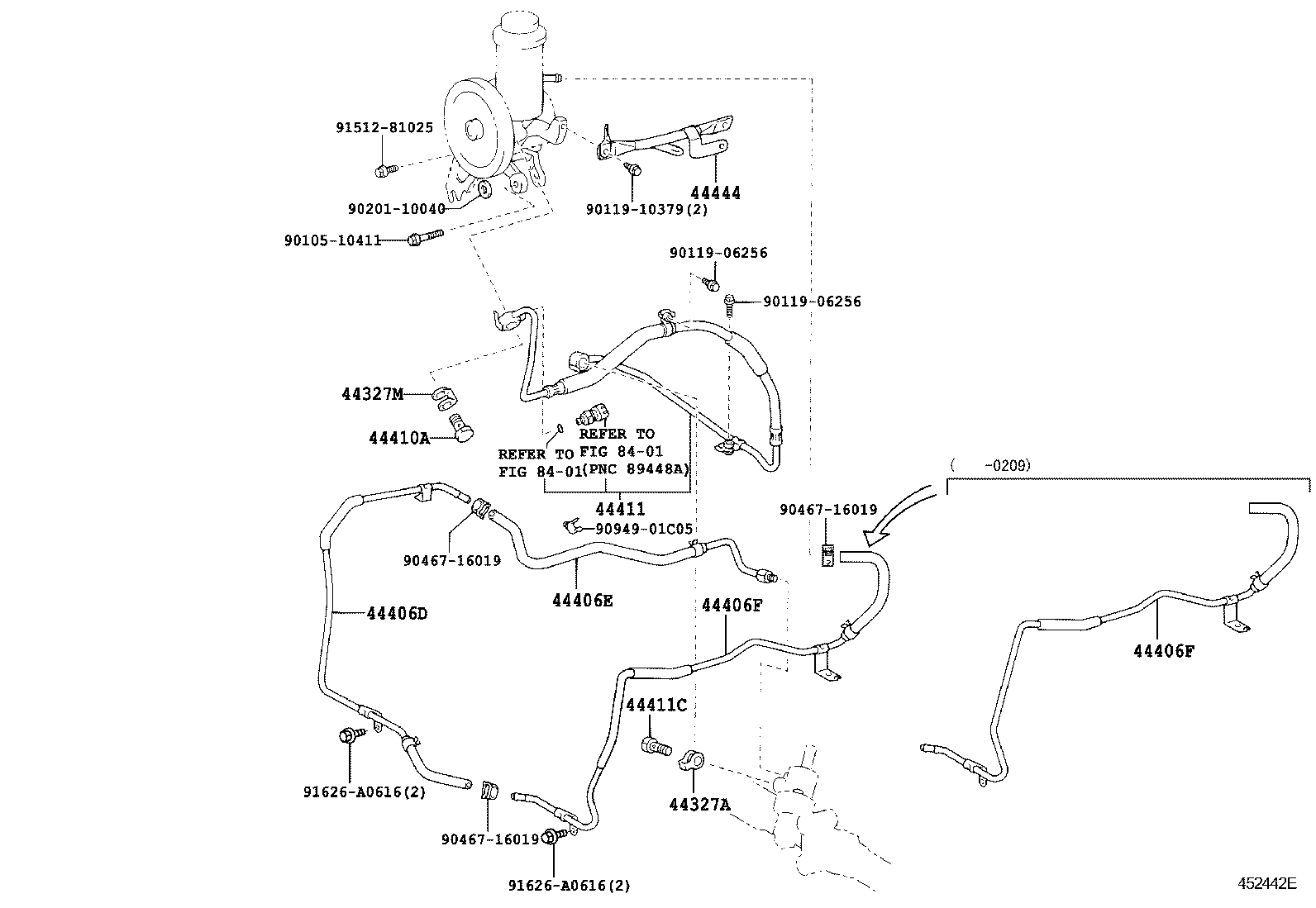

diagram 44327A 44327M 44406D 44406E 44406F 44406F 44410A 44411 44411C 44444 8401 8401 9010510411 9011906256 9011906256 9011910379 9020110040 9046716019 9046716019 9046716019 9094901C05 9151281025 91626A0616 91626A0616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

JZX11#..SED

 1
44327-30030

JZX11#

 1
44327M - GASKET, PRESSURE PORT, NO.2
44327-30040

JZX11#

 1
44327-30040

JZX11#..SED

 1
44406D - TUBE SUB-ASSY, RETURN, NO.1
44406-22400

JZX11#..GD,GDG,GDS

 1
44406-22400

JZX11#..GD,GDG,GDS

 1
44406E - TUBE SUB-ASSY, RETURN, NO.2
44406-22420

JZX110..GD,GDG,GDS

 1
44406-22420

JZX110..GD,GDG,GDS

 1
44406F - TUBE SUB-ASSY, RETURN, NO.3
44406-22430

JZX110..GD,GDG,GDS,IRS

 1
44406-22330

JZX110..GD,GDG,GDS

 1
44406-22330

JZX110..GD,GDG,GDS

 1
44406F - TUBE SUB-ASSY, RETURN, NO.3
44406-22430

JZX110..GD,GDG,GDS,IRS

 1
44406-22330

JZX110..GD,GDG,GDS

 1
44406-22330

JZX110..GD,GDG,GDS

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034

JZX11#

 1
90401-16034

JZX11#..SED

 1
44411 - HOSE, PRESSURE FEED
44411-22750

JZX110..GD,GDG,GDS

 1
44411-22750

JZX110..GD,GDG,GDS

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

GX11#,JZX11#..SED

 1
96341-41603

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 1
44444 - STAY, PUMP, REAR
44444-22120

JZX110..GD,GDG,GDS

 1
44444-22120

JZX110..GD,GDG,GDS,IRS

 1
44444-30150

JZX110..GDGT,GDV,IRV

 1
44444-30150

JZX110..GDV

 1
Common parts
90105-10411
90119-06256
90119-10379
90201-10040
90467-16019
90949-01C05
91512-81025
91626-A0616
Linked diagrams
8401

(0010- )GDGT,GDV,IRV

Click highlighted areas on diagram

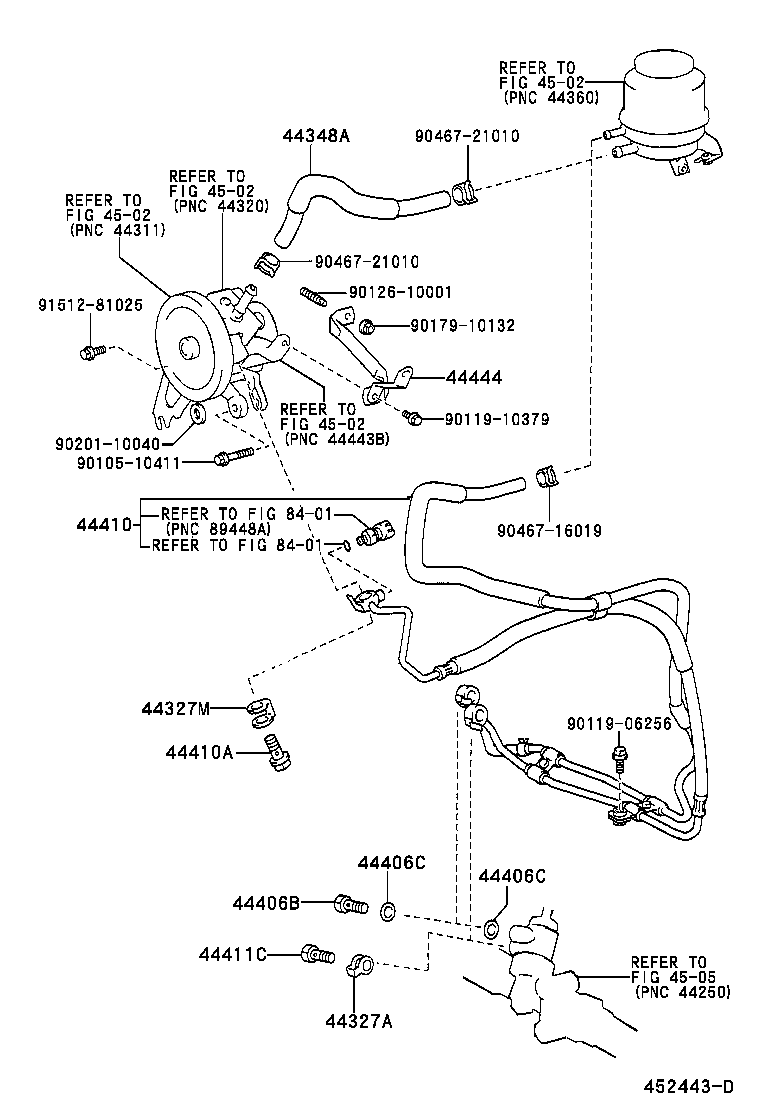

diagram 44327A 44327M 44348A 44406B 44406C 44406C 44410 44410A 44411C 44444 4502 4502 4502 4502 4505 8401 8401 9010510411 9011906256 9011910379 9012610001 9017910132 9020110040 9046716019 9046721010 9046721010 9151281025
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

JZX11#..SED

 1
44327-30030

JZX11#

 1
44327M - GASKET, PRESSURE PORT, NO.2
44327-30040

JZX11#

 1
44327-30040

JZX11#..SED

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-30230

JZX110..GDGT,GDV,IRV

 1
44348-30230

JZX110..GDV

 1
44406B - BOLT, UNION(FOR RETURN TUBE)
90401-17005

JZX110..GDV

 1
96341-11703

JZX110..GDGT,GDV,IRV

 1
44406C - GASKET(FOR RETURN TUBE)
90430-17007

JZX110..GDV

 2
90430-17007

JZX110..GDGT,GDV,IRV

 2
44406C - GASKET(FOR RETURN TUBE)
90430-17007

JZX110..GDV

 2
90430-17007

JZX110..GDGT,GDV,IRV

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-22640

JZX110..GDGT,GDV,IRV

 1
44410-22640

JZX110..GDV

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034

JZX11#

 1
90401-16034

JZX11#..SED

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

GX11#,JZX11#..SED

 1
96341-41603

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 1
44444 - STAY, PUMP, REAR
44444-22120

JZX110..GD,GDG,GDS

 1
44444-22120

JZX110..GD,GDG,GDS,IRS

 1
44444-30150

JZX110..GDGT,GDV,IRV

 1
44444-30150

JZX110..GDV

 1
Common parts
90105-10411
90119-06256
90119-10379
90126-10001
90179-10132
90201-10040
90467-16019
90467-21010
91512-81025
Linked diagrams
4502
4505
8401
