JZX110-AEAZH (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004
Engine 1JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )JZX11#..GD,GDG,GDS,IRS

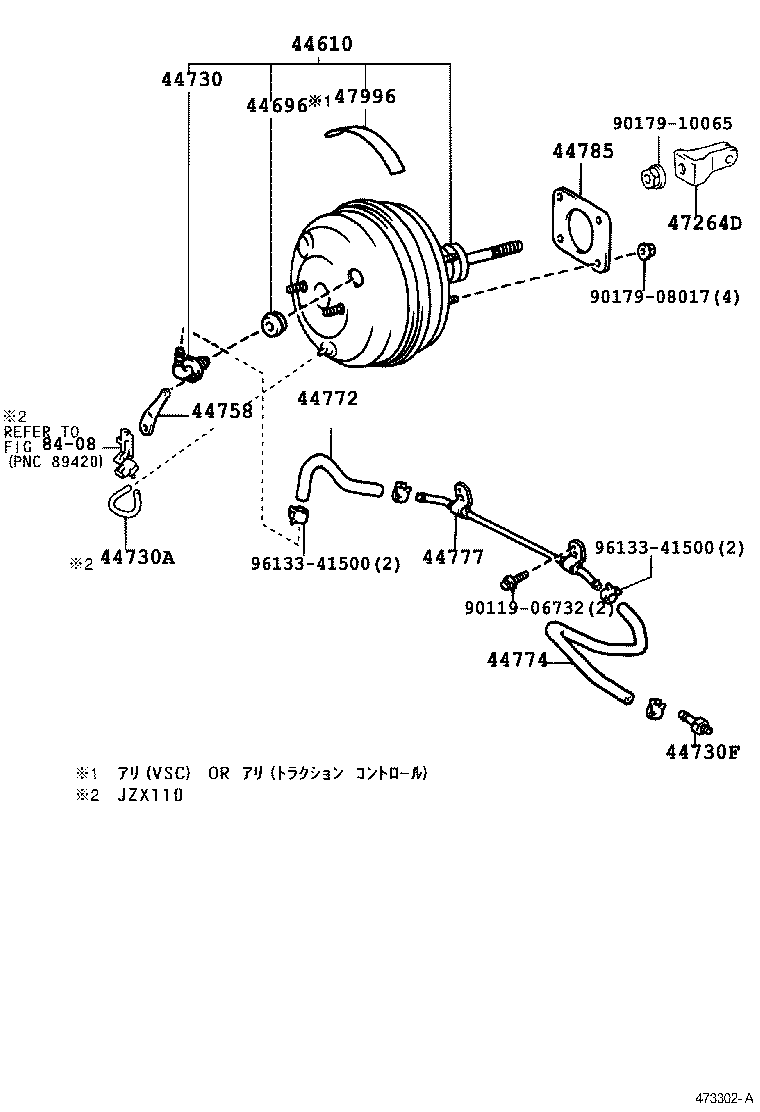

Click highlighted areas on diagram

diagram 44610 44696 44730 44730A 44730F 44758 44772 44774 44777 44785 47264D 47996 8408 9011906732 9017908017 9017910065 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2A290

JZX110..GD,GDG,GDS

 1
44610-2A280

JZX110..GD,GDG,IRS

ｱﾘ(VSC)

 1
44610-2A280

JZX110..GD,GDG

ｱﾘ(VSC)

 1
44610-2A290

JZX110..GD,GDG,GDS,IRS

 1
44696 - GROMMET, CHECK VALVE
90480-24439

GX11#,JZX11#

 1
90480-24439

GX11#,JZX11#..SED

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

GX115,JZX11#

 1
44730-14050

GX115,JZX11#..SED

 1
44730A - HOSE, VACUUM, NO.1
90999-92002

JZX110..GD,GDG,GDS

 1
90999-92002

JZX110..GD,GDG,GDS

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

GX11#,JZX11#..GD,GDG,GDS

 1
90404-51319

JZX110..GD,GDG,GDS,IRS;GX11#,JZX115..GD,GDG,IR,IRS

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-14150

GX115,JZX11#..SED

 1
44758-14150

GX11#,JZX11#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-22320

GX115,JZX11#

 1
44772-22320

GX115,JZX11#..SED

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-22400

JZX110..GD,GDG,GDS,IRS

 1
44774-22400

JZX110..GD,GDG,GDS

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44770-22060

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 1
44770-22060

GX11#,JZX11#..SED

 1
44785 - GASKET, BRAKE BOOSTER
44785-30030

GX11#,JZX11#..SED

 1
44785-30030

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-30060

GX115,JZX11#

 1
47264-30060

GX115,JZX11#..SED

 1
47996 - LABEL, BRAKE BLEED NOTICE
47996-50050

JZX110..SED

 1
47996-50050

JZX110

 1
Common parts
90119-06732
90179-08017
90179-10065
96133-41500
Linked diagrams
8408
