JZX110-AEASH (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004
Engine 1JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0210-0305)GD,GDG ; (0305- )

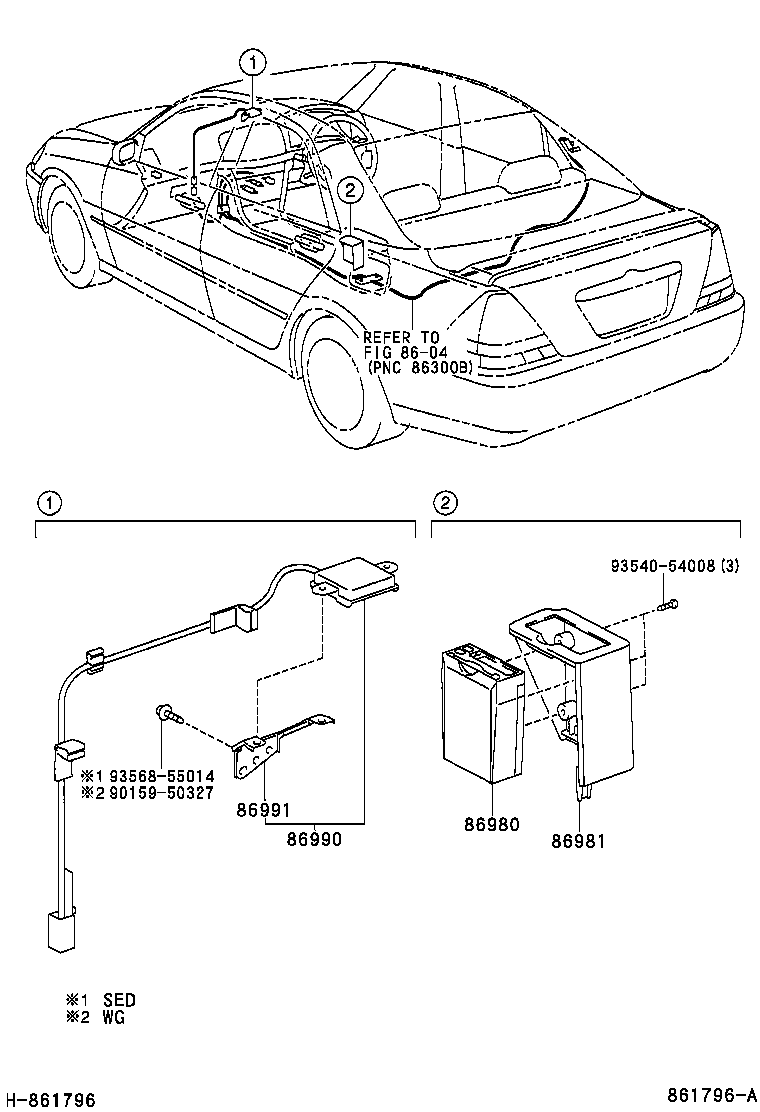

Click highlighted areas on diagram

diagram 8604 86980 86981 86990 86991 9015950327 9354054008 9356855014
Part # Description Qty Price
86980 - COMPUTER ASSY, TOLL COLLECTION
86980-28011

GX11#,JZX11#..SED

 1
86980-28020

GX11#,JZX11#..SED

 1
86980-28011

GX11#,JZX11#..GD,GDG

 1
86981 - COVER, TOLL COLLECTION
86981-22010

GX11#,JZX11#..GD,GDG

 1
86981-22010

GX11#,JZX11#..SED

 1
86990 - ANTENNA ASSY, TOLL COLLECTION
86990-22010

GX11#,JZX11#..SED

 1
86990-22010

GX11#,JZX11#..GD,GDG

 1
86990-22010

GX11#,JZX11#..SED

 1
86991 - BRACKET, TOLL COLLECTION ANTENNA
86991-22020

GX11#,JZX11#..GD,GDG

 1
86991-22020

GX11#,JZX11#..SED

 1
Common parts
90159-50327
93540-54008
93568-55014
Linked diagrams
8604
