JZX110-AEASH (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004
Engine 1JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )SED

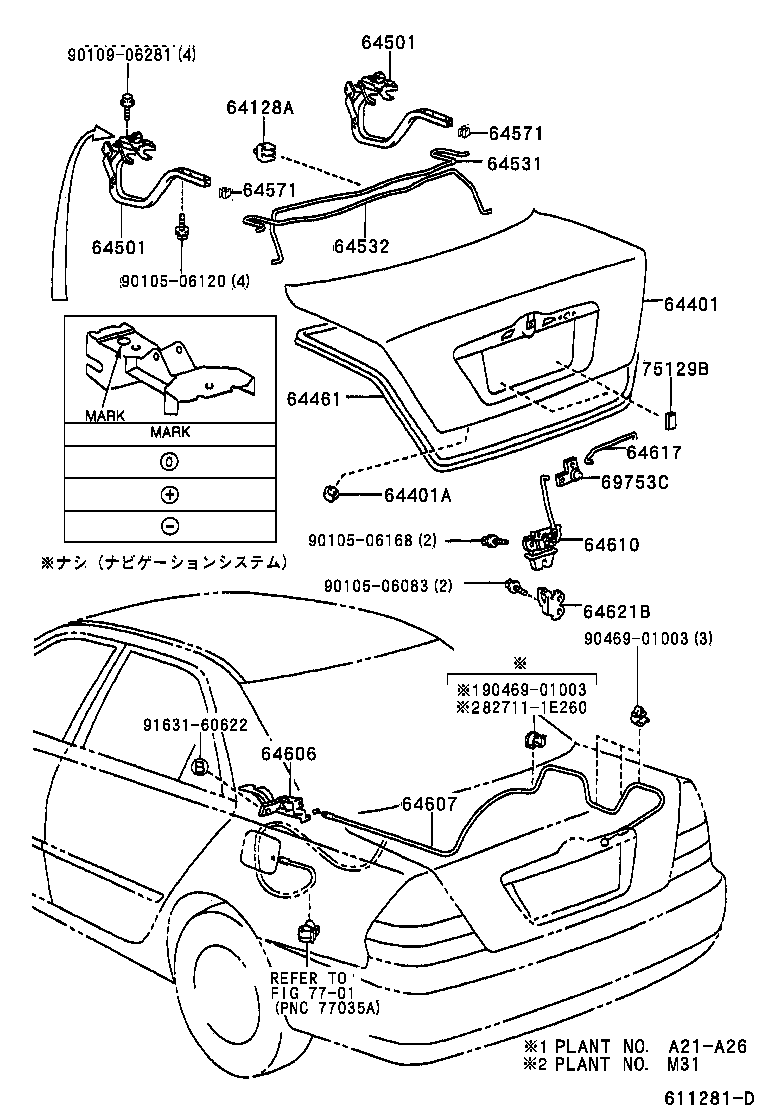

Click highlighted areas on diagram

diagram 64128A 64401 64401A 64461 64501 64501 64531 64532 64571 64571 64606 64607 64610 64617 64621B 69753C 75129B 7701 827111E260 9010506083 9010506120 9010506168 9010906281 9046901003 9046901003 9163160622
Part # Description Qty Price
64128A - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2
64128-51010

GX11#,JZX11#..SED

 1
64128-51010

GX11#,JZX11#..SED

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-22780

JZX110..GDS,GDV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64401-22800

GX110,JZX110..GDS,GDV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64401-22810

GX11#,JZX11#..GD,GDG

ｱﾘ(ﾊﾞﾂｸ ｶﾞｲﾄﾞ ﾓﾆﾀ-)

 1
64401-22830

GX110,JZX110..GDS,GDV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾊﾞﾂｸ ｶﾞｲﾄﾞ ﾓﾆﾀ-)

 1
64401-22770

GX11#,JZX11#..SED

 1
64401-22790

GX11#,JZX11#..SED

 1
64401-22810

GX110,JZX110..GDS,GDV

ｱﾘ(ﾊﾞﾂｸ ｶﾞｲﾄﾞ ﾓﾆﾀ-)

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09079

GX11#,JZX11#..SED

 2
90541-09079

GX11#,JZX11#..SED

 2
90541-10027

GX11#,JZX11#

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-22300

GX11#,JZX11#..SED

 1
64461-22300

GX11#,JZX11#..SED

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-22251

GX11#,JZX11#..SED

ﾏｰｸ 0

 2
64510-22251

GX11#,JZX11#..SED

ﾏｰｸ 0

 2
64510-22271

GX11#,JZX11#..SED

ﾏｰｸ −

 2
64510-22270

GX11#,JZX11#

ﾏｰｸ −

 2
64510-22250

GX11#,JZX11#

ﾏｰｸ 0

 2
64510-22260

GX11#,JZX11#

ﾏｰｸ +

 2
64510-22271

GX11#,JZX11#..SED

ﾏｰｸ −

 2
64510-22261

GX11#,JZX11#..SED

ﾏｰｸ +

 2
64510-22261

GX11#,JZX11#..SED

ﾏｰｸ +

 2
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-22251

GX11#,JZX11#..SED

ﾏｰｸ 0

 2
64510-22251

GX11#,JZX11#..SED

ﾏｰｸ 0

 2
64510-22271

GX11#,JZX11#..SED

ﾏｰｸ −

 2
64510-22270

GX11#,JZX11#

ﾏｰｸ −

 2
64510-22250

GX11#,JZX11#

ﾏｰｸ 0

 2
64510-22260

GX11#,JZX11#

ﾏｰｸ +

 2
64510-22271

GX11#,JZX11#..SED

ﾏｰｸ −

 2
64510-22261

GX11#,JZX11#..SED

ﾏｰｸ +

 2
64510-22261

GX11#,JZX11#..SED

ﾏｰｸ +

 2
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-22380

JZX110..GDS,GDV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64531-22371

GX11#,JZX11#..SED

 1
64531-22370

GX11#,JZX11#

 1
64531-22371

GX11#,JZX11#..SED

 1
64531-22381

GX110,JZX110..GDS,GDV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64531-22381

JZX110..GDS,GDV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-22381

JZX110..GDS,GDV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64532-22371

GX11#,JZX11#..SED

 1
64532-22370

GX11#,JZX11#

 1
64532-22380

JZX110..GDS,GDV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64532-22381

GX110,JZX110..GDS,GDV

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64532-22371

GX11#,JZX11#..SED

 1
64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE
64571-22020

GX11#,JZX11#..SED

 2
64571-22020

GX11#,JZX11#..SED

 2
64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE
64571-22020

GX11#,JZX11#..SED

 2
64571-22020

GX11#,JZX11#..SED

 2
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-53010

GX11#,JZX11#..SED

 1
64606-53010

GX11#,JZX11#..SED

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-22370

GX11#,JZX11#..SED

 1
64607-22370

GX11#,JZX11#..SED

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-22060

GX11#,JZX11#..SED

ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾄﾗﾝｸ ｵ-ﾌﾟﾅ)

 1
64600-22060

JZX110..SED;GX11#,JZX115..GD,GDG

ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾄﾗﾝｸ ｵ-ﾌﾟﾅ)

 1
64617 - LINK, LUGGAGE COMPARTMENT DOOR LOCK
64617-22050

GX11#,JZX11#..SED

 1
64617-22050

GX11#,JZX11#..SED

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-53010

GX11#,JZX11#..SED

 1
64621-53010

GX11#,JZX11#..SED

 1
69753C - BELLCRANK, DOOR LOCK CONTROL
69753-10010

GX11#,JZX11#..SED

 1
69753-10010

GX11#,JZX11#..SED

 1
75129B - CUSHION, REAR LICENCE PLATE
75129-13020

GX11#,JZX11#..SED

 2
75129-13020

GX11#,JZX11#..SED

 2
Common parts
82711-1E260
90105-06083
90105-06120
90105-06168
90109-06281
90469-01003
91631-60622
Linked diagrams
7701
