JZX110-AEASH (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004
Engine 1JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )

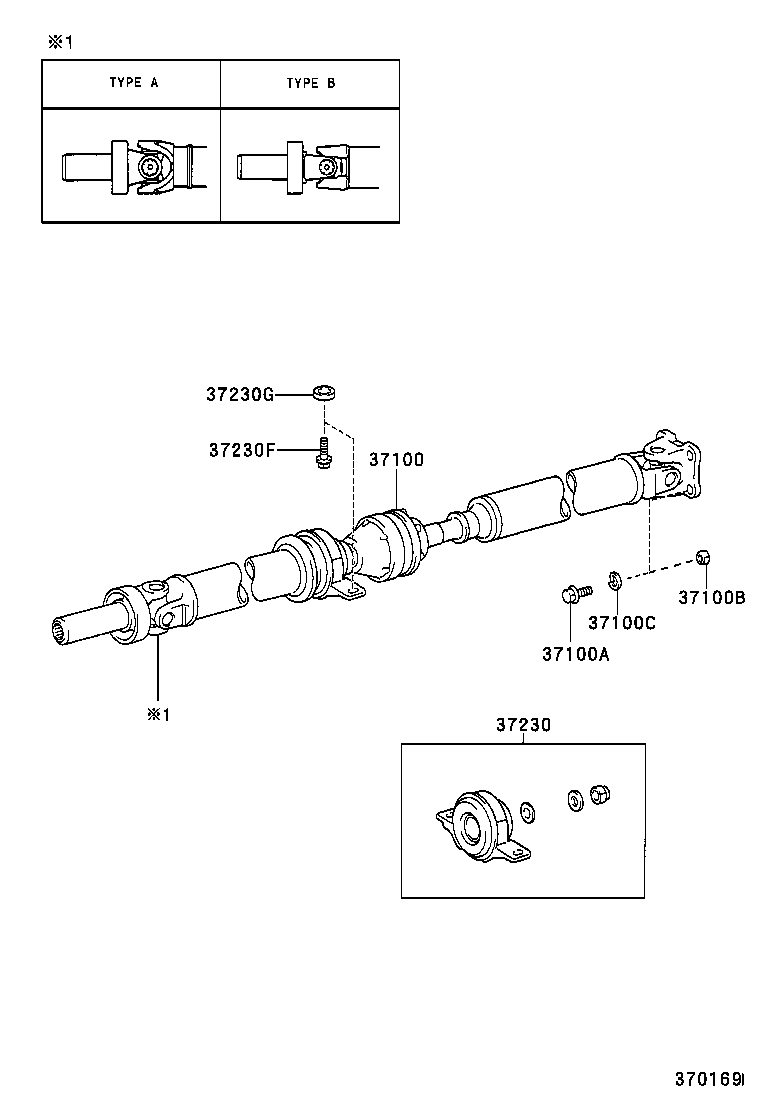

Click highlighted areas on diagram

ﾘﾔ

diagram 37100 37100A 37100B 37100C 37230 37230F 37230G
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-2A290

JZX110..5F

 1
37100-2A290

JZX110..5F

 1
37100-30750

JZX110..GD,GDG,GDS

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
37100-30770

JZX110..GD,GDG,GDS

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
37100-30770

JZX110..GD,GDG,GDS,IRS

TYPE B:ｲﾗｽﾄ参照

 1
37100-30750

JZX110..GD,GDG,GDS,IRS

TYPE A:ｲﾗｽﾄ参照

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-10466

GX11#,JZX11#..SED

 4
90105-10466

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 4
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-10007

GX11#,JZX11#..SED

 4
90178-10007

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 4
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90560-10102

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 4
90560-10102

GX11#,JZX11#..SED

 4
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-59015

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 1
37230-59015

GX11#,JZX11#..SED

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10902

GX11#,JZX11#

長さ=33

 2
90119-10902

GX11#,JZX11#..SED

長さ=33

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10008

JZX110;GX110..GD,IR

厚さ=4.5

 2
90201-10034

JZX110;GX110..GD,IR

厚さ=11.0

 2
90201-10033

JZX110;GX110..GD,IR

厚さ=6.5

 2
90201-10034

GX110,JZX110..SED

厚さ=11.0

 2
90201-10035

GX110,JZX110..SED

厚さ=13.5

 2
90201-10017

JZX110;GX110..GD,IR

厚さ=9.0

 2
90201-10035

JZX110;GX110..GD,IR

厚さ=13.5

 2
90201-10017

GX110,JZX110..SED

厚さ=9.0

 2
90201-10008

GX110,JZX110..SED

厚さ=4.5

 2
90201-10106

JZX110;GX110..GD,IR

厚さ=2.0

 2
90201-10033

GX110,JZX110..SED

厚さ=6.5

 2
90201-10106

GX110,JZX110..SED

厚さ=2.0

 2
