JZX110-AEASH (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004
Engine 1JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )5FC

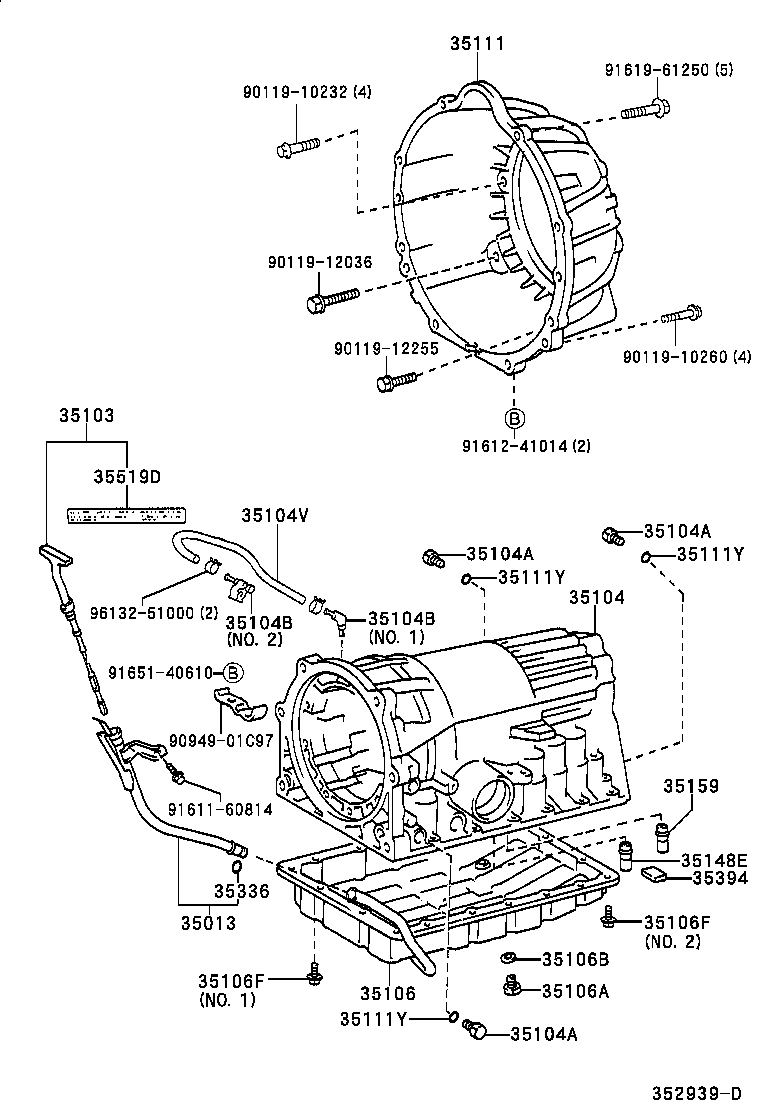

Click highlighted areas on diagram

A650E

diagram 35013 35103 35104 35104A 35104A 35104A 35104B 35104B 35104V 35106 35106A 35106B 35106F 35106F 35111 35111Y 35111Y 35111Y 35148E 35159 35336 35394 35519D 9011910232 9011910260 9011912036 9011912255 9094901C97 9161160814 9161241014 9161961250 9165140610 9613251000
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-30530

JZX110..GD,GDG,GDS,IRS

 1
35013-30530

JZX110..GD,GDG,GDS

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-22470

JZX110..5FC

 1
35103-22440

JZX110..GD

 1
35103-22470

JZX110..SED..5FC

 1
35103-22440

JZX110..GD

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-30200

JZX110..5FC

 1
35104-30200

JZX110..SED..5FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

JZX110..5FC

 3
90341-08001

JZX110..SED..5FC

 3
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

JZX110..5FC

 3
90341-08001

JZX110..SED..5FC

 3
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

JZX110..5FC

 3
90341-08001

JZX110..SED..5FC

 3
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03099

JZX11#..ATM

NO.2

 1
90930-03098

GX11#,JZX11#..SED..ATM

NO.1

 1
90930-03168

JZX110..ATM;GX11#,JZX115..GD,GDG,IR,IRS

NO.2

 1
90930-03168

GX11#,JZX11#..SED..ATM

NO.2

 1
90930-03098

JZX110..ATM;GX11#,JZX115..GD,GDG,IR,IRS

NO.1

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03099

JZX11#..ATM

NO.2

 1
90930-03098

GX11#,JZX11#..SED..ATM

NO.1

 1
90930-03168

JZX110..ATM;GX11#,JZX115..GD,GDG,IR,IRS

NO.2

 1
90930-03168

GX11#,JZX11#..SED..ATM

NO.2

 1
90930-03098

JZX110..ATM;GX11#,JZX115..GD,GDG,IR,IRS

NO.1

 1
35104V - HOSE (FOR BREATHER PLUG)
90445-10020

JZX11#..ATM

 1
90445-11154

JZX11#..ATM

 1
90445-11154

JZX11#..SED..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-30220

JZX110..ATM

 1
35106-30210

JZX110..SED..ATM

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10018

JZX110..ATM;GX11#,JZX115..GD,GDG,IR,IRS

 1
90341-10011

GX11#,JZX11#..SED..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-50010

JZX110..ATM;GX11#,JZX115..GD,GDG,IR,IRS

 1
35178-50010

GX11#,JZX11#..SED..ATM

 1
35178-30010

GX11#,JZX11#..SED..ATM

 1
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06513

JZX110..5FC

NO.1

 18
90119-06866

JZX110..5FC

NO.2

 1
90119-06866

JZX110..SED..5FC

NO.2

 1
90119-06513

JZX110..SED..5FC

NO.1

 18
35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06513

JZX110..5FC

NO.1

 18
90119-06866

JZX110..5FC

NO.2

 1
90119-06866

JZX110..SED..5FC

NO.2

 1
90119-06513

JZX110..SED..5FC

NO.1

 18
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-30150

JZX11#..ATM

 1
35111-30150

JZX11#..SED..ATM

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

JZX110..5FC

 3
90301-06196

JZX110..SED..5FC

 3
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

JZX110..5FC

 3
90301-06196

JZX110..SED..5FC

 3
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

JZX110..5FC

 3
90301-06196

JZX110..SED..5FC

 3
35148E - GASKET, BRAKE DRUM, NO.2
35148-30010

JZX110..SED..5FC

 1
35148-30010

JZX110..5FC

 1
35159 - GASKET, BRAKE DRUM
35159-30020

JZX110..SED..5FC

 1
35159-30020

JZX110..5FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

JZX110..ATM;GX11#,JZX115..GD,GDG,IR,IRS

 1
90301-09173

GX11#,JZX11#..SED..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

JZX110..ATM

 3
35394-30011

JZX110..SED..ATM

 3
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-20030

JZX110..ATM;GX11#,JZX115..GD,GDG,IR,IRS

 1
35519-20030

GX11#,JZX11#..SED..ATM

 1
Common parts
90119-10232
90119-10260
90119-12036
90119-12255
90949-01C97
91611-60814
91612-41014
91619-61250
91651-40610
96132-51000
