Toyota Mark 2/mark 2 blit JZX110 CYLINDER BLOCK

JZX110-AEASH (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004

Engine 1JZFSE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

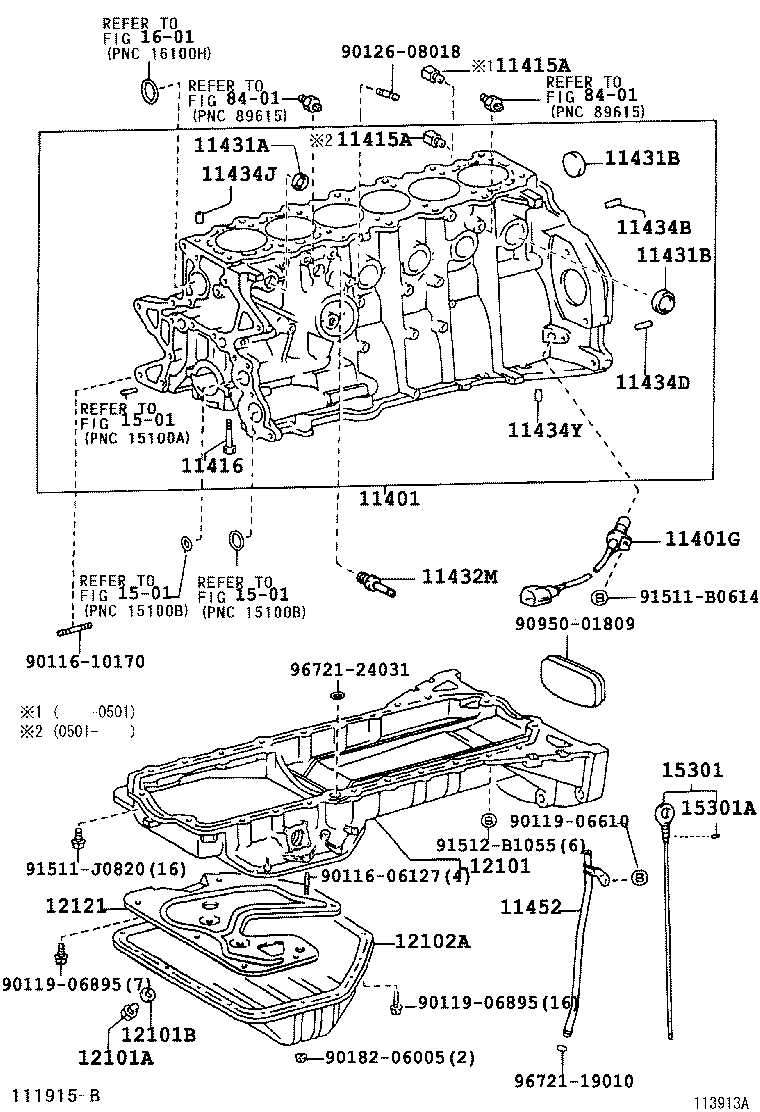

(0210- )1JZFSE..SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49648	1JZFSE..JZX110	10/2000 - 03/2001	1
11401-49725	1JZFSE..JZX110..SED	10/2002 - 11/2004	1
11401G - SENSOR, CRANK POSITION
90919-05046	1JZFSE..JZX110..SED	10/2002 - 11/2004	1
90919-05046	1JZFSE..JZX110	10/2000 - 12/2999	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09102	1JZ#..JZX11#..SED	10/2002 - 11/2004	1
90910-09102	1JZFSE,1JZGE..JZX11#..SED	10/2000 - 10/2002	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02104	1JZ#..JZX11#..SED	10/2000 - 10/2002	14
90910-02104	1JZ#..JZX11#..SED	10/2002 - 11/2004	14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500	1JZ#..JZX11#	03/2001 - 12/2999	2
96411-42500	1JZ#..JZX11#..SED	10/2002 - 11/2004	2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500	1JZ#..JZX11#..SED	10/2002 - 11/2004	11
96411-43500	1JZ#..JZX11#	03/2001 - 12/2999	11
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500	1JZ#..JZX11#..SED	10/2002 - 11/2004	11
96411-43500	1JZ#..JZX11#	03/2001 - 12/2999	11
11432M - UNION(FOR CYLINDER BLOCK)
90404-53064	1JZFSE..JZX110	10/2000 - 12/2999	1
90404-53064	1JZFSE..JZX110..SED	10/2002 - 11/2004	1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10192	1JZFSE,1JZGE..JZX11# 長さ=22,外径=10	10/2000 - 12/2999	2
90250-10192	1JZFSE,1JZGE..JZX11#..SED 長さ=22,外径=10	10/2002 - 11/2004	2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003	1JZFSE,1JZGE..JZX11# 長さ=14,外径=6	10/2000 - 12/2999	2
90250-06003	1JZFSE,1JZGE..JZX11#..SED 長さ=14,外径=6	10/2002 - 11/2004	2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-14003	1JZ#..JZX11#	10/2000 - 12/2999	2
90253-14003	1JZ#..JZX11#..SED	10/2002 - 11/2004	2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-10192	1JZFSE,1JZGE..JZX11#	10/2000 - 12/2999	2
90250-10192	1JZFSE,1JZGE..JZX11#..SED	10/2002 - 11/2004	2
11452 - GUIDE, OIL LEVEL GAGE
11452-46010	1JZFSE..JZX110	10/2000 - 12/2999	1
11452-46010	1JZFSE..JZX110..SED	10/2002 - 11/2004	1
12101 - PAN SUB-ASSY, OIL
12111-46062	1JZFSE..JZX110..SED	10/2002 - 11/2004	1
12111-46062	1JZFSE..JZX110	10/2000 - 12/2999	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	1JZ#..JZX11#..SED	10/2002 - 11/2004	1
90341-12012	1JZ#..JZX11#	10/2000 - 12/2999	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	1JZ#..JZX11#..SED	10/2002 - 11/2004	1
90430-12031	1JZ#..JZX11#	10/2000 - 12/2999	1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-46040	1JZFSE,1JZGTE..JZX110..SED	10/2002 - 11/2004	1
12102-46040	1JZFSE,1JZGTE..JZX110	10/2000 - 12/2999	1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-46010	1JZFSE,1JZGTE..JZX110..SED	10/2002 - 11/2004	1
12121-46010	1JZFSE,1JZGTE..JZX110	10/2000 - 12/2999	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-46023	1JZFSE..JZX110	10/2000 - 12/2999	1
15301-46023	1JZFSE..JZX110..SED	10/2002 - 11/2004	1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005	1JZFSE,1JZGTE..JZX110	10/2000 - 12/2999	1
96741-19005	1JZFSE,1JZGTE..JZX110..SED	10/2002 - 11/2004	1
Common parts
90116-06127
90116-10170
90119-06610
90119-06895
90126-08018
90182-06005
90950-01809
91511-B0614
91511-J0820
91512-B1055
96721-19010
96721-24031
Linked diagrams
1501
1601
8401

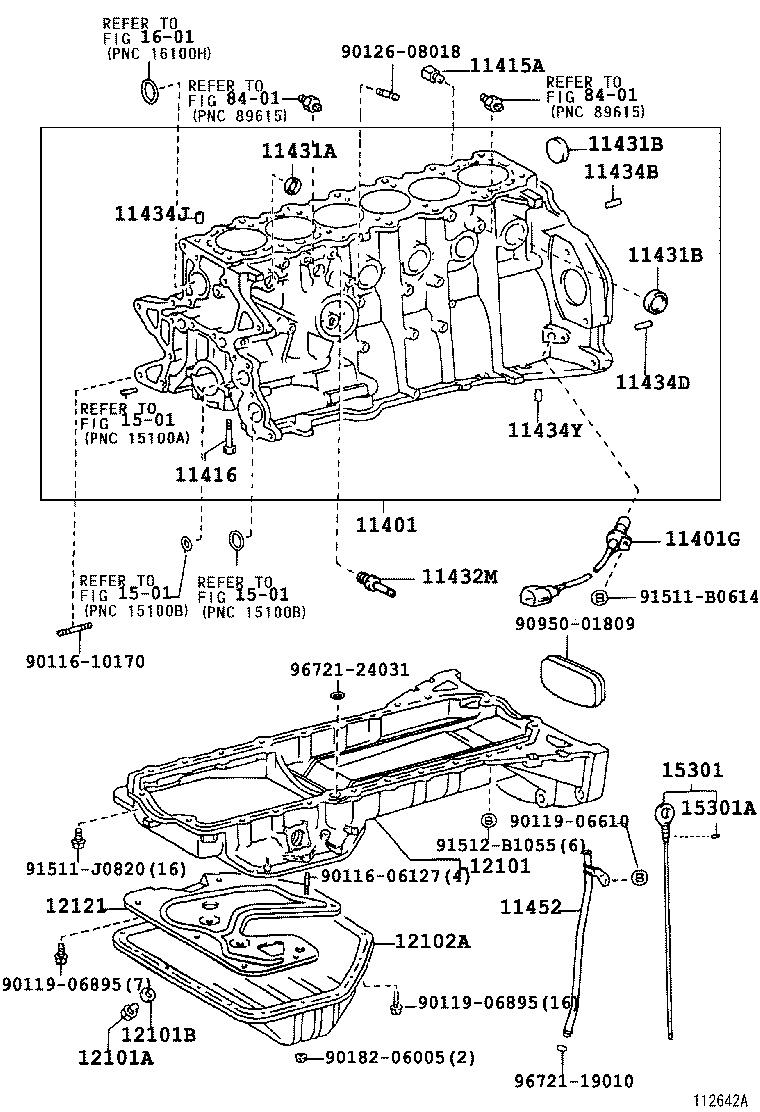

(0010-0210)1JZFSE ; (0210- )1JZFSE..IRS

Click highlighted areas on diagram

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49648	1JZFSE..JZX110	10/2000 - 03/2001	1
11401-49725	1JZFSE..JZX110..SED	10/2002 - 11/2004	1
11401G - SENSOR, CRANK POSITION
90919-05046	1JZFSE..JZX110..SED	10/2002 - 11/2004	1
90919-05046	1JZFSE..JZX110	10/2000 - 12/2999	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09102	1JZ#..JZX11#..SED	10/2002 - 11/2004	1
90910-09102	1JZFSE,1JZGE..JZX11#..SED	10/2000 - 10/2002	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09102	1JZ#..JZX11#..SED	10/2002 - 11/2004	1
90910-09102	1JZFSE,1JZGE..JZX11#..SED	10/2000 - 10/2002	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02104	1JZ#..JZX11#..SED	10/2000 - 10/2002	14
90910-02104	1JZ#..JZX11#..SED	10/2002 - 11/2004	14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500	1JZ#..JZX11#	03/2001 - 12/2999	2
96411-42500	1JZ#..JZX11#..SED	10/2002 - 11/2004	2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500	1JZ#..JZX11#..SED	10/2002 - 11/2004	11
96411-43500	1JZ#..JZX11#	03/2001 - 12/2999	11
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500	1JZ#..JZX11#..SED	10/2002 - 11/2004	11
96411-43500	1JZ#..JZX11#	03/2001 - 12/2999	11
11432M - UNION(FOR CYLINDER BLOCK)
90404-53064	1JZFSE..JZX110	10/2000 - 12/2999	1
90404-53064	1JZFSE..JZX110..SED	10/2002 - 11/2004	1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10192	1JZFSE,1JZGE..JZX11# 長さ=22,外径=10	10/2000 - 12/2999	2
90250-10192	1JZFSE,1JZGE..JZX11#..SED 長さ=22,外径=10	10/2002 - 11/2004	2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003	1JZFSE,1JZGE..JZX11# 長さ=14,外径=6	10/2000 - 12/2999	2
90250-06003	1JZFSE,1JZGE..JZX11#..SED 長さ=14,外径=6	10/2002 - 11/2004	2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-14003	1JZ#..JZX11#	10/2000 - 12/2999	2
90253-14003	1JZ#..JZX11#..SED	10/2002 - 11/2004	2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-10192	1JZFSE,1JZGE..JZX11#	10/2000 - 12/2999	2
90250-10192	1JZFSE,1JZGE..JZX11#..SED	10/2002 - 11/2004	2
11452 - GUIDE, OIL LEVEL GAGE
11452-46010	1JZFSE..JZX110	10/2000 - 12/2999	1
11452-46010	1JZFSE..JZX110..SED	10/2002 - 11/2004	1
12101 - PAN SUB-ASSY, OIL
12111-46062	1JZFSE..JZX110..SED	10/2002 - 11/2004	1
12111-46062	1JZFSE..JZX110	10/2000 - 12/2999	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	1JZ#..JZX11#..SED	10/2002 - 11/2004	1
90341-12012	1JZ#..JZX11#	10/2000 - 12/2999	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	1JZ#..JZX11#..SED	10/2002 - 11/2004	1
90430-12031	1JZ#..JZX11#	10/2000 - 12/2999	1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-46040	1JZFSE,1JZGTE..JZX110..SED	10/2002 - 11/2004	1
12102-46040	1JZFSE,1JZGTE..JZX110	10/2000 - 12/2999	1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-46010	1JZFSE,1JZGTE..JZX110..SED	10/2002 - 11/2004	1
12121-46010	1JZFSE,1JZGTE..JZX110	10/2000 - 12/2999	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-46023	1JZFSE..JZX110	10/2000 - 12/2999	1
15301-46023	1JZFSE..JZX110..SED	10/2002 - 11/2004	1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005	1JZFSE,1JZGTE..JZX110	10/2000 - 12/2999	1
96741-19005	1JZFSE,1JZGTE..JZX110..SED	10/2002 - 11/2004	1
Common parts
90116-06127
90116-10170
90119-06610
90119-06895
90126-08018
90182-06005
90950-01809
91511-B0614
91511-J0820
91512-B1055
96721-19010
96721-24031
Linked diagrams
1501
1601
8401

JZX110-AEASH (2000)

(0210- )1JZFSE..SED

(0010-0210)1JZFSE ; (0210- )1JZFSE..IRS
