JZX110-AEASH (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004
Engine 1JZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )

Click highlighted areas on diagram

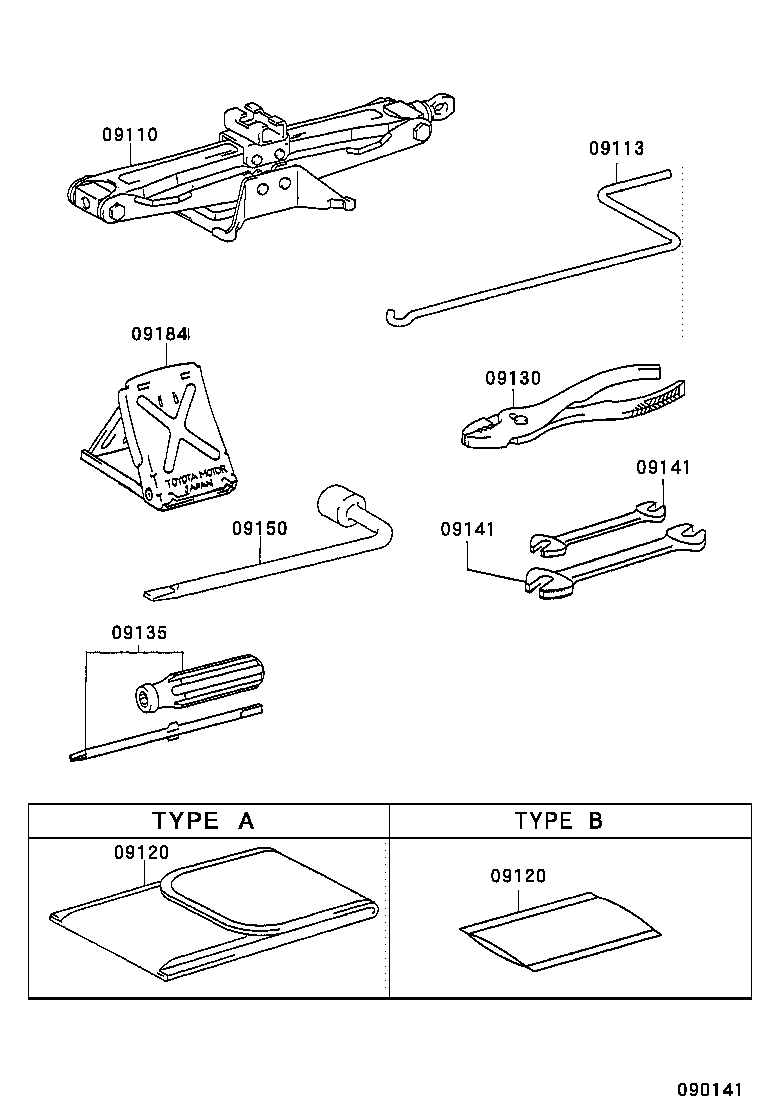

diagram 09110 09113 09120 09120 09130 09135 09141 09141 09150 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-50050

GX11#,JZX11#

 1
09111-50051

GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS

 1
09111-50051

GX11#,JZX11#..SED

 1
09113 - HANDLE, JACK
09113-13040

GX11#,JZX11#..SED

 1
09113-13040

GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS

 1
09120 - BAG, TOOL
09120-24020

GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS

TYPE A:ｲﾗｽﾄ参照

 1
09120-28040

GX11#,JZX11#..SED

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
09120-24020

GX11#,JZX11#..SED

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
09120-28040

GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS

TYPE B:ｲﾗｽﾄ参照

 1
09120 - BAG, TOOL
09120-24020

GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS

TYPE A:ｲﾗｽﾄ参照

 1
09120-28040

GX11#,JZX11#..SED

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
09120-24020

GX11#,JZX11#..SED

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
09120-28040

GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS

TYPE B:ｲﾗｽﾄ参照

 1
09130 - PLIERS
99913-11500

GX11#,JZX11#..SED

 1
99913-11500

GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS

 1
09135 - DRIVER, SCREW
99915-10700

GX11#,JZX11#..SED

 1
99915-10700

GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS

 1
09141 - SPANNER
99914-10810

GX11#,JZX11#..SED

8 X 10

 1
99914-11214

GX11#,JZX11#..SED

12 X 14

 1
99914-10810

GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS

8 X 10

 1
99914-11214

GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS

12 X 14

 1
09141 - SPANNER
99914-10810

GX11#,JZX11#..SED

8 X 10

 1
99914-11214

GX11#,JZX11#..SED

12 X 14

 1
99914-10810

GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS

8 X 10

 1
99914-11214

GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS

12 X 14

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 1
09150-40010

GX11#,JZX11#..SED

 1
09184 - STOPPER, WHEEL
09184-00010

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 1
09184-00010

GX11#,JZX11#..SED

 1
