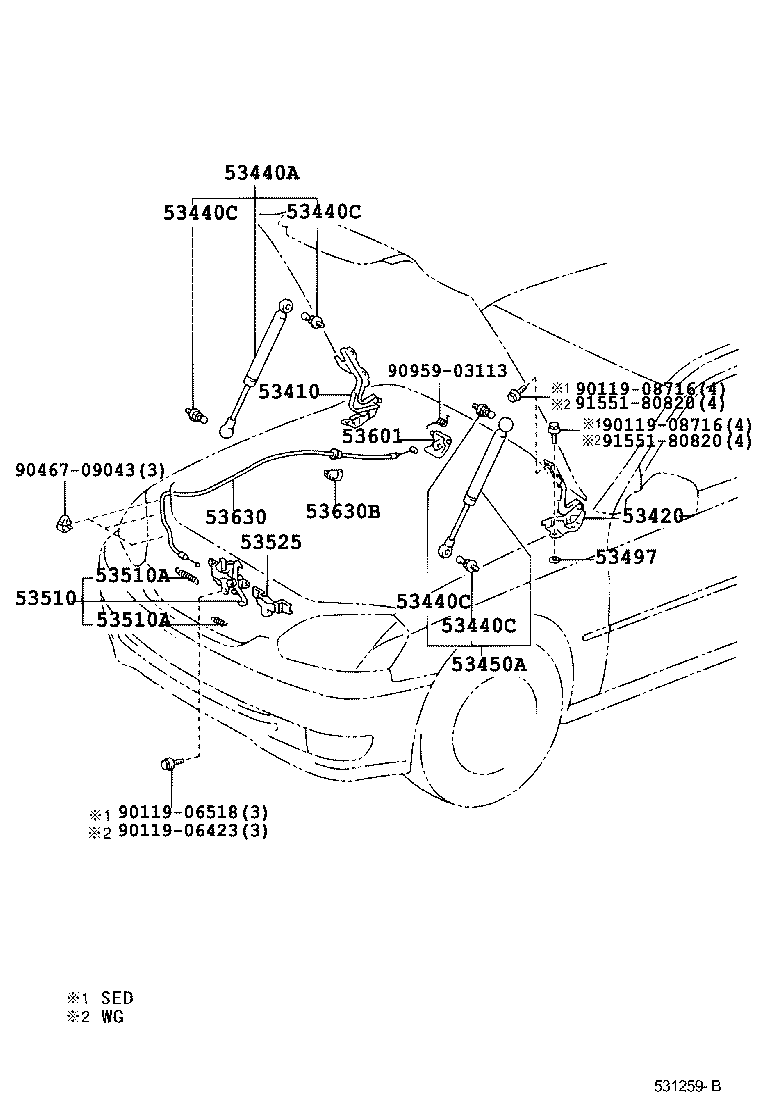

Toyota Mark 2/mark 2 blit GX115 HOOD LOCK & HINGE

Part #	Description	Period	Qty
53410 - HINGE ASSY, HOOD, RH
53410-30160	GX11#,JZX11#..SED	10/2002 - 11/2004	1
53410-30160	JZX110;GX11#,JZX115..GD,GDG,IR,IRS	10/2000 - 06/2007	1
53420 - HINGE ASSY, HOOD, LH
53420-30160	GX11#,JZX11#..SED	10/2002 - 11/2004	1
53420-30160	JZX110;GX11#,JZX115..GD,GDG,IR,IRS	10/2000 - 06/2007	1
53440A - SUPPORT ASSY, HOOD, RH
53440-29115	GX11#,JZX11#..SED	10/2000 - 10/2002	1
53440-29145	GX11#,JZX11#..SED	10/2002 - 11/2004	1
53440C - BOLT, HOOD SUPPORT, NO.2
68961-24030	GX11#,JZX11#..SED	10/2000 - 10/2002	4
68961-24030	GX11#,JZX11#..SED	10/2002 - 12/2999	4
53440C - BOLT, HOOD SUPPORT, NO.2
68961-24030	GX11#,JZX11#..SED	10/2000 - 10/2002	4
68961-24030	GX11#,JZX11#..SED	10/2002 - 12/2999	4
53440C - BOLT, HOOD SUPPORT, NO.2
68961-24030	GX11#,JZX11#..SED	10/2000 - 10/2002	4
68961-24030	GX11#,JZX11#..SED	10/2002 - 12/2999	4
53440C - BOLT, HOOD SUPPORT, NO.2
68961-24030	GX11#,JZX11#..SED	10/2000 - 10/2002	4
68961-24030	GX11#,JZX11#..SED	10/2002 - 12/2999	4
53450A - SUPPORT ASSY, HOOD, LH
53450-29085	GX11#,JZX11#..SED	10/2000 - 10/2002	1
53450-29115	GX11#,JZX11#..SED	10/2002 - 11/2004	1
53497 - PAD, HOOD HINGE, NO.1
53497-12050	GX11#,JZX11# 厚さ=1.0	10/2000 - 06/2001	2
53497-50020	GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS 厚さ=1.0	06/2001 - 12/2999	4
53497-50020	GX11#,JZX11#..SED 厚さ=1.0	10/2002 - 11/2004	4
53510 - LOCK ASSY, HOOD
53510-22370	GX11#,JZX11#..SED	10/2002 - 12/2999	1
53510-22370	GX11#,JZX11#..SED	10/2000 - 10/2002	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09050	GX11#,JZX11#..SED 線径=0.9,ｺｲﾙ巻数=20.5	10/2002 - 12/2999	1
90506-09050	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 線径=0.9,ｺｲﾙ巻数=20.5	10/2000 - 12/2999	1
90506-18080	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 線径=1.8,ｺｲﾙ巻数=19	10/2000 - 12/2999	1
90506-18080	GX11#,JZX11#..SED 線径=1.8,ｺｲﾙ巻数=19	10/2002 - 12/2999	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09050	GX11#,JZX11#..SED 線径=0.9,ｺｲﾙ巻数=20.5	10/2002 - 12/2999	1
90506-09050	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 線径=0.9,ｺｲﾙ巻数=20.5	10/2000 - 12/2999	1
90506-18080	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 線径=1.8,ｺｲﾙ巻数=19	10/2000 - 12/2999	1
90506-18080	GX11#,JZX11#..SED 線径=1.8,ｺｲﾙ巻数=19	10/2002 - 12/2999	1
53525 - PROTECTOR, HOOD LOCK RELEASE LEVER
53525-32040	JZX110;GX11#,JZX115..GD,GDG,IR,IRS	10/2000 - 12/2999	1
53525-32040	GX11#,JZX11#..SED	10/2002 - 12/2999	1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53611-22010A0	GX11#,JZX11#..GD,GDG IVORY,TRIM0#	10/2002 - 11/2004	1
53611-22010A0	GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0#	10/2000 - 10/2002	1
53611-22010B2	GX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV MD.CHARCOAL,TRIM1#	10/2000 - 06/2007	1
53611-22010B2	GX11#,JZX11#..GD,GDG MD.CHARCOAL,TRIM1#	10/2002 - 11/2004	1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-22240	GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS	10/2000 - 12/2999	1
53630-22240	GX11#,JZX11#..SED	10/2002 - 12/2999	1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-01003	GX11#,JZX11#..SED	10/2002 - 01/2004	1
90469-06005	GX11#,JZX11#..SED	01/2004 - 12/2999	1
90469-01003	JZX110;GX11#,JZX115..GD,GDG,IR,IRS	10/2000 - 01/2004	1
Common parts
90119-06423
90119-06518
90119-08716
90467-09043
90959-03113
91551-80820

GX115-AEPQK (2000)

(0010- )
