GX115-AEPQK (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

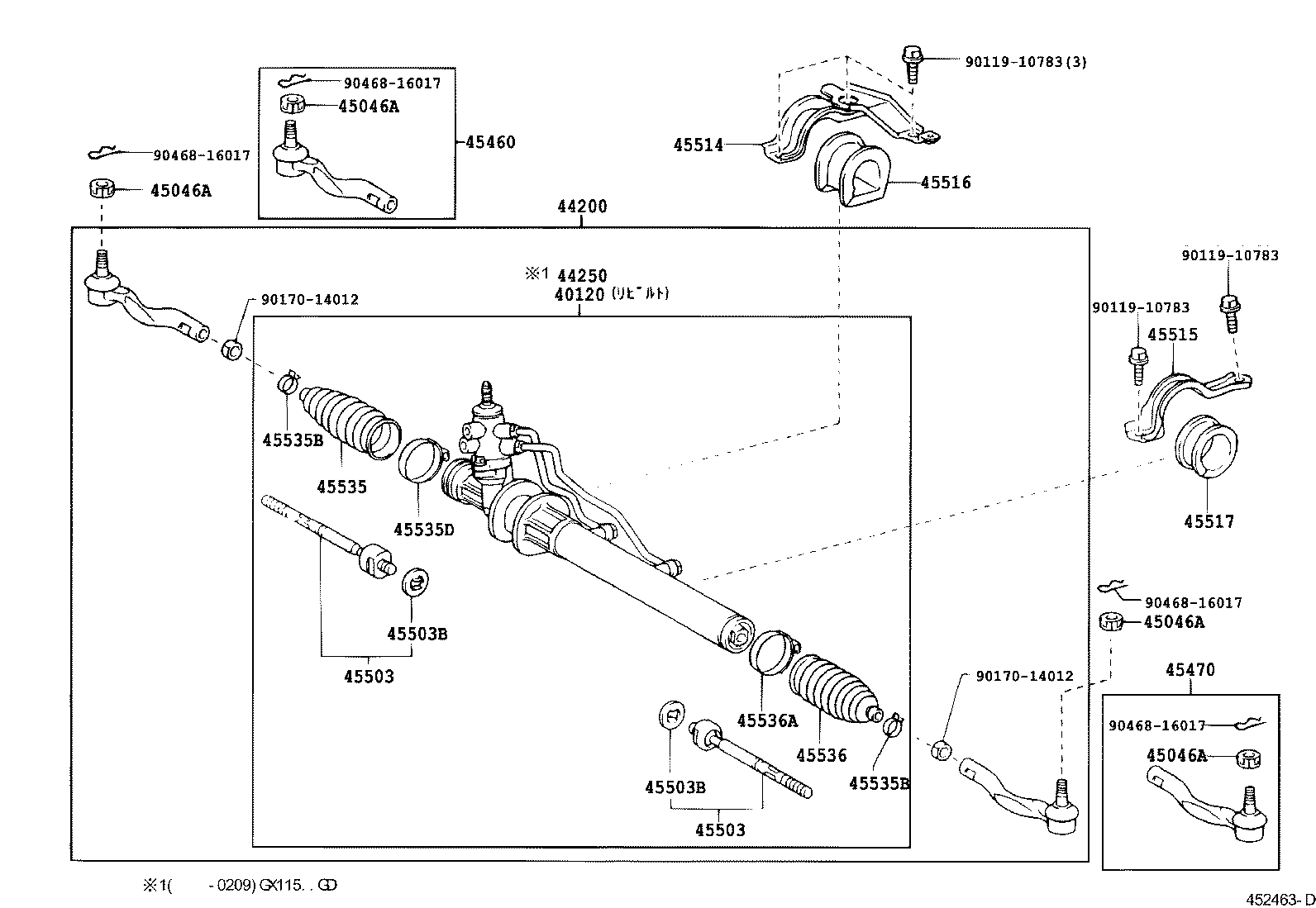

ILLUST NO. 1 OF 2(0010- )GX115,JZX115

Click highlighted areas on diagram

diagram 40120 44200 44250 45046A 45046A 45046A 45046A 45460 45470 45503 45503 45503B 45503B 45514 45515 45516 45517 45535 45535B 45535B 45535D 45536 45536A 9011910783 9011910783 9011910783 9017014012 9017014012 9046816017 9046816017 9046816017 9046816017
Part # Description Qty Price
40120 - GEAR ASSY,POWER STEERING,REBUILT
40120-22510

GX115..GD

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ)

 1
40120-22490

GX115,JZX115..SED

 1
40120-22510

GX115..GD

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ)

 1
40120-22490

GX115,JZX115..SED

 1
44200 - LINK ASSY, POWER STEERING
44200-22491

GX115,JZX115..SED

 1
44200-22511

GX115..GD

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ)

 1
44200-22511

GX115..GD

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ)

 1
44200-22491

GX115,JZX115..SED

 1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-22510

GX115..GD

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ)

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

GX11#,JZX11#..SED

 2
90171-12002

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

GX11#,JZX11#..SED

 2
90171-12002

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

GX11#,JZX11#..SED

 2
90171-12002

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002

GX11#,JZX11#..SED

 2
90171-12002

JZX110;GX11#,JZX115..GD,GDG,IR,IRS

 2
45460 - ROD ASSY, TIE, RH
45460-39395

GX115,JZX115..SED

 1
45460-39395

GX115,JZX115..SED

 1
45470 - ROD ASSY, TIE, LH
45470-39145

GX115,JZX115..SED

 1
45470-39145

GX115,JZX115..SED

 1
45503 - END SUB-ASSY, STEERING RACK
45503-29535

GX115,JZX115

 2
45503-29535

GX115,JZX115..SED

 2
45503 - END SUB-ASSY, STEERING RACK
45503-29535

GX115,JZX115

 2
45503-29535

GX115,JZX115..SED

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007

GX11#,JZX11#

外径=38

 2
90214-14007

GX11#,JZX11#..SED

外径=38

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007

GX11#,JZX11#

外径=38

 2
90214-14007

GX11#,JZX11#..SED

外径=38

 2
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-22130

GX115,JZX115..SED

 1
45514-22130

GX115,JZX115..SED

 1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-22130

GX115,JZX115

 1
45515-22130

GX115,JZX115..SED

 1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-22050

GX115,JZX115..SED

 1
45516-22050

GX115,JZX115..SED

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-22080

GX115,JZX115..SED

 1
45517-22080

GX115,JZX115

 1
45535 - BOOT, STEERING RACK, NO.1
45535-30010

GX11#,JZX11#..SED

 1
45535-30010

GX11#,JZX11#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

GX11#,JZX11#

 2
90467-19019

GX11#,JZX11#..SED

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

GX11#,JZX11#

 2
90467-19019

GX11#,JZX11#..SED

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-49004

GX11#,JZX11#

 1
90460-49004

GX11#,JZX11#..SED

 1
45536 - BOOT, STEERING RACK, NO.2
45535-30010

GX11#,JZX11#

 1
45535-30010

GX11#,JZX11#..SED

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-49004

GX11#,JZX11#..SED

 1
90460-49004

GX11#,JZX11#

 1
Common parts
90119-10783
90170-14012
90468-16017

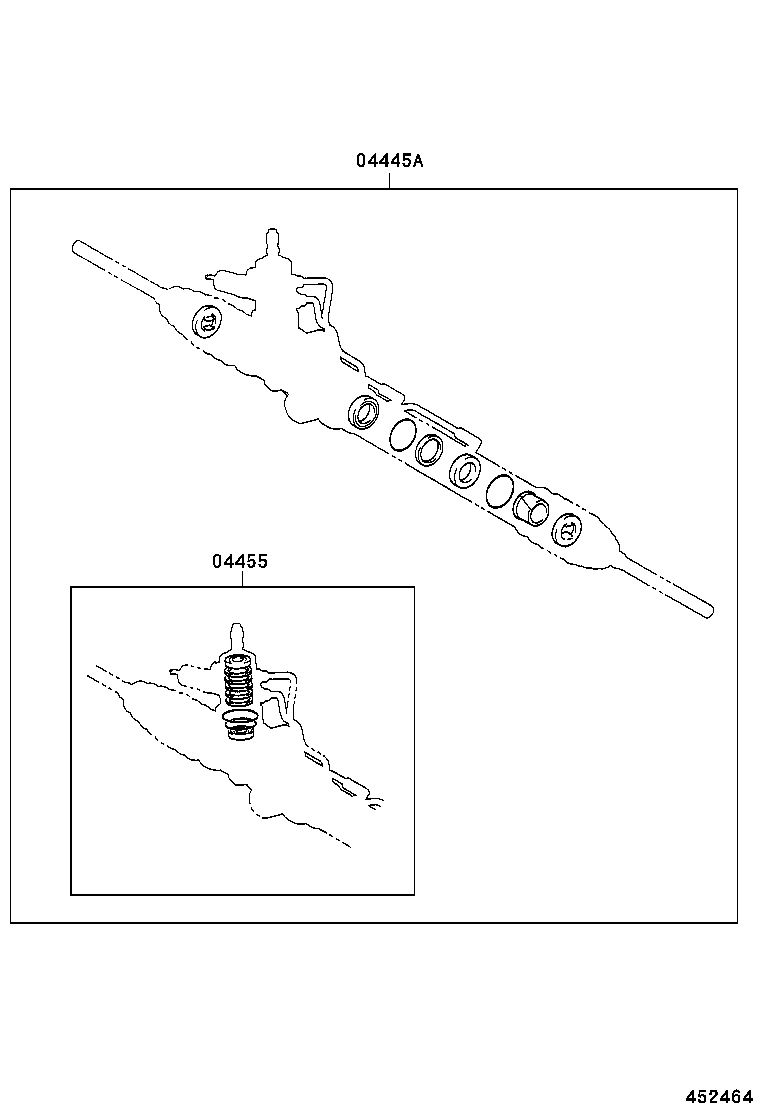

ILLUST NO. 2 OF 2(0010- )

Click highlighted areas on diagram

diagram 04445A 04455
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-22290

GX115,JZX115..SED

 1
04445-22290

GX115,JZX115..SED

 1
04445-22280

GX115..GD

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ)

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-22140

GX110,JZX115..GD,GDG,IR;GX115,JZX110..GD,GDG,GDGT,GDS,GDV,IRS,IRV

 1
04455-22140

GX11#,JZX11#..SED

 1
