GX110-AEPQK (2000)
Toyota Mark 2/Mark 2 Blit
(0010- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-22010A1 |
GX11#,JZX11#..SED WHITE PEARL CS.,065 ,2HF |
2 | ||
| 85381-22010A0 |
GX11#,JZX11#..SED SUPER WHITE 2,040 |
2 | ||
| 85381-22010J0 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS DARK BLUE MC.,8P8 |
2 | ||
| 85381-22010D0 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS BORDEAUX MC.,3P2 |
2 | ||
| 85381-22010B0 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS SILVER ME.,1C0 |
2 | ||
| 85381-22010A1 |
GX11#,JZX11#..SED WHITE PEARL CS.,065 ,2HF |
2 | ||
| 85381-22010A0 |
GX11#,JZX11#..SED SUPER WHITE 2,040 |
2 | ||
| 85381-22010B1 |
GX11#,JZX11#..SED DK. GRAY M.M.,1C6 |
2 | ||
| 85381-22010D1 |
GX11#,JZX11#..SED BRACKISH RED MC.,3P6 |
2 | ||
| 85381-22010C1 |
GX11#,JZX11#..SED BLACK MC.,211 |
2 | ||
| 85381-22010J0 |
GX11#,JZX11#..SED DARK BLUE MC.,8P8 |
2 | ||
| 85381-22010B0 |
GX11#,JZX11#..SED SILVER ME.,1C0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-22010A1 |
GX11#,JZX11#..SED WHITE PEARL CS.,065 ,2HF |
2 | ||
| 85381-22010A0 |
GX11#,JZX11#..SED SUPER WHITE 2,040 |
2 | ||
| 85381-22010J0 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS DARK BLUE MC.,8P8 |
2 | ||
| 85381-22010D0 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS BORDEAUX MC.,3P2 |
2 | ||
| 85381-22010B0 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS SILVER ME.,1C0 |
2 | ||
| 85381-22010A1 |
GX11#,JZX11#..SED WHITE PEARL CS.,065 ,2HF |
2 | ||
| 85381-22010A0 |
GX11#,JZX11#..SED SUPER WHITE 2,040 |
2 | ||
| 85381-22010B1 |
GX11#,JZX11#..SED DK. GRAY M.M.,1C6 |
2 | ||
| 85381-22010D1 |
GX11#,JZX11#..SED BRACKISH RED MC.,3P6 |
2 | ||
| 85381-22010C1 |
GX11#,JZX11#..SED BLACK MC.,211 |
2 | ||
| 85381-22010J0 |
GX11#,JZX11#..SED DARK BLUE MC.,8P8 |
2 | ||
| 85381-22010B0 |
GX11#,JZX11#..SED SILVER ME.,1C0 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-10290 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330-10280 |
GX11#,JZX11#..SED |
1 | ||
| 85330-10280 |
GX11#,JZX11#..SED |
1 | ||
| 85330-10290 |
GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-22260 |
GX11#,JZX11#..SED |
1 | ||
| 85315-30350 |
GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85315-30350 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85315-22260 |
GX11#,JZX11#..SED |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GX11#,JZX11#..SED |
1 | ||
| 90099-32089 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-26030 |
GX11#,JZX11#..SED |
1 | ||
| 85316-26030 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 85349-89122 |
GX11#,JZX11#..SED |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 85355-20200 |
GX11#,JZX11#..SED |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-20800 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 85375-20800 |
GX11#,JZX11#..SED |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85348-14390 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 85348-14390 |
GX11#,JZX11#..SED |
1 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-17050 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
1 | ||
| 85375-17050 |
GX11#,JZX11#..SED |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
GX11#,JZX11#..SED *H,L=350 |
1 | ||
| 90099-33299 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS *H,L=350 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
GX11#,JZX11#..SED *H,L=950 |
1 | ||
| 90446-07001 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS *H,L=950 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-59224 |
GX11#,JZX11#..SED 長さ=300 |
1 | ||
| 90099-59224 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS 長さ=300 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-59145 |
GX11#,JZX11#..SED 長さ=260 |
1 | ||
| 90099-59145 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS 長さ=260 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS *H,L=500 |
1 | ||
| 90446-07001 |
GX11#,JZX11#..SED *H,L=500 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS *H,L=210 |
2 | ||
| 90099-33080 |
GX11#,JZX11#..SED *H,L=210 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS *H,L=210 |
2 | ||
| 90099-33080 |
GX11#,JZX11#..SED *H,L=210 |
2 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 85371-33010 | ||||
| 90099-04455 | ||||
| 90119-06442 | ||||
| 90179-06206 | ||||

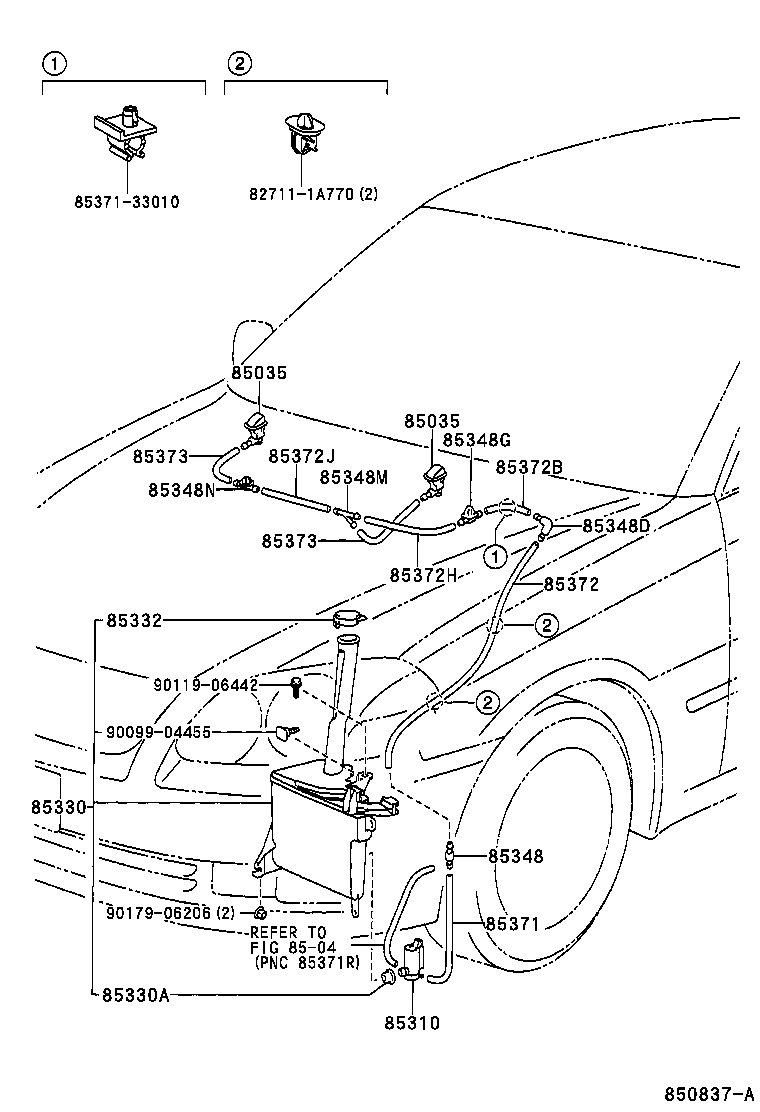

| Linked diagrams | ||||
| 8504 | ||||
