Toyota Mark 2/mark 2 blit GX110 REAR COMBINATION LAMP

GX110-AEPQK (2000)

Toyota Mark 2/Mark 2 Blit

Production Oct 2000 - Nov 2004

Engine 1GFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

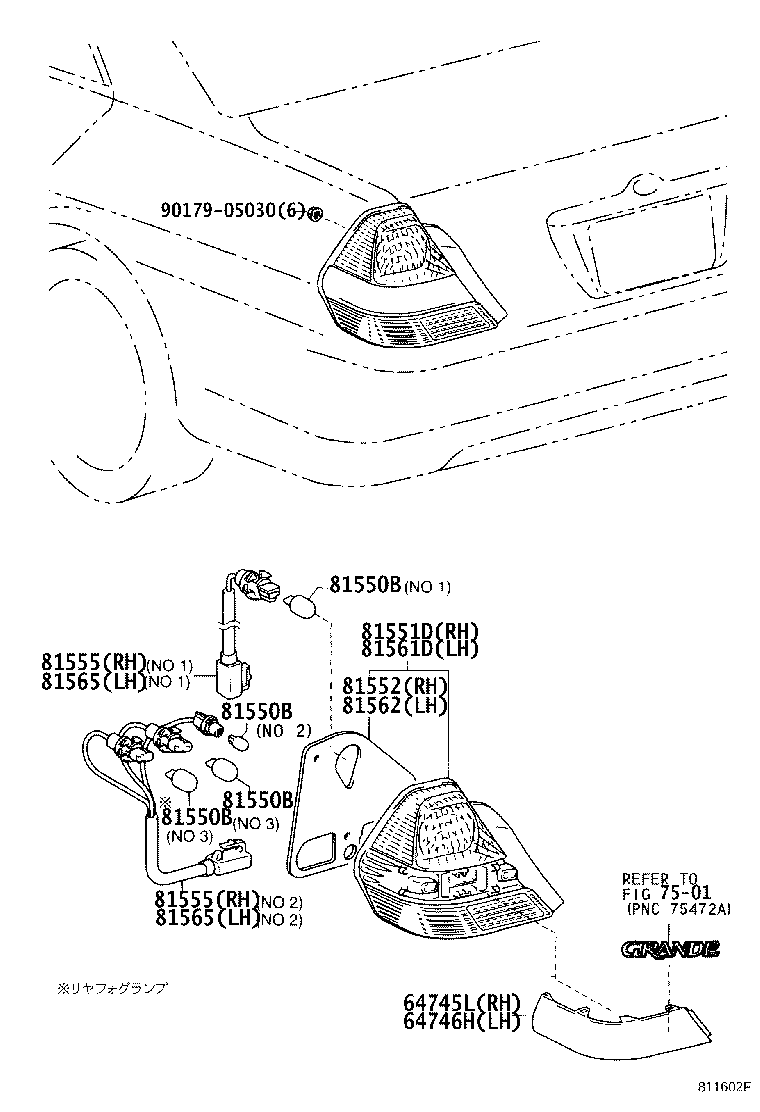

(0010-0210)SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
64745L - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-22020B0	GX11#,JZX11#..GD,GDG SILVER ME.,1C0	10/2002 - 11/2004	1
64745-22020A0	GX11#,JZX11#..GD,GDG SUPER WHITE 2,040	10/2002 - 11/2004	1
64745-22010	GX11#,JZX11#..SED	10/2000 - 10/2002	1
64745-22020A1	GX11#,JZX11#..GD,GDG WHITE PEARL CS.,065 ,2HF	10/2002 - 11/2004	1
64745-22020J0	GX11#,JZX11#..GD,GDG DARK BLUE MC.,8P8	10/2002 - 11/2004	1
64745-22020C0	GX11#,JZX11#..GD,GDG BLACK MC.,211	10/2002 - 11/2004	1
64745-22020D0	GX11#,JZX11#..GD,GDG BLACKISH RED MC.,3P6	10/2002 - 11/2004	1
64746H - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-22020D0	GX11#,JZX11#..GD,GDG BLACKISH RED MC.,3P6	10/2002 - 11/2004	1
64746-22010	GX11#,JZX11#..SED	10/2000 - 10/2002	1
64746-22020C0	GX11#,JZX11#..GD,GDG BLACK MC.,211	10/2002 - 11/2004	1
64746-22020A0	GX11#,JZX11#..GD,GDG SUPER WHITE 2,040	10/2002 - 11/2004	1
64746-22020A1	GX11#,JZX11#..GD,GDG WHITE PEARL CS.,065 ,2HF	10/2002 - 11/2004	1
64746-22020B0	GX11#,JZX11#..GD,GDG SILVER ME.,1C0	10/2002 - 11/2004	1
64746-22020J0	GX11#,JZX11#..GD,GDG DARK BLUE MC.,8P8	10/2002 - 11/2004	1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11048	GX11#,JZX11#..SED 12V 21/5W	10/2000 - 10/2002	2
90981-11059	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 12V 16W	10/2000 - 02/2003	2
90981-15021	GX11#,JZX11#..SED 12V 21W,ｱﾝﾊﾞｰ,NO.5	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,NO.3	10/2000 - 10/2002	2
90981-13043	JZX110..SED;GX11#,JZX115..GD,GDG 12V 21W	10/2000 - 06/2007	2
90981-13044	GX11#,JZX11#..SED 12V 21/5W,NO.1	10/2002 - 11/2004	2
90981-11059	GX11#,JZX11#..SED 12V 16W,NO.2	10/2002 - 11/2004	2
90981-11051	GX11#,JZX11#..SED 12V 5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.4	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.3	10/2002 - 11/2004	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11048	GX11#,JZX11#..SED 12V 21/5W	10/2000 - 10/2002	2
90981-11059	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 12V 16W	10/2000 - 02/2003	2
90981-15021	GX11#,JZX11#..SED 12V 21W,ｱﾝﾊﾞｰ,NO.5	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,NO.3	10/2000 - 10/2002	2
90981-13043	JZX110..SED;GX11#,JZX115..GD,GDG 12V 21W	10/2000 - 06/2007	2
90981-13044	GX11#,JZX11#..SED 12V 21/5W,NO.1	10/2002 - 11/2004	2
90981-11059	GX11#,JZX11#..SED 12V 16W,NO.2	10/2002 - 11/2004	2
90981-11051	GX11#,JZX11#..SED 12V 5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.4	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.3	10/2002 - 11/2004	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11048	GX11#,JZX11#..SED 12V 21/5W	10/2000 - 10/2002	2
90981-11059	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 12V 16W	10/2000 - 02/2003	2
90981-15021	GX11#,JZX11#..SED 12V 21W,ｱﾝﾊﾞｰ,NO.5	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,NO.3	10/2000 - 10/2002	2
90981-13043	JZX110..SED;GX11#,JZX115..GD,GDG 12V 21W	10/2000 - 06/2007	2
90981-13044	GX11#,JZX11#..SED 12V 21/5W,NO.1	10/2002 - 11/2004	2
90981-11059	GX11#,JZX11#..SED 12V 16W,NO.2	10/2002 - 11/2004	2
90981-11051	GX11#,JZX11#..SED 12V 5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.4	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.3	10/2002 - 11/2004	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11048	GX11#,JZX11#..SED 12V 21/5W	10/2000 - 10/2002	2
90981-11059	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 12V 16W	10/2000 - 02/2003	2
90981-15021	GX11#,JZX11#..SED 12V 21W,ｱﾝﾊﾞｰ,NO.5	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,NO.3	10/2000 - 10/2002	2
90981-13043	JZX110..SED;GX11#,JZX115..GD,GDG 12V 21W	10/2000 - 06/2007	2
90981-13044	GX11#,JZX11#..SED 12V 21/5W,NO.1	10/2002 - 11/2004	2
90981-11059	GX11#,JZX11#..SED 12V 16W,NO.2	10/2002 - 11/2004	2
90981-11051	GX11#,JZX11#..SED 12V 5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.4	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.3	10/2002 - 11/2004	2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-2A101	GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	12/2001 - 10/2002	1
81551-2A100	GX11#,JZX11# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2000 - 12/2001	1
81551-2A090	GX11#,JZX11#	10/2000 - 12/2001	1
81551-2A150	GX11#,JZX11#..GD,GDG	10/2002 - 11/2004	1
81551-2A160	GX11#,JZX11#..GD,GDG ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2002 - 11/2004	1
81551-2A091	GX11#,JZX11#..SED	12/2001 - 10/2002	1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-2A091	GX11#,JZX11#..SED	12/2001 - 10/2002	1
81552-2A090	GX11#,JZX11#	10/2000 - 12/2001	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-2A090	GX11#,JZX11# NO.1	10/2000 - 12/2001	1
81559-2A100	GX11#,JZX11# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	10/2000 - 12/2001	1
81555-2A091	GX11#,JZX11#..SED	10/2002 - 11/2004	1
81559-2A091	GX11#,JZX11#..SED NO.2	12/2001 - 10/2002	1
81559-2A101	GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	12/2001 - 10/2002	1
81555-2A091	GX11#,JZX11#..SED NO.1	12/2001 - 10/2002	1
81555-2A160	GX11#,JZX11#..GD,GDG ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2002 - 11/2004	1
81559-2A090	GX11#,JZX11# NO.2	10/2000 - 12/2001	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-2A090	GX11#,JZX11# NO.1	10/2000 - 12/2001	1
81559-2A100	GX11#,JZX11# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	10/2000 - 12/2001	1
81555-2A091	GX11#,JZX11#..SED	10/2002 - 11/2004	1
81559-2A091	GX11#,JZX11#..SED NO.2	12/2001 - 10/2002	1
81559-2A101	GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	12/2001 - 10/2002	1
81555-2A091	GX11#,JZX11#..SED NO.1	12/2001 - 10/2002	1
81555-2A160	GX11#,JZX11#..GD,GDG ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2002 - 11/2004	1
81559-2A090	GX11#,JZX11# NO.2	10/2000 - 12/2001	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-2A090	GX11#,JZX11#	10/2000 - 12/2001	1
81561-2A100	GX11#,JZX11# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2000 - 12/2001	1
81561-2A150	GX11#,JZX11#..GD,GDG	10/2002 - 11/2004	1
81561-2A101	GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	12/2001 - 10/2002	1
81561-2A160	GX11#,JZX11#..GD,GDG ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2002 - 11/2004	1
81561-2A091	GX11#,JZX11#..SED	12/2001 - 10/2002	1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81562-2A090	GX11#,JZX11#	10/2000 - 12/2001	1
81562-2A091	GX11#,JZX11#..SED	12/2001 - 10/2002	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-2A090	GX11#,JZX11# NO.1	10/2000 - 12/2001	1
81559-2A090	GX11#,JZX11# NO.2	10/2000 - 12/2001	1
81559-2A100	GX11#,JZX11# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	10/2000 - 12/2001	1
81555-2A091	GX11#,JZX11#..SED NO.1	12/2001 - 10/2002	1
81559-2A091	GX11#,JZX11#..SED NO.2	12/2001 - 10/2002	1
81555-2A091	GX11#,JZX11#..SED	10/2002 - 11/2004	1
81555-2A160	GX11#,JZX11#..GD,GDG ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2002 - 11/2004	1
81559-2A101	GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	12/2001 - 10/2002	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-2A090	GX11#,JZX11# NO.1	10/2000 - 12/2001	1
81559-2A090	GX11#,JZX11# NO.2	10/2000 - 12/2001	1
81559-2A100	GX11#,JZX11# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	10/2000 - 12/2001	1
81555-2A091	GX11#,JZX11#..SED NO.1	12/2001 - 10/2002	1
81559-2A091	GX11#,JZX11#..SED NO.2	12/2001 - 10/2002	1
81555-2A091	GX11#,JZX11#..SED	10/2002 - 11/2004	1
81555-2A160	GX11#,JZX11#..GD,GDG ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2002 - 11/2004	1
81559-2A101	GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	12/2001 - 10/2002	1
Common parts
90179-05030
Linked diagrams
7501

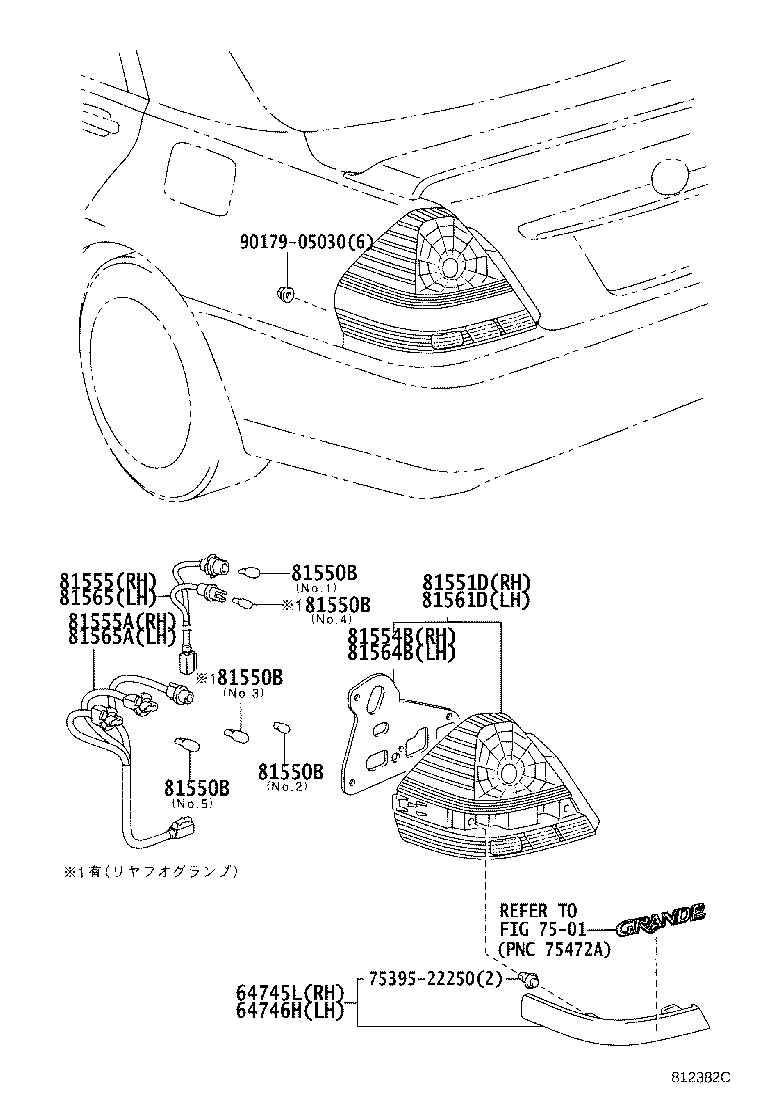

(0210-0411)SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
64745L - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-22020B0	GX11#,JZX11#..GD,GDG SILVER ME.,1C0	10/2002 - 11/2004	1
64745-22020A0	GX11#,JZX11#..GD,GDG SUPER WHITE 2,040	10/2002 - 11/2004	1
64745-22010	GX11#,JZX11#..SED	10/2000 - 10/2002	1
64745-22020A1	GX11#,JZX11#..GD,GDG WHITE PEARL CS.,065 ,2HF	10/2002 - 11/2004	1
64745-22020J0	GX11#,JZX11#..GD,GDG DARK BLUE MC.,8P8	10/2002 - 11/2004	1
64745-22020C0	GX11#,JZX11#..GD,GDG BLACK MC.,211	10/2002 - 11/2004	1
64745-22020D0	GX11#,JZX11#..GD,GDG BLACKISH RED MC.,3P6	10/2002 - 11/2004	1
64746H - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-22020D0	GX11#,JZX11#..GD,GDG BLACKISH RED MC.,3P6	10/2002 - 11/2004	1
64746-22010	GX11#,JZX11#..SED	10/2000 - 10/2002	1
64746-22020C0	GX11#,JZX11#..GD,GDG BLACK MC.,211	10/2002 - 11/2004	1
64746-22020A0	GX11#,JZX11#..GD,GDG SUPER WHITE 2,040	10/2002 - 11/2004	1
64746-22020A1	GX11#,JZX11#..GD,GDG WHITE PEARL CS.,065 ,2HF	10/2002 - 11/2004	1
64746-22020B0	GX11#,JZX11#..GD,GDG SILVER ME.,1C0	10/2002 - 11/2004	1
64746-22020J0	GX11#,JZX11#..GD,GDG DARK BLUE MC.,8P8	10/2002 - 11/2004	1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11048	GX11#,JZX11#..SED 12V 21/5W	10/2000 - 10/2002	2
90981-11059	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 12V 16W	10/2000 - 02/2003	2
90981-15021	GX11#,JZX11#..SED 12V 21W,ｱﾝﾊﾞｰ,NO.5	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,NO.3	10/2000 - 10/2002	2
90981-13043	JZX110..SED;GX11#,JZX115..GD,GDG 12V 21W	10/2000 - 06/2007	2
90981-13044	GX11#,JZX11#..SED 12V 21/5W,NO.1	10/2002 - 11/2004	2
90981-11059	GX11#,JZX11#..SED 12V 16W,NO.2	10/2002 - 11/2004	2
90981-11051	GX11#,JZX11#..SED 12V 5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.4	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.3	10/2002 - 11/2004	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11048	GX11#,JZX11#..SED 12V 21/5W	10/2000 - 10/2002	2
90981-11059	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 12V 16W	10/2000 - 02/2003	2
90981-15021	GX11#,JZX11#..SED 12V 21W,ｱﾝﾊﾞｰ,NO.5	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,NO.3	10/2000 - 10/2002	2
90981-13043	JZX110..SED;GX11#,JZX115..GD,GDG 12V 21W	10/2000 - 06/2007	2
90981-13044	GX11#,JZX11#..SED 12V 21/5W,NO.1	10/2002 - 11/2004	2
90981-11059	GX11#,JZX11#..SED 12V 16W,NO.2	10/2002 - 11/2004	2
90981-11051	GX11#,JZX11#..SED 12V 5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.4	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.3	10/2002 - 11/2004	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11048	GX11#,JZX11#..SED 12V 21/5W	10/2000 - 10/2002	2
90981-11059	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 12V 16W	10/2000 - 02/2003	2
90981-15021	GX11#,JZX11#..SED 12V 21W,ｱﾝﾊﾞｰ,NO.5	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,NO.3	10/2000 - 10/2002	2
90981-13043	JZX110..SED;GX11#,JZX115..GD,GDG 12V 21W	10/2000 - 06/2007	2
90981-13044	GX11#,JZX11#..SED 12V 21/5W,NO.1	10/2002 - 11/2004	2
90981-11059	GX11#,JZX11#..SED 12V 16W,NO.2	10/2002 - 11/2004	2
90981-11051	GX11#,JZX11#..SED 12V 5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.4	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.3	10/2002 - 11/2004	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11048	GX11#,JZX11#..SED 12V 21/5W	10/2000 - 10/2002	2
90981-11059	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 12V 16W	10/2000 - 02/2003	2
90981-15021	GX11#,JZX11#..SED 12V 21W,ｱﾝﾊﾞｰ,NO.5	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,NO.3	10/2000 - 10/2002	2
90981-13043	JZX110..SED;GX11#,JZX115..GD,GDG 12V 21W	10/2000 - 06/2007	2
90981-13044	GX11#,JZX11#..SED 12V 21/5W,NO.1	10/2002 - 11/2004	2
90981-11059	GX11#,JZX11#..SED 12V 16W,NO.2	10/2002 - 11/2004	2
90981-11051	GX11#,JZX11#..SED 12V 5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.4	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.3	10/2002 - 11/2004	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11048	GX11#,JZX11#..SED 12V 21/5W	10/2000 - 10/2002	2
90981-11059	JZX110;GX11#,JZX115..GD,GDG,IR,IRS 12V 16W	10/2000 - 02/2003	2
90981-15021	GX11#,JZX11#..SED 12V 21W,ｱﾝﾊﾞｰ,NO.5	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,NO.3	10/2000 - 10/2002	2
90981-13043	JZX110..SED;GX11#,JZX115..GD,GDG 12V 21W	10/2000 - 06/2007	2
90981-13044	GX11#,JZX11#..SED 12V 21/5W,NO.1	10/2002 - 11/2004	2
90981-11059	GX11#,JZX11#..SED 12V 16W,NO.2	10/2002 - 11/2004	2
90981-11051	GX11#,JZX11#..SED 12V 5W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.4	10/2002 - 11/2004	2
90981-13043	GX11#,JZX11#..SED 12V 21W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.3	10/2002 - 11/2004	2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-2A101	GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	12/2001 - 10/2002	1
81551-2A100	GX11#,JZX11# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2000 - 12/2001	1
81551-2A090	GX11#,JZX11#	10/2000 - 12/2001	1
81551-2A150	GX11#,JZX11#..GD,GDG	10/2002 - 11/2004	1
81551-2A160	GX11#,JZX11#..GD,GDG ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2002 - 11/2004	1
81551-2A091	GX11#,JZX11#..SED	12/2001 - 10/2002	1
81554B - GASKET, REAR COMBINATION LAMP BODY, NO.2 RH
81554-2A150	GX11#,JZX11#..SED	10/2002 - 11/2004	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-2A090	GX11#,JZX11# NO.1	10/2000 - 12/2001	1
81559-2A100	GX11#,JZX11# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	10/2000 - 12/2001	1
81555-2A091	GX11#,JZX11#..SED	10/2002 - 11/2004	1
81559-2A091	GX11#,JZX11#..SED NO.2	12/2001 - 10/2002	1
81559-2A101	GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	12/2001 - 10/2002	1
81555-2A091	GX11#,JZX11#..SED NO.1	12/2001 - 10/2002	1
81555-2A160	GX11#,JZX11#..GD,GDG ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2002 - 11/2004	1
81559-2A090	GX11#,JZX11# NO.2	10/2000 - 12/2001	1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81559-2A160	GX11#,JZX11#..GD,GDG ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2002 - 11/2004	1
81559-2A150	GX11#,JZX11#..SED	10/2002 - 11/2004	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-2A090	GX11#,JZX11#	10/2000 - 12/2001	1
81561-2A100	GX11#,JZX11# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2000 - 12/2001	1
81561-2A150	GX11#,JZX11#..GD,GDG	10/2002 - 11/2004	1
81561-2A101	GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	12/2001 - 10/2002	1
81561-2A160	GX11#,JZX11#..GD,GDG ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2002 - 11/2004	1
81561-2A091	GX11#,JZX11#..SED	12/2001 - 10/2002	1
81564B - GASKET, REAR COMBINATION LAMP BODY, NO.2 LH
81564-2A150	GX11#,JZX11#..SED	10/2002 - 11/2004	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-2A090	GX11#,JZX11# NO.1	10/2000 - 12/2001	1
81559-2A090	GX11#,JZX11# NO.2	10/2000 - 12/2001	1
81559-2A100	GX11#,JZX11# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	10/2000 - 12/2001	1
81555-2A091	GX11#,JZX11#..SED NO.1	12/2001 - 10/2002	1
81559-2A091	GX11#,JZX11#..SED NO.2	12/2001 - 10/2002	1
81555-2A091	GX11#,JZX11#..SED	10/2002 - 11/2004	1
81555-2A160	GX11#,JZX11#..GD,GDG ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2002 - 11/2004	1
81559-2A101	GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),NO.2	12/2001 - 10/2002	1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81559-2A150	GX11#,JZX11#..SED	10/2002 - 11/2004	1
81559-2A160	GX11#,JZX11#..GD,GDG ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ)	10/2002 - 11/2004	1
Common parts
75395-22250
90179-05030
Linked diagrams
7501

GX110-AEPQK (2000)

(0010-0210)SED

(0210-0411)SED

Part Price Details
