GX110-AEPQK (2000)
Toyota Mark 2/Mark 2 Blit

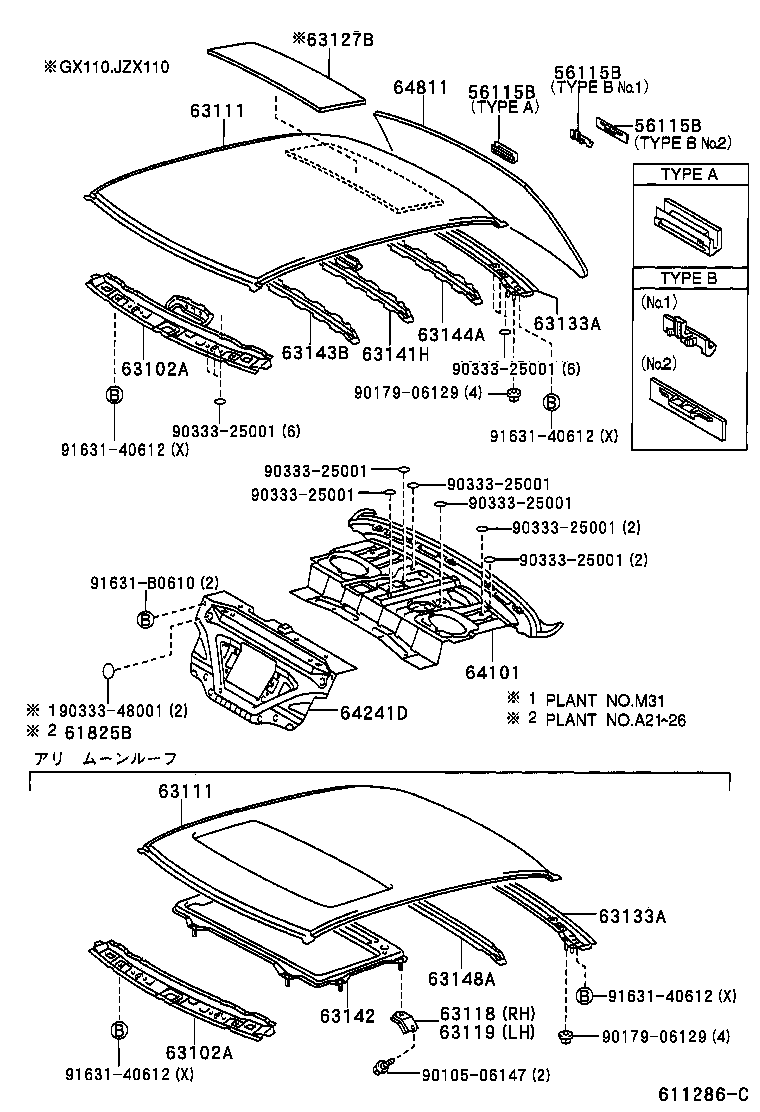

ILLUST NO. 1 OF 2(0010- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-22010 |
GX11#,JZX11#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 56116-22050 |
GX11#,JZX11#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
2 | ||
| 56115-30100 |
GX11#,JZX11#..SED TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 56115-22010 |
GX11#,JZX11#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 56116-22050 |
GX11#,JZX11#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
2 | ||
| 56115-30100 |
GX11#,JZX11#..SED TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-22010 |
GX11#,JZX11#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 56116-22050 |
GX11#,JZX11#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
2 | ||
| 56115-30100 |
GX11#,JZX11#..SED TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 56115-22010 |
GX11#,JZX11#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 56116-22050 |
GX11#,JZX11#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
2 | ||
| 56115-30100 |
GX11#,JZX11#..SED TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-22010 |
GX11#,JZX11#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 56116-22050 |
GX11#,JZX11#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
2 | ||
| 56115-30100 |
GX11#,JZX11#..SED TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 56115-22010 |
GX11#,JZX11#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.1 |
2 | ||
| 56116-22050 |
GX11#,JZX11#..SED TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NO.2 |
2 | ||
| 56115-30100 |
GX11#,JZX11#..SED TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 61825B - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-51010 |
GX11#,JZX11#..SED |
2 | ||
| 61825-51010 |
GX11#,JZX11#..SED |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-22330 |
GX11#,JZX11#..SED 製造工場NO.A21−A26 |
1 | ||
| 63102-22290 |
GX11#,JZX11#..SED 製造工場NO.M31 |
1 | ||
| 63102-22300 |
GX11#,JZX11#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ),製造工場NO.M31 |
1 | ||
| 63102-22290 |
GX11#,JZX11#..SED 製造工場NO.M31 |
1 | ||
| 63102-22340 |
GX11#,JZX11#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ),製造工場NO.A21−A26 |
1 | ||
| 63102-22300 |
GX11#,JZX11#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ),製造工場NO.M31 |
1 | ||
| 63102-22330 |
GX11#,JZX11#..SED 製造工場NO.A21−A26 |
1 | ||
| 63102-22340 |
GX11#,JZX11#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ),製造工場NO.A21−A26 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-22330 |
GX11#,JZX11#..SED 製造工場NO.A21−A26 |
1 | ||
| 63102-22290 |
GX11#,JZX11#..SED 製造工場NO.M31 |
1 | ||
| 63102-22300 |
GX11#,JZX11#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ),製造工場NO.M31 |
1 | ||
| 63102-22290 |
GX11#,JZX11#..SED 製造工場NO.M31 |
1 | ||
| 63102-22340 |
GX11#,JZX11#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ),製造工場NO.A21−A26 |
1 | ||
| 63102-22300 |
GX11#,JZX11#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ),製造工場NO.M31 |
1 | ||
| 63102-22330 |
GX11#,JZX11#..SED 製造工場NO.A21−A26 |
1 | ||
| 63102-22340 |
GX11#,JZX11#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ),製造工場NO.A21−A26 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-22350 |
GX11#,JZX11#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-22340 |
GX11#,JZX11#..SED |
1 | ||
| 63111-22340 |
GX11#,JZX11#..SED |
1 | ||
| 63111-22350 |
GX11#,JZX11#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-22350 |
GX11#,JZX11#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-22340 |
GX11#,JZX11#..SED |
1 | ||
| 63111-22340 |
GX11#,JZX11#..SED |
1 | ||
| 63111-22350 |
GX11#,JZX11#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-22090 |
GX11#,JZX11#..SED |
1 | ||
| 63118-22090 |
GX11#,JZX11#..SED |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-22090 |
GX11#,JZX11#..SED |
1 | ||
| 63118-22090 |
GX11#,JZX11#..SED |
1 | ||
| 63127B - DAMPER, BACK WINDOW UPPER FREME | ||||
| 63127-22040 |
GX110,JZX110..SED |
2 | ||
| 63127-22040 |
GX110,JZX110..SED |
2 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-22170 |
GX11#,JZX11#..SED 製造工場NO.M31 |
1 | ||
| 63133-22190 |
GX11#,JZX11#..SED 製造工場NO.A21−A26 |
1 | ||
| 63133-22170 |
GX11#,JZX11#..SED 製造工場NO.M31 |
1 | ||
| 63133-22190 |
GX11#,JZX11#..SED 製造工場NO.A21−A26 |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-22170 |
GX11#,JZX11#..SED 製造工場NO.M31 |
1 | ||
| 63133-22190 |
GX11#,JZX11#..SED 製造工場NO.A21−A26 |
1 | ||
| 63133-22170 |
GX11#,JZX11#..SED 製造工場NO.M31 |
1 | ||
| 63133-22190 |
GX11#,JZX11#..SED 製造工場NO.A21−A26 |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63103-22160 |
GX11#,JZX11#..SED |
1 | ||
| 63103-22160 |
GX11#,JZX11#..SED |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-22070 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 63142-22070 |
GX11#,JZX11#..SED |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-22160 |
GX11#,JZX11#..SED |
1 | ||
| 63143-22160 |
GX11#,JZX11#..SED |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-22130 |
GX11#,JZX11#..SED |
1 | ||
| 63144-22130 |
GX11#,JZX11#..SED |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-22050 |
GX11#,JZX11#..SED |
1 | ||
| 63148-22050 |
GX11#,JZX11#..SED |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-22560 |
GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64101-22550 |
GX11#,JZX11#..SED |
1 | ||
| 64101-22560 |
GX11#,JZX11#..SED ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64101-22550 |
GX11#,JZX11#..SED |
1 | ||
| 64241D - PANEL, ROOM PARTITION | ||||
| 64241-22030 |
GX11#,JZX11#..SED |
1 | ||
| 64241-22030 |
GX11#,JZX11#..SED |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-2A550 |
GX11#,JZX11#..SED *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 64811-2A580 |
GX11#,JZX11#..SED *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64811-2A570 |
GX11#,JZX11#..SED *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64811-2A580 |
GX11#,JZX11#..SED *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 64811-2A550 |
GX11#,JZX11#..SED *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 64811-2A560 |
GX11#,JZX11#..SED *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64811-2A560 |
GX11#,JZX11#..SED *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 64811-2A570 |
GX11#,JZX11#..SED *UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & ﾘﾔﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 90105-06147 | ||||
| 90179-06129 | ||||
| 90333-25001 | ||||
| 90333-48001 | ||||
| 91631-40612 | ||||
| 91631-B0610 | ||||

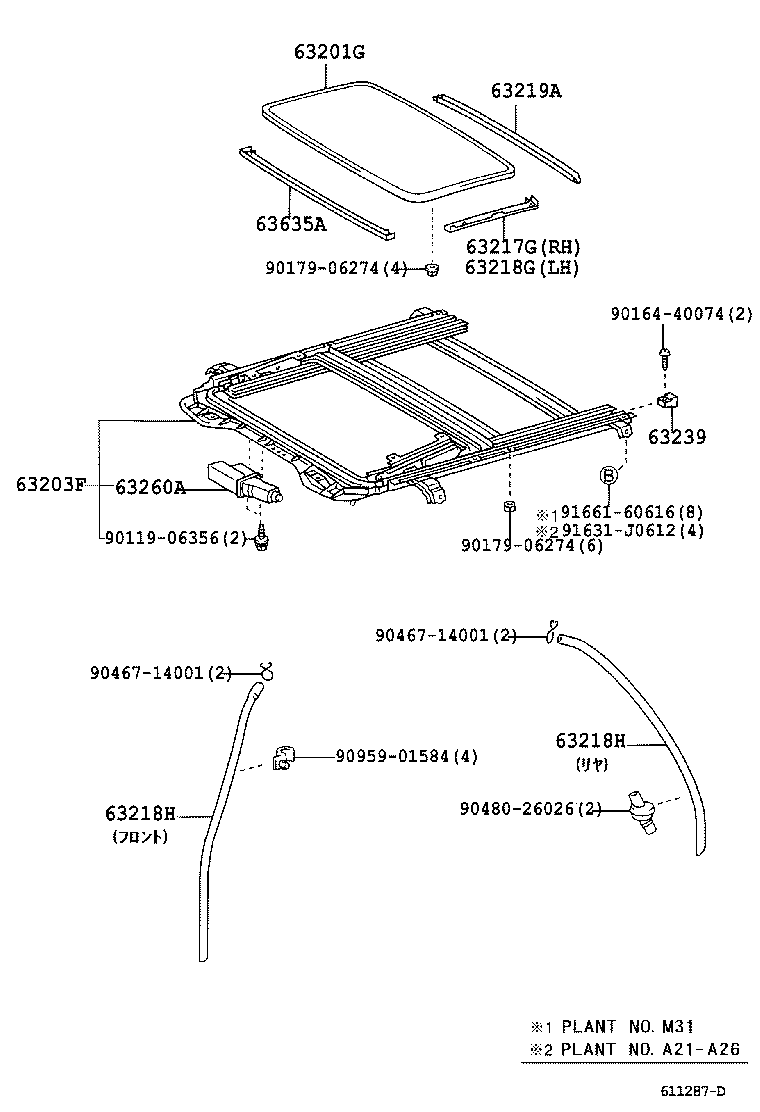

ILLUST NO. 2 OF 2(0010- )SED
ｱﾘ(ﾑ-ﾝﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-53020 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63201-53021 |
GX11#,JZX11#..SED *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63201-53020 |
GX11#,JZX11#..SED *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63200-22060 |
GX11#,JZX11#..SED |
1 | ||
| 63200-22060 |
GX11#,JZX11#..SED |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-22040 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 63217-22040 |
GX11#,JZX11#..SED |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-22040 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 63218-22040 |
GX11#,JZX11#..SED |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-53010 |
GX11#,JZX11#..SED ﾌﾛﾝﾄ & PLANT NO.M31 |
2 | ||
| 63249-22150 |
GX11#,JZX11#..SED ﾌﾛﾝﾄ & PLANT NO.A21-A26 |
2 | ||
| 63249-22120 |
GX11#,JZX11#..SED ﾘﾔ |
2 | ||
| 63249-22120 |
GX11#,JZX11#..SED ﾘﾔ |
2 | ||
| 63249-22150 |
GX11#,JZX11#..SED ﾌﾛﾝﾄ & PLANT NO.A21-A26 |
2 | ||
| 63249-53010 |
GX11#,JZX11#..SED ﾌﾛﾝﾄ & PLANT NO.M31 |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-53010 |
GX11#,JZX11#..SED ﾌﾛﾝﾄ & PLANT NO.M31 |
2 | ||
| 63249-22150 |
GX11#,JZX11#..SED ﾌﾛﾝﾄ & PLANT NO.A21-A26 |
2 | ||
| 63249-22120 |
GX11#,JZX11#..SED ﾘﾔ |
2 | ||
| 63249-22120 |
GX11#,JZX11#..SED ﾘﾔ |
2 | ||
| 63249-22150 |
GX11#,JZX11#..SED ﾌﾛﾝﾄ & PLANT NO.A21-A26 |
2 | ||
| 63249-53010 |
GX11#,JZX11#..SED ﾌﾛﾝﾄ & PLANT NO.M31 |
2 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-22040 |
GX11#,JZX11#..SED |
1 | ||
| 63219-22040 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
GX11#,JZX11#..SED |
2 | ||
| 63239-12030 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-22060 |
GX11#,JZX11#..SED |
1 | ||
| 63260-22060 |
GX11#,JZX11#..SED |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-22040 |
GX11#,JZX11#..SED |
1 | ||
| 63635-22040 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| Common parts | ||||
| 90119-06356 | ||||
| 90164-40074 | ||||
| 90179-06274 | ||||
| 90467-14001 | ||||
| 90480-26026 | ||||
| 90959-01584 | ||||
| 91631-J0612 | ||||
| 91661-60616 | ||||
