URS206-CEZZH (2009)
Toyota Majesta

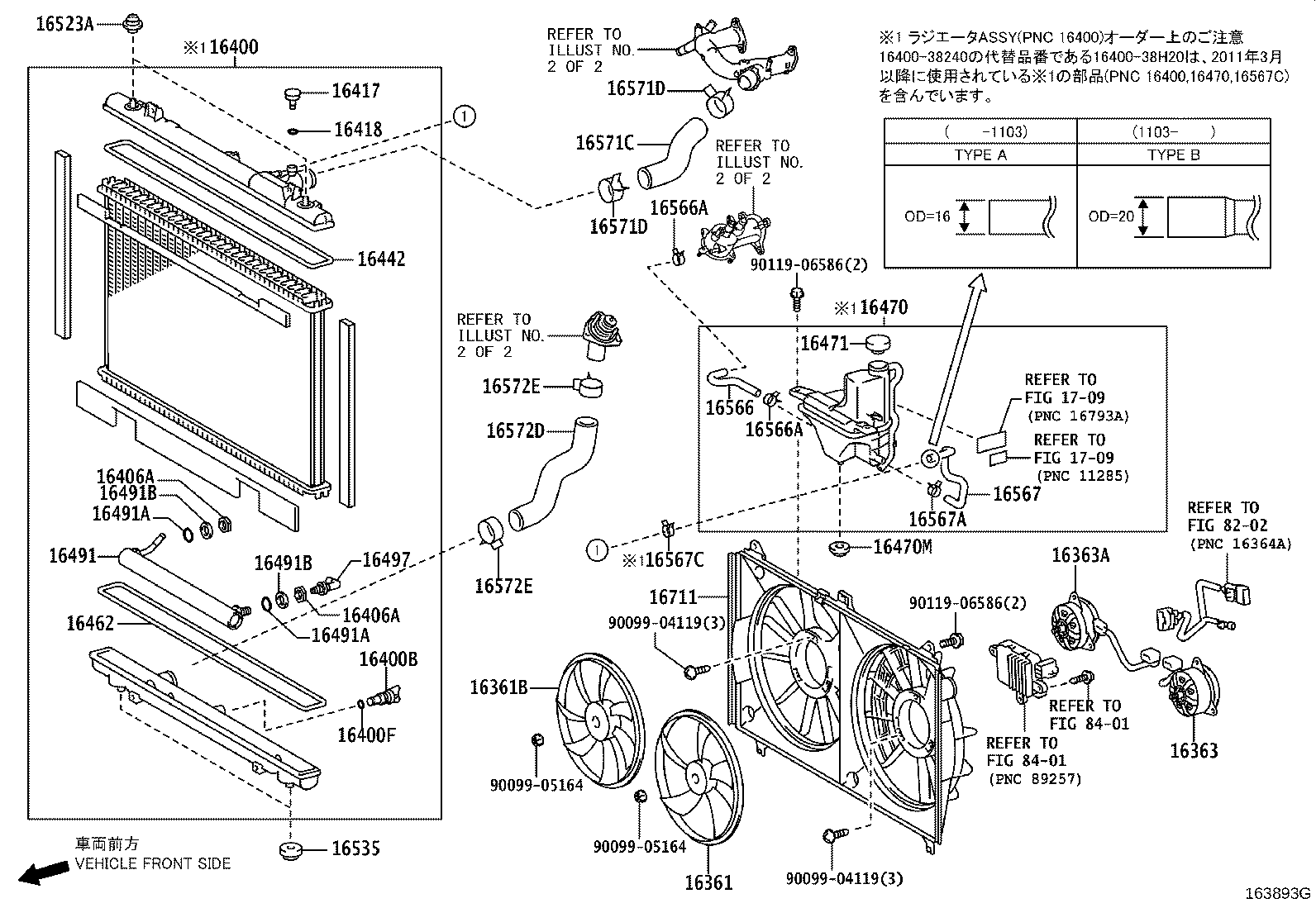

ILLUST NO. 1 OF 2(0903- )1URFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-38130 |
1URFSE..URS206 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-50130 |
1URFSE..URS206 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-38150 |
1URFSE..URS206 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-50110 |
1URFSE..URS206 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-38240 |
1URFSE..URS206 ｲﾗｽﾄ参照 |
1 | ||
| 16400-38241 |
1URFSE..URS206 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1URFSE,3UZFE..URS206,UZS207 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1URFSE,3UZFE..URS206,UZS207 |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 16417 - COCK | ||||
| 16417-28530 |
1URFSE..URS206 |
1 | ||
| 16418 - PACKING | ||||
| 16418-20290 |
1URFSE..URS206 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-46040 |
1URFSE,3UZFE..URS206,UZS207 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-46040 |
1URFSE,3UZFE..URS206,UZS207 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-38051 |
1URFSE..URS206 PNC 16567=TYPE B |
1 | ||
| 16470-38040 |
1URFSE..URS206 |
1 | ||
| 16470-38050 |
1URFSE..URS206 PNC 16567=TYPE A |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
1URFSE..URS206 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16475-51010 |
1URFSE..URS206 |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-50320 |
1URFSE,3UZFE..URS206,UZS207 |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-50020 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 16497 - INLET SUB-ASSY | ||||
| 16495-76062 |
1URFSE,3UZFE..URS206,UZS207 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-31010 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40021 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 16566 - HOSE, RESERVE TANK OUTLET | ||||
| 16566-38030 |
1URFSE..URS206 |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 96137-41501 |
1URFSE..URS206 |
2 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 96137-41501 |
1URFSE..URS206 |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-38030 |
1URFSE..URS206 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 16567-38051 |
1URFSE..URS206 |
1 | ||
| 16567-38050 |
1URFSE..URS206 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 16567-38051 |
1URFSE..URS206 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 96137-41701 |
1URFSE..URS206 |
1 | ||
| 16567C - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3) | ||||
| 96137-41701 |
1URFSE..URS206 PNC 16567=TYPE A |
1 | ||
| 96136-42101 |
1URFSE..URS206 |
1 | ||
| 96136-42101 |
1URFSE..URS206 PNC 16567=TYPE B |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-38090 |
1URFSE..URS206 |
1 | ||
| 16571-38091 |
1URFSE..URS206 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-44801 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 96136-54801 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 90466-39002 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-44801 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 96136-54801 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 90466-39002 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-38120 |
1URFSE..URS206 |
1 | ||
| 16572-38121 |
1URFSE..URS206 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 96136-44801 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 90466-39002 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-54801 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 96136-44801 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 90466-39002 |
1URFSE,3UZFE..URS206,UZS207 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-38150 |
1URFSE..URS206 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06586 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8202 | ||||
| 8401 | ||||

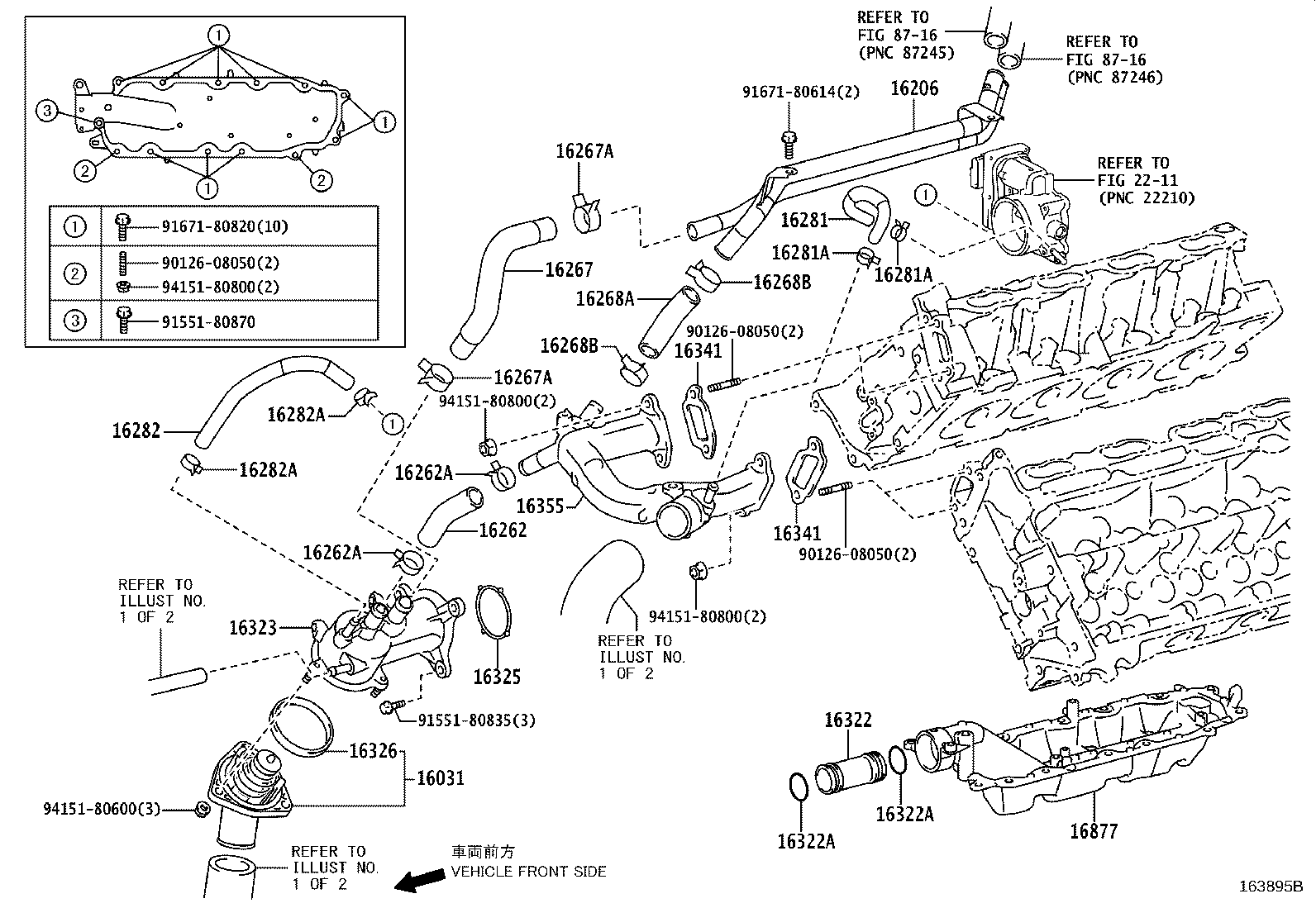

ILLUST NO. 2 OF 2(0903- )1URFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-38010 |
1URFSE..URS206 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-38021 |
1URFSE..URS206 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 99556-30100 |
1URFSE..URS206 *H,L=90 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1URFSE..URS206 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
1URFSE..URS206 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-38030 |
1URFSE..URS206 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1URFSE..URS206 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1URFSE..URS206 |
2 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 99556-30100 |
1URFSE..URS206 *H,L=80 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96136-42501 |
1URFSE..URS206 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96136-42501 |
1URFSE..URS206 |
2 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-38040 |
1URFSE..URS206 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1URFSE..URS206 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1URFSE..URS206 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-38040 |
1URFSE..URS206 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-41501 |
1URFSE..URS206 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-41501 |
1URFSE..URS206 |
2 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-38010 |
1URFSE..URS206 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35035 |
1URFSE..URS206 |
2 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35035 |
1URFSE..URS206 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-38030 |
1URFSE..URS206 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-38020 |
1URFSE..URS206 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-38010 |
1URFSE..URS206 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38030 |
1URFSE..URS206 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38030 |
1URFSE..URS206 |
2 | ||
| 16355 - JOINT, WATER BY-PASS, FRONT | ||||
| 16355-38030 |
1URFSE..URS206 |
1 | ||
| 16877 - COVER, HEAT EXCHANGER, NO.1 | ||||
| 16877-38030 |
1URFSE..URS206 |
1 | ||
| Common parts | ||||
| 90126-08050 | ||||
| 91551-80835 | ||||
| 91551-80870 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8716 | ||||
