URS206-CEZVH (2009)
Toyota Majesta
ILLUST NO. 1 OF 3(0903- )
ﾌﾛﾝﾄ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-53010B1 |
URS206..G GRAY,TRIM2# |
1 | ||
| 73023-53010B1 |
URS206,UZS207..C,IFOUR GRAY,TRIM2#,4# |
1 | ||
| 73023-53010A2 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73023-53010B1 |
URS206..A GRAY,TRIM2#,4# |
1 | ||
| 73023-53010B1 |
URS206,UZS207..C,IFOUR GRAY,TRIM2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-53010B1 |
URS206..G GRAY,TRIM2# |
1 | ||
| 73024-53010B1 |
URS206,UZS207..C,IFOUR GRAY,TRIM2#,4# |
1 | ||
| 73024-53010B1 |
URS206,UZS207..C,IFOUR GRAY,TRIM2# |
1 | ||
| 73024-53010B1 |
URS206..A GRAY,TRIM2#,4# |
1 | ||
| 73024-53010A2 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73173 - COVER, FRONT SEAT BELT HOLE, RH | ||||
| 73173-30070E1 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73173-30070A1 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73173-30070C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73174 - COVER, FRONT SEAT BELT HOLE, LH | ||||
| 73174-30070A1 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73174-30070C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73174-30070E1 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
URS206,UZS207 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
URS206,UZS207 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-30C50A1 |
URS206,UZS207 IVORY/SHELL/SHELL,TRIM0# |
1 | ||
| 73210-30C50B5 |
URS206,UZS207..A,C,IFOUR BLACK/PLUM/GRAY,TRIM4# |
1 | ||
| 73210-30C50B4 |
URS206,UZS207 BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-30C10A1 |
URS206,UZS207 IVORY/SHELL/SHELL,TRIM0# |
1 | ||
| 73220-30C10B4 |
URS206,UZS207 BLACK/BLACK/GRAY,TRIM2# |
1 | ||
| 73220-30C10B5 |
URS206,UZS207..A,C,IFOUR BLACK/PLUM/GRAY,TRIM4# |
1 | ||
| 73223D - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-30130 |
URS206,UZS207 |
1 | ||
| 73224B - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-30100 |
URS206,UZS207 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-30A90A0 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73230-30A90C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73230-30A90E0 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-30B00C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73230-30B00E0 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73230-30B00A0 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11036 | ||||
| 90105-11038 | ||||
| 90178-11002 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 7101 | ||||

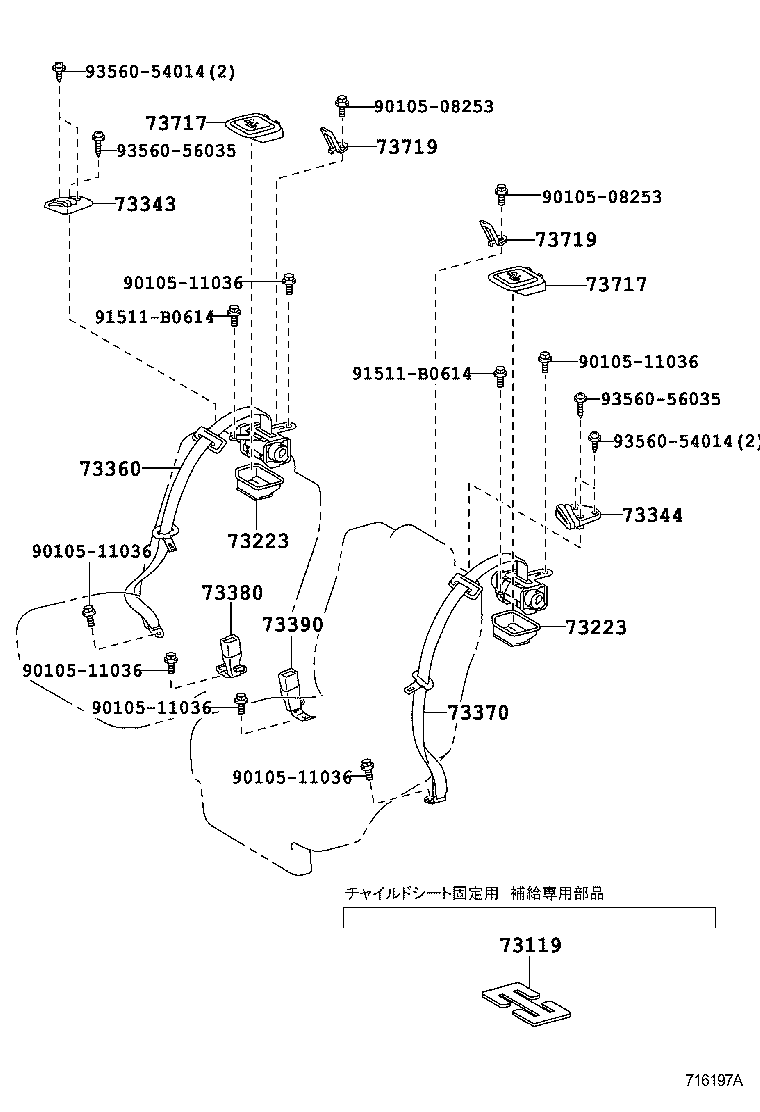

ILLUST NO. 2 OF 3(0903- )
ﾘﾔ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
URS206,UZS207 |
1 | ||
| 73223 - COVER, SEAT BELT RETRACTOR | ||||
| 73223-30140 |
URS206,UZS207 |
2 | ||
| 73223 - COVER, SEAT BELT RETRACTOR | ||||
| 73223-30140 |
URS206,UZS207 |
2 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73330-33010C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73330-33010E2 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73330-33010A4 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73340-33010E2 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73340-33010C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73340-33010A6 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73343-30060A3 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73343-30060E2 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73343-30060C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-30490C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73360-30510A0 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73360-30510C1 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73360-30510E1 |
URS206..A PLUM,TRIM4# |
1 | ||
| 73360-30490E0 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73360-30490A0 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-30300E0 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73370-30300A0 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73370-30320E1 |
URS206..A PLUM,TRIM4# |
1 | ||
| 73370-30300C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73370-30320A0 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73370-30320C1 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-30050C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73470-30050E0 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73470-30050A0 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-30280E0 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73480-30280A0 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73480-30280C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50020A2 |
URS206,UZS207 SHELL,TRIM0# |
2 | ||
| 73717-50020B5 |
URS206,UZS207..A,C,IFOUR GRAY,TRIM2#,4# |
2 | ||
| 73717-50020B5 |
URS206..G GRAY,TRIM2# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50020A2 |
URS206,UZS207 SHELL,TRIM0# |
2 | ||
| 73717-50020B5 |
URS206,UZS207..A,C,IFOUR GRAY,TRIM2#,4# |
2 | ||
| 73717-50020B5 |
URS206..G GRAY,TRIM2# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-30010 |
URS206,UZS207 |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-30010 |
URS206,UZS207 |
2 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90105-11036 | ||||
| 91511-B0614 | ||||
| 93560-54014 | ||||
| 93560-56035 | ||||

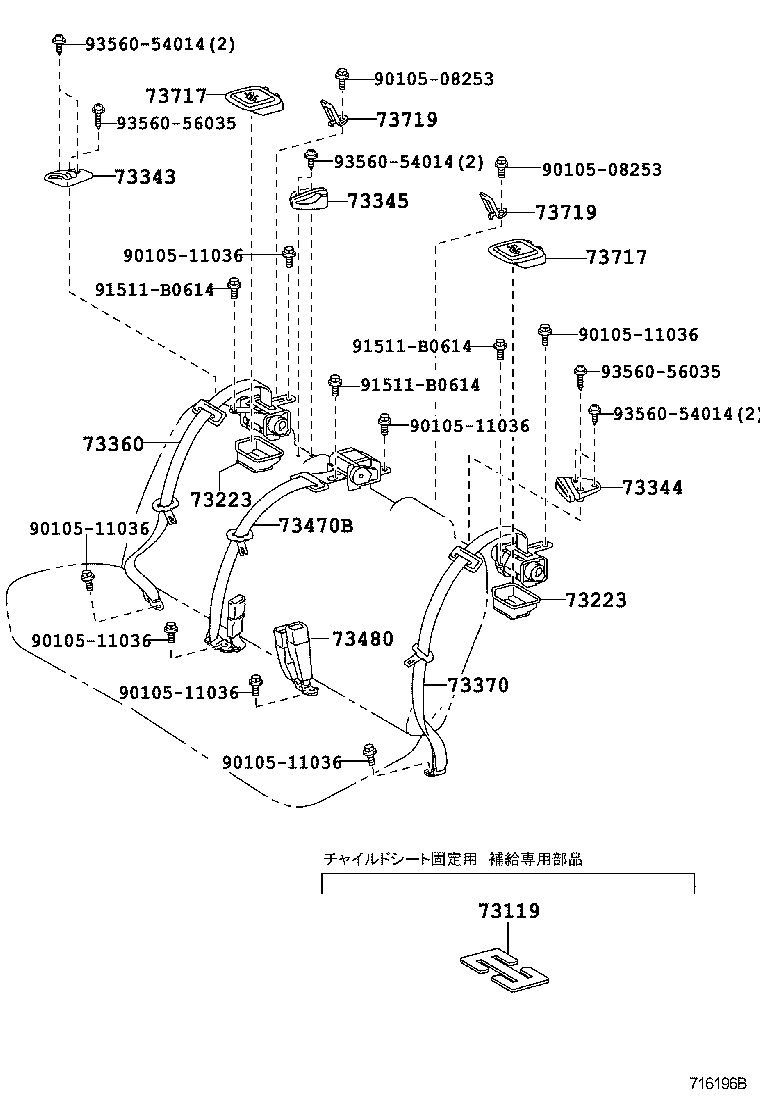

ILLUST NO. 3 OF 3(0903- )G
ﾘﾔ ｼｰﾄ(Fﾊﾟｯｹｰｼﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
URS206,UZS207 |
1 | ||
| 73223 - COVER, SEAT BELT RETRACTOR | ||||
| 73223-30140 |
URS206,UZS207 |
2 | ||
| 73223 - COVER, SEAT BELT RETRACTOR | ||||
| 73223-30140 |
URS206,UZS207 |
2 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73330-33010C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73330-33010E2 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73330-33010A4 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73340-33010E2 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73340-33010C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73340-33010A6 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-30490C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73360-30510A0 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73360-30510C1 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73360-30510E1 |
URS206..A PLUM,TRIM4# |
1 | ||
| 73360-30490E0 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73360-30490A0 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-30300E0 |
URS206,UZS207..A,C,IFOUR PLUM,TRIM4# |
1 | ||
| 73370-30300A0 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73370-30320E1 |
URS206..A PLUM,TRIM4# |
1 | ||
| 73370-30300C0 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73370-30320A0 |
URS206,UZS207 SHELL,TRIM0# |
1 | ||
| 73370-30320C1 |
URS206,UZS207 BLACK,TRIM2# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-30410C0 |
URS206..G Fﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 73380-30410A0 |
URS206..G Fﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73480-30270A0 |
URS206..G Fﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 73480-30270C0 |
URS206..G Fﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50020A2 |
URS206,UZS207 SHELL,TRIM0# |
2 | ||
| 73717-50020B5 |
URS206,UZS207..A,C,IFOUR GRAY,TRIM2#,4# |
2 | ||
| 73717-50020B5 |
URS206..G GRAY,TRIM2# |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50020A2 |
URS206,UZS207 SHELL,TRIM0# |
2 | ||
| 73717-50020B5 |
URS206,UZS207..A,C,IFOUR GRAY,TRIM2#,4# |
2 | ||
| 73717-50020B5 |
URS206..G GRAY,TRIM2# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-30010 |
URS206,UZS207 |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-30010 |
URS206,UZS207 |
2 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90105-11036 | ||||
| 91511-B0614 | ||||
| 93560-54014 | ||||
| 93560-56035 | ||||
