URS206-CEZVH (2009)

Toyota Majesta

Production Mar 2009 - Jul 2013
Engine 1URFSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )

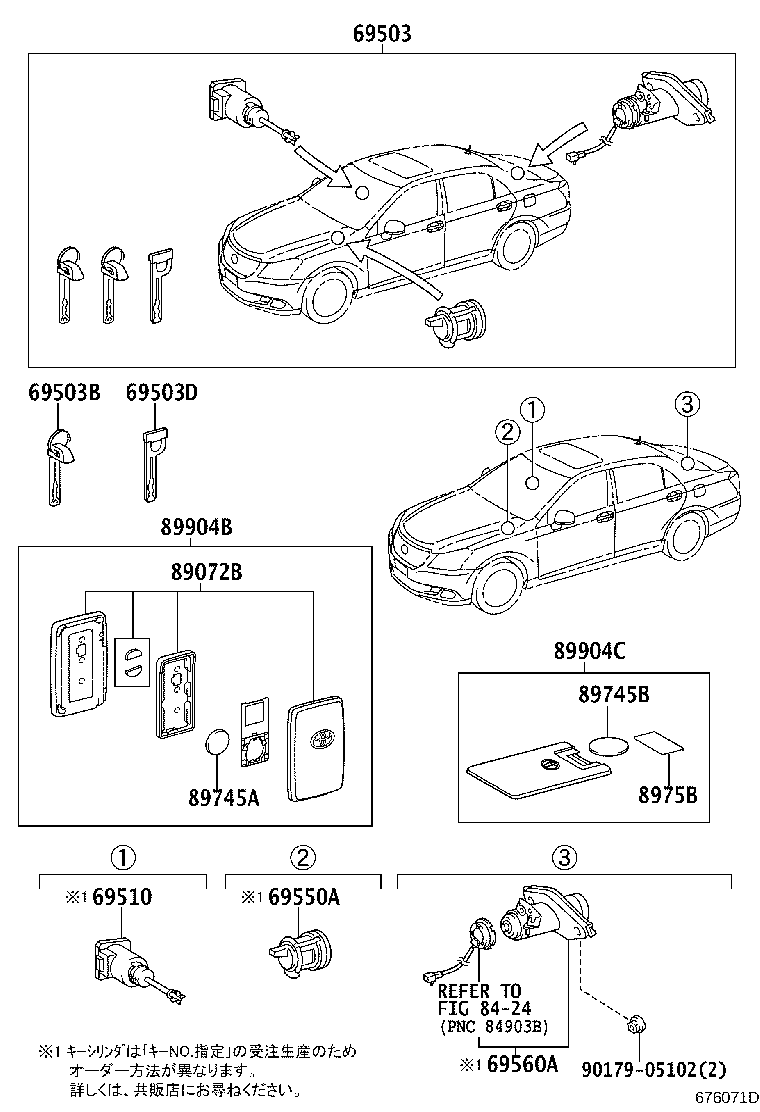

Click highlighted areas on diagram

diagram 69503 69503B 69503D 69510 69550A 69560A 8424 89072B 89745A 89745B 8975B 89904B 89904C 9017905102
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-30C20

URS206,UZS207

 1
69005-30C21

URS206,UZS207

 1
69503B - KEY, CUT
69515-30341

URS206,UZS207

ﾏｽﾀｰｷｰ

 2
69515-30340

URS206,UZS207

ﾏｽﾀｰｷｰ

 2
69503D - KEY, CUT(CARD KEY)
69515-30330

URS206,UZS207

ﾏｽﾀｰｷｰ

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-30290

URS206,UZS207

 1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-50040

URS206,UZS207

 1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-30350

URS206,UZS207

 1
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-30640

URS206,UZS207

 2
89745A - BATTERY, TRANSMITTER
89745-52020

URS206,UZS207

 1
89745B - BATTERY, TRANSMITTER(CARD KEY)
89745-50030

URS206,UZS207

 1
8975B - COVER, TRANSMITTER BATTERY HOUSING
8975B-30010

URS206,UZS207

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-30570

URS206,UZS207

 2
89904C - TRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
89994-30240

URS206,UZS207

 1
Common parts
90179-05102
Linked diagrams
8424
