URS206-CEZVH (2009)

Toyota Majesta

Production Mar 2009 - Jul 2013
Engine 1URFSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )

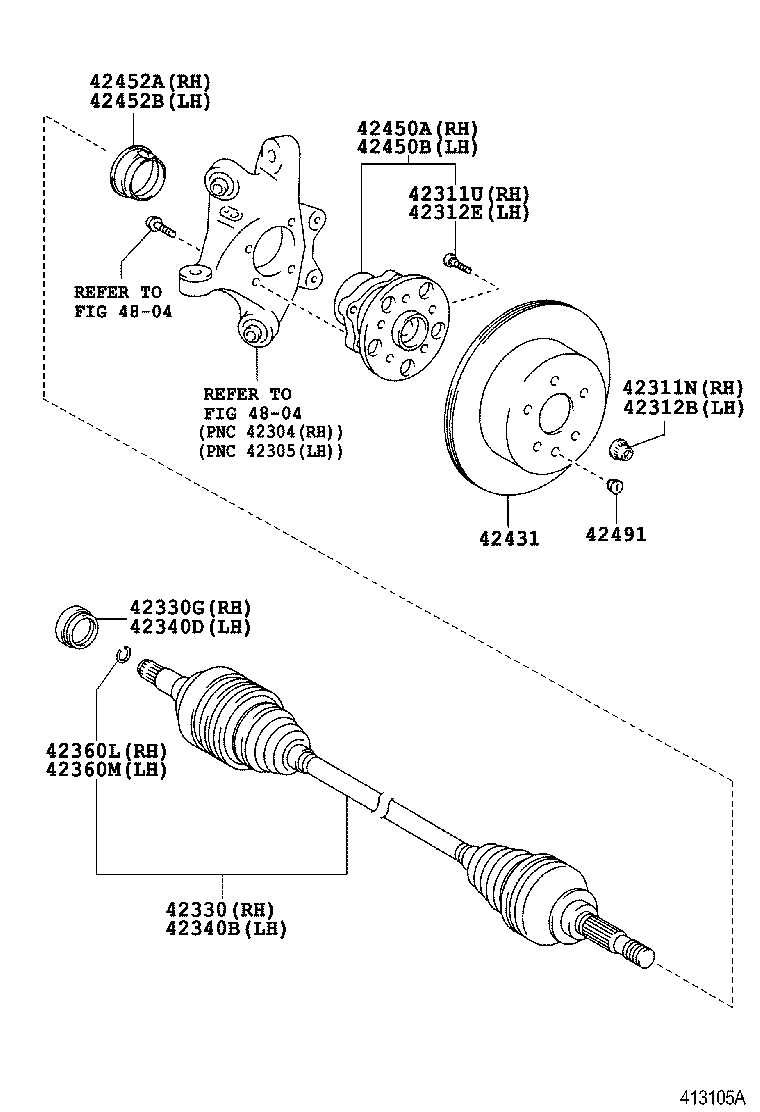

Click highlighted areas on diagram

diagram 42311N 42311U 42312B 42312E 42330 42330G 42340B 42340D 42360L 42360M 42431 42450A 42450B 42452A 42452B 42491 4804 4804
Part # Description Qty Price
42311N - NUT (FOR REAR AXLE SHAFT RH)
90177-26001

URS206,UZS207

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02070

URS206,UZS207

 5
42312B - NUT (FOR REAR AXLE SHAFT LH)
90177-26001

URS206,UZS207

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02070

URS206,UZS207

 5
42330 - SHAFT ASSY, REAR DRIVE, RH
42330-30160

URS206,UZS207

 1
42330G - OIL SEAL, REAR DRIVE SHAFT, RH
90311-47018

URS206,UZS207

 1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-30160

URS206,UZS207

 1
42340D - OIL SEAL, REAR DRIVE SHAFT, LH
90311-47019

URS206,UZS207

 1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
90521-34003

URS206,UZS207

 1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
90521-34003

URS206,UZS207

 1
42431 - DISC, REAR
42431-30290

URS206,UZS207

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42410-30020

URS206,UZS207

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42410-30020

URS206,UZS207

 1
42452A - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH
42451-30020

URS206,UZS207

 1
42452B - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH
42451-30020

URS206,UZS207

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-50010

URS206,UZS207

 2
Linked diagrams
4804
