URS206-CEZQH (2009)

Toyota Majesta

Production Mar 2009 - Jul 2013
Engine 1URFSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )URS206

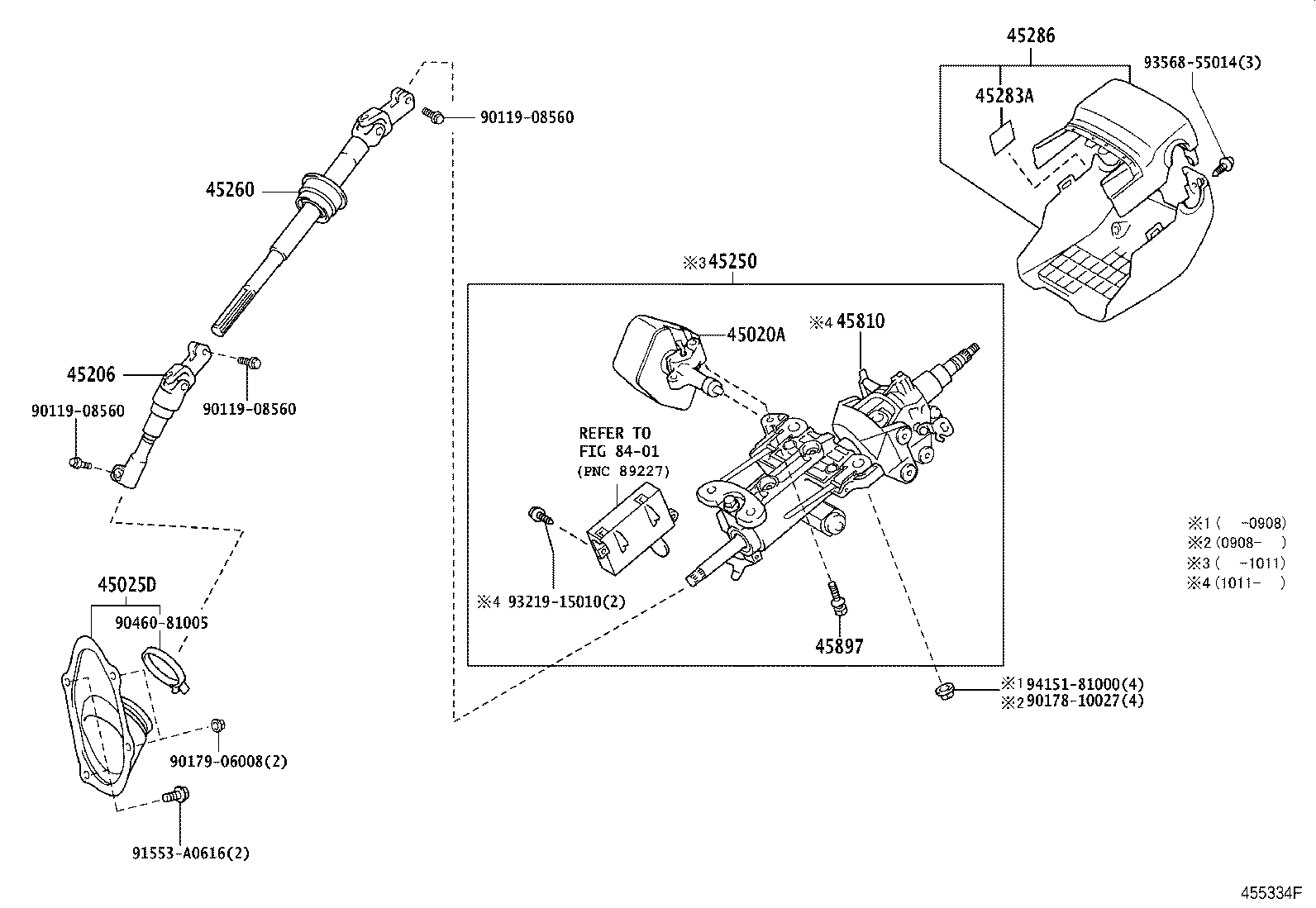

Click highlighted areas on diagram

diagram 45020A 45025D 45206 45250 45260 45283A 45286 45810 45897 8401 9011908560 9011908560 9011908560 9017810027 9017906008 9046081005 91553A0616 9321915010 9356855014 9415181000
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-30A70

URS206,UZS207

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-30370

URS206..A

Lﾊﾟｯｹｰｼﾞ

 1
45025-30350

URS206

 1
45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45206-30120

URS206..A

Lﾊﾟｯｹｰｼﾞ

 1
45206-30102

URS206

 1
45206-30100

URS206

 1
45250 - COLUMN ASSY, STEERING
45250-30B00

URS206,UZS207

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-22371

URS206

 1
45260-22370

URS206

 1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010

URS206,UZS207

 1
45286 - COVER, STEERING COLUMN
45286-3A913C0

URS206,UZS207..C,IFOUR

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS),BLACK,TRIM2#,4#

 1
45286-3A904E2

URS206,UZS207

DK. BROWN,TRIM0#

 1
45286-3A913E1

URS206,UZS207..C,G,IFOUR

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS),DK. BROWN,TRIM0#

 1
45286-3A904C0

URS206,UZS207..A,C,IFOUR

BLACK,TRIM2#,4#

 1
45286-3A913C0

URS206..C

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*FCPS&*RPCS),BLACK,TRIM2#,4#

 1
45286-3A913E1

URS206..C,G

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*FCPS&*RPCS),DK. BROWN,TRIM0#

 1
45810 - GEAR ASSY, TILT STEERING, W/MOTOR
45810-30190

URS206,UZS207

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

URS206,UZS207

 2
Common parts
90119-08560
90178-10027
90179-06008
90460-81005
91553-A0616
93219-15010
93568-55014
94151-81000
Linked diagrams
8401

(0903- )A

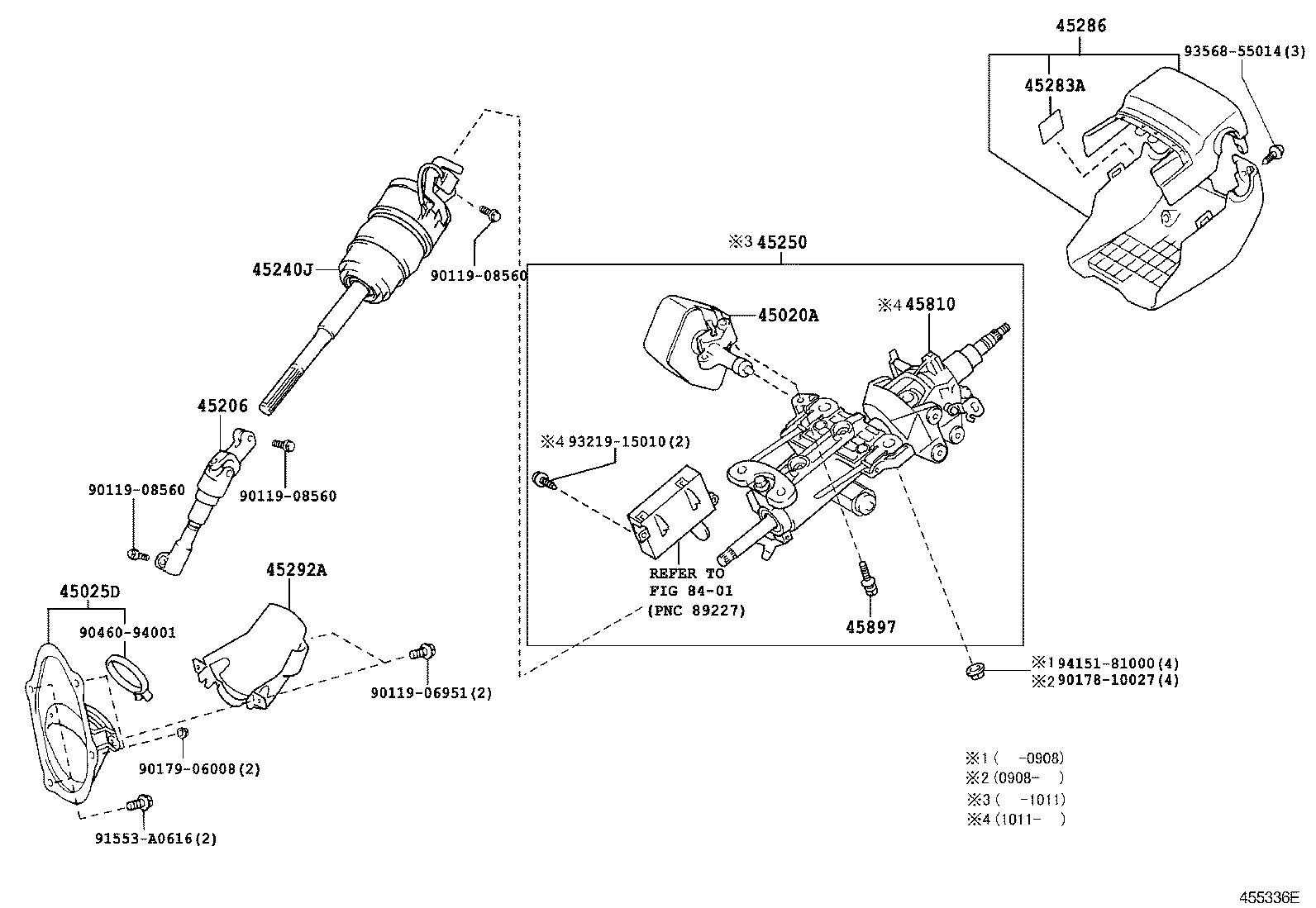

Click highlighted areas on diagram

L ﾊﾟｯｹｰｼﾞ

diagram 45020A 45025D 45206 45240J 45250 45283A 45286 45292A 45810 45897 8401 9011906951 9011908560 9011908560 9011908560 9017810027 9017906008 9046094001 91553A0616 9321915010 9356855014 9415181000
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-30A70

URS206,UZS207

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-30370

URS206..A

Lﾊﾟｯｹｰｼﾞ

 1
45025-30350

URS206

 1
45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45206-30120

URS206..A

Lﾊﾟｯｹｰｼﾞ

 1
45206-30102

URS206

 1
45206-30100

URS206

 1
45240J - ACTUATOR ASSY, STEERING
45240-30121

URS206..A

Lﾊﾟｯｹｰｼﾞ

 1
45240-30120

URS206..A

Lﾊﾟｯｹｰｼﾞ

 1
45250 - COLUMN ASSY, STEERING
45250-30B00

URS206,UZS207

 1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010

URS206,UZS207

 1
45286 - COVER, STEERING COLUMN
45286-3A913C0

URS206,UZS207..C,IFOUR

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS),BLACK,TRIM2#,4#

 1
45286-3A904E2

URS206,UZS207

DK. BROWN,TRIM0#

 1
45286-3A913E1

URS206,UZS207..C,G,IFOUR

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*RPCS),DK. BROWN,TRIM0#

 1
45286-3A904C0

URS206,UZS207..A,C,IFOUR

BLACK,TRIM2#,4#

 1
45286-3A913C0

URS206..C

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*FCPS&*RPCS),BLACK,TRIM2#,4#

 1
45286-3A913E1

URS206..C,G

ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(*DMO&*FCPS&*RPCS),DK. BROWN,TRIM0#

 1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-30090

URS206..A

Lﾊﾟｯｹｰｼﾞ

 1
45810 - GEAR ASSY, TILT STEERING, W/MOTOR
45810-30190

URS206,UZS207

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

URS206,UZS207

 2
Common parts
90119-06951
90119-08560
90178-10027
90179-06008
90460-94001
91553-A0616
93219-15010
93568-55014
94151-81000
Linked diagrams
8401
