AE101-BTPVF (1992)
Toyota Lvn/Cre/Trn/Mrn
Production
May 1992
-
Aug 1998
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )MRN

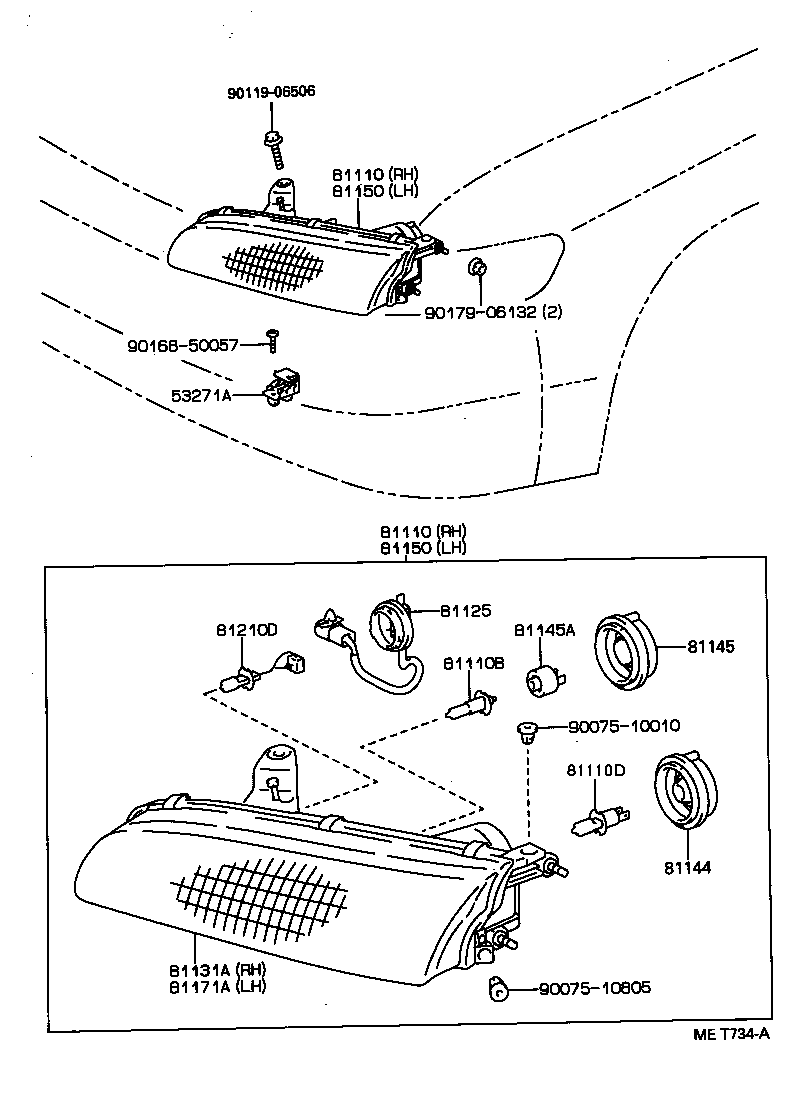

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-12040 |
AE10# |
2 | ||
| 53271-12060 |
AE10#..HT |
2 | ||
| 53271-12060 |
AE10# |
2 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-1E211 |
AE10#..MRN |
1 | ||
| 81110-1E210 |
AE10#..MRN |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-1E211 |
AE10#..MRN |
1 | ||
| 81110-1E210 |
AE10#..MRN |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13017 |
AE10#..CRE,MRN,TRN 12V 55W,*HAL *WH |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13027 |
AE10#..HT 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-12780 |
AE10#..HT |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-1E210 |
AE10#..MRN |
1 | ||
| 81130-1E211 |
AE10#..MRN |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-99090 |
AE10#..HT |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-99089 |
AE10#..HT |
2 | ||
| 81145A - ADAPTER ASSY | ||||
| 90075-43103 |
AE10#..HT |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-1A481 |
AE10#..MRN |
1 | ||
| 81150-1A480 |
AE10#..MRN |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-1A481 |
AE10#..MRN |
1 | ||
| 81150-1A480 |
AE10#..MRN |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-1A480 |
AE10#..MRN |
1 | ||
| 81170-1A481 |
AE10#..MRN |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13040 |
AE10#..CRE,LVN,MRN 12V 35W,ﾊﾛｹﾞﾝ |
2 | ||
| Common parts | ||||
| 90075-10010 | ||||
| 90075-10805 | ||||
| 90119-06506 | ||||
| 90168-50057 | ||||
| 90179-06132 | ||||
