AE101-BTPVF (1992)
Toyota Lvn/Cre/Trn/Mrn
Production
May 1992
-
Aug 1998
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )HT

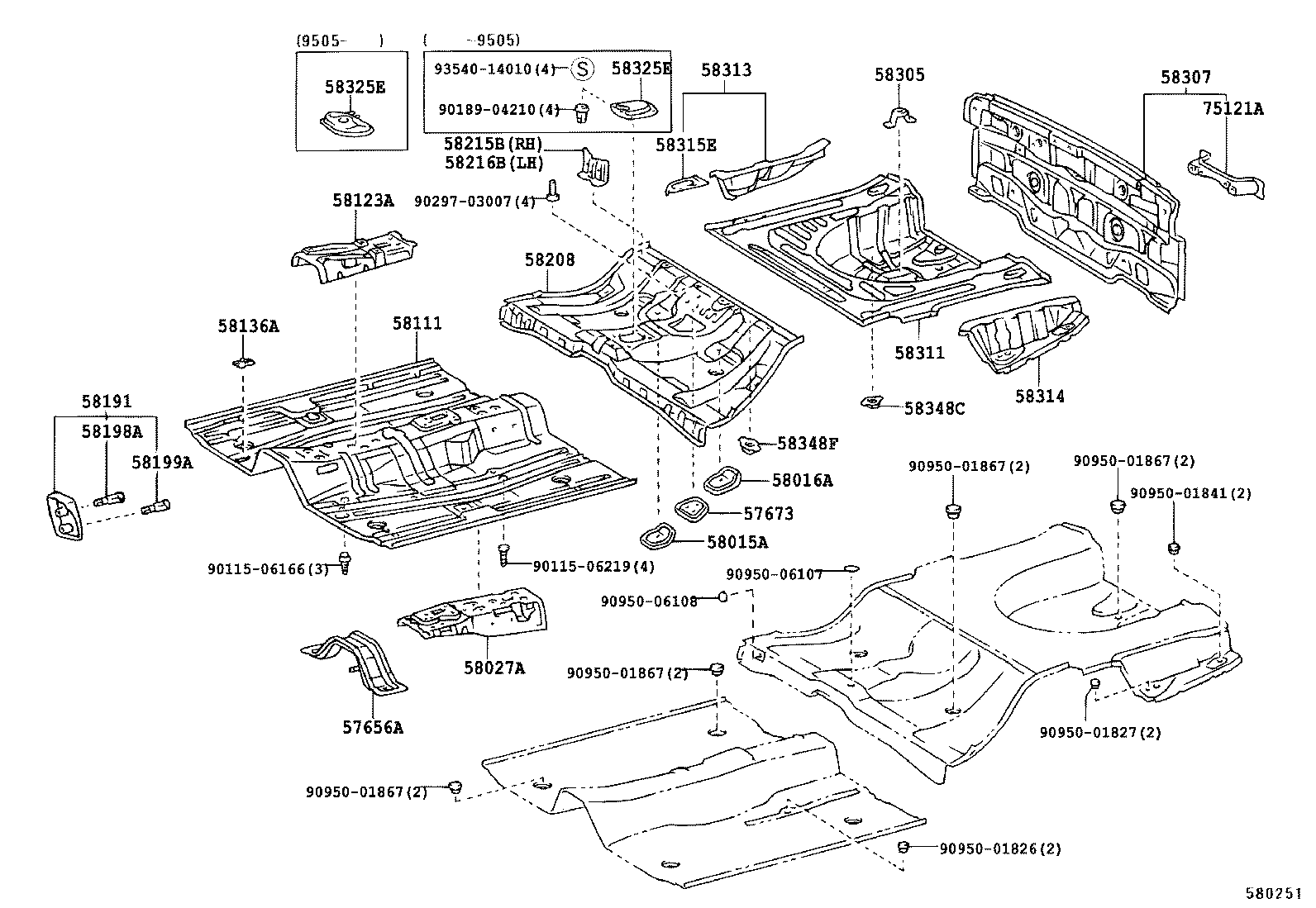

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1 | ||||
| 57656-12060 |
AE10# |
1 | ||
| 57656-12080 |
AE10# |
1 | ||
| 57656-12070 |
AE10# |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-12080 |
AE10# |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-12050 |
AE10# |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-12020 |
AE10# |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-12121 |
AE10# |
1 | ||
| 58027-12120 |
AE10# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-12260 |
AE10# |
1 | ||
| 58111-12261 |
AE10# |
1 | ||
| 58111-12262 |
AE10# |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-12020 |
AE10# |
1 | ||
| 58013-12060 |
AE10# |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12020 |
AE10# |
2 | ||
| 58136-12030 |
AE10# |
2 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-12110 |
AE10# |
1 | ||
| 58198A - CLIP, FOOTREST, NO.1 | ||||
| 58198-12030 |
AE10# |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-12020 |
AE10# |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-12900 |
AE10#..HT |
1 | ||
| 58211-12903 |
AE10# |
1 | ||
| 58215B - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-12040 |
AE10# |
1 | ||
| 58215-12041 |
AE10# |
1 | ||
| 58216B - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-12040 |
AE10# |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
AE10# |
1 | ||
| 58351-12040 |
AE10# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-1A330 |
AE10#..HT |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-12210 |
AE10# |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-12903 |
AE10# |
1 | ||
| 58313-12901 |
AE10#..HT |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-12270 |
AE10#..HT |
1 | ||
| 58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH | ||||
| 58315-12070 |
AE10# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-12090 |
AE10# |
1 | ||
| 58325-12091 |
AE10# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-12090 |
AE10# |
1 | ||
| 58325-12091 |
AE10# |
1 | ||
| 58348C - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58348-12020 |
AE10# |
1 | ||
| 58348F - BRACKET, CENTER FLOOR HEAR INSULATOR, NO.3 | ||||
| 58348-12020 |
AE10# |
2 | ||
| 75121A - BRACKET, REAR LICENSE PLATE | ||||
| 75121-12030 |
AE10#..HT |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90189-04210 | ||||
| 90297-03007 | ||||
| 90950-01826 | ||||
| 90950-01827 | ||||
| 90950-01841 | ||||
| 90950-01867 | ||||
| 90950-06107 | ||||
| 90950-06108 | ||||
| 93540-14010 | ||||
