AE101-BTPVF (1992)

Toyota Lvn/Cre/Trn/Mrn

Production May 1992 - Aug 1998
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9305)4FC ; (9305- )AE100..4FC

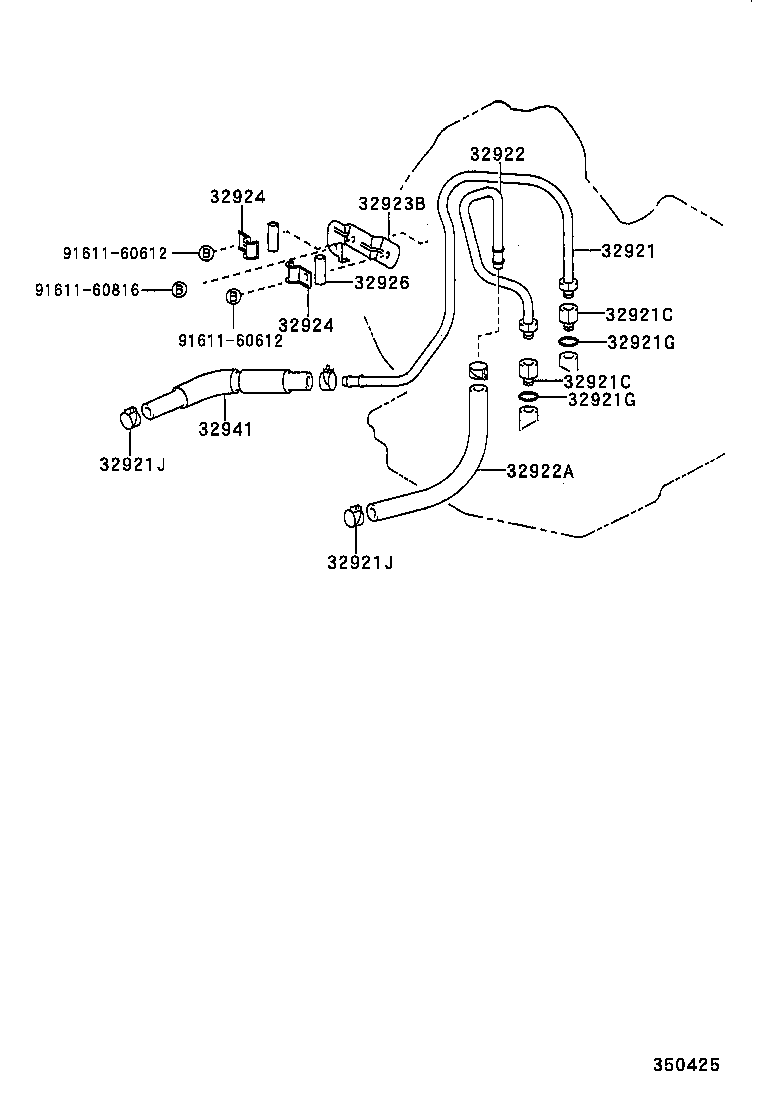

Click highlighted areas on diagram

A240L,A240E

diagram 32921 32921C 32921C 32921G 32921G 32921J 32921J 32922 32922A 32923B 32924 32924 32926 32941 9161160612 9161160612 9161160816
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-12380

AE101..4FC

 1
32921-12210

AE10#..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14019

AE101..4FC

 2
90404-14007

AE10#..4FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-14019

AE101..4FC

 2
90404-14007

AE10#..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AE10#..4FC

 2
90301-11006

AE101..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AE10#..4FC

 2
90301-11006

AE101..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AE10#..4FC

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AE10#..4FC

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-12320

AE10#..4FC

 1
32922-12370

AE101..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-22101

AE101..4FC

 1
90445-15042

AE10#..4FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-12200

AE10#..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-10082

AE10#..4FC

 2
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-10082

AE10#..4FC

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010

AE101..4FC

長さ=30,内径=8

 2
32926-30011

AE10#..4FC

長さ=25,内径=8

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-12270

AE101..4FC

 1
32941-12171

AE10#..4FC

 1
Common parts
91611-60612
91611-60816

(9305- )AE101..4FC

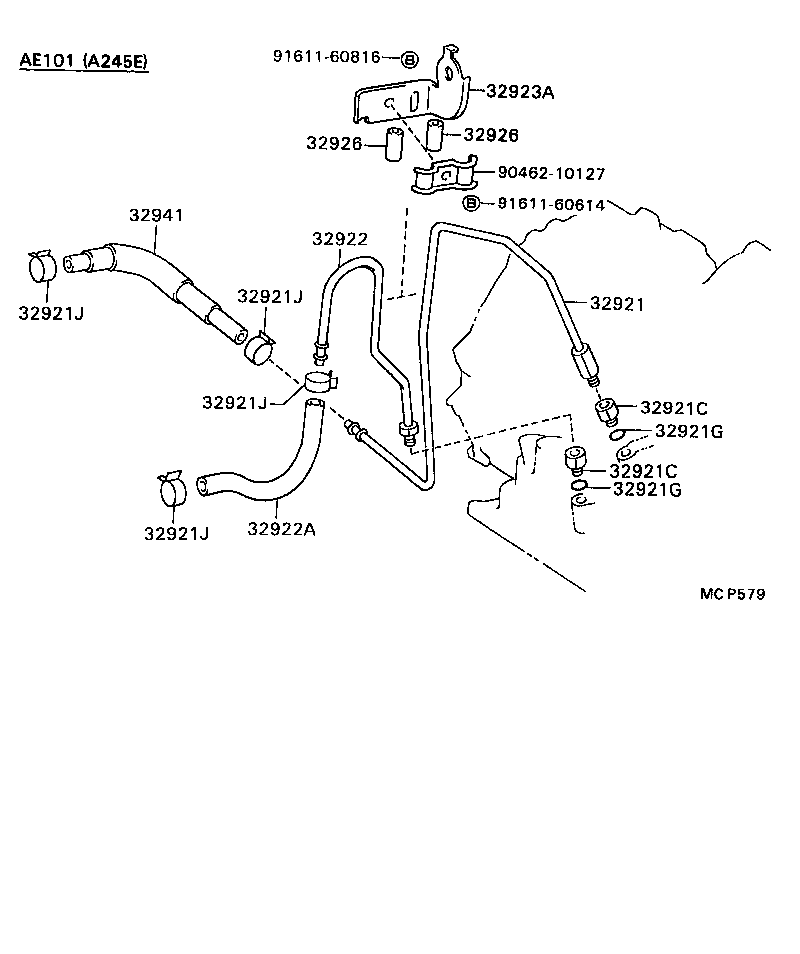

Click highlighted areas on diagram

A245E

diagram 32921 32921C 32921C 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32923A 32926 32926 32941 9046210127 9161160614 9161160816
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-12380

AE101..4FC

 1
32921-12210

AE10#..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14019

AE101..4FC

 2
90404-14007

AE10#..4FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-14019

AE101..4FC

 2
90404-14007

AE10#..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AE10#..4FC

 2
90301-11006

AE101..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AE10#..4FC

 2
90301-11006

AE101..4FC

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AE10#..4FC

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AE10#..4FC

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AE10#..4FC

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AE10#..4FC

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-12320

AE10#..4FC

 1
32922-12370

AE101..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-22101

AE101..4FC

 1
90445-15042

AE10#..4FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-12261

AE101..4FC

 1
32923-12260

AE101..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010

AE101..4FC

長さ=30,内径=8

 2
32926-30011

AE10#..4FC

長さ=25,内径=8

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-10010

AE101..4FC

長さ=30,内径=8

 2
32926-30011

AE10#..4FC

長さ=25,内径=8

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-12270

AE101..4FC

 1
32941-12171

AE10#..4FC

 1
Common parts
90462-10127
91611-60614
91611-60816
