AE101-BTMVF (1992)

Toyota Lvn/Cre/Trn/Mrn

Production May 1992 - Apr 1997
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)F,G,GT,GTAPX,S,SJ,X ; (9505- )

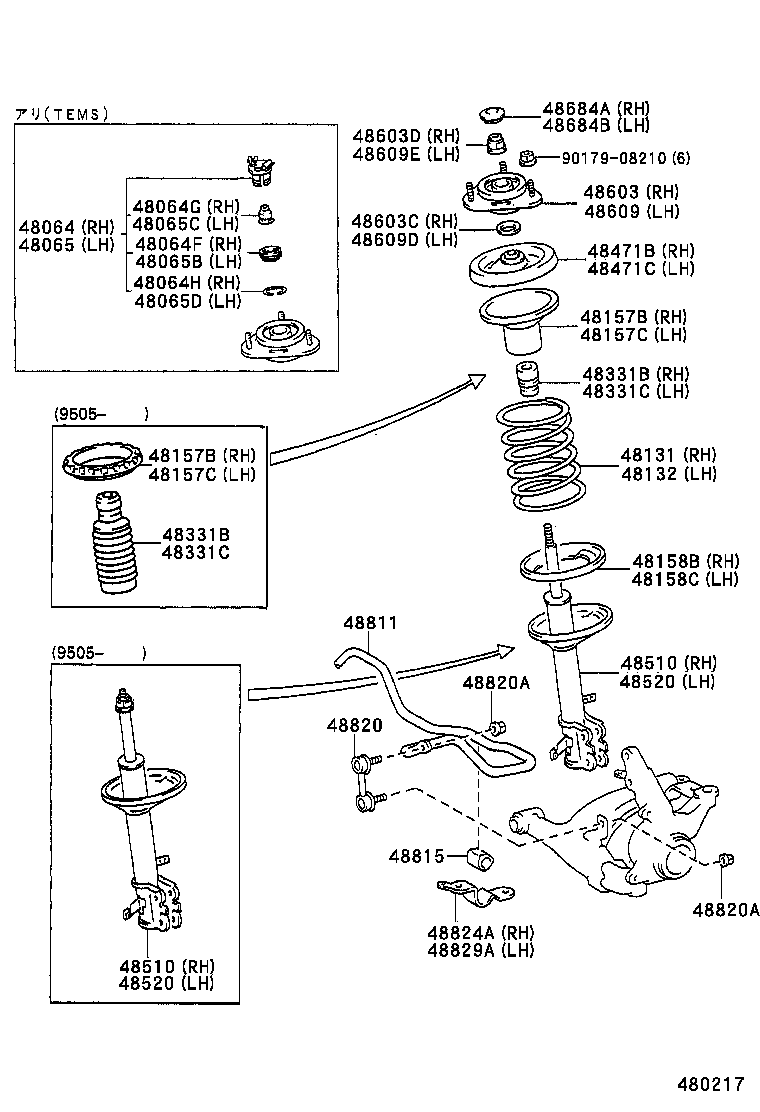

Click highlighted areas on diagram

diagram 48064 48064F 48064G 48064H 48065 48065B 48065C 48065D 48131 48132 48157B 48157B 48157C 48157C 48158B 48158C 48331B 48331B 48331C 48331C 48471B 48471C 48510 48510 48520 48520 48603 48603C 48603D 48609 48609D 48609E 48684A 48684B 48811 48815 48820 48820A 48820A 48824A 48829A 9017908210
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-1L020

AE101..G..5F

 1
48131-1L690

AE101..5F;AE100..4FC

 1
48132 - SPRING, FRONT COIL, LH
48131-1K890

AE101..G..5F

長さ=317.0

 1
48131-1L690

AE101..5F;AE100..4FC

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-12060

AE10#

 1
48157-12070

AE10#

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-12060

AE10#

 1
48157-12070

AE10#

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-12060

AE10#

 1
48157-12070

AE10#

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-12060

AE10#

 1
48157-12070

AE10#

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-12030

AE10#

 1
48158-12030

AE101

 1
48158-12030

AE10#

 1
48158-12030

AE101

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-12030

AE101

 1
48158-12030

AE10#

 1
48158-12030

AE101

 1
48158-12030

AE10#

 1
48331B - BUMPER, FRONT SPRING, RH
48331-12130

AE101

 1
48331-12150

AE101

 1
48331B - BUMPER, FRONT SPRING, RH
48331-12130

AE101

 1
48331-12150

AE101

 1
48331C - BUMPER, FRONT SPRING, LH
48331-12150

AE101

 1
48331-12130

AE101

 1
48331C - BUMPER, FRONT SPRING, LH
48331-12150

AE101

 1
48331-12130

AE101

 1
48471B - SEAT, FRONT COIL SPRING, UPPER RH
48044-01020

AE10#

(L)

 1
48044-12090

AE10#

(J)

 1
48471C - SEAT, FRONT COIL SPRING, UPPER LH
48044-01020

AE10#

(L)

 1
48044-12090

AE10#

(J)

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-12880

AE101..G,GT,GTAPX

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-12880

AE101..G,GT,GTAPX

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-12750

AE101..G,GT,GTAPX

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-12750

AE101..G,GT,GTAPX

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-12330

AE10#..F,X

 1
48609-12340

AE101..G

 1
48609-12270

AE10#..F,S,SJ,X

 1
48609-12290

AE101..G,GT,GTAPX

 1
48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
90303-22049

AE10#

 1
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
94182-11400

AE10#

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-12340

AE101..G

 1
48609-12330

AE10#..F,X

 1
48609-12290

AE101..G,GT,GTAPX

 1
48609-12270

AE10#..F,S,SJ,X

 1
48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
90303-22049

AE10#

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
94182-11400

AE10#

 1
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-12070

AE10#

 1
48684-32010

AE10#

 1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-32010

AE10#

 1
48684-12070

AE10#

 1
48811 - BAR, STABILIZER, FRONT
48811-12770

AE101..G,GT,GTAPX,SJ,X

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-12230

AE101..G,GT,GTAPX,SJ,X

 2
48820 - LINK ASSY, FRONT STABILIZER
48820-20021

AE101..G,GT,GTAPX

 2
48820-33010

AE101

 2
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-10183

AE101

 4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-10183

AE101

 4
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-12130

AE101..G,GT,GTAPX,SJ,X

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48829-12060

AE101..G,GT,GTAPX,SJ,X

 1
Common parts
90179-08210
