Toyota Lvn/cre/trn/mrn AE101 STEERING WHEEL

AE101-BTMVF (1992)

Toyota Lvn/Cre/Trn/Mrn

Production May 1992 - Apr 1997

Engine 4AGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9612- )F,X

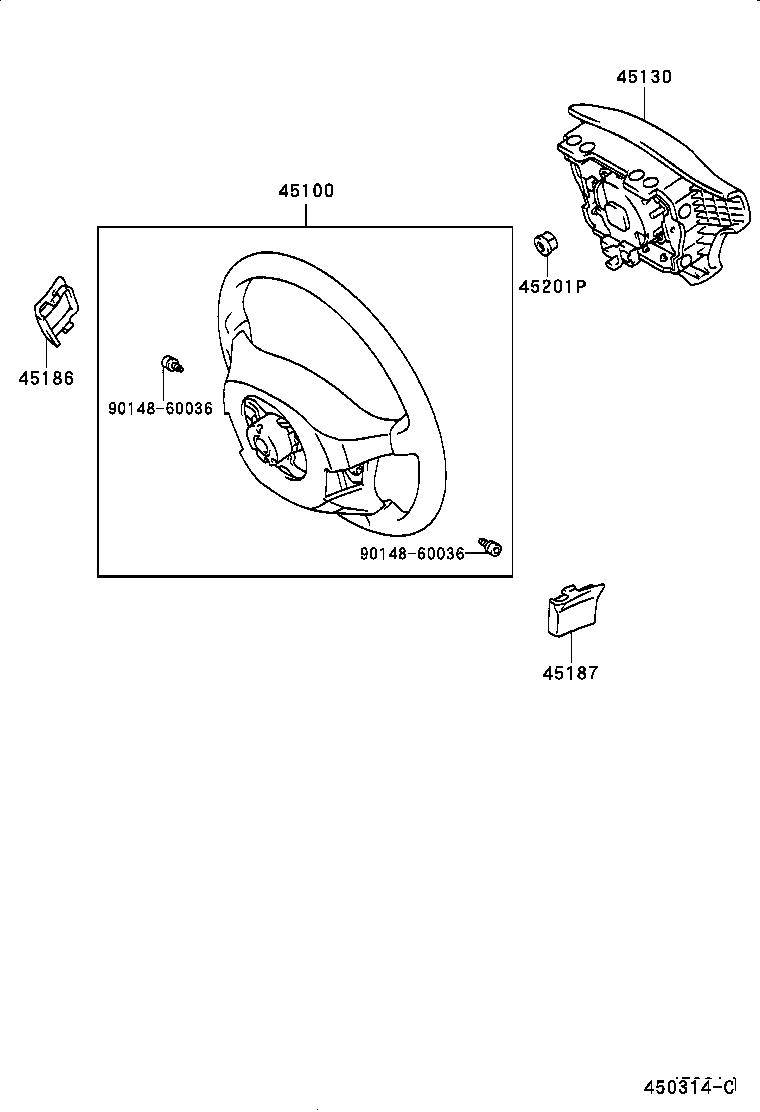

Click highlighted areas on diagram

ｱﾘ(ﾃﾞﾝｷｼｷ *80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1265022	AE101..G,GT 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	06/1991 - 05/1993	1
45100-2B230C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45100-2B230C0	AE10#..F,G,GT,S,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45100-2B230G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 09/1993	1
45100-1265022	AE101..G,GTAPX 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1993 - 05/1995	1
45100-12640C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1992 - 05/1995	1
45100-2B231C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45100-12640G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1992 - 05/1995	1
45100-2B231G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45100-12750G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45100-12751C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1996 - 04/1997	1
45100-12740C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12750C0	AE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12731C0	AE101..G 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12751G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1996 - 04/1997	1
45100-1A010C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12860C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12840C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1996 - 07/1996	1
45100-12860G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45100-12870B0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45100-12870C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	07/1996 - 04/1997	1
45100-12740G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1995 - 05/1996	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45130-10150	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45130-1271022	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45130-1272322	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45130-10150	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45130-1272222	AE10#..F,G,GT,GTZ,S,X ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45130-12724G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45130-12723G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE GRAY,TRIM6#	05/1993 - 09/1993	1
45130-12722G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 05/1993	1
45130-1271022	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45130-12830G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45130-1272422	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45130-12830C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12840G0	AE10#..F,X SPRUCE,TRIM6#	05/1996 - 04/1997	1
45130-12840C0	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12700C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45130-1A080B0	AE101..G SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45130-12700G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45130-1A070C0	AE101..G BLACK,TRIM2#	05/1996 - 07/1996	1
45130-1A080C0	AE101..G BLACK,TRIM2#	07/1996 - 04/1997	1
45130-12840C0	AE10#..F,X BLACK,TRIM2#	05/1996 - 04/1997	1
45130-1A050C0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-1A050G0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45130-1A060C0	AE101..G ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-12840G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010C0	AE10#..F,X BLACK,TRIM2#	12/1996 - 04/1997	1
45186-20020G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45186-2002022	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
45186-2002022	AE10# BLACK,TRIM2#	05/1993 - 05/1995	1
45186-44010G1	AE10#..F,X SPRUCE,TRIM6#	12/1996 - 04/1997	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-20030C0	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	05/1992 - 05/1993	1
45187-12010C0	AE10# BLACK,TRIM2#	05/1995 - 05/1996	1
45187-20030G1	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45187-20030C0	AE10# BLACK,TRIM2#	05/1993 - 05/1995	1
45201P - NUT, STEERING WHEEL SET
90179-12086	AE10#	06/1991 - 06/1993	1
Common parts
90148-60007

(9612- )G

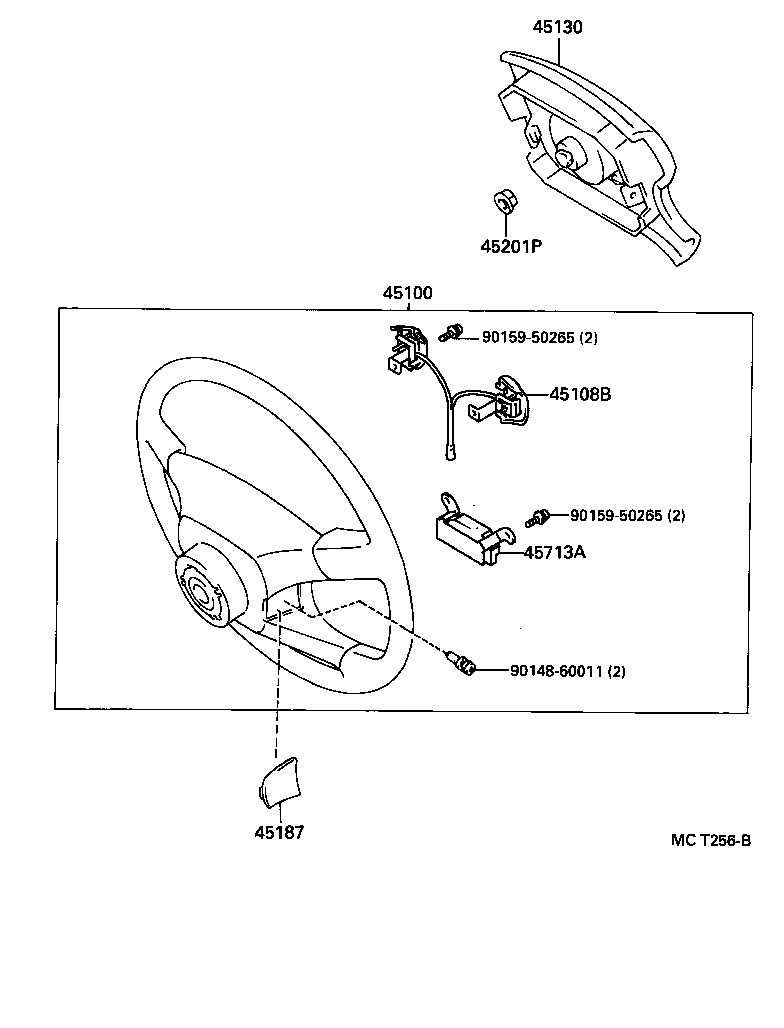

Click highlighted areas on diagram

ｱﾘ(ﾃﾞﾝｷｼｷ *80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1265022	AE101..G,GT 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	06/1991 - 05/1993	1
45100-2B230C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45100-2B230C0	AE10#..F,G,GT,S,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45100-2B230G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 09/1993	1
45100-1265022	AE101..G,GTAPX 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1993 - 05/1995	1
45100-12640C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1992 - 05/1995	1
45100-2B231C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45100-12640G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1992 - 05/1995	1
45100-2B231G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45100-12750G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45100-12751C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1996 - 04/1997	1
45100-12740C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12750C0	AE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12731C0	AE101..G 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12751G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1996 - 04/1997	1
45100-1A010C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12860C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12840C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1996 - 07/1996	1
45100-12860G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45100-12870B0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45100-12870C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	07/1996 - 04/1997	1
45100-12740G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1995 - 05/1996	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45130-10150	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45130-1271022	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45130-1272322	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45130-10150	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45130-1272222	AE10#..F,G,GT,GTZ,S,X ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45130-12724G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45130-12723G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE GRAY,TRIM6#	05/1993 - 09/1993	1
45130-12722G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 05/1993	1
45130-1271022	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45130-12830G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45130-1272422	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45130-12830C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12840G0	AE10#..F,X SPRUCE,TRIM6#	05/1996 - 04/1997	1
45130-12840C0	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12700C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45130-1A080B0	AE101..G SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45130-12700G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45130-1A070C0	AE101..G BLACK,TRIM2#	05/1996 - 07/1996	1
45130-1A080C0	AE101..G BLACK,TRIM2#	07/1996 - 04/1997	1
45130-12840C0	AE10#..F,X BLACK,TRIM2#	05/1996 - 04/1997	1
45130-1A050C0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-1A050G0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45130-1A060C0	AE101..G ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-12840G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010C0	AE10#..F,X BLACK,TRIM2#	12/1996 - 04/1997	1
45186-20020G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45186-2002022	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
45186-2002022	AE10# BLACK,TRIM2#	05/1993 - 05/1995	1
45186-44010G1	AE10#..F,X SPRUCE,TRIM6#	12/1996 - 04/1997	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-20030C0	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	05/1992 - 05/1993	1
45187-12010C0	AE10# BLACK,TRIM2#	05/1995 - 05/1996	1
45187-20030G1	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45187-20030C0	AE10# BLACK,TRIM2#	05/1993 - 05/1995	1
45201P - NUT, STEERING WHEEL SET
90179-12086	AE10#	06/1991 - 06/1993	1
Common parts
90148-60036

(9106-9505)G,GT,GTAPX

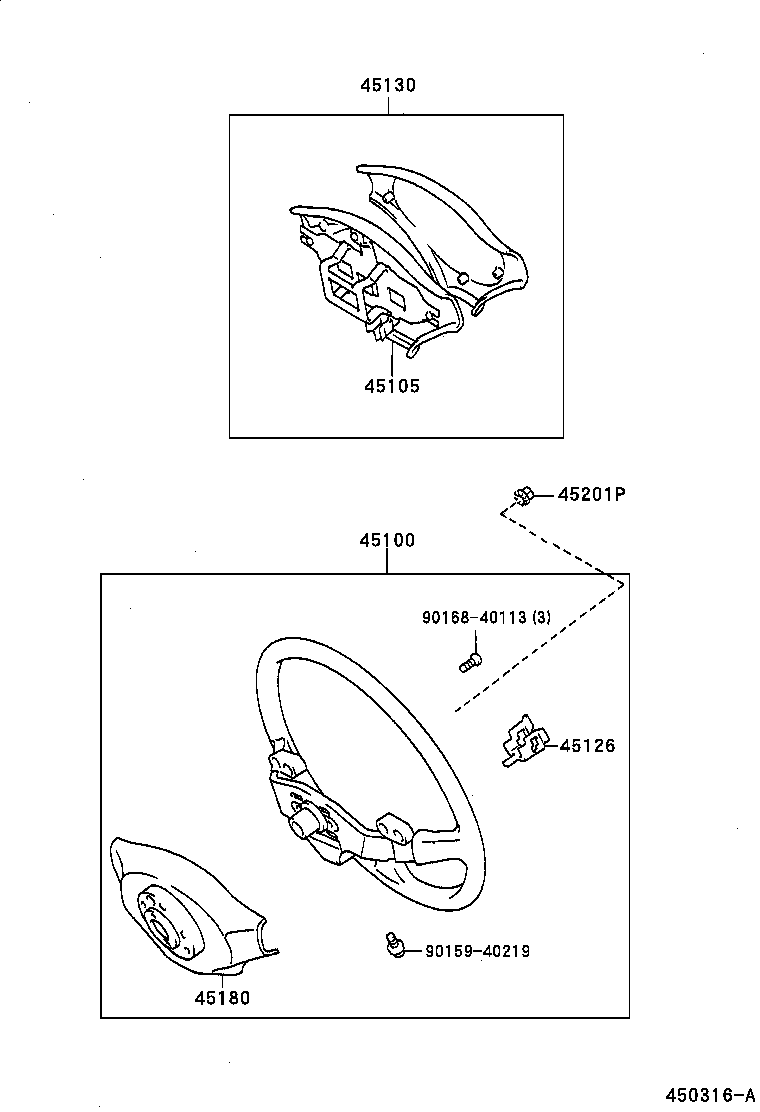

Click highlighted areas on diagram

3-SPOKE,ﾚｻﾞ-

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1265022	AE101..G,GT 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	06/1991 - 05/1993	1
45100-2B230C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45100-2B230C0	AE10#..F,G,GT,S,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45100-2B230G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 09/1993	1
45100-1265022	AE101..G,GTAPX 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1993 - 05/1995	1
45100-12640C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1992 - 05/1995	1
45100-2B231C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45100-12640G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1992 - 05/1995	1
45100-2B231G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45100-12750G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45100-12751C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1996 - 04/1997	1
45100-12740C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12750C0	AE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12731C0	AE101..G 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12751G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1996 - 04/1997	1
45100-1A010C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12860C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12840C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1996 - 07/1996	1
45100-12860G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45100-12870B0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45100-12870C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	07/1996 - 04/1997	1
45100-12740G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1995 - 05/1996	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-12160	AE101..G,GT,GTAPX	06/1991 - 05/1993	1
45105-12160	AE101..G,GTAPX	05/1993 - 05/1995	1
45105-12180	AE10#..F,X	05/1992 - 05/1995	1
45105-32110	AE10#..F,X	05/1995 - 05/1996	1
45105-12230	AE101..G	05/1995 - 05/1996	1
45126 - PLATE, STEERING WHEEL PAD SET
45126-12020	AE101..G,GT,GTAPX	06/1991 - 05/1993	1
45126-12020	AE101..G,GTAPX	05/1993 - 05/1995	1
45126-16040	AE10#..F,X	05/1992 - 05/1995	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45130-10150	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45130-1271022	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45130-1272322	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45130-10150	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45130-1272222	AE10#..F,G,GT,GTZ,S,X ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45130-12724G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45130-12723G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE GRAY,TRIM6#	05/1993 - 09/1993	1
45130-12722G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 05/1993	1
45130-1271022	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45130-12830G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45130-1272422	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45130-12830C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12840G0	AE10#..F,X SPRUCE,TRIM6#	05/1996 - 04/1997	1
45130-12840C0	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12700C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45130-1A080B0	AE101..G SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45130-12700G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45130-1A070C0	AE101..G BLACK,TRIM2#	05/1996 - 07/1996	1
45130-1A080C0	AE101..G BLACK,TRIM2#	07/1996 - 04/1997	1
45130-12840C0	AE10#..F,X BLACK,TRIM2#	05/1996 - 04/1997	1
45130-1A050C0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-1A050G0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45130-1A060C0	AE101..G ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-12840G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-12140C0	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45180-12180C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45180-12150G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45180-12190C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45180-12150C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45180-12180G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45180-12140C0	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45201P - NUT, STEERING WHEEL SET
90179-12086	AE10#	06/1991 - 06/1993	1
Common parts
90159-40219
90168-40113

(9106-9605) ; (9605- )G

Click highlighted areas on diagram

ｱﾘ(ｷｶｲｼｷ *80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1265022	AE101..G,GT 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	06/1991 - 05/1993	1
45100-2B230C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45100-2B230C0	AE10#..F,G,GT,S,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45100-2B230G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 09/1993	1
45100-1265022	AE101..G,GTAPX 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1993 - 05/1995	1
45100-12640C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1992 - 05/1995	1
45100-2B231C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45100-12640G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1992 - 05/1995	1
45100-2B231G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45100-12750G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45100-12751C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1996 - 04/1997	1
45100-12740C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12750C0	AE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12731C0	AE101..G 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12751G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1996 - 04/1997	1
45100-1A010C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12860C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12840C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1996 - 07/1996	1
45100-12860G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45100-12870B0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45100-12870C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	07/1996 - 04/1997	1
45100-12740G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1995 - 05/1996	1
45129 - BUTTON, HORN, NO.2
45129-33010C0	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
45129-33010G1	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45129-33010C0	AE10# BLACK,TRIM2#	05/1993 - 05/1995	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45130-10150	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45130-1271022	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45130-1272322	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45130-10150	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45130-1272222	AE10#..F,G,GT,GTZ,S,X ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45130-12724G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45130-12723G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE GRAY,TRIM6#	05/1993 - 09/1993	1
45130-12722G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 05/1993	1
45130-1271022	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45130-12830G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45130-1272422	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45130-12830C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12840G0	AE10#..F,X SPRUCE,TRIM6#	05/1996 - 04/1997	1
45130-12840C0	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12700C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45130-1A080B0	AE101..G SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45130-12700G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45130-1A070C0	AE101..G BLACK,TRIM2#	05/1996 - 07/1996	1
45130-1A080C0	AE101..G BLACK,TRIM2#	07/1996 - 04/1997	1
45130-12840C0	AE10#..F,X BLACK,TRIM2#	05/1996 - 04/1997	1
45130-1A050C0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-1A050G0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45130-1A060C0	AE101..G ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-12840G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45131 - BUTTON, HORN, NO.1
45131-33010C0	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
45131-33010C0	AE10# BLACK,TRIM2#	05/1993 - 05/1995	1
45131-33010G1	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45146 - SPRING, HORN BUTTON CONTACT
45146-20230	AE10# ｱﾘ(ｷｶｲｼｷ *80)	06/1991 - 05/1995	2
45146-32080	AE101	05/1995 - 05/1996	3
45146 - SPRING, HORN BUTTON CONTACT
45146-20230	AE10# ｱﾘ(ｷｶｲｼｷ *80)	06/1991 - 05/1995	2
45146-32080	AE101	05/1995 - 05/1996	3
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-44010C0	AE10#..F,X BLACK,TRIM2#	12/1996 - 04/1997	1
45186-20020G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45186-2002022	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	06/1991 - 05/1993	1
45186-2002022	AE10# BLACK,TRIM2#	05/1993 - 05/1995	1
45186-44010G1	AE10#..F,X SPRUCE,TRIM6#	12/1996 - 04/1997	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-20030C0	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	05/1992 - 05/1993	1
45187-12010C0	AE10# BLACK,TRIM2#	05/1995 - 05/1996	1
45187-20030G1	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45187-20030C0	AE10# BLACK,TRIM2#	05/1993 - 05/1995	1
45201P - NUT, STEERING WHEEL SET
90179-12086	AE10#	06/1991 - 06/1993	1
Common parts
90148-60011
90149-60085
90159-50265
93510-14012
93560-15012

(9505-9605)AE101

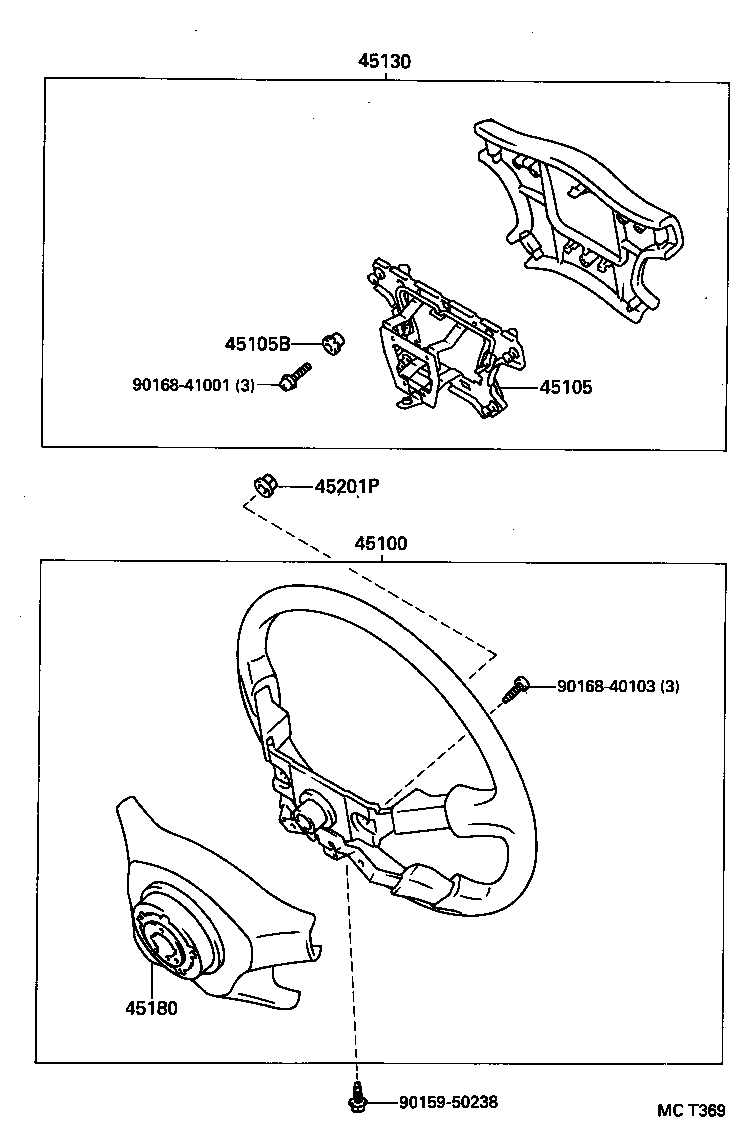

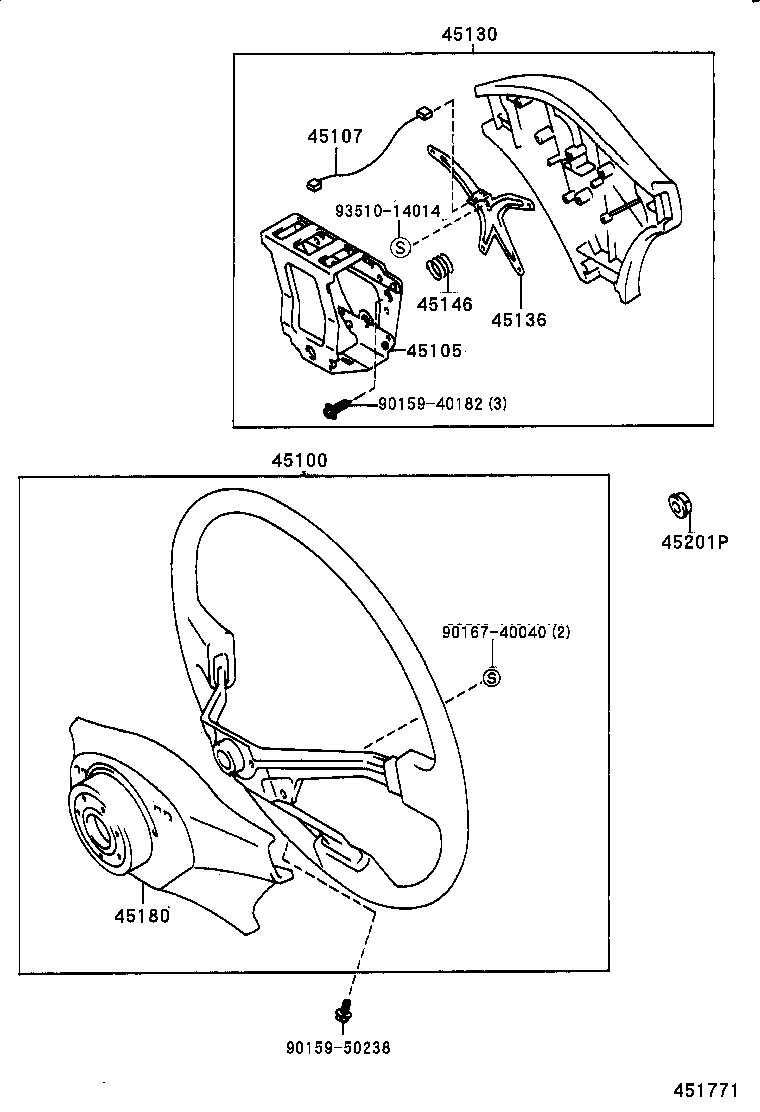

Click highlighted areas on diagram

3-SPOKE,ﾚｻﾞ-

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1265022	AE101..G,GT 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	06/1991 - 05/1993	1
45100-2B230C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45100-2B230C0	AE10#..F,G,GT,S,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45100-2B230G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 09/1993	1
45100-1265022	AE101..G,GTAPX 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1993 - 05/1995	1
45100-12640C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1992 - 05/1995	1
45100-2B231C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45100-12640G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1992 - 05/1995	1
45100-2B231G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45100-12750G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45100-12751C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1996 - 04/1997	1
45100-12740C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12750C0	AE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12731C0	AE101..G 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12751G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1996 - 04/1997	1
45100-1A010C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12860C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12840C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1996 - 07/1996	1
45100-12860G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45100-12870B0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45100-12870C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	07/1996 - 04/1997	1
45100-12740G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1995 - 05/1996	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-12160	AE101..G,GT,GTAPX	06/1991 - 05/1993	1
45105-12160	AE101..G,GTAPX	05/1993 - 05/1995	1
45105-12180	AE10#..F,X	05/1992 - 05/1995	1
45105-32110	AE10#..F,X	05/1995 - 05/1996	1
45105-12230	AE101..G	05/1995 - 05/1996	1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-12010	AE101	05/1995 - 05/1996	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45130-10150	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45130-1271022	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45130-1272322	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45130-10150	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45130-1272222	AE10#..F,G,GT,GTZ,S,X ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45130-12724G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45130-12723G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE GRAY,TRIM6#	05/1993 - 09/1993	1
45130-12722G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 05/1993	1
45130-1271022	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45130-12830G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45130-1272422	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45130-12830C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12840G0	AE10#..F,X SPRUCE,TRIM6#	05/1996 - 04/1997	1
45130-12840C0	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12700C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45130-1A080B0	AE101..G SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45130-12700G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45130-1A070C0	AE101..G BLACK,TRIM2#	05/1996 - 07/1996	1
45130-1A080C0	AE101..G BLACK,TRIM2#	07/1996 - 04/1997	1
45130-12840C0	AE10#..F,X BLACK,TRIM2#	05/1996 - 04/1997	1
45130-1A050C0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-1A050G0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45130-1A060C0	AE101..G ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-12840G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45136 - PLATE, HORN BUTTON CONTACT
45136-32130	AE101	05/1995 - 05/1996	1
45146 - SPRING, HORN BUTTON CONTACT
45146-20230	AE10# ｱﾘ(ｷｶｲｼｷ *80)	06/1991 - 05/1995	2
45146-32080	AE101	05/1995 - 05/1996	3
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-12140C0	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45180-12180C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45180-12150G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45180-12190C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45180-12150C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45180-12180G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45180-12140C0	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45201P - NUT, STEERING WHEEL SET
90179-12086	AE10#	06/1991 - 06/1993	1
Common parts
90159-40182
90159-50238
90167-40040
93510-14014

(9106-9505)GTAPX,GTZ ; (9212-9304)AE101..HT ; (9312-9404)G

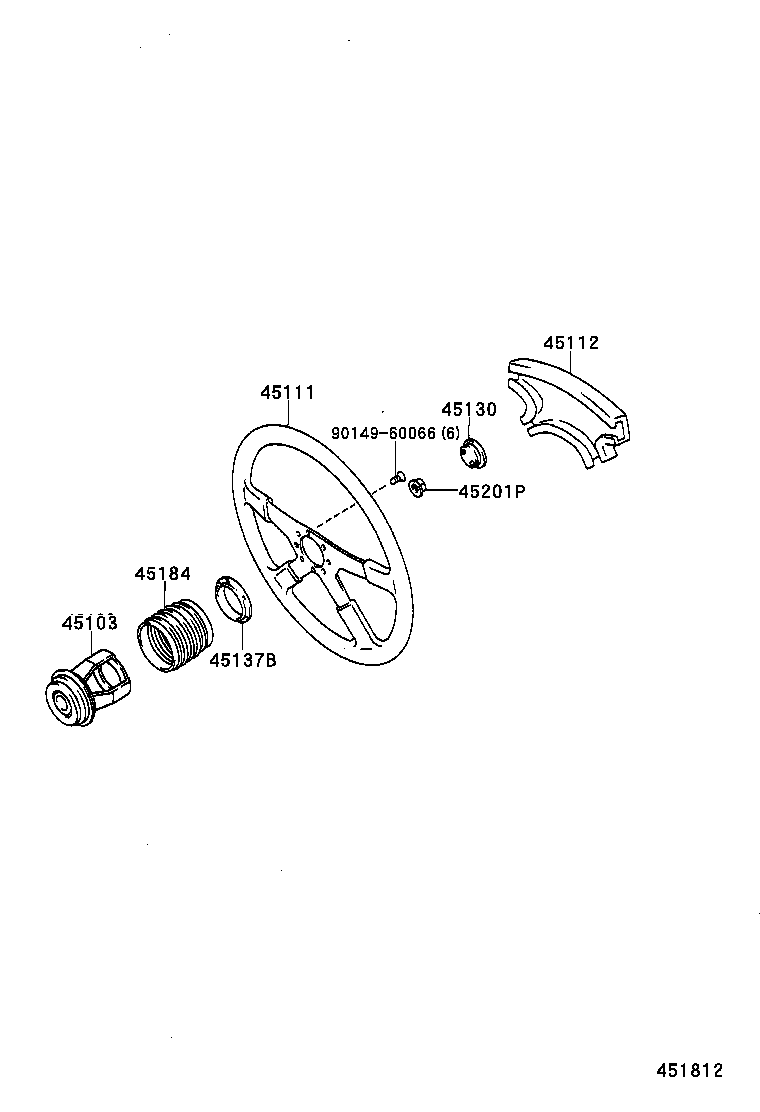

Click highlighted areas on diagram

4-SPOKE,ﾚｻﾞ-,MOMO

Part #	Description	Period	Qty
45103 - HUB SUB-ASSY, STEERING WHEEL
45103-12440	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45103-12440	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45111 - WHEEL, STEERING
45111-14050	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45111-14050	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45112 - PAD, STEERING WHEEL
45112-12340	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45112-12340	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45130-10150	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45130-1271022	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45130-1272322	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45130-10150	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45130-1272222	AE10#..F,G,GT,GTZ,S,X ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45130-12724G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45130-12723G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE GRAY,TRIM6#	05/1993 - 09/1993	1
45130-12722G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 05/1993	1
45130-1271022	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45130-12830G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45130-1272422	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45130-12830C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12840G0	AE10#..F,X SPRUCE,TRIM6#	05/1996 - 04/1997	1
45130-12840C0	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12700C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45130-1A080B0	AE101..G SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45130-12700G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45130-1A070C0	AE101..G BLACK,TRIM2#	05/1996 - 07/1996	1
45130-1A080C0	AE101..G BLACK,TRIM2#	07/1996 - 04/1997	1
45130-12840C0	AE10#..F,X BLACK,TRIM2#	05/1996 - 04/1997	1
45130-1A050C0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-1A050G0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45130-1A060C0	AE101..G ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-12840G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45137B - PLATE, HORN BUTTON STOP, NO.1
45137-10010	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45137-10010	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-14110	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45184-14110	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45201P - NUT, STEERING WHEEL SET
90179-12086	AE10#	06/1991 - 06/1993	1
Common parts
90149-60066

(9205-9505)F,X

Click highlighted areas on diagram

4-SPOKE,ｳﾚﾀﾝ

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1265022	AE101..G,GT 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	06/1991 - 05/1993	1
45100-2B230C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45100-2B230C0	AE10#..F,G,GT,S,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45100-2B230G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 09/1993	1
45100-1265022	AE101..G,GTAPX 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1993 - 05/1995	1
45100-12640C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1992 - 05/1995	1
45100-2B231C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45100-12640G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1992 - 05/1995	1
45100-2B231G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45100-12750G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45100-12751C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1996 - 04/1997	1
45100-12740C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12750C0	AE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12731C0	AE101..G 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12751G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1996 - 04/1997	1
45100-1A010C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12860C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12840C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1996 - 07/1996	1
45100-12860G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45100-12870B0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45100-12870C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	07/1996 - 04/1997	1
45100-12740G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1995 - 05/1996	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-12160	AE101..G,GT,GTAPX	06/1991 - 05/1993	1
45105-12160	AE101..G,GTAPX	05/1993 - 05/1995	1
45105-12180	AE10#..F,X	05/1992 - 05/1995	1
45105-32110	AE10#..F,X	05/1995 - 05/1996	1
45105-12230	AE101..G	05/1995 - 05/1996	1
45126 - PLATE, STEERING WHEEL PAD SET
45126-12020	AE101..G,GT,GTAPX	06/1991 - 05/1993	1
45126-12020	AE101..G,GTAPX	05/1993 - 05/1995	1
45126-16040	AE10#..F,X	05/1992 - 05/1995	1
45130 - BUTTON ASSY, HORN
45130-10150	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45130-1271022	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45130-1272322	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45130-10150	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45130-1272222	AE10#..F,G,GT,GTZ,S,X ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45130-12724G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45130-12723G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE GRAY,TRIM6#	05/1993 - 09/1993	1
45130-12722G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 05/1993	1
45130-1271022	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45130-12830G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45130-12820C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45130-1272422	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45130-12830C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12840G0	AE10#..F,X SPRUCE,TRIM6#	05/1996 - 04/1997	1
45130-12840C0	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12700C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45130-1A080B0	AE101..G SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45130-12700G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45130-1A070C0	AE101..G BLACK,TRIM2#	05/1996 - 07/1996	1
45130-1A080C0	AE101..G BLACK,TRIM2#	07/1996 - 04/1997	1
45130-12840C0	AE10#..F,X BLACK,TRIM2#	05/1996 - 04/1997	1
45130-1A050C0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-1A050G0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45130-1A060C0	AE101..G ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-12840G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-12140C0	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45180-12180C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45180-12150G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45180-12190C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45180-12150C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45180-12180G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45180-12140C0	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45201P - NUT, STEERING WHEEL SET
90179-12086	AE10#	06/1991 - 06/1993	1
Common parts
90159-50294
90168-40114
93560-14012

(9505-9605) ; (9605- )F,X

Click highlighted areas on diagram

ｱﾘ(ｷｶｲｼｷ *80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1265022	AE101..G,GT 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	06/1991 - 05/1993	1
45100-2B230C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45100-2B230C0	AE10#..F,G,GT,S,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45100-2B230G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 09/1993	1
45100-1265022	AE101..G,GTAPX 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1993 - 05/1995	1
45100-12640C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1992 - 05/1995	1
45100-2B231C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45100-12640G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1992 - 05/1995	1
45100-2B231G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45100-12750G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45100-12751C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1996 - 04/1997	1
45100-12740C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12750C0	AE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12731C0	AE101..G 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12751G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1996 - 04/1997	1
45100-1A010C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12860C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12840C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1996 - 07/1996	1
45100-12860G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45100-12870B0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45100-12870C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	07/1996 - 04/1997	1
45100-12740G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1995 - 05/1996	1
45108B - BUTTON SUB-ASSY, HORN(FOR STEERING WHEEL ASSY)
45108-12010C0	AE10# BLACK,TRIM2#	05/1995 - 05/1996	1
45130 - BUTTON ASSY, HORN
45130-12820C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45130-10150	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45130-1271022	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45130-1272322	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45130-10150	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45130-1272222	AE10#..F,G,GT,GTZ,S,X ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45130-12724G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45130-12723G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE GRAY,TRIM6#	05/1993 - 09/1993	1
45130-12722G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 05/1993	1
45130-1271022	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45130-12830G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45130-1272422	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45130-12830C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12840G0	AE10#..F,X SPRUCE,TRIM6#	05/1996 - 04/1997	1
45130-12840C0	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12700C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45130-1A080B0	AE101..G SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45130-12700G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45130-1A070C0	AE101..G BLACK,TRIM2#	05/1996 - 07/1996	1
45130-1A080C0	AE101..G BLACK,TRIM2#	07/1996 - 04/1997	1
45130-12840C0	AE10#..F,X BLACK,TRIM2#	05/1996 - 04/1997	1
45130-1A050C0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-1A050G0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45130-1A060C0	AE101..G ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-12840G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-20030C0	AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2#	05/1992 - 05/1993	1
45187-12010C0	AE10# BLACK,TRIM2#	05/1995 - 05/1996	1
45187-20030G1	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45187-20030C0	AE10# BLACK,TRIM2#	05/1993 - 05/1995	1
45201P - NUT, STEERING WHEEL SET
90179-12086	AE10#	06/1991 - 06/1993	1
45713A - DAMPER, STEERING SHAKE
45713-12020	AE10#	05/1995 - 05/1996	1
Common parts
90148-60011
90159-50265

(9505-9605)F,X

Click highlighted areas on diagram

4-SPOKE,ｳﾚﾀﾝ

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1265022	AE101..G,GT 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	06/1991 - 05/1993	1
45100-2B230C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45100-2B230C0	AE10#..F,G,GT,S,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45100-2B230G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 09/1993	1
45100-1265022	AE101..G,GTAPX 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1993 - 05/1995	1
45100-12640C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1992 - 05/1995	1
45100-2B231C0	AE10#..F,G,GT,GTAPX,S,SJ,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45100-12640G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1992 - 05/1995	1
45100-2B231G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45100-12750G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45100-12751C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1996 - 04/1997	1
45100-12740C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12750C0	AE10# 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12731C0	AE101..G 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1995 - 05/1996	1
45100-12751G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1996 - 04/1997	1
45100-1A010C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12860C0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45100-12840C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	05/1996 - 07/1996	1
45100-12860G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45100-12870B0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45100-12870C0	AE101..G 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#	07/1996 - 04/1997	1
45100-12740G0	AE10#..F,X 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SPRUCE,TRIM6#	05/1995 - 05/1996	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-12160	AE101..G,GT,GTAPX	06/1991 - 05/1993	1
45105-12160	AE101..G,GTAPX	05/1993 - 05/1995	1
45105-12180	AE10#..F,X	05/1992 - 05/1995	1
45105-32110	AE10#..F,X	05/1995 - 05/1996	1
45105-12230	AE101..G	05/1995 - 05/1996	1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
45155-12050	AE10#..F,X	05/1995 - 05/1996	3
45130 - BUTTON ASSY, HORN
45130-12820C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45130-10150	AE101..G ﾌﾞﾗﾂｸﾏﾘﾉ, ﾌﾞﾗﾂｸｾﾚｽ	12/1993 - 04/1994	1
45130-1271022	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45130-1272322	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1993 - 09/1993	1
45130-10150	AE101..HT ﾌﾞﾗﾂｸｾﾚｽ, ﾌﾞﾗﾂｸﾏﾘﾉ	12/1992 - 04/1993	1
45130-1272222	AE10#..F,G,GT,GTZ,S,X ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1992 - 05/1993	1
45130-12724G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	09/1993 - 05/1995	1
45130-12723G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE GRAY,TRIM6#	05/1993 - 09/1993	1
45130-12722G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1992 - 05/1993	1
45130-1271022	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45130-12830G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45130-1272422	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	09/1993 - 05/1995	1
45130-12830C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12840G0	AE10#..F,X SPRUCE,TRIM6#	05/1996 - 04/1997	1
45130-12840C0	AE10# ｱﾘ(ｷｶｲｼｷ *80),BLACK,TRIM2#	05/1995 - 05/1996	1
45130-12700C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45130-1A080B0	AE101..G SHADOW GRAY,TRIM1#	07/1996 - 04/1997	1
45130-12700G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45130-1A070C0	AE101..G BLACK,TRIM2#	05/1996 - 07/1996	1
45130-1A080C0	AE101..G BLACK,TRIM2#	07/1996 - 04/1997	1
45130-12840C0	AE10#..F,X BLACK,TRIM2#	05/1996 - 04/1997	1
45130-1A050C0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-1A050G0	AE10#..F,X ｱﾘ(ﾃﾞﾝｷｼｷ *80),SPRUCE,TRIM6#	12/1996 - 04/1997	1
45130-1A060C0	AE101..G ｱﾘ(ﾃﾞﾝｷｼｷ *80),BLACK,TRIM2#	12/1996 - 04/1997	1
45130-12840G0	AE10#..F,X ｱﾘ(ｷｶｲｼｷ *80),SPRUCE,TRIM6#	05/1995 - 05/1996	1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-12140C0	AE101..G,GTAPX BLACK,TRIM2#	05/1993 - 05/1995	1
45180-12180C0	AE10#..F,X BLACK,TRIM2#	05/1995 - 05/1996	1
45180-12150G0	AE10#..F,X SPRUCE,TRIM6#	05/1992 - 05/1995	1
45180-12190C0	AE101..G BLACK,TRIM2#	05/1995 - 05/1996	1
45180-12150C0	AE10#..F,X BLACK,TRIM2#	05/1992 - 05/1995	1
45180-12180G0	AE10#..F,X SPRUCE,TRIM6#	05/1995 - 05/1996	1
45180-12140C0	AE101..G,GT BLACK,TRIM2#	06/1991 - 05/1993	1
45201P - NUT, STEERING WHEEL SET
90179-12086	AE10#	06/1991 - 06/1993	1
Common parts
90159-50238
90168-40103
90168-41001

AE101-BTMVF (1992)

(9612- )F,X

(9612- )G

(9106-9505)G,GT,GTAPX

(9106-9605) ; (9605- )G

(9505-9605)AE101

(9106-9505)GTAPX,GTZ ; (9212-9304)AE101..HT ; (9312-9404)G

(9205-9505)F,X

(9505-9605) ; (9605- )F,X

(9505-9605)F,X

Part Price Details
