AE101-BTMEK (1992)
Toyota Lvn/Cre/Trn/Mrn
Production
May 1992
-
Aug 1998
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )MRN

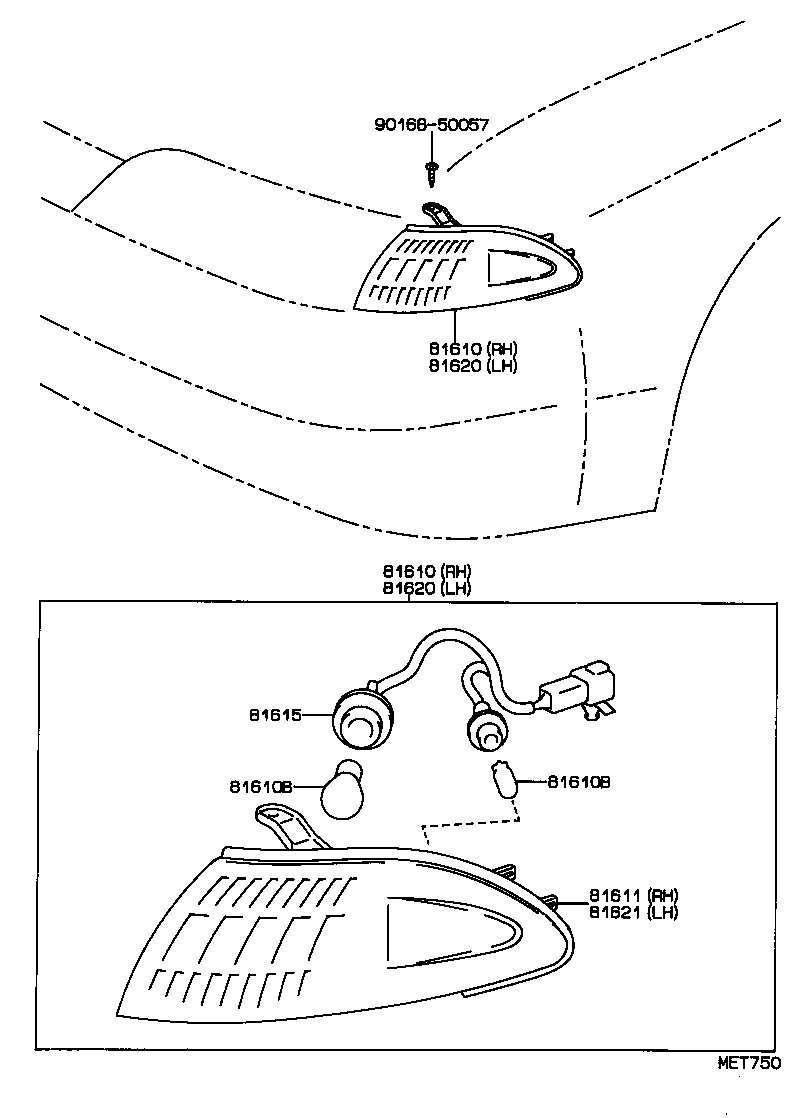

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-12550 |
AE10#..MRN |
1 | ||
| 81610-12551 |
AE10#..MRN |
1 | ||
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-12550 |
AE10#..MRN |
1 | ||
| 81610-12551 |
AE10#..MRN |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 90981-13036 |
AE10#..HT 12V 35/5W,CLEAEANCE,CORNERING |
2 | ||
| 99132-12050 |
AE10#..HT..(4FC,5F) 12V 5W,SIDE TURN |
2 | ||
| 99132-21210 |
AE10#..HT..(4FC,5F) 12V 21/5W,CLEARANCE,CORNERING |
2 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 90981-13036 |
AE10#..HT 12V 35/5W,CLEAEANCE,CORNERING |
2 | ||
| 99132-12050 |
AE10#..HT..(4FC,5F) 12V 5W,SIDE TURN |
2 | ||
| 99132-21210 |
AE10#..HT..(4FC,5F) 12V 21/5W,CLEARANCE,CORNERING |
2 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-12550 |
AE10#..MRN |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 81615-12550 |
AE10#..MRN |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-12551 |
AE10#..MRN |
1 | ||
| 81620-12550 |
AE10#..MRN |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-12551 |
AE10#..MRN |
1 | ||
| 81620-12550 |
AE10#..MRN |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-12550 |
AE10#..MRN |
1 | ||
| Common parts | ||||
| 90168-50057 | ||||
