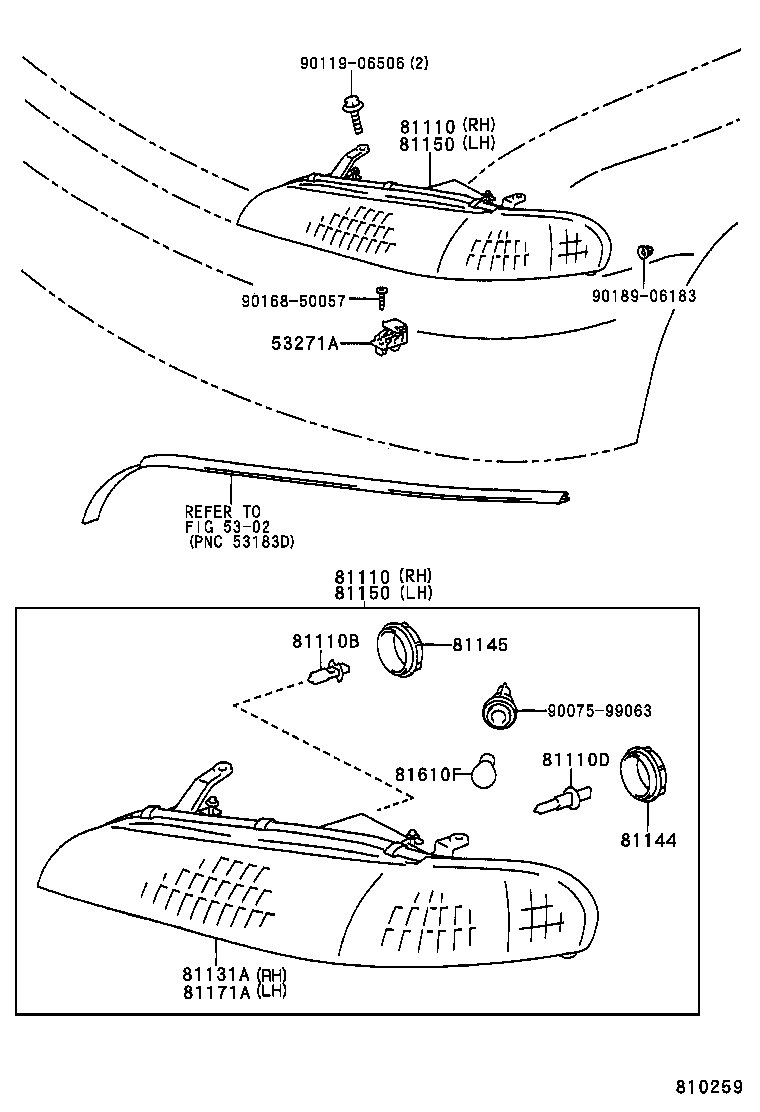

Toyota Lvn/cre/trn/mrn AE101 HEADLAMP

Part #	Description	Period	Qty
53271A - BRACKET, HEADLAMP MOUNTING
53271-12040	AE10#	06/1991 - 09/1993	2
53271-12040	AE10#..CP	09/1993 - 10/1993	2
53271-12060	AE10#	10/1993 - 12/2999	2
81110 - HEADLAMP ASSY, RH
81120-1E160	AE10#..TRN	06/1991 - 07/1993	1
81120-1E161	AE10#..TRN	07/1993 - 05/1995	1
81110 - HEADLAMP ASSY, RH
81120-1E160	AE10#..TRN	06/1991 - 07/1993	1
81120-1E161	AE10#..TRN	07/1993 - 05/1995	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13017	AE10#..CRE,MRN,TRN 12V 55W,HAL WH	06/1991 - 12/2999	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13048	AE10#..TRN 12V 55W,ﾊﾛｹﾞﾝ	06/1991 - 05/1995	2
81131A - UNIT, HEADLAMP, RH
81130-1E160	AE10#..TRN	06/1991 - 07/1993	1
81130-1E161	AE10#..TRN	07/1993 - 05/1995	1
81144 - COVER, HEADLAMP, NO.1
90075-99065	AE10#..TRN	06/1991 - 05/1995	2
81145 - COVER, HEADLAMP, NO.2
90075-99065	AE10#..CP	06/1991 - 05/1995	2
81150 - HEADLAMP ASSY, LH
81160-1E160	AE10#..TRN	06/1991 - 07/1993	1
81160-1E161	AE10#..TRN	07/1993 - 05/1995	1
81150 - HEADLAMP ASSY, LH
81160-1E160	AE10#..TRN	06/1991 - 07/1993	1
81160-1E161	AE10#..TRN	07/1993 - 05/1995	1
81171A - UNIT, HEADLAMP, LH
81170-1E161	AE10#..TRN	07/1993 - 05/1995	1
81170-1E160	AE10#..TRN	06/1991 - 07/1993	1
81610F - BULB(FOR CLEARANCE LAMP)
90981-13036	AE10#..CP 12V 35/5W	06/1991 - 05/1995	2
Common parts
90075-99063
90119-06506
90168-50057
90189-06183
Linked diagrams
5302

AE101-BCPZF (1991)
