AE101-BCPGK (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )

Click highlighted areas on diagram

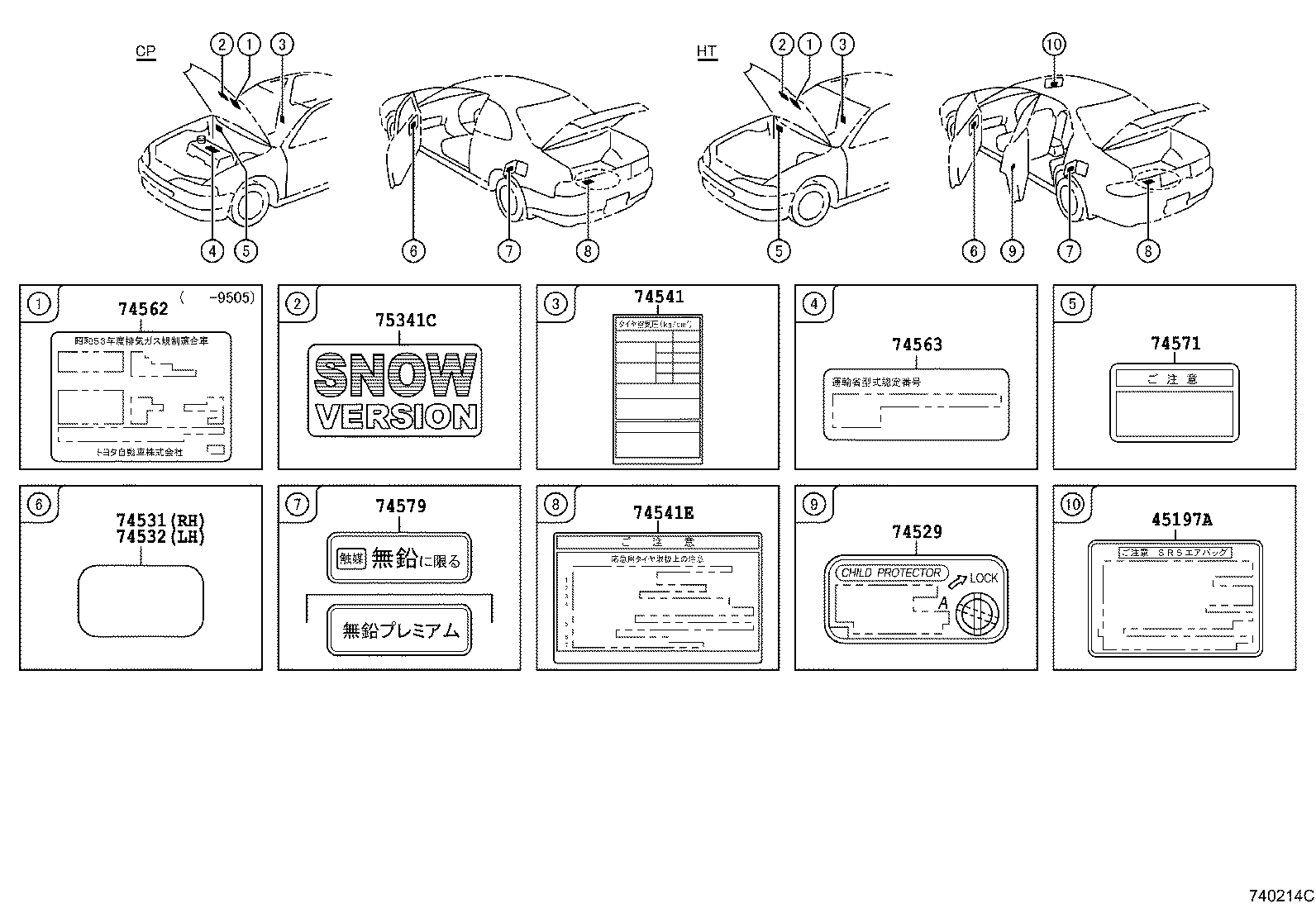

diagram 45197A 74529 74531 74532 74541 74541E 74562 74563 74571 74579 75341C
Part # Description Qty Price
74531 - PLATE, DOOR INSIDE HANDLE CAUTION, RH
74531-12010

AE10#..CP

 1
74532 - PLATE, DOOR INSIDE HANDLE CAUTION, LH
74531-12010

AE10#..CP

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-1A250

AE101..SJ,X

 1
42661-1A580

AE101..G,GT,GTAPX

 1
42661-1A370

AE101..SJ,X

ｱﾘ(*66)

 1
42661-1A600

AE101..G,GT,GTAPX

ｱﾘ(*66)

 1
42661-1A670

AE101..G,GT,GTAPX

 1
42661-1A650

AE101..SJ,X

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-32010

AE10#

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-12530

AE101..SJ,X

 1
74562-12560

AE101..G,GT,GTAPX,GTZ

 1
74562-12510

AE101..SJ,X

 1
74562-20400

AE101..G,GT,GTAPX,GTZ

 1
74563 - PLATE, EMISSION CONTROL DEVICE IDENTIFICATION
74563-12180

AE101..SJ

 1
74563-12181

AE101..SJ

 1
74571 - PLATE, BRAKE FLUID CAUTION
47288-32010

AE10#

 1
74579 - PLATE, UNLEADED FUEL CAUTION
74579-24010

AE101..G,GT,GTAPX,GTZ

 1
74579-30011

AE10#..S,SJ

 1
75341C - PLATE, HOOD NAME
75341-20060

AE10#..4FC,5F

ﾕｷｸﾞﾆ ｼﾖｳ

 1
