AE101-BCPGK (1991)
Toyota Lvn/Cre/Trn/Mrn
Production
Jun 1991
-
May 1995
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9106-9505)CP

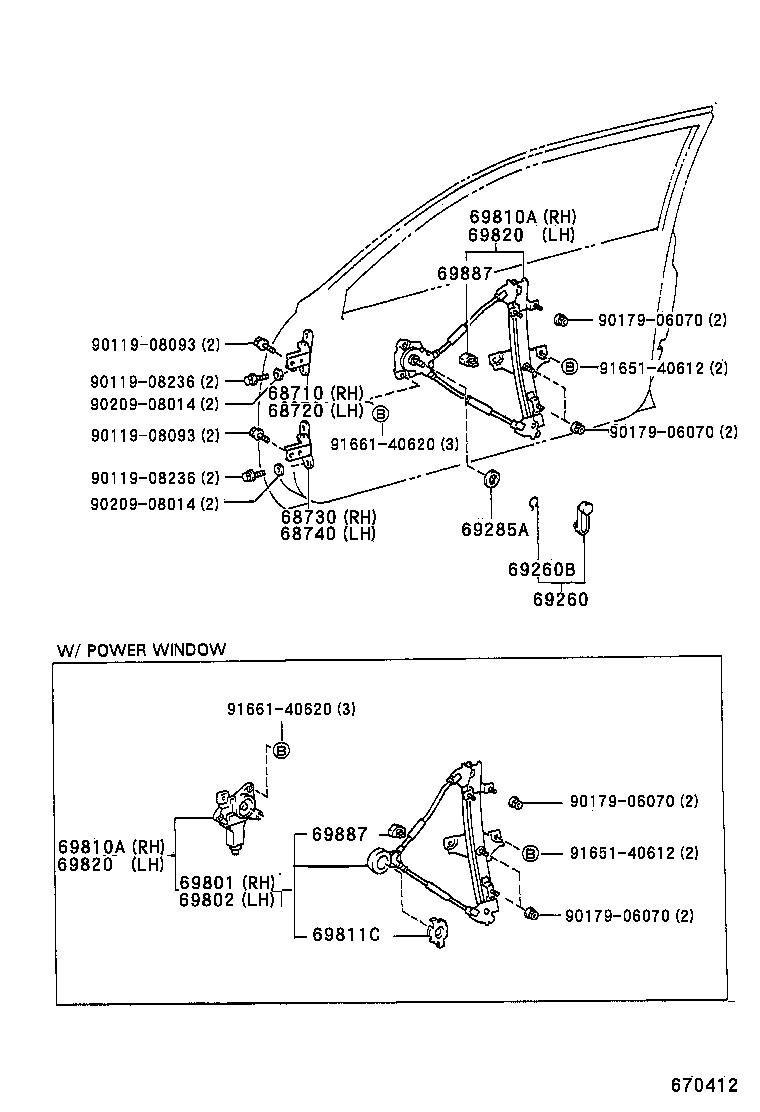

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-12130 |
AE10# |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-12130 |
AE10# |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-12090 |
AE10# |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-12090 |
AE10# |
1 | ||
| 69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR | ||||
| 69260-2203001 |
AE10#..GT,S NEW BLACK,TRIM2# |
2 | ||
| 69260-22030C0 |
AE10#..GT,S BLACK,TRIM2# |
2 | ||
| 69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE | ||||
| 90520-01002 |
AE10#..GT,S |
2 | ||
| 69285A - PLATE, DOOR VENT WINDOW CONTROL HANDLE | ||||
| 69285-2201008 |
AE10#..GT,S NATURAL WHITE,TRIM2# |
2 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-12130 |
AE10#..CP |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-12130 |
AE10#..CP |
1 | ||
| 69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-12400 |
AE10#..GT,S |
1 | ||
| 69810-12410 |
AE101..GTAPX,GTZ,SJ |
1 | ||
| 69810-12410 |
AE10#..GT,S ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH | ||||
| 69810-12400 |
AE10#..GT,S |
1 | ||
| 69810-12410 |
AE101..GTAPX,GTZ,SJ |
1 | ||
| 69810-12410 |
AE10#..GT,S ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 69811C - PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE | ||||
| 69813-32010 |
AE10#..CP |
2 | ||
| 69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-12400 |
AE10#..GT,S |
1 | ||
| 69820-12410 |
AE10#..GT,S ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 69820-12410 |
AE101..GTAPX,GTZ,SJ |
1 | ||
| 69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH | ||||
| 69820-12400 |
AE10#..GT,S |
1 | ||
| 69820-12410 |
AE10#..GT,S ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 69820-12410 |
AE101..GTAPX,GTZ,SJ |
1 | ||
| 69887 - CUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.1 | ||||
| 69888-33011 |
AE10#..CP |
2 | ||
| 69887 - CUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.1 | ||||
| 69888-33011 |
AE10#..CP |
2 | ||
| Common parts | ||||
| 90119-08093 | ||||
| 90119-08236 | ||||
| 90179-06070 | ||||
| 90209-08014 | ||||
| 91651-40612 | ||||
| 91661-40620 | ||||
