AE101-BCMZF (1991)
Toyota Lvn/Cre/Trn/Mrn
(9106-9505)CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-1A610 |
AE101..GTAPX,GTZ |
1 | ||
| 64401-1A610 |
AE10#..GT,S,SJ ｱﾘ(*RS) |
1 | ||
| 64401-1A570 |
AE101..GT,GTAPX,GTZ |
1 | ||
| 64401-1A600 |
AE10#..GT,S,SJ |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09068 |
AE10#..CP REAR |
2 | ||
| 90541-06056 |
AE10#..4FC,5F FRONT |
2 | ||
| 90541-06076 |
AE10#..CP FRONT |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09068 |
AE10#..CP REAR |
2 | ||
| 90541-06056 |
AE10#..4FC,5F FRONT |
2 | ||
| 90541-06076 |
AE10#..CP FRONT |
2 | ||
| 64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90950-01604 |
AE10#..CP |
2 | ||
| 90950-01579 |
AE10#..CP |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-12480 |
AE10#..CP |
1 | ||
| 64510A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-12240 |
AE10#..CP |
1 | ||
| 64520A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-12230 |
AE10#..CP |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-12450 |
AE101..GT,GTAPX,GTZ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64531-12440 |
AE10#..GT,S,SJ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64531-12560 |
AE10#..GT,S,SJ ｱﾘ(*RS) |
1 | ||
| 64531-12430 |
AE101..GT,GTAPX,GTZ |
1 | ||
| 64531-12560 |
AE101..GTAPX,GTZ |
1 | ||
| 64531-12570 |
AE101..GTAPX,GTZ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64531-12420 |
AE10#..GT,S,SJ |
1 | ||
| 64531-12570 |
AE10#..GT,S,SJ ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(*RS) |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-12420 |
AE101..GT,GTAPX,GTZ |
1 | ||
| 64532-12410 |
AE10#..GT,S,SJ |
1 | ||
| 64532-12560 |
AE101..GTAPX,GTZ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64532-12560 |
AE10#..GT,S,SJ ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(*RS) |
1 | ||
| 64532-12430 |
AE10#..GT,S,SJ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64532-12550 |
AE10#..GT,S,SJ ｱﾘ(*RS) |
1 | ||
| 64532-12550 |
AE101..GTAPX,GTZ |
1 | ||
| 64532-12440 |
AE101..GT,GTAPX,GTZ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-12610 |
AE10#..CP |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AE10#..GT,GTAPX,S,SJ ｱﾘ(*66) |
2 | ||
| 69749-12010 |
AE10#..GT,GTAPX,S,SJ |
3 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-12200 |
AE10#..GT,S |
1 | ||
| 64610-12190 |
AE101..GTAPX,GTZ,SJ |
1 | ||
| 64610B - SPRING, TENSION(FOR LOCK) | ||||
| 90506-05001 |
AE10#..CP |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-12100 |
AE10#..CP |
1 | ||
| 64640 - OPENER ASSY, LUGGAGE DOOR LOCK | ||||
| 64640-12090G0 |
AE10#..F,X SPRUCE,TRIM6# |
1 | ||
| 64640-1209022 |
AE10#..F,G,GT,GTZ,S,X BLACK,TRIM2# |
1 | ||
| 64640-1209022 |
AE10# BLACK,TRIM2# |
1 | ||
| 64640-1209022 |
AE101..GTAPX BLACK,TRIM20,2#,21,22 |
1 | ||
| 64648 - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12010 |
AE10# |
2 | ||
| 64648 - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12010 |
AE10# |
2 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20040 |
AE10#..CP |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90119-06256 | ||||
| 90119-06640 | ||||
| 90164-60015 | ||||
| 90469-05003 | ||||
| 93315-15010 | ||||

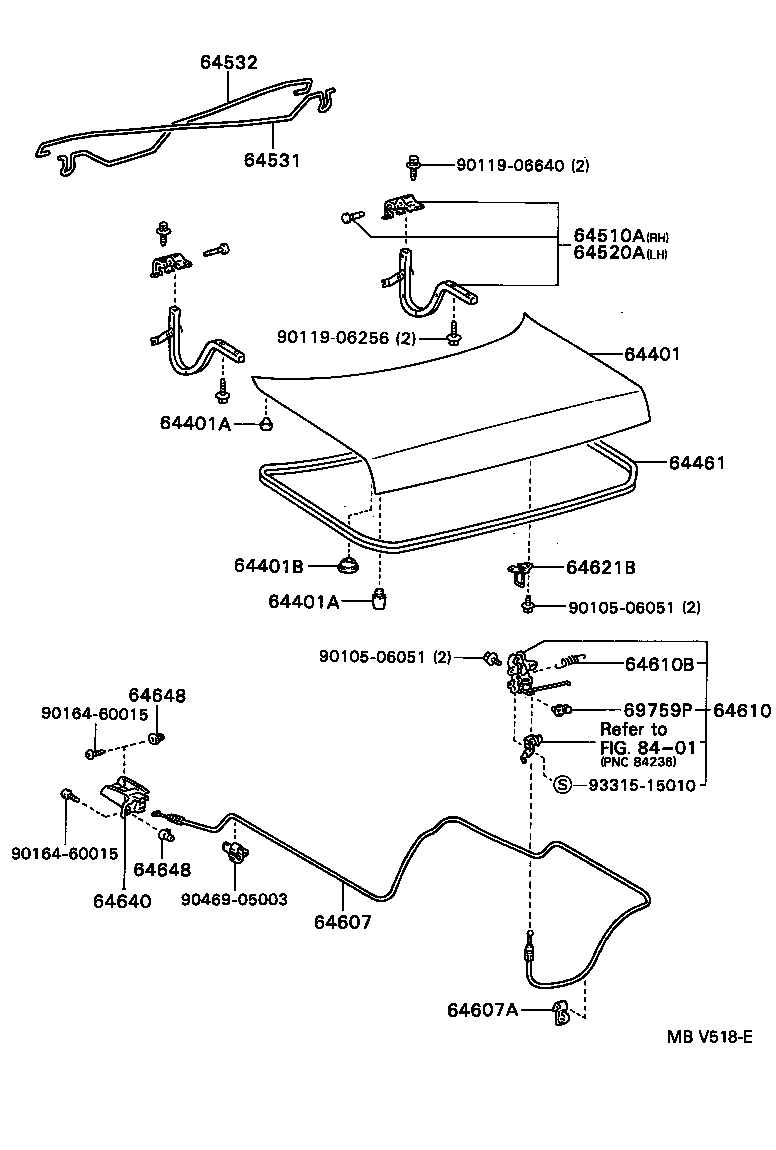

| Linked diagrams | ||||
| 8401 | ||||
