AE101-BCMZF (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9704)4AGE

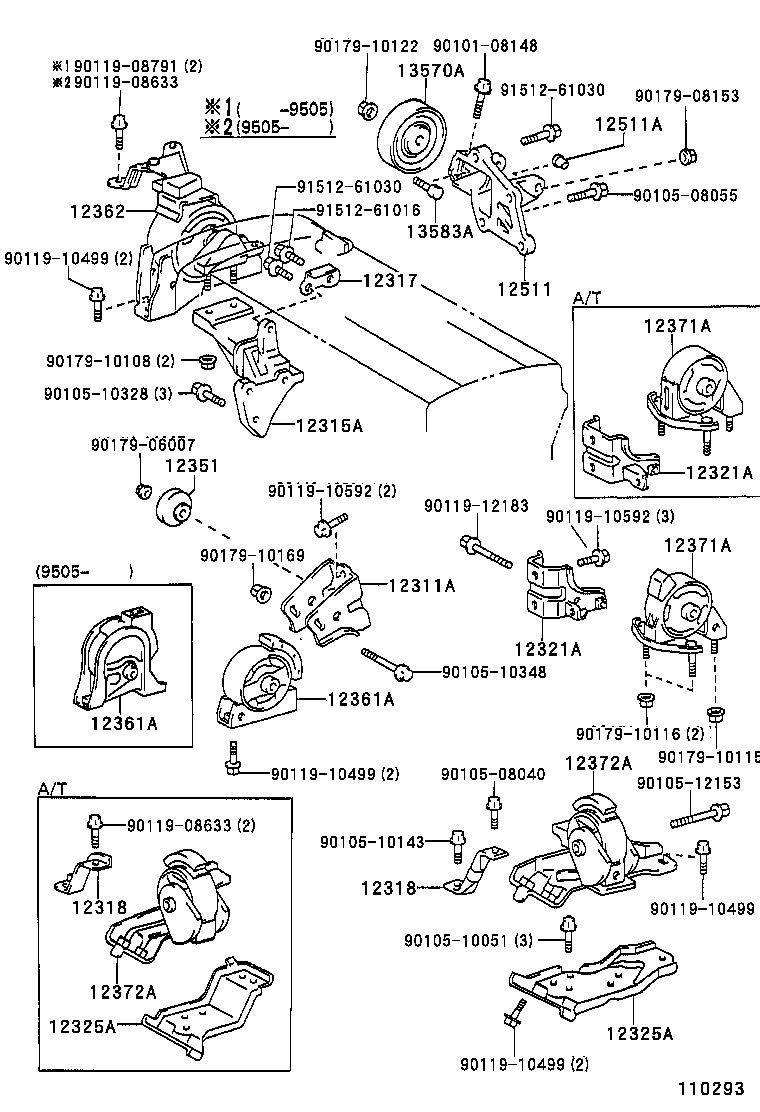

Click highlighted areas on diagram

diagram 12311A 12315A 12317 12318 12318 12321A 12321A 12325A 12325A 12351 12361A 12361A 12362 12371A 12371A 12372A 12372A 12511 12511A 13570A 13583A 9010108148 9010508040 9010508055 9010510051 9010510143 9010510328 9010510348 9010512153 9011908633 9011908633 9011908791 9011910499 9011910499 9011910499 9011910499 9011910592 9011910592 9011912183 9017906007 9017908153 9017910108 9017910115 9017910116 9017910122 9017910169 9151261016 9151261030 9151261030
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-16090

4AGE..AE101

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-16050

4AGE..AE101

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-16050

4AGE..AE101

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-16010

4AGE..AE101..5F

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-16010

4AGE..AE101..5F

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-16210

4AGE..AE101..MTM

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-16210

4AGE..AE101..MTM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16120

4AFE,4AGE,5AFE..AE10#..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16120

4AFE,4AGE,5AFE..AE10#..5F

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-16190

4AG#..AE101..5F

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-16190

4AG#..AE101..5F

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-16010

4AGE..AE101

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-16260

4AGE..AE101..5F

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-16260

4AGE..AE101..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-16210

4AGE..AE101..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-16210

4AGE..AE101..5F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-16080

4AGE..AE101

 1
12511A - BUSH, ALTERNATOR BRACKET
90389-10017

4AGE..AE101

 1
13570A - IDLER ASSY, V-RIBBED, NO.1
13570-16010

4AG#..AE101

 1
13583A - SHAFT, IDLER, V-RIBBED BELT
13583-16010

4AG#..AE101

 1
Common parts
90101-08148
90105-08040
90105-08055
90105-10051
90105-10143
90105-10328
90105-10348
90105-12153
90119-08633
90119-08791
90119-10499
90119-10592
90119-12183
90179-06007
90179-08153
90179-10108
90179-10115
90179-10116
90179-10122
90179-10169
91512-61016
91512-61030
