AE101-BCMVF (1991)
Toyota Lvn/Cre/Trn/Mrn
Production
Jun 1991
-
May 1995
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 3 OF 3(9106- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

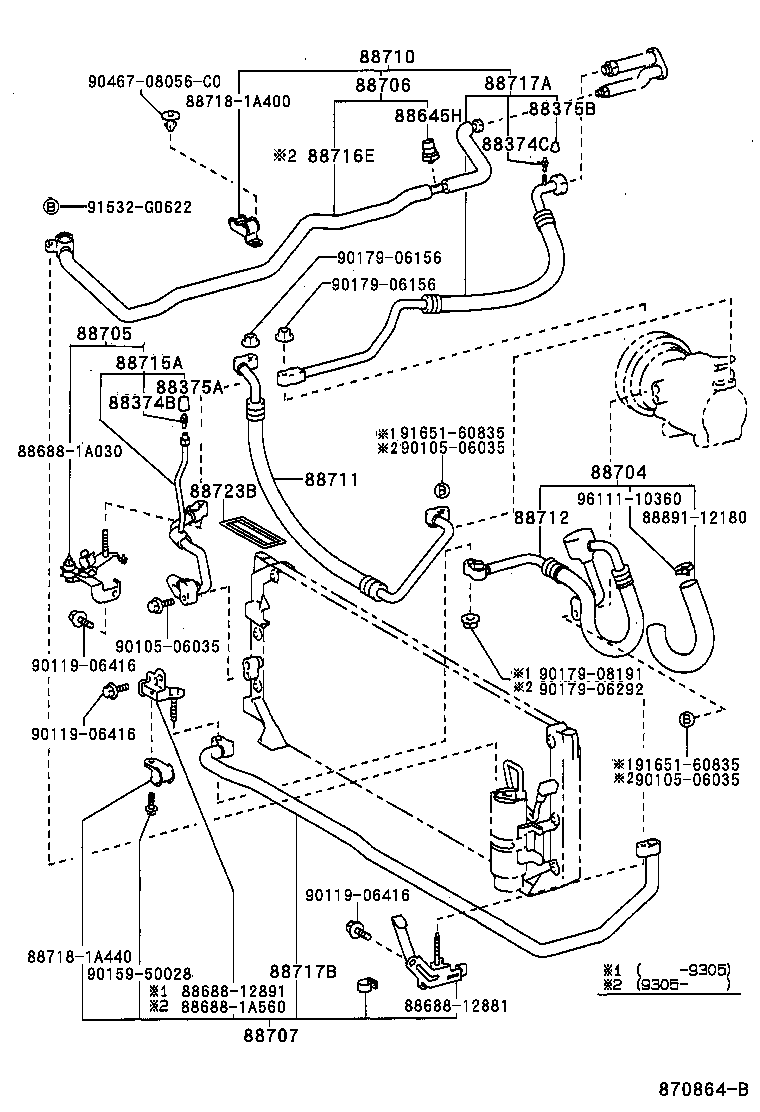

ILLUST NO. 2 OF 3(9106-9505)G,GT,GTAPX,GTZ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 48094-10010 |
AE10#..F,S,X |
1 | ||
| 88374-30010 |
AE10# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
AE10#..F,S,X |
1 | ||
| 88374-12020 |
AE10#..F,S,X |
1 | ||
| 88374-30010 |
AE10# |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-24010 |
AE10# |
1 | ||
| 88375-30280 |
AE10# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30270 |
AE10#..F,S,X |
1 | ||
| 88375-30290 |
AE10# |
1 | ||
| 88375-30290 |
AE10#..F,S,X |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-50010 |
AE10# |
1 | ||
| 88645-20050 |
AE10# |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-12330 |
AE101..G,GT,GTAPX |
1 | ||
| 88704-12470 |
AE101..G,GT,GTAPX |
1 | ||
| 88705 - PIPE SUB-ASSY, DISCHARGE | ||||
| 88705-12090 |
AE101 |
1 | ||
| 88705-12010 |
AE101 |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-12080 |
AE101 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-12030 |
AE101 |
1 | ||
| 88707-12130 |
AE101 |
1 | ||
| 88707-12160 |
AE101 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12230 |
AE101 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12650 |
AE101..G,GT,GTAPX |
1 | ||
| 88711-12830 |
AE101..G,GT,GTAPX |
1 | ||
| 88711-1A070 |
AE101..G,GT,GTAPX |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1A090 |
AE10#..F,S,SJ,X |
1 | ||
| 88712-12840 |
AE10#..F,S,SJ,X |
1 | ||
| 88712-1A100 |
AE101..G,GT,GTAPX |
1 | ||
| 88712-12850 |
AE101..G,GT,GTAPX |
1 | ||
| 88712-1A130 |
AE10#..F,S,SJ,X |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-12380 |
AE101 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88704-12380 |
AE101 |
1 | ||
| 88704-12540 |
AE101 |
1 | ||
| 88717-1A010 |
AE101 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-12740 |
AE10# |
1 | ||
| 88717-12550 |
AE10# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12110 |
AE10# |
1 | ||
| 88723-12050 |
AE10# |
1 | ||
| Common parts | ||||
| 88688-12881 | ||||
| 88688-12891 | ||||
| 88688-1A030 | ||||
| 88688-1A560 | ||||
| 88718-1A400 | ||||
| 88718-1A440 | ||||
| 88891-12180 | ||||
| 90105-06035 | ||||
| 90119-06416 | ||||
| 90159-50028 | ||||
| 90179-06156 | ||||
| 90179-06292 | ||||
| 90179-08191 | ||||
| 90467-08056C0 | ||||
| 91532-G0622 | ||||
| 91651-60835 | ||||
| 96111-10360 | ||||
ILLUST NO. 1 OF 3(9106-9312)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-12110 |
AE101 |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-12080 |
AE10# |
1 | ||
| 88453-10020 |
AE10# |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-12080 |
AE10# |
1 | ||
| 88453-10020 |
AE10# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12130 |
AE10# |
1 | ||
| 88454-12150 |
AE10# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12410 |
AE10# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
AE10# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
AE10# |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-60010 |
AE10# |
1 | ||
| 88471-12020 |
AE10# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-12080 |
AE10# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12130 |
AE10# |
1 | ||
| 88550-12150 |
AE10# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12210 |
AE10# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-12360 |
AE10# |
1 | ||
| 88726-12410 |
AE10# |
1 | ||
| 88892P - NET, FAN SHROUD | ||||
| 88892-12200 |
AE10# |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-12130 | ||||
| 88467-12140 | ||||
| 88569-12280 | ||||
| 88688-1A050 | ||||
| 88897-12250 | ||||
| 88899-12290 | ||||
| 90091-20609 | ||||
| 90099-00192 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06336 | ||||
| 90119-06502 | ||||
| 90179-06032 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 3(9312- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-12080 |
AE10# |
1 | ||
| 88453-10020 |
AE10# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-12130 |
AE10# |
1 | ||
| 88454-12150 |
AE10# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-12410 |
AE10# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12100 |
AE10# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
AE10# |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12110 |
AE10# |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-60010 |
AE10# |
1 | ||
| 88471-12020 |
AE10# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-12080 |
AE10# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12130 |
AE10# |
1 | ||
| 88550-12150 |
AE10# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-12210 |
AE10# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-12360 |
AE10# |
1 | ||
| 88726-12410 |
AE10# |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-12130 | ||||
| 88467-12140 | ||||
| 88569-12280 | ||||
| 88897-12250 | ||||
| 88899-12290 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06336 | ||||
| 90119-06502 | ||||
| 93385-56025 | ||||
ILLUST NO. 2 OF 3(9106-9505)F,S,X
Click highlighted areas on diagram
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 48094-10010 |
AE10#..F,S,X |
1 | ||
| 88374-30010 |
AE10# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
AE10#..F,S,X |
1 | ||
| 88374-12020 |
AE10#..F,S,X |
1 | ||
| 88374-30010 |
AE10# |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-24010 |
AE10# |
1 | ||
| 88375-30280 |
AE10# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30270 |
AE10#..F,S,X |
1 | ||
| 88375-30290 |
AE10# |
1 | ||
| 88375-30290 |
AE10#..F,S,X |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
AE10#..F,S,X |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
AE10#..F,S,X 250G |
3 | ||
| 90986-02008 |
AE10#..F,S,X 200G |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-50010 |
AE10# |
1 | ||
| 88645-20050 |
AE10# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-12650 |
AE101..G,GT,GTAPX |
1 | ||
| 88711-12830 |
AE101..G,GT,GTAPX |
1 | ||
| 88711-1A070 |
AE101..G,GT,GTAPX |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1A090 |
AE10#..F,S,SJ,X |
1 | ||
| 88712-12840 |
AE10#..F,S,SJ,X |
1 | ||
| 88712-1A100 |
AE101..G,GT,GTAPX |
1 | ||
| 88712-12850 |
AE101..G,GT,GTAPX |
1 | ||
| 88712-1A130 |
AE10#..F,S,SJ,X |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-1A240 |
AE10#..F,S,X |
1 | ||
| 88716-1A020 |
AE10#..F,S,X |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88704-12380 |
AE101 |
1 | ||
| 88704-12540 |
AE101 |
1 | ||
| 88717-1A010 |
AE101 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-12740 |
AE10# |
1 | ||
| 88717-12550 |
AE10# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-12110 |
AE10# |
1 | ||
| 88723-12050 |
AE10# |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88688-12881 | ||||
| 88688-12891 | ||||
| 88688-1A520 | ||||
| 88718-1A450 | ||||
| 90091-20609 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90119-06458 | ||||
| 90179-06032 | ||||
| 90179-08191 | ||||
| 90467-07043C0 | ||||
| 91651-60835 | ||||
| 93385-56025 | ||||
