AE101-BCMVF (1991)

Toyota Lvn/Cre/Trn/Mrn

Production Jun 1991 - May 1995
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )4AGE

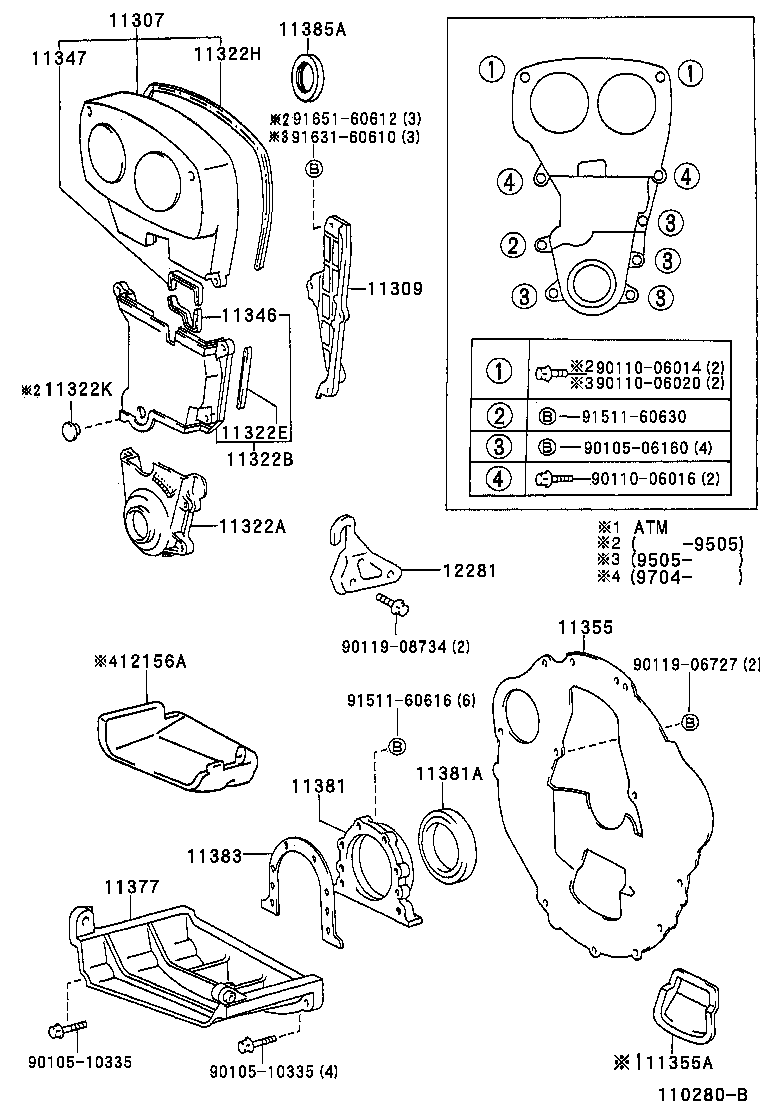

Click highlighted areas on diagram

diagram 11307 11309 11322A 11322B 11322E 11322H 11322K 11346 11347 11355 11355A 11377 11381 11381A 11383 11385A 12156A 12281 9010506160 9010510335 9010510335 9011006014 9011006016 9011006020 9011906727 9011908734 9151160616 9151160630 9163160610 9165160612
Part # Description Qty Price
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-16050

4AGE..AE101

 1
11309 - COVER SUB-ASSY, TIMING BELT, NO.4
11325-16030

4AGE..AE101

 1
11322A - COVER, TIMING BELT, NO.1
11302-16011

4AG#..AE101

 1
11322B - COVER, TIMING BELT, NO.2
11303-16030

4AGE..AE101

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-16020

4AGE..AE101

 1
11322H - GASKET, TIMING BELT COVER, NO.3
11319-16020

4AGE..AE101

 1
11322K - PLUG, HOLE
90950-01535

4AGE..AE101

 1
11346 - GASKET, TIMING BELT COVER, NO.4
11346-16030

4AGE..AE101

 1
11347 - GASKET, TIMING BELT COVER, NO.5
11347-16020

4AGE..AE101

 1
11355 - PLATE, REAR END
11355-15070

4AFE,4AGE,5AFE..AE10#..MTM

 1
11377 - STIFFENER, REAR END PLATE
11377-15011

4AFE,4AGE,5AFE..AE10#

 1
11377-15010

4AFE,4AGE,5AFE..AE10#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-15010

4AFE,4AG#,5AFE..AE10#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70007

4AFE,4AGE,5AFE..AE10#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-15011

4AFE,4AG#,5AFE..AE10#

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-40016

4AGE..AE101

INTAKE

 1
90311-35013

4AGE..AE101

EXHAUST

 1
12281 - HANGER, ENGINE, NO.1
12281-16040

4AGE..AE101

 1
Common parts
90105-06160
90105-10335
90110-06014
90110-06016
90110-06020
90119-06727
90119-08734
91511-60616
91511-60630
91631-60610
91651-60612
