AE101-ATPVF (1992)
Toyota Lvn/Cre/Trn/Mrn
Production
May 1992
-
Aug 1998
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )HT

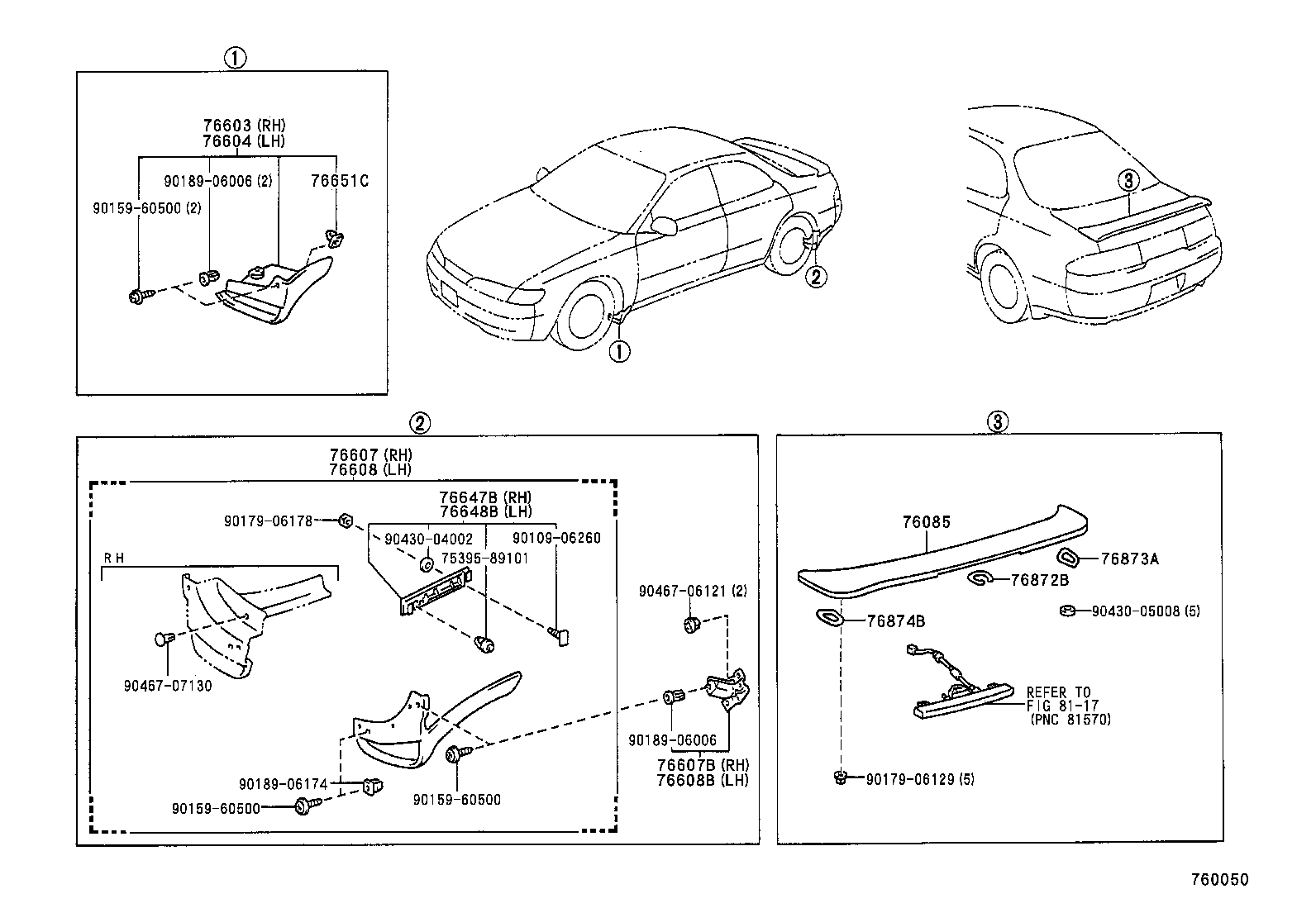

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-12914 |
AE10#..HT |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-19245 |
AE10#..HT |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-19245 |
AE10#..HT |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-1948517 |
AE10# LIGTH AQUA M.OPAL,748 |
1 | ||
| 76607-19585 |
AE10#..HT |
1 | ||
| 76607B - BRACKET, QUARTER PANEL REAR MUDGUARD, RH | ||||
| 76645-12040 |
AE10#..HT |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-19585 |
AE10#..HT |
1 | ||
| 76626-1948517 |
AE10# LIGTH AQUA M.OPAL,748 |
1 | ||
| 76608B - BRACKET, QUARTER PANEL REAR MUDGUARD, LH | ||||
| 76646-12040 |
AE10#..HT |
1 | ||
| 76647B - SUPPORT, REAR BODY MUDGUARD, RH | ||||
| 76647-12010 |
AE10#..HT |
1 | ||
| 76648B - SUPPORT, REAR BODY MUDGUARD, LH | ||||
| 76647-12010 |
AE10#..HT |
1 | ||
| 76651C - RETAINER, FRONT MUDGUARD | ||||
| 76651-12060 |
AE10#..HT |
2 | ||
| 76872B - PROTECTOR, REAR SPOILER, CENTER | ||||
| 76872-12120 |
AE10#..HT |
1 | ||
| 90999-91054 |
AE10#..HT |
1 | ||
| 76873A - PROTECTOR, REAR SPOILER, RH | ||||
| 76873-12130 |
AE10#..HT |
1 | ||
| 76874B - PROTECTOR, REAR SPOILER, LH | ||||
| 76873-12130 |
AE10#..HT |
1 | ||
| Common parts | ||||
| 75395-89101 | ||||
| 90109-06260 | ||||
| 90159-60500 | ||||
| 90179-06129 | ||||
| 90179-06178 | ||||
| 90189-06006 | ||||
| 90189-06174 | ||||
| 90430-04002 | ||||
| 90430-05008 | ||||
| 90467-06121 | ||||
| 90467-07130 | ||||
| Linked diagrams | ||||
| 8117 | ||||
