AE101-ATPVF (1992)
Toyota Lvn/Cre/Trn/Mrn

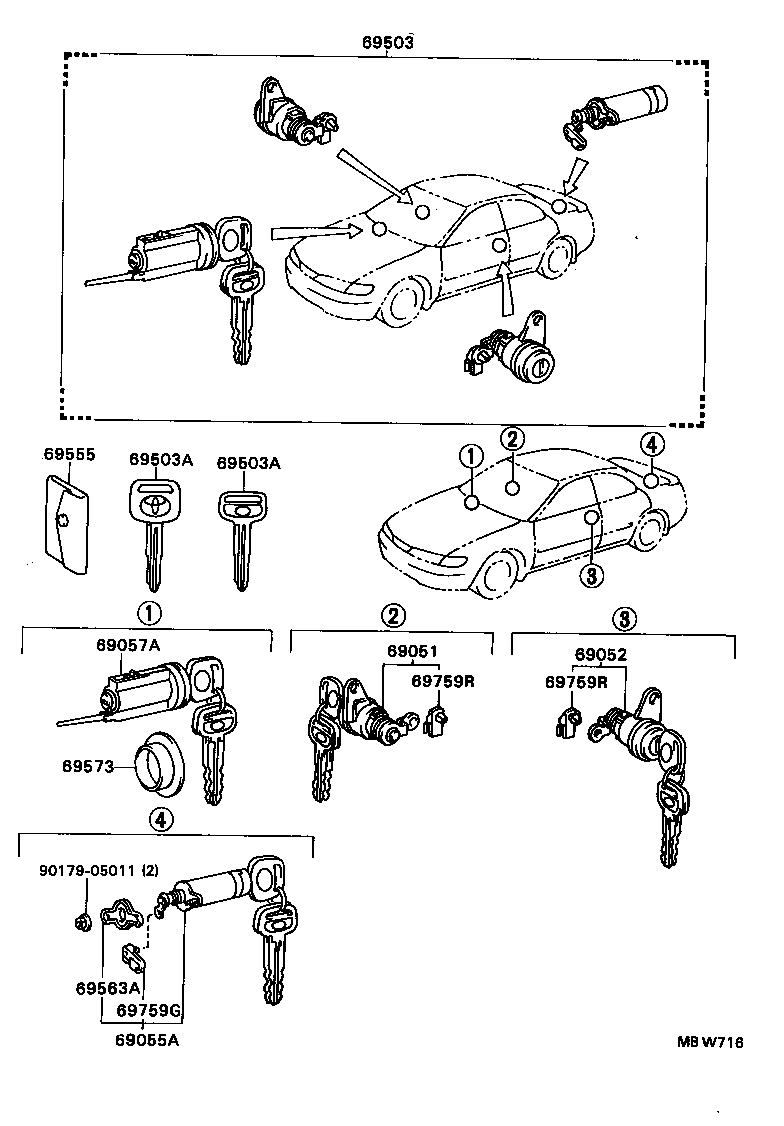

(9205- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-12380 |
AE10#..HT |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-12380 |
AE10#..HT |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-12850 |
AE10#..HT |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-13120 |
AE10#..HT |
1 | ||
| 69057-12240 |
AE10#..HT ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-1A530 |
AE10#..HT |
1 | ||
| 69005-1A610 |
AE10#..HT ｴｸｽﾄﾗ ｼﾖｳ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00193 |
AE10#..HT ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00192 |
AE10# ﾏｽﾀｰｷｰ |
2 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00193 |
AE10#..HT ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00192 |
AE10# ﾏｽﾀｰｷｰ |
2 | ||
| 69555 - COVER, KEY | ||||
| 69555-17020 |
AE10# |
1 | ||
| 69555-17020 |
AE10#..HT |
1 | ||
| 69555-95J00 |
AE10# |
1 | ||
| 69555-20030 |
AE10# |
1 | ||
| 69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER | ||||
| 69563-12080 |
AE10#..HT |
1 | ||
| 69573 - PAD, IGNITION SWITCH LOCK CYLINDER | ||||
| 69573-12030 |
AE10#..HT ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 69573-12010 |
AE10# |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24080 |
AE10#..HT |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24090 |
AE10#..HT..(4FC,5F) 左側 |
1 | ||
| 69759-24080 |
AE10#..4FC,5F |
2 | ||
| 69759-24080 |
AE10#..HT..(4FC,5F) 右側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24090 |
AE10#..HT..(4FC,5F) 左側 |
1 | ||
| 69759-24080 |
AE10#..4FC,5F |
2 | ||
| 69759-24080 |
AE10#..HT..(4FC,5F) 右側 |
1 | ||
| Common parts | ||||
| 90179-05011 | ||||

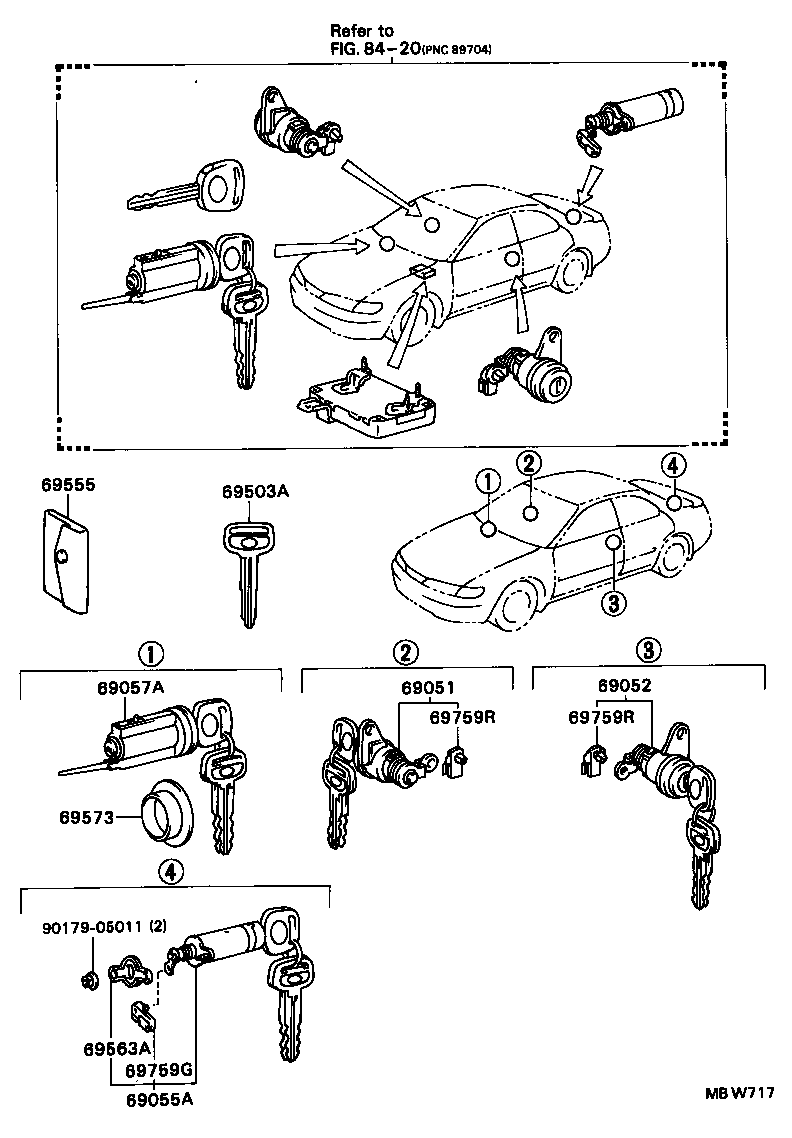

(9205- )HT
ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-12380 |
AE10#..HT |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-12380 |
AE10#..HT |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-12850 |
AE10#..HT |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-13120 |
AE10#..HT |
1 | ||
| 69057-12240 |
AE10#..HT ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00193 |
AE10#..HT ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00192 |
AE10# ﾏｽﾀｰｷｰ |
2 | ||
| 69555 - COVER, KEY | ||||
| 69555-17020 |
AE10# |
1 | ||
| 69555-17020 |
AE10#..HT |
1 | ||
| 69555-95J00 |
AE10# |
1 | ||
| 69555-20030 |
AE10# |
1 | ||
| 69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER | ||||
| 69563-12080 |
AE10#..HT |
1 | ||
| 69573 - PAD, IGNITION SWITCH LOCK CYLINDER | ||||
| 69573-12030 |
AE10#..HT ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 69573-12010 |
AE10# |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24080 |
AE10#..HT |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24090 |
AE10#..HT..(4FC,5F) 左側 |
1 | ||
| 69759-24080 |
AE10#..4FC,5F |
2 | ||
| 69759-24080 |
AE10#..HT..(4FC,5F) 右側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24090 |
AE10#..HT..(4FC,5F) 左側 |
1 | ||
| 69759-24080 |
AE10#..4FC,5F |
2 | ||
| 69759-24080 |
AE10#..HT..(4FC,5F) 右側 |
1 | ||
| Common parts | ||||
| 90179-05011 | ||||
| Linked diagrams | ||||
| 8420 | ||||
