AE101-ATPVF (1992)

Toyota Lvn/Cre/Trn/Mrn

Production May 1992 - Aug 1998
Engine 4AGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )HT

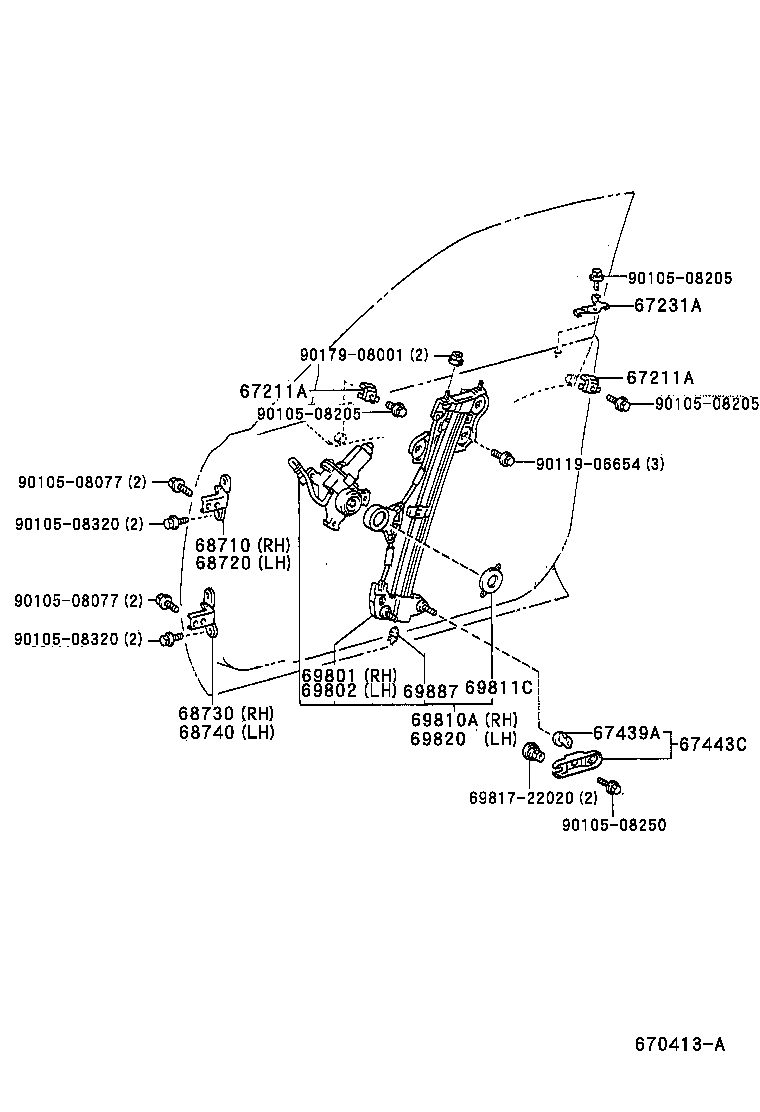

Click highlighted areas on diagram

diagram 67211A 67211A 67231A 67439A 67443C 68710 68720 68730 68740 69801 69802 69810A 69811C 6981722020 69820 69887 9010508077 9010508077 9010508205 9010508205 9010508205 9010508250 9010508320 9010508320 9011906654 9017908001
Part # Description Qty Price
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-30090

AE10#..HT

 4
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-30090

AE10#..HT

 4
67231A - SUPPORT, FRONT DOOR TRIM
67203-12010

AE10#..HT..(4FC,5F)

右側

 1
67204-12010

AE10#..HT..(4FC,5F)

左側

 1
67439A - SNAP, FRONT DOOR WINDOW GUIDE
67439-12020

AE10#..HT

 2
67443C - PLATE, FRONT DOOR WINDOW GUIDE, LOWER
67443-12090

AE10#..HT

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12150

AE10#

 1
68710-12130

AE10#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12150

AE10#

 1
68720-12130

AE10#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12090

AE10#

 1
68730-12110

AE10#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12110

AE10#

 1
68740-12090

AE10#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-12150

AE10#..HT

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-12150

AE10#..HT

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-12550

AE10#

 1
69810-12420

AE10#..HT

 1
69811C - PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
69811-32050

AE10#..HT

 2
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-12420

AE10#..HT

 1
69887 - CUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.1
69887-12030

AE10#..HT

 2
Common parts
69817-22020
90105-08077
90105-08205
90105-08250
90105-08320
90119-06654
90179-08001
