AE101-ATPEK (1992)
Toyota Lvn/Cre/Trn/Mrn
Production
May 1992
-
Aug 1998
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )CRE

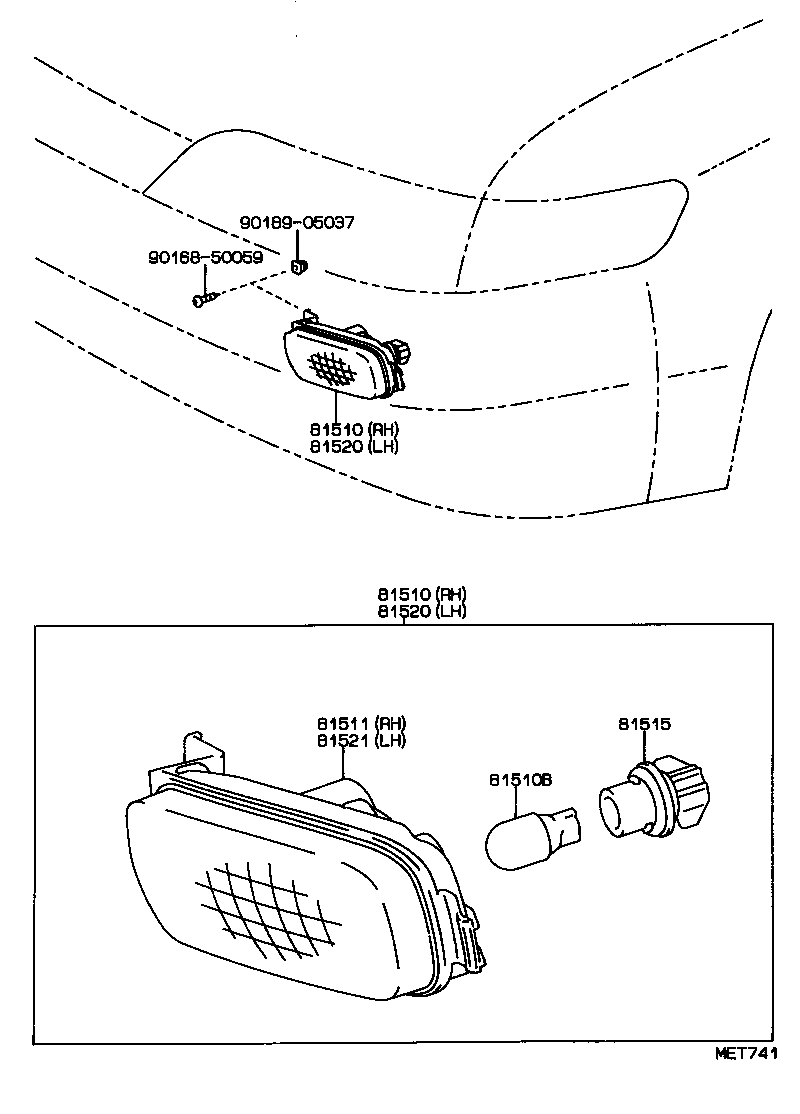

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-12710 |
AE10#..CRE |
1 | ||
| 81510-12790 |
AE10#..CRE |
1 | ||
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-12710 |
AE10#..CRE |
1 | ||
| 81510-12790 |
AE10#..CRE |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-13050 |
AE10#..HT 12V 21W |
2 | ||
| 90981-13043 |
AE10# 12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-12790 |
AE10#..CRE |
1 | ||
| 81511-12710 |
AE10#..CRE |
1 | ||
| 81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY | ||||
| 90075-99032 |
AE10#..HT |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-12690 |
AE10#..CRE |
1 | ||
| 81520-12770 |
AE10#..CRE |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-12690 |
AE10#..CRE |
1 | ||
| 81520-12770 |
AE10#..CRE |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-12690 |
AE10#..CRE |
1 | ||
| 81521-12770 |
AE10#..CRE |
1 | ||
| Common parts | ||||
| 90168-50059 | ||||
| 90189-05037 | ||||
