AE101-ATMVF (1992)

Toyota Lvn/Cre/Trn/Mrn

Production May 1992 - Apr 1997
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9505)F,G,GT,GTAPX,S,SJ,X

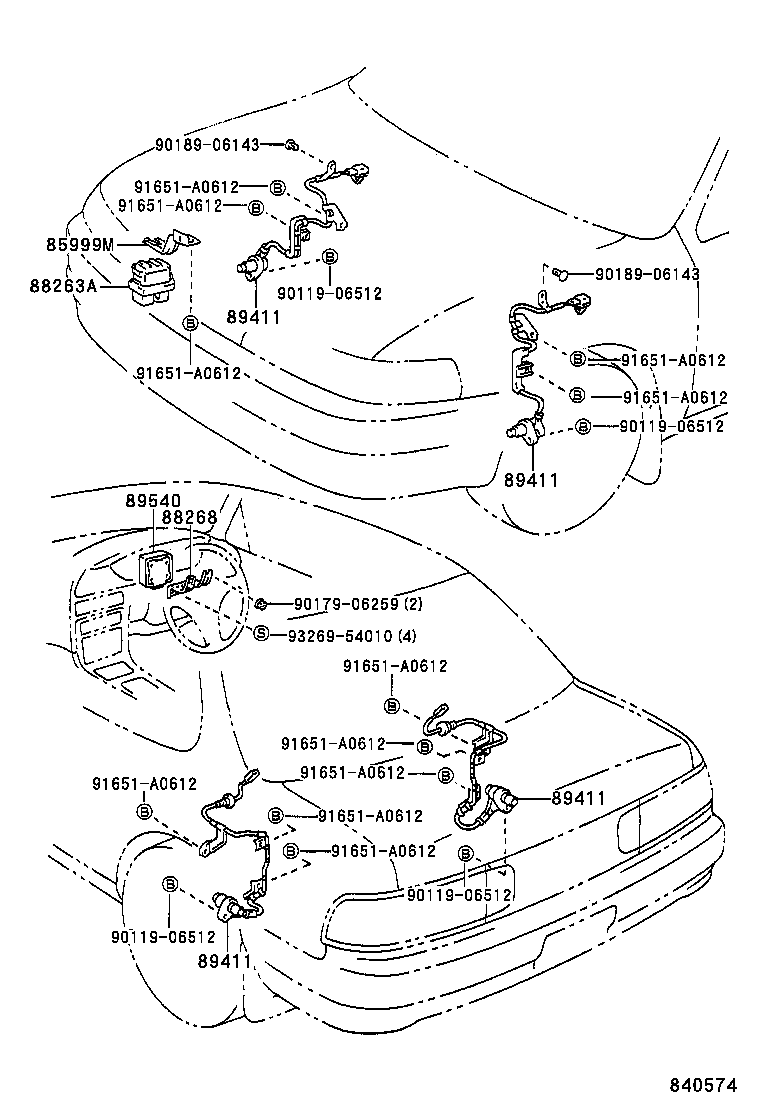

Click highlighted areas on diagram

diagram 85999M 88263A 88268 89411 89411 89411 89411 89540 9011906512 9011906512 9011906512 9011906512 9017906259 9018906143 9018906143 91651A0612 91651A0612 91651A0612 91651A0612 91651A0612 91651A0612 91651A0612 91651A0612 91651A0612 91651A0612 91651A0612 9326954010
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-12170

AE10#

 1
85999-12320

AE10#

 1
85999-12360

AE10#

 1
88263A - RELAY, SKID CONTROL
88263-32060

AE10#

 1
88263-12070

AE10#

 1
88263-12090

AE10#

 1
88263-35070

AE10#

 1
88268 - BRACKET, SKID CONTROL COMPUTER, NO.2
88268-12080

AE10#

 1
89411 - SENSOR, SPEED
89543-12020

AE10#..F,G,GT,GTAPX,S,SJ,X

FRONT LH

 1
89542-12040

AE10#

FRONT RH

 1
89542-12020

AE10#..F,G,GT,GTAPX,S,SJ,X

FRONT RH

 1
89545-12020

AE10#

REAR RH

 1
89546-12040

AE10#

REAR LH

 1
89545-12040

AE10#

REAR RH

 1
89543-12040

AE10#

FRONT LH

 1
89546-12020

AE10#

REAR LH

 1
89411 - SENSOR, SPEED
89543-12020

AE10#..F,G,GT,GTAPX,S,SJ,X

FRONT LH

 1
89542-12040

AE10#

FRONT RH

 1
89542-12020

AE10#..F,G,GT,GTAPX,S,SJ,X

FRONT RH

 1
89545-12020

AE10#

REAR RH

 1
89546-12040

AE10#

REAR LH

 1
89545-12040

AE10#

REAR RH

 1
89543-12040

AE10#

FRONT LH

 1
89546-12020

AE10#

REAR LH

 1
89411 - SENSOR, SPEED
89543-12020

AE10#..F,G,GT,GTAPX,S,SJ,X

FRONT LH

 1
89542-12040

AE10#

FRONT RH

 1
89542-12020

AE10#..F,G,GT,GTAPX,S,SJ,X

FRONT RH

 1
89545-12020

AE10#

REAR RH

 1
89546-12040

AE10#

REAR LH

 1
89545-12040

AE10#

REAR RH

 1
89543-12040

AE10#

FRONT LH

 1
89546-12020

AE10#

REAR LH

 1
89411 - SENSOR, SPEED
89543-12020

AE10#..F,G,GT,GTAPX,S,SJ,X

FRONT LH

 1
89542-12040

AE10#

FRONT RH

 1
89542-12020

AE10#..F,G,GT,GTAPX,S,SJ,X

FRONT RH

 1
89545-12020

AE10#

REAR RH

 1
89546-12040

AE10#

REAR LH

 1
89545-12040

AE10#

REAR RH

 1
89543-12040

AE10#

FRONT LH

 1
89546-12020

AE10#

REAR LH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-12150

AE10#..F,G,GT,GTAPX,S,SJ,X

 1
89541-12040

AE10#..F,G,GT,GTAPX,S,SJ,X

NIPPONDENSO

 1
89541-12030

AE10#..F,G,GT,GTAPX,S,SJ,X

TOYOTA

 1
89540-12270

AE10#

 1
89540-12360

AE10#

 1
Common parts
90119-06512
90179-06259
90189-06143
91651-A0612
93269-54010

(9505- )

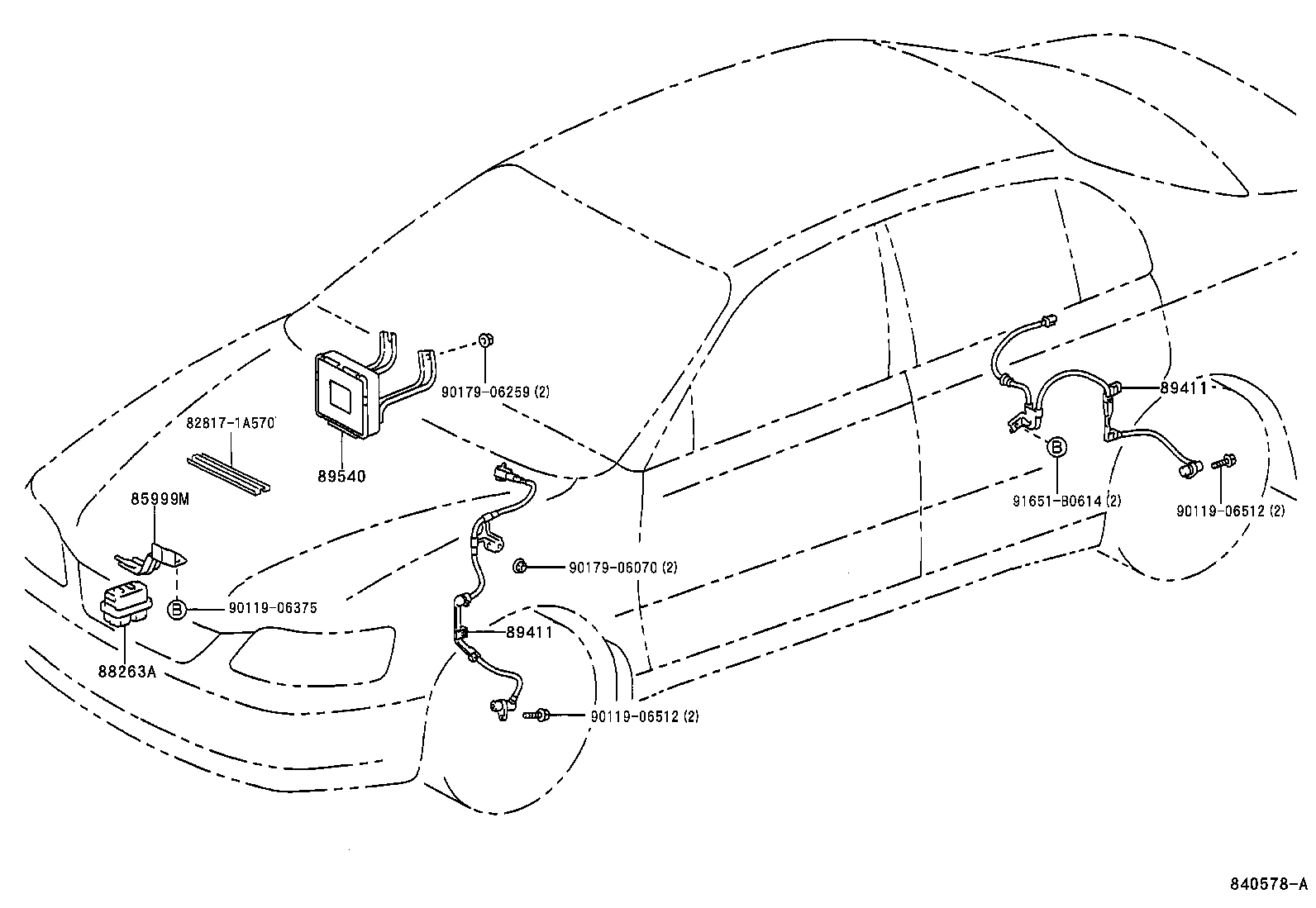

Click highlighted areas on diagram

diagram 828171A570 85999M 88263A 89411 89411 89540 9011906375 9011906512 9011906512 9017906070 9017906259 91651B0614
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-12170

AE10#

 1
85999-12320

AE10#

 1
85999-12360

AE10#

 1
88263A - RELAY, SKID CONTROL
88263-32060

AE10#

 1
88263-12070

AE10#

 1
88263-12090

AE10#

 1
88263-35070

AE10#

 1
89411 - SENSOR, SPEED
89543-12020

AE10#..F,G,GT,GTAPX,S,SJ,X

FRONT LH

 1
89542-12040

AE10#

FRONT RH

 1
89542-12020

AE10#..F,G,GT,GTAPX,S,SJ,X

FRONT RH

 1
89545-12020

AE10#

REAR RH

 1
89546-12040

AE10#

REAR LH

 1
89545-12040

AE10#

REAR RH

 1
89543-12040

AE10#

FRONT LH

 1
89546-12020

AE10#

REAR LH

 1
89411 - SENSOR, SPEED
89543-12020

AE10#..F,G,GT,GTAPX,S,SJ,X

FRONT LH

 1
89542-12040

AE10#

FRONT RH

 1
89542-12020

AE10#..F,G,GT,GTAPX,S,SJ,X

FRONT RH

 1
89545-12020

AE10#

REAR RH

 1
89546-12040

AE10#

REAR LH

 1
89545-12040

AE10#

REAR RH

 1
89543-12040

AE10#

FRONT LH

 1
89546-12020

AE10#

REAR LH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-12150

AE10#..F,G,GT,GTAPX,S,SJ,X

 1
89541-12040

AE10#..F,G,GT,GTAPX,S,SJ,X

NIPPONDENSO

 1
89541-12030

AE10#..F,G,GT,GTAPX,S,SJ,X

TOYOTA

 1
89540-12270

AE10#

 1
89540-12360

AE10#

 1
Common parts
82817-1A570
90119-06375
90119-06512
90179-06070
90179-06259
91651-B0614
